KitchenAid KEBS277BSS01 electric built-in combo wall oven Parts

Here are the diagrams and repair parts for KitchenAid KEBS277BSS01 electric built-in combo wall oven, as well as links to manuals and error code tables, if available.

KitchenAid KEBS277BSS01 electric built-in combo wall oven
By Schematic
By Part

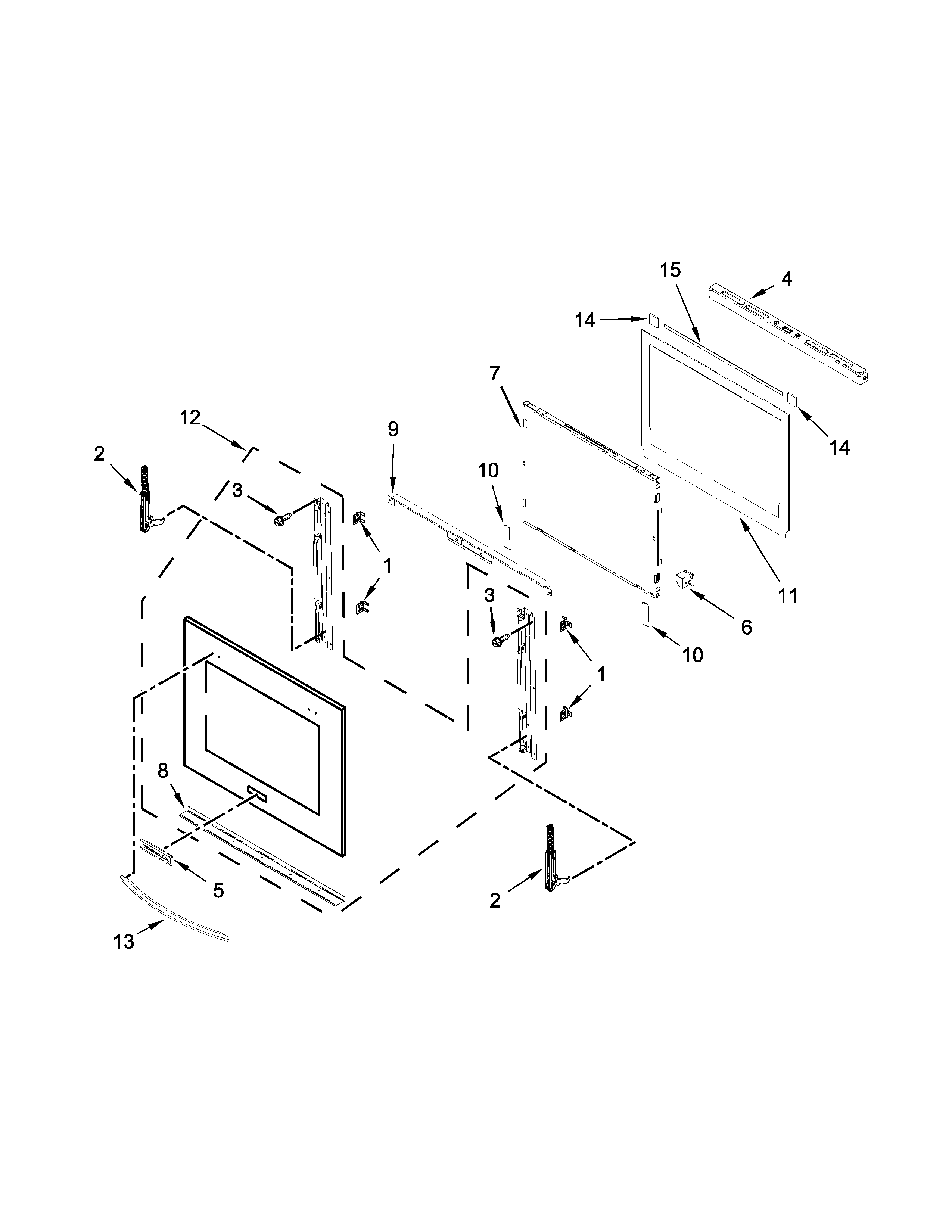

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEBS277BSS01 Electric Built-In Combo Wall Oven

  • Range Terminal Block for KitchenAid KEBS277BSS01 - Part WPW10245259

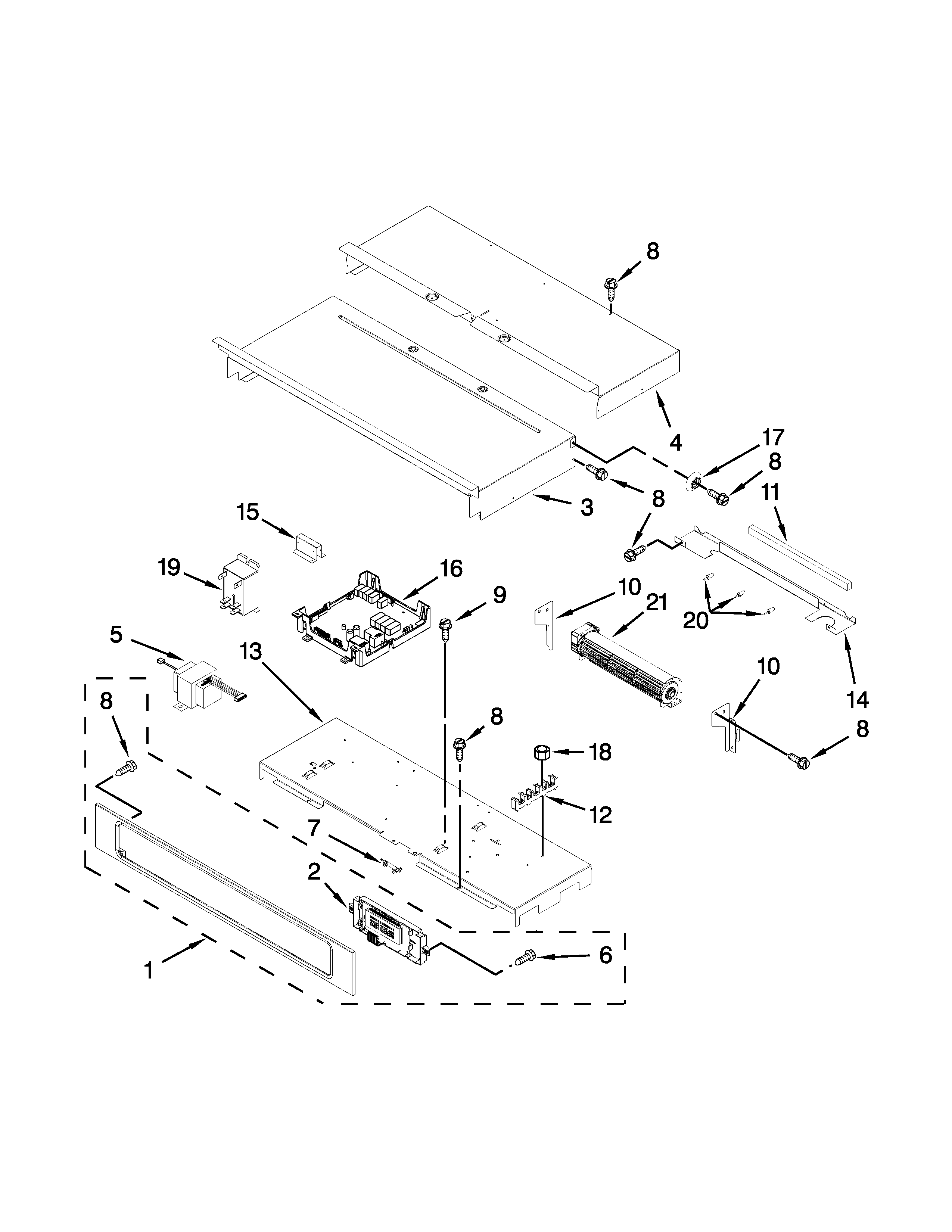

    Control panel parts diagram

    Terminal Block

    Part #7401P038-60

    Replaced by #WPW10245259

    Info Icon
    Manufacturer substitution
    This part replaces 7401P038-60. Substitute parts can look different from the original.
    In Stock
    $27.91
    18% OFF Phone Price : $33.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Silicone Sealant for KitchenAid KEBS277BSS01 - Part WP482338

    Optional parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $33.32
    15% OFF Phone Price : $39.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for KitchenAid KEBS277BSS01 - Part WP4449751

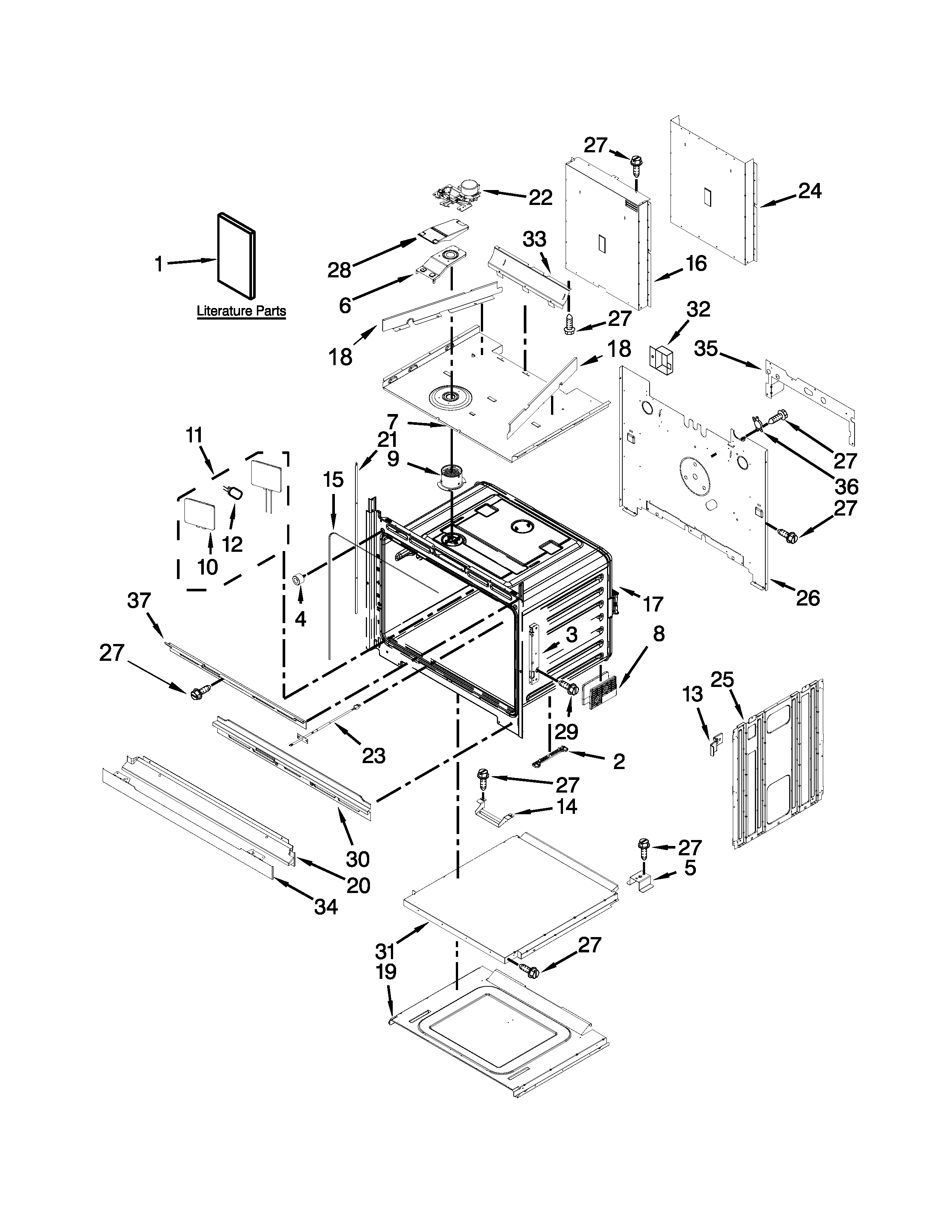

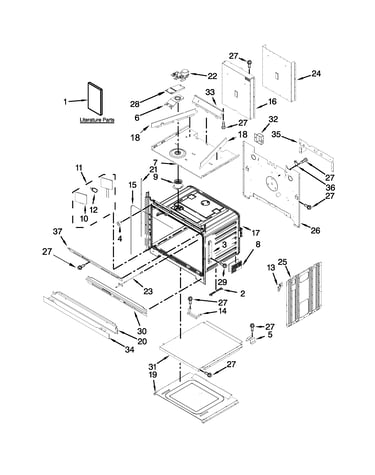

    Oven parts diagram

    Range High-limit Thermostat

    Part #4449751

    Replaced by #WP4449751

    Info Icon
    Manufacturer substitution
    This part replaces 4449751. Substitute parts can look different from the original.
    In Stock
    $75.39
    7% OFF Phone Price : $81.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for KitchenAid KEBS277BSS01 - Part 350930

    Optional parts diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Thermal Fuse for KitchenAid KEBS277BSS01 - Part WPW10545291

    Control panel parts diagram

    Oven Safety Thermostat

    Part #W10545291

    Replaced by #WPW10545291

    Info Icon
    Manufacturer substitution
    This part replaces W10545291. Substitute parts can look different from the original.
    In Stock
    $25.65
    19% OFF Phone Price : $31.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Temperature Sensor for KitchenAid KEBS277BSS01 - Part WP74008369

    Oven parts diagram

    Sensor Probe

    Part #7430P043-60

    Replaced by #WP74008369

    Info Icon
    Manufacturer substitution
    This part replaces 7430P043-60. Substitute parts can look different from the original.
    In Stock
    $171.31
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for KitchenAid KEBS277BSS01 - Part W10883049

    Oven parts diagram

    Latch-door

    Part #W10314880

    Replaced by #W10883049

    Info Icon
    Manufacturer substitution
    This part replaces W10314880. Substitute parts can look different from the original.
    In Stock
    $199.02
    6% OFF Phone Price : $211.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Convection Fan Blade for KitchenAid KEBS277BSS01 - Part W10758272

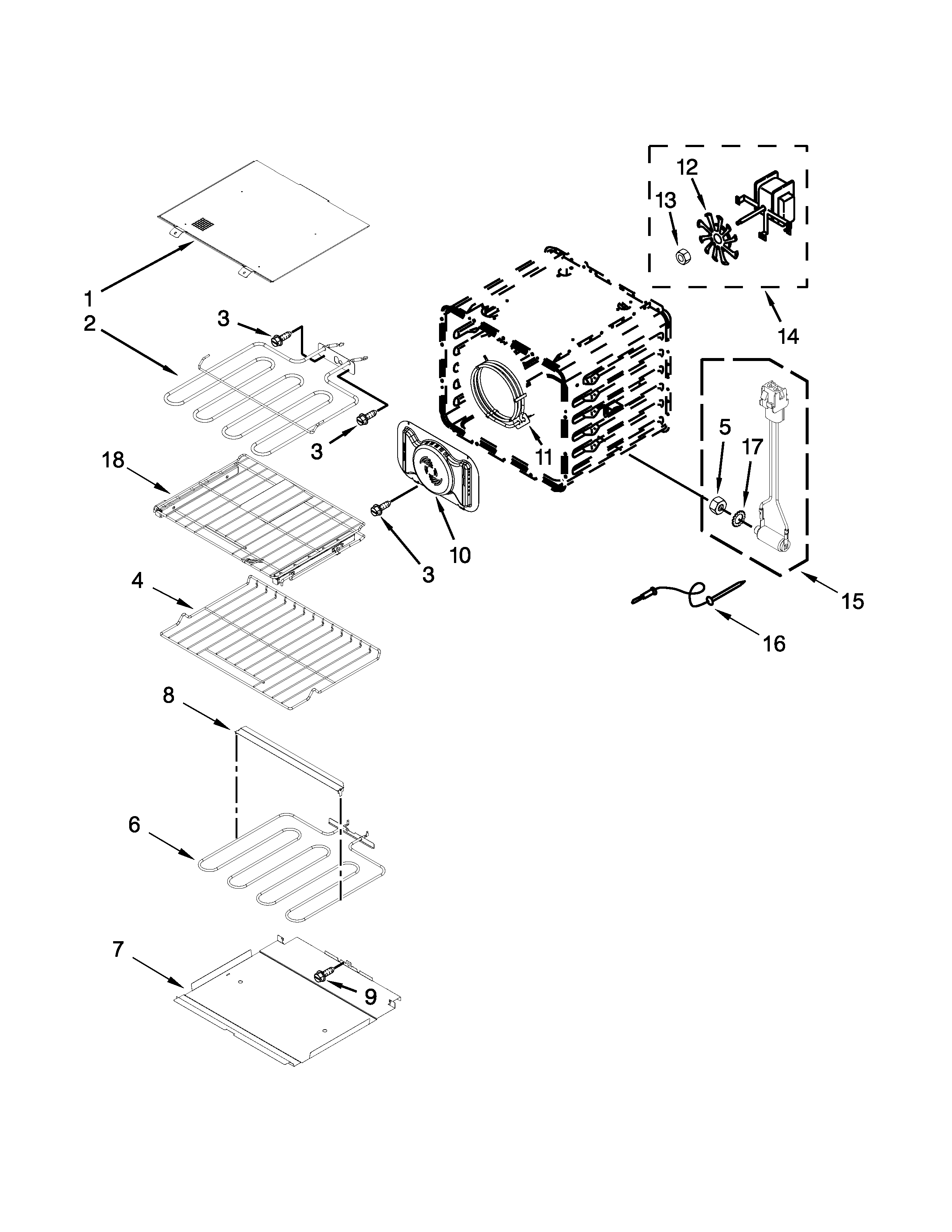

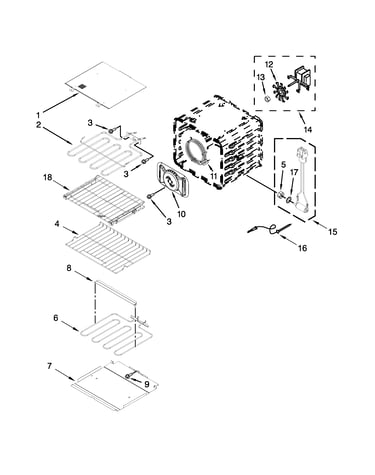

    Internal oven parts diagram

    Blade

    Part #W10116351

    Replaced by #W10758272

    Info Icon
    Manufacturer substitution
    This part replaces W10116351. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.31
    11% OFF Phone Price : $9.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hex Nut for KitchenAid KEBS277BSS01 - Part WP7103P027-60

    Terminal Nut

    Part #7103P027-60

    Replaced by #WP7103P027-60

    Info Icon
    Manufacturer substitution
    This part replaces 7103P027-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Bulb for KitchenAid KEBS277BSS01 - Part WPW10472384

    Oven parts diagram

    Oven Light Bulb

    Part #W10472384

    Replaced by #WPW10472384

    Info Icon
    Manufacturer substitution
    This part replaces W10472384. Substitute parts can look different from the original.
    In Stock
    $76.09
    7% OFF Phone Price : $82.09Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Spray Paint (biscuit) 4392901

Appliance Spray Paint (biscuit)

Part #4392901
This item is not returnable
In Stock
$32.75
15% OFF Phone Price : $38.75Info Icon
Minus Item
Qty
Plus Item
Appliance Spray Paint (gray Primer) 350938

Appliance Spray Paint (gray Primer)

Part #350938
In Stock
$52.57
10% OFF Phone Price : $58.57Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
Appliance Spray Paint (black) 285006

Appliance Spray Paint (black)

Part #285006
This item is not returnable
In Stock
$45.09
12% OFF Phone Price : $51.09Info Icon
Minus Item
Qty
Plus Item
