Amana EFL-20122-1A/P96224-26F electric furnace Parts

Name: Amana EFL-20122-1A/P96224-26F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: EFL-20122-1A/P96224-26F
Availability: InStock

Here are the diagrams and repair parts for Amana EFL-20122-1A/P96224-26F electric furnace, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for EFL-20122-1A/P96224-26F Electric Furnace

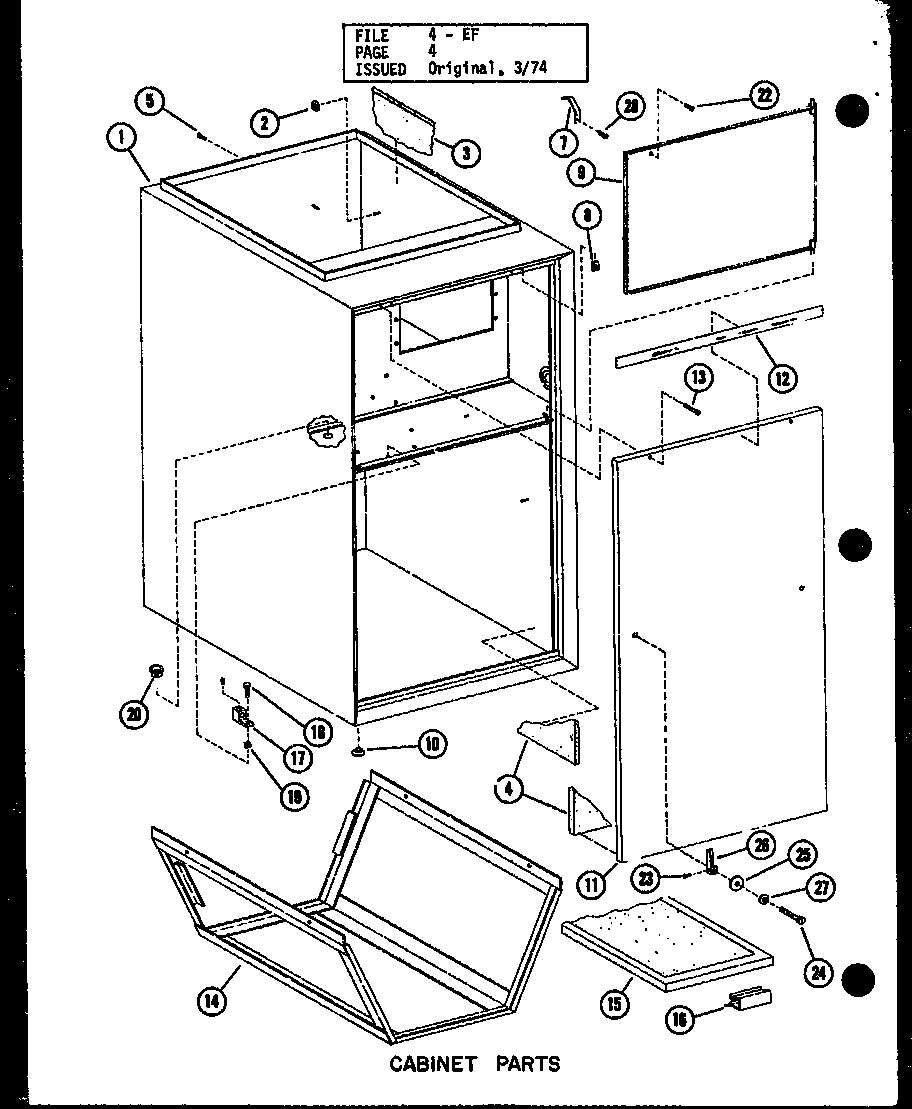

Cabinet parts (efl-2070-1a/p96224-23f) (efl-2087-1a/p96224-24f) (efl-20105-1a/p96224-25f) (efl-20122-1a/p96224-26f) diagram
Insulation, Upper Side Panels, 18-1/2" X 17-/4" X 1"
Part #A9016807
The manufacturer no longer makes this part, and there's no substitute part
(efs-0919-1a/p96220-17f) (efs-0929-1a/p96220-18f) (efs-0936-1a/p96220-19f) (efs-1436-1a/p96220-20f) (efs-1453-1a/p96220-21f) (efs-1470-1a/p96220-22f) diagram
Motor, Blower, 1/5 H.p., Single Pole, 42 Frame 1020 Rpm,
Part #M0307501
The manufacturer no longer makes this part, and there's no substitute part

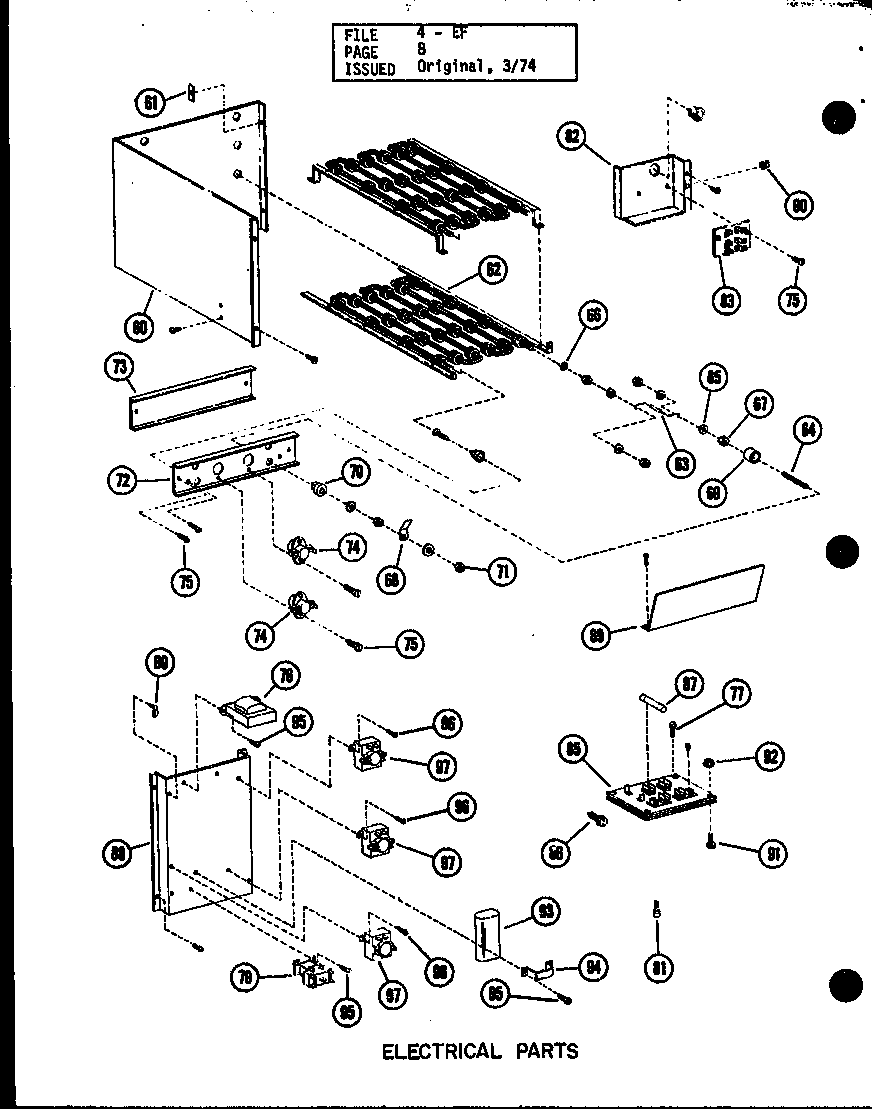

Electrical parts (efs-0919-1a/p96220-17f) (efs-0929-1a/p96220-18f) (efs-0936-1a/p96220-19f) (efs-1436-1a/p96220-20f) (efs-1453-1a/p96220-21f) (efs-1470-1a/p96220-22f) diagram
Heating Element
Part #D9627901
The manufacturer no longer makes this part, and there's no substitute part
(efs-0919-1a/p96220-17f) (efs-0929-1a/p96220-18f) (efs-0936-1a/p96220-19f) (efs-1436-1a/p96220-20f) (efs-1453-1a/p96220-21f) (efs-1470-1a/p96220-22f) diagram
Wiring Harness, High & Low Voltage
Part #R0164024
The manufacturer no longer makes this part, and there's no substitute part
Tie - Electrical
Part #M0321401
The manufacturer no longer makes this part, and there's no substitute part
(efs-0919-1a/p96220-17f) (efs-0929-1a/p96220-18f) (efs-0936-1a/p96220-19f) (efs-1436-1a/p96220-20f) (efs-1453-1a/p96220-21f) (efs-1470-1a/p96220-22f) diagram

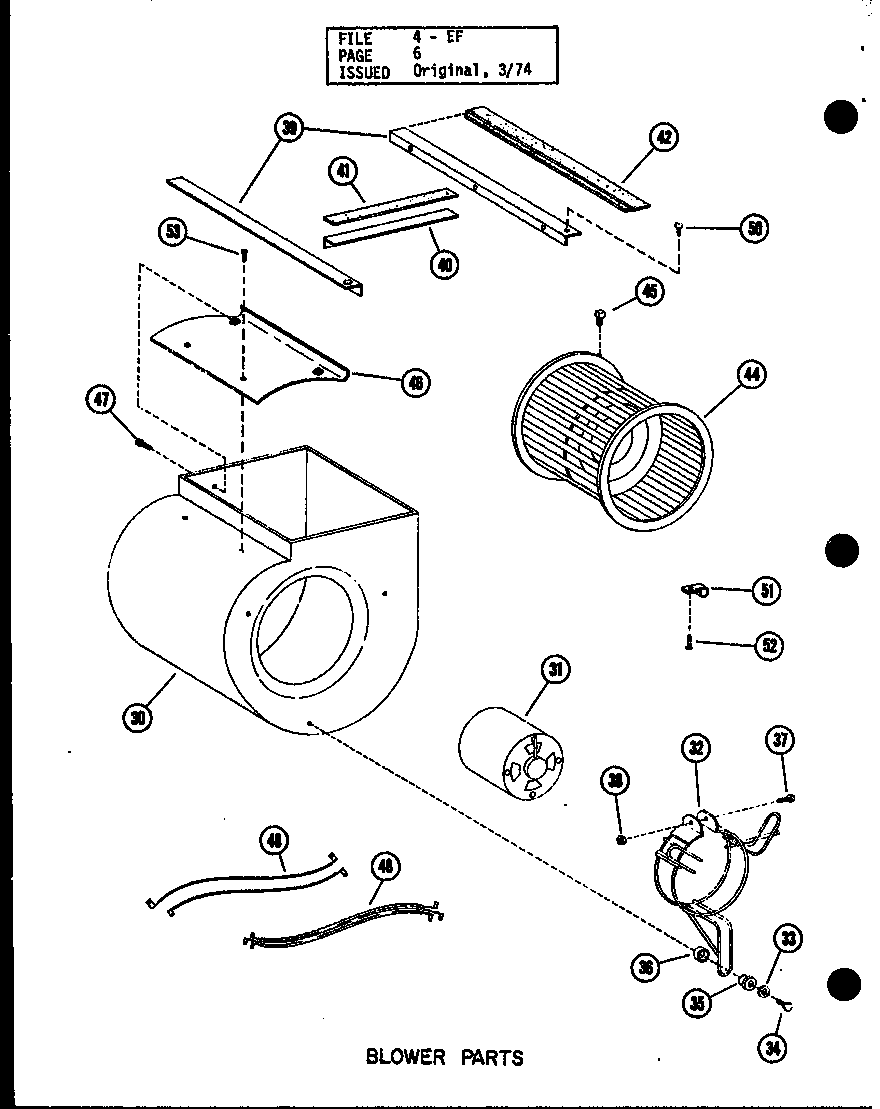

Blower Wheel, 10 X 8, 3010351
Part #M0876402
The manufacturer no longer makes this part, and there's no substitute part
(efs-0919-1a/p96220-17f) (efs-0929-1a/p96220-18f) (efs-0936-1a/p96220-19f) (efs-1436-1a/p96220-20f) (efs-1453-1a/p96220-21f) (efs-1470-1a/p96220-22f) diagram
Blower Seal
Part #A9008316
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts (efl-2070-1a/p96224-23f) (efl-2087-1a/p96224-24f) (efl-20105-1a/p96224-25f) (efl-20122-1a/p96224-26f) diagram
Insulation, 22 1/4 X 26 X 1"
Part #A9016811
The manufacturer no longer makes this part, and there's no substitute part

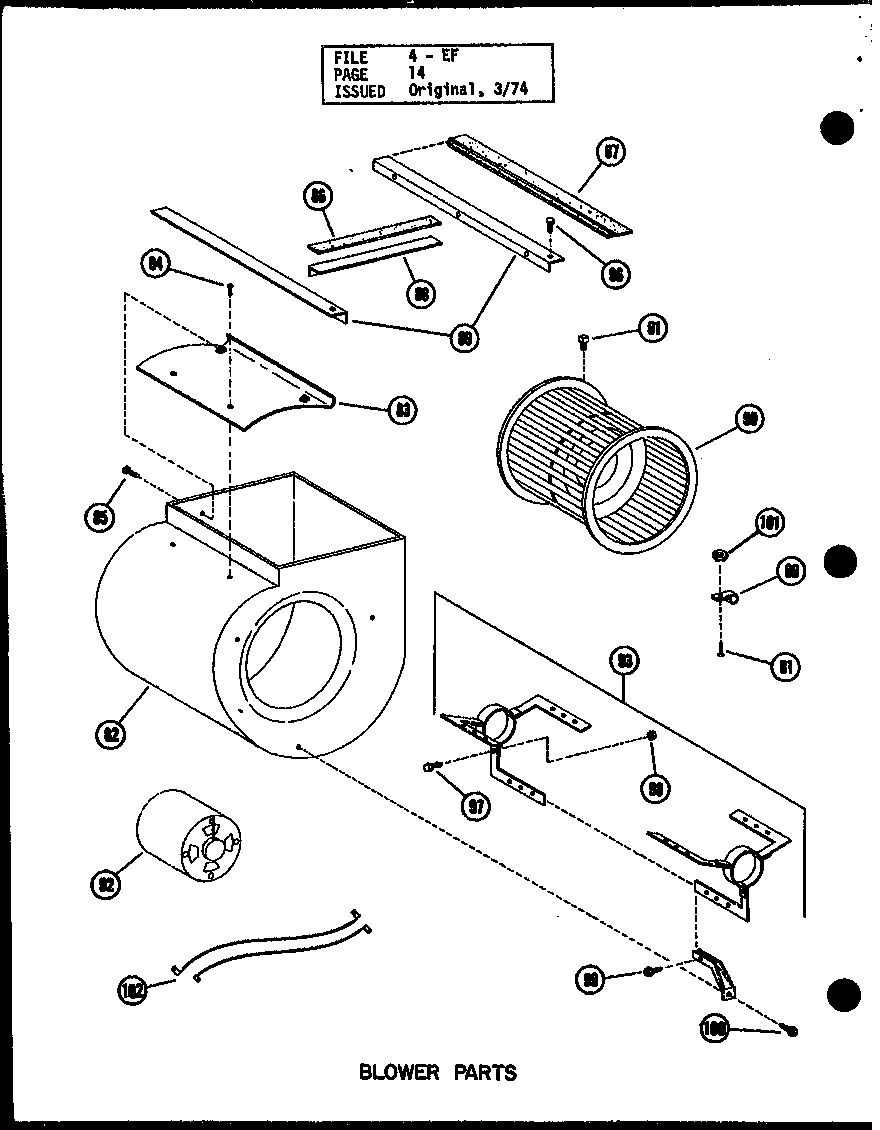

Blower parts (efl-2070-1a/p96224-23f) (efl-2087-1a/p96224-24f) (efl-20105-1a/p96224-25f) (efl-20122-1a/p96224-26f) diagram
But-keps
Part #M0282007
The manufacturer no longer makes this part, and there's no substitute part
Fuse
Part #M0850502
The manufacturer no longer makes this part, and there's no substitute part
