Model # MVHR120ME2CA1 Official GE air-conditioner/heat pump

Here are the diagrams and repair parts for Official GE MVHR120ME2CA1 air-conditioner/heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Right Side Panel WP71X26739
#224

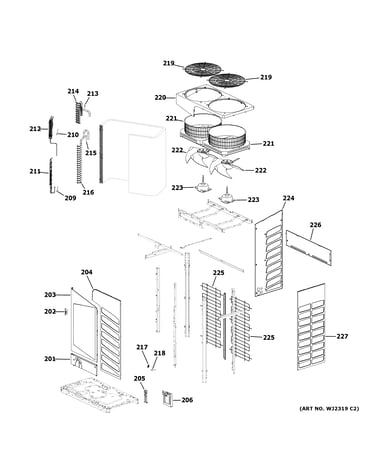

Motor & chassis parts diagram

Right side panel

Part #WP71X26739

$108.10
In Stock
Power Control Board WP26X26110
#104

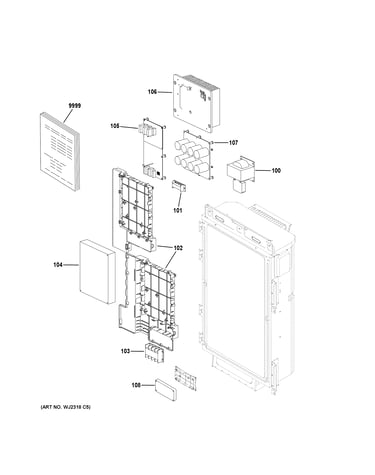

Control parts diagram

Power control board

Part #WP26X26110

$449.00
In Stock
Inverter Assembly WP26X26111
#106

Control parts diagram

Inverter assembly

Part #WP26X26111

$779.82
In Stock
Top Grille WP71X27014
#219

Motor & chassis parts diagram

Top grille

Part #WP71X27014

$67.00
In Stock
Reversing Valve Tube D WP53X27081
#42

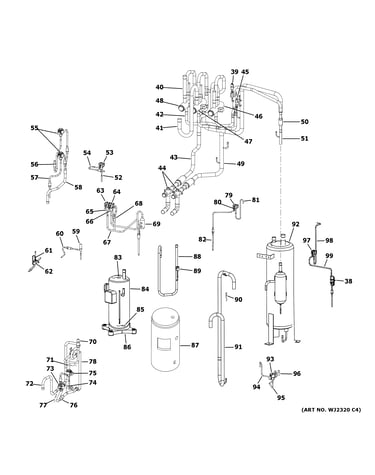

Sealed system diagram

Reversing valve tube d

Part #WP53X27081

$103.96
In Stock
Fan Shroud WP76X26025
#221

Motor & chassis parts diagram

Fan shroud

Part #WP76X26025

$99.13
In Stock
Sv7 Connection Tube WP53X27089
#69

Sealed system diagram

Sv7 connection tube

Part #WP53X27089

$53.64
In Stock
Sv9 To Reversing Valve Connection Tube WP53X26995
#82

Sealed system diagram

Sv9 to reversing valve connection tube

Part #WP53X26995

$10.23
In Stock
Upper Liquid Header Connection Tube WP53X27084
#57

Sealed system diagram

Upper liquid header connection tube

Part #WP53X27084

$25.09
In Stock
Solenoid Valve Body WP26X26958
Solenoid valve body

Part #WP26X26958

$8.26
In Stock
