Amana AAC071FRA-PAAC071FRA0 room air conditioner Parts
Here are the diagrams and repair parts for Amana AAC071FRA-PAAC071FRA0 room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic

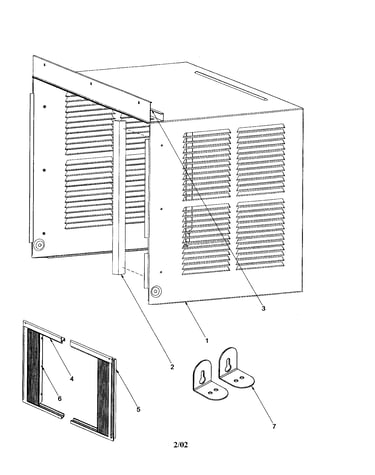

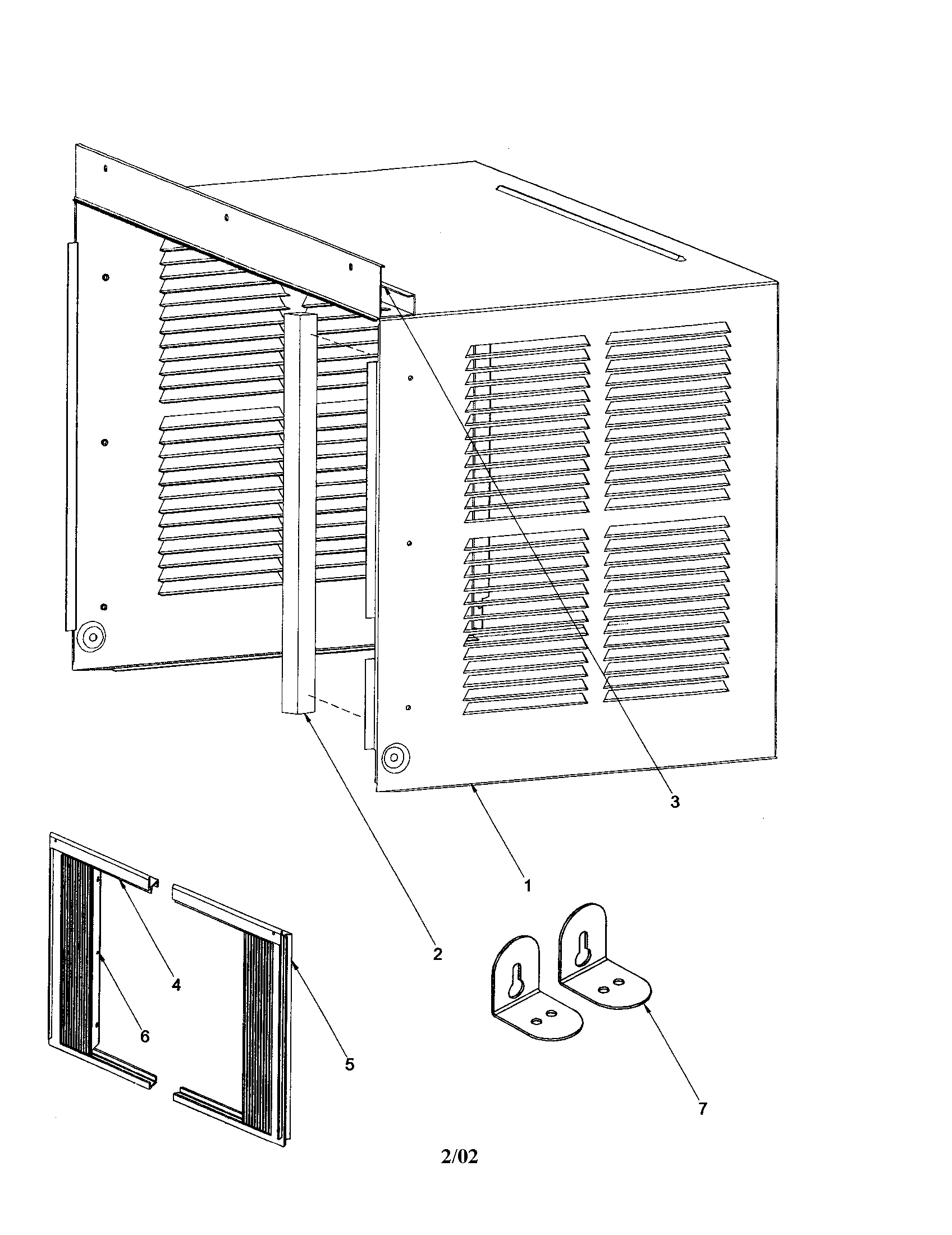

SELECT DIAGRAM
Browse Parts for AAC071FRA-PAAC071FRA0 Room Air Conditioner

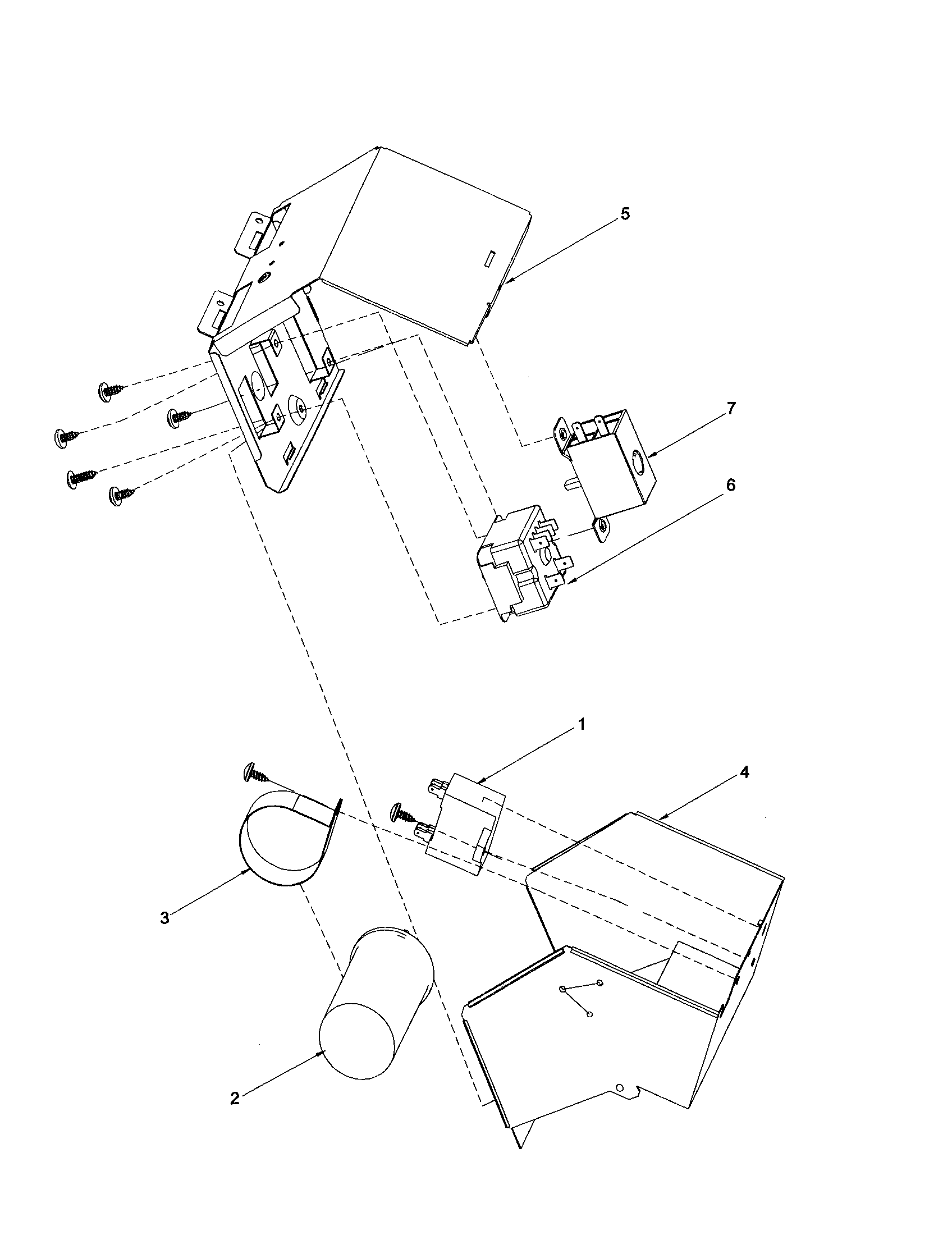

Control assembly diagram
Control Box Cover
Part #R0130031
The manufacturer no longer makes this part, and there's no substitute part

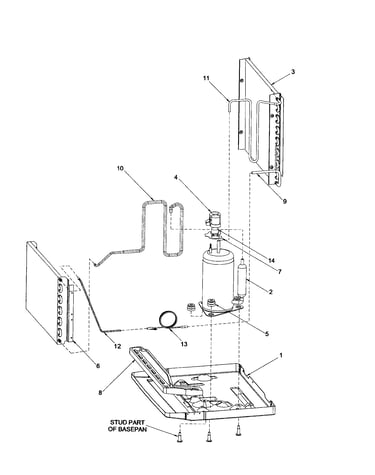

Base pan/compressor diagram
Basepan
Part #R0130035
The manufacturer no longer makes this part, and there's no substitute part

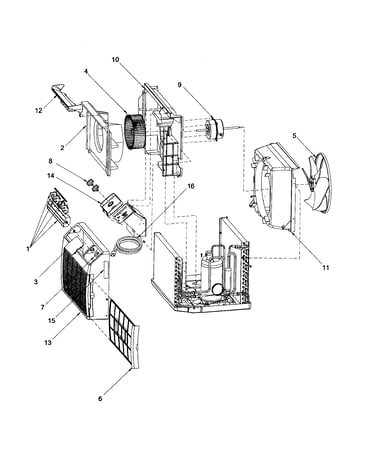

Chassis assembly diagram
Power Cord
Part #R0130768
The manufacturer no longer makes this part, and there's no substitute part

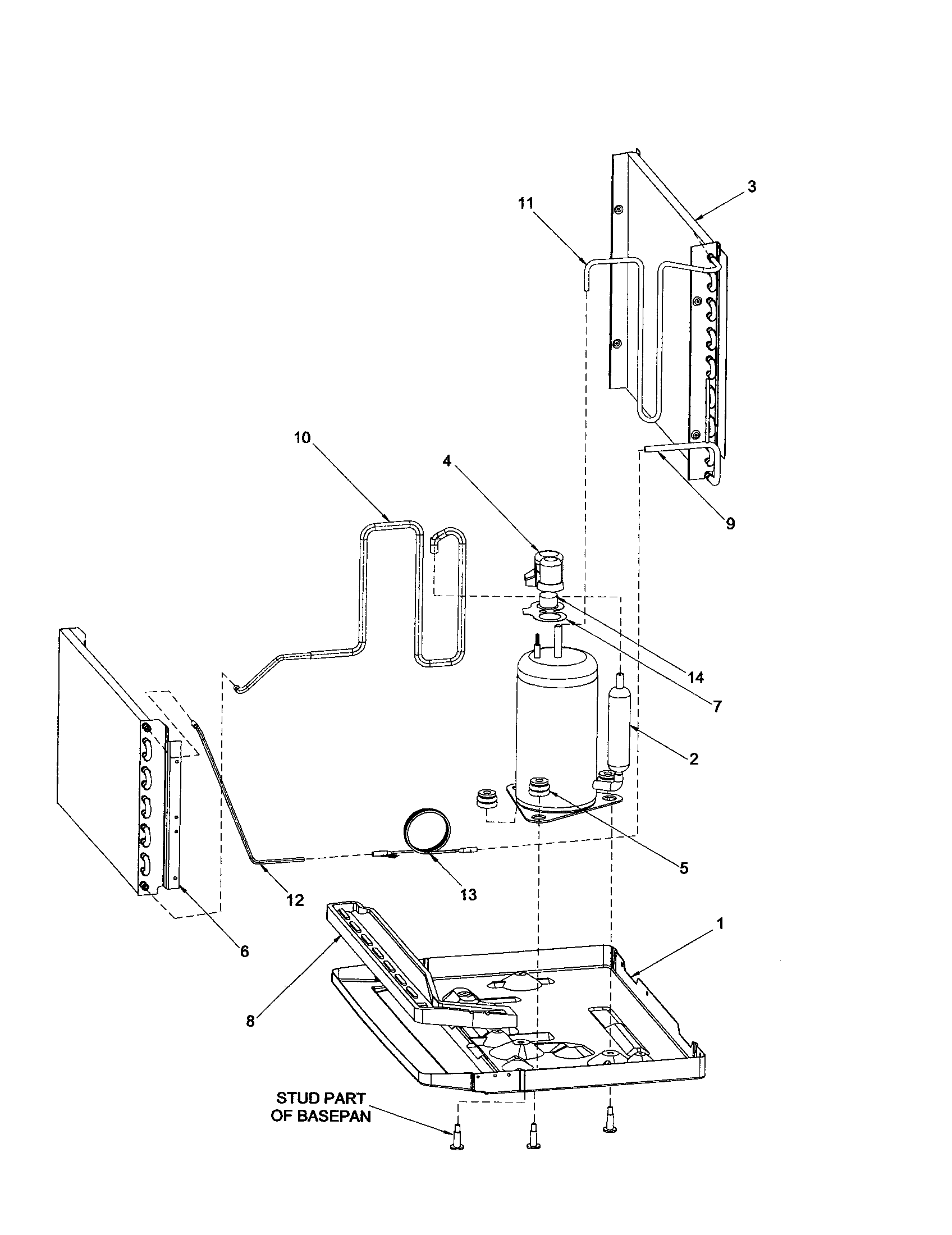

Base pan/compressor diagram
Capillary Assembly
Part #R0130088
The manufacturer no longer makes this part, and there's no substitute part
#NI07
All parts diagram
Condn Pad/ A
Part #R0130270
The manufacturer no longer makes this part, and there's no substitute part
Control assembly diagram
Thermostat
Part #R0130034
The manufacturer no longer makes this part, and there's no substitute part
#NI03
All parts diagram
Assy, Screw (non-illus)
Part #R0131395
The manufacturer no longer makes this part, and there's no substitute part

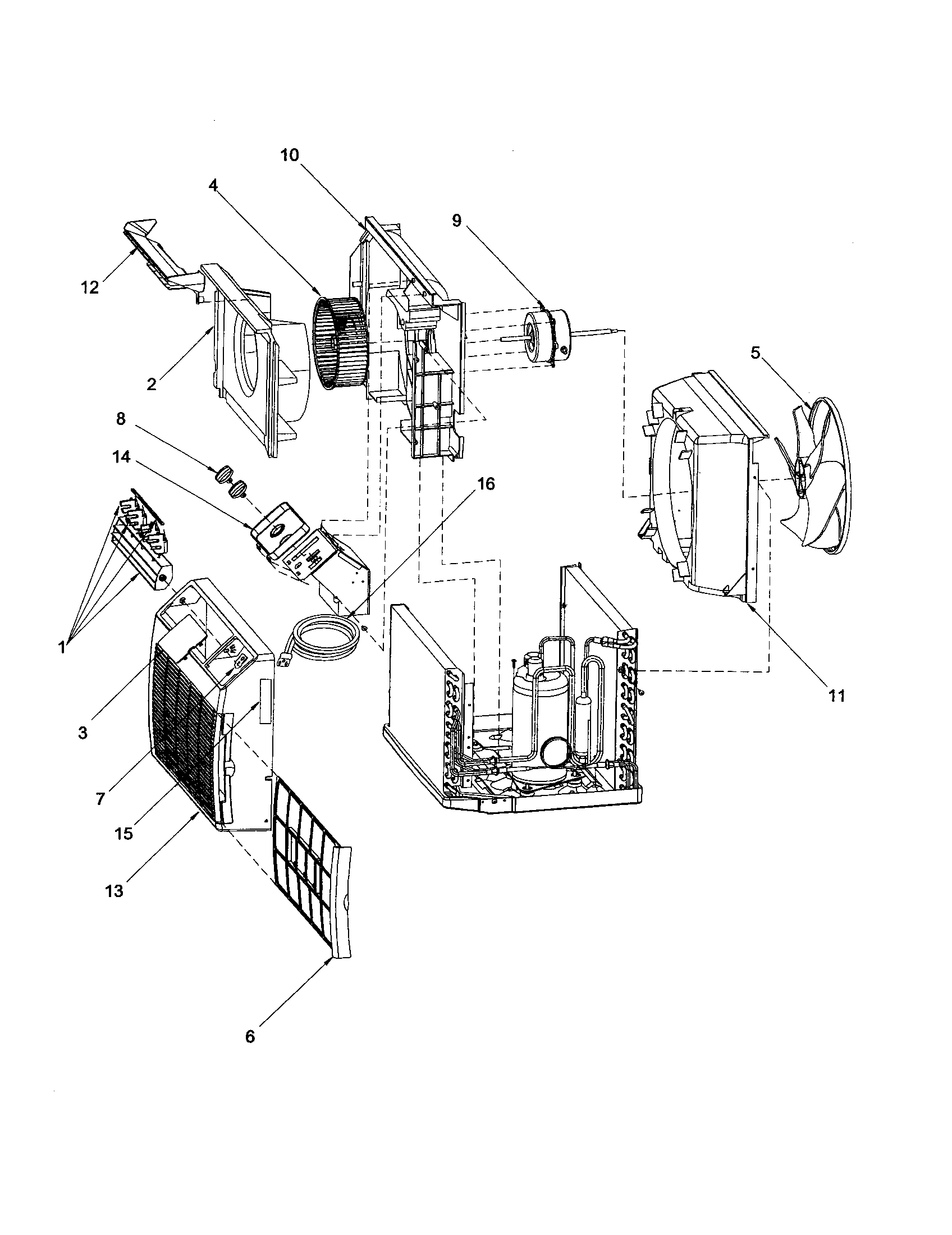

Chassis assembly diagram
Condenser Shroud
Part #R0130102
The manufacturer no longer makes this part, and there's no substitute part
Base pan/compressor diagram
Suction Tube
Part #R0130087
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Box, Bushing Louver
Part #R0130056
The manufacturer no longer makes this part, and there's no substitute part
