Model # PGB048D1LB Official ICP blower

Here are the diagrams and repair parts for Official ICP PGB048D1LB blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#48

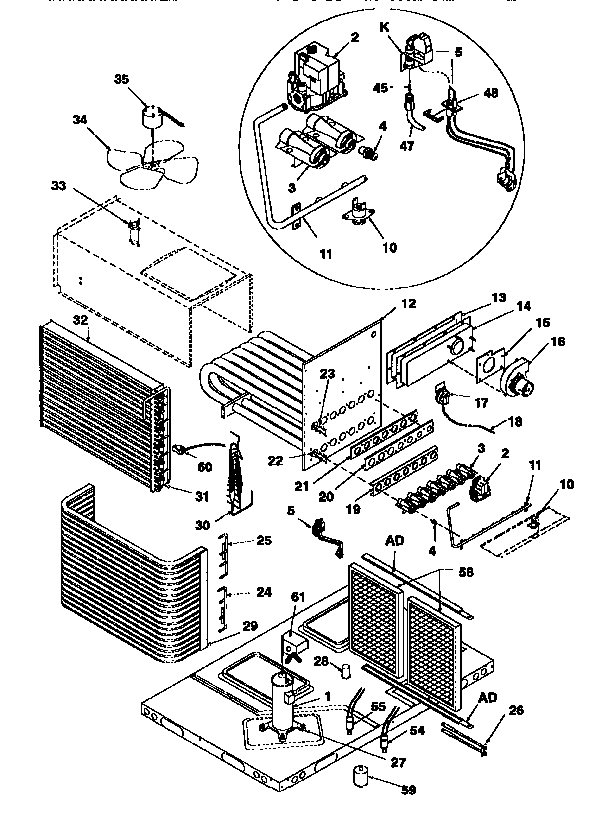

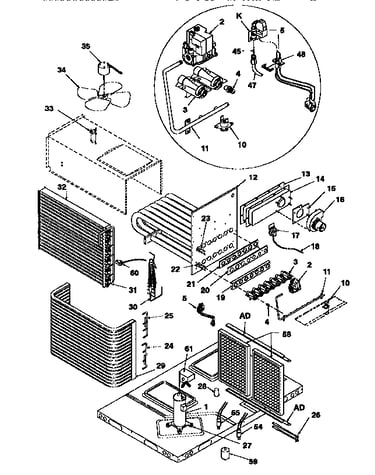

Functional replacement parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19
6% OFF Phone Price : $176.19
In Stock
Furnace Vent Motor Gasket 607014
#15

Functional replacement parts diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
In Stock
Capacitor 1006176
#6

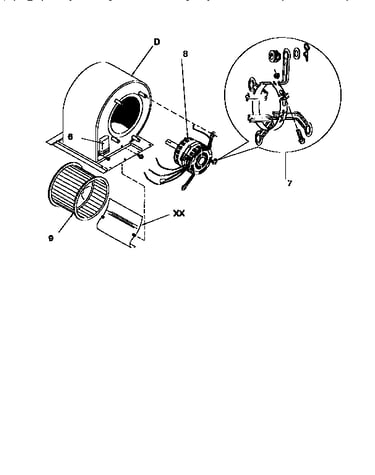

Blower diagram

Capacitor

Part #1006176

Replaced by #12910

?
Manufacturer substitution
This part replaces 1006176. Substitute parts can look different from the original.
$8.37
11% OFF Phone Price : $9.37
In Stock
Limit Switch 1005549
#10

Functional replacement parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62
11% OFF Phone Price : $17.62
In Stock
Relay Spdt 1058148
#49

Control box diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63
19% OFF Phone Price : $26.63
In Stock
Extension Bl 1054461
#O

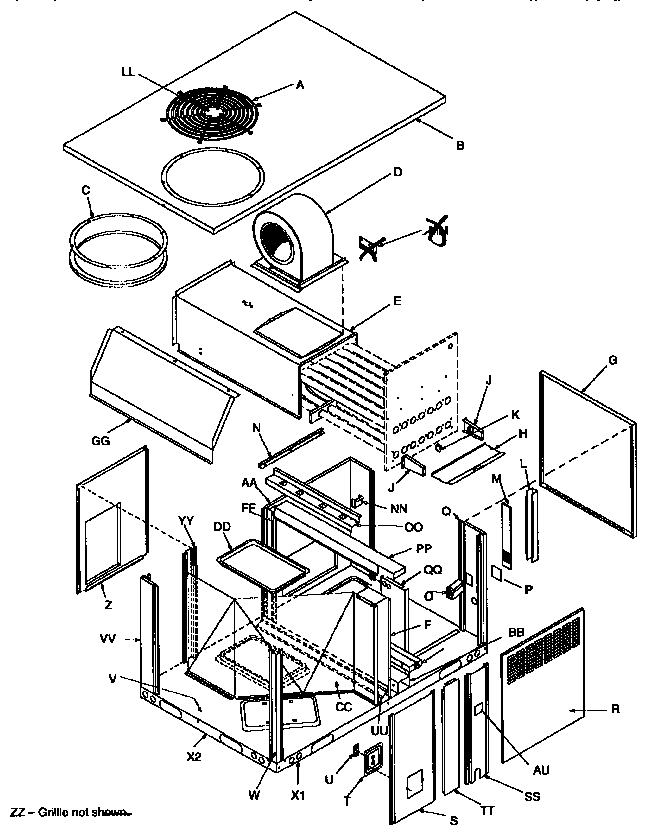

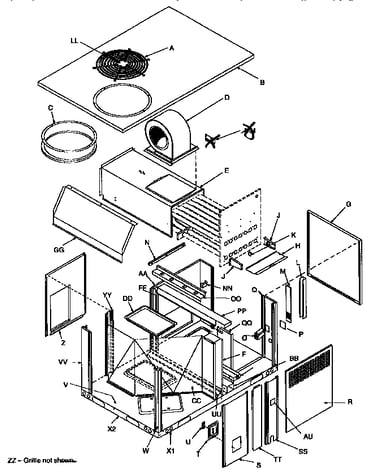

Non-functional replacement parts diagram

Extension bl

Part #1054461

In Stock
Furnace Burner (replaces 1012384) 1008725
#3

Functional replacement parts diagram

Furnace burner (replaces 1012384)

Part #1008725

In Stock
Box Collecto 1065257
#14

Functional replacement parts diagram

Box collecto

Part #1065257

In Stock
Furnace Inducer Vent Motor Assembly 1054268
#16

Functional replacement parts diagram

Furnace inducer vent motor assembly

Part #1054268

$313.34
$10.00 OFF Phone Price : $323.34
In Stock
Evaporator Coil 1082451
#32

Functional replacement parts diagram

Evaporator coil

Part #1082451

In Stock
