Model # GVMB14S4W1SS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE GVMB14S4W1SS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

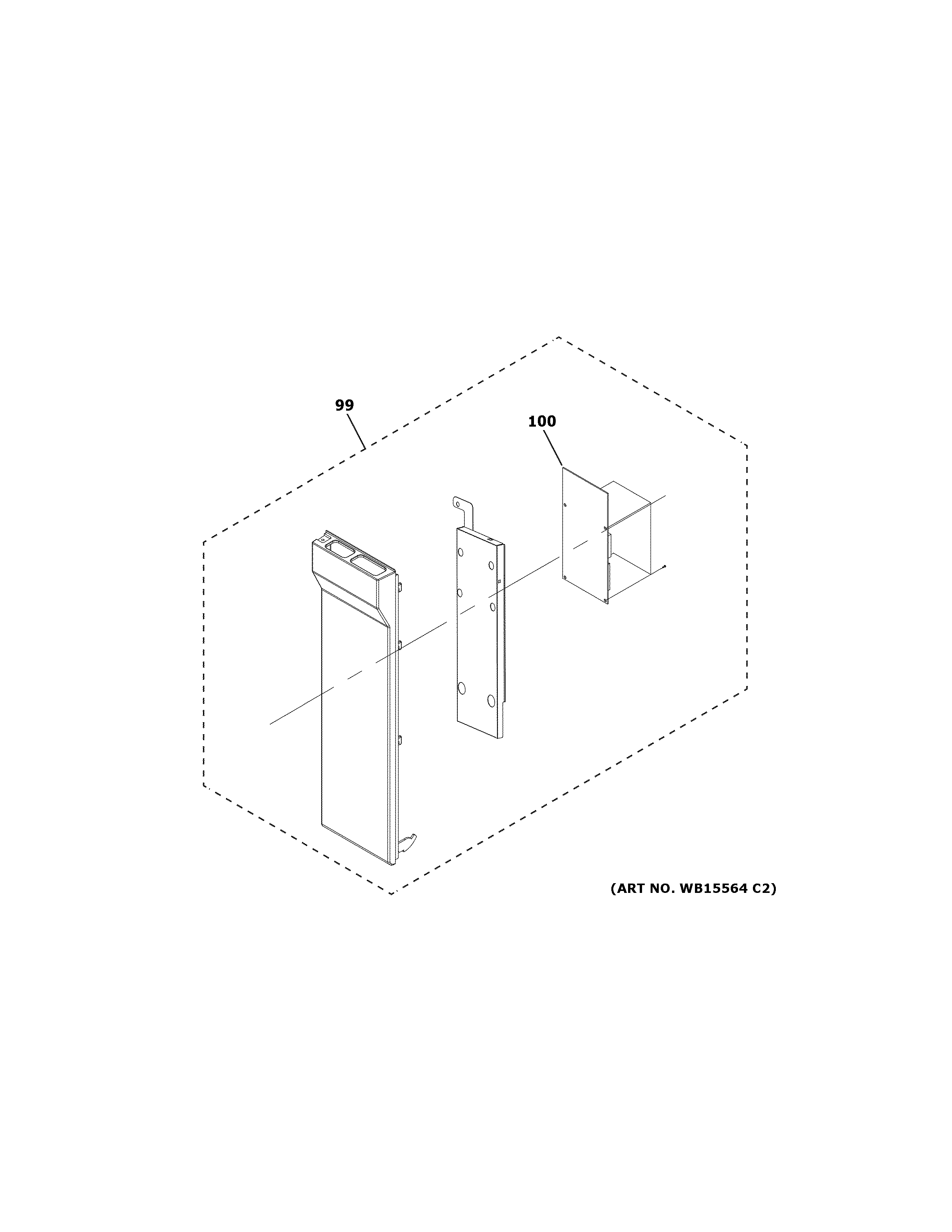

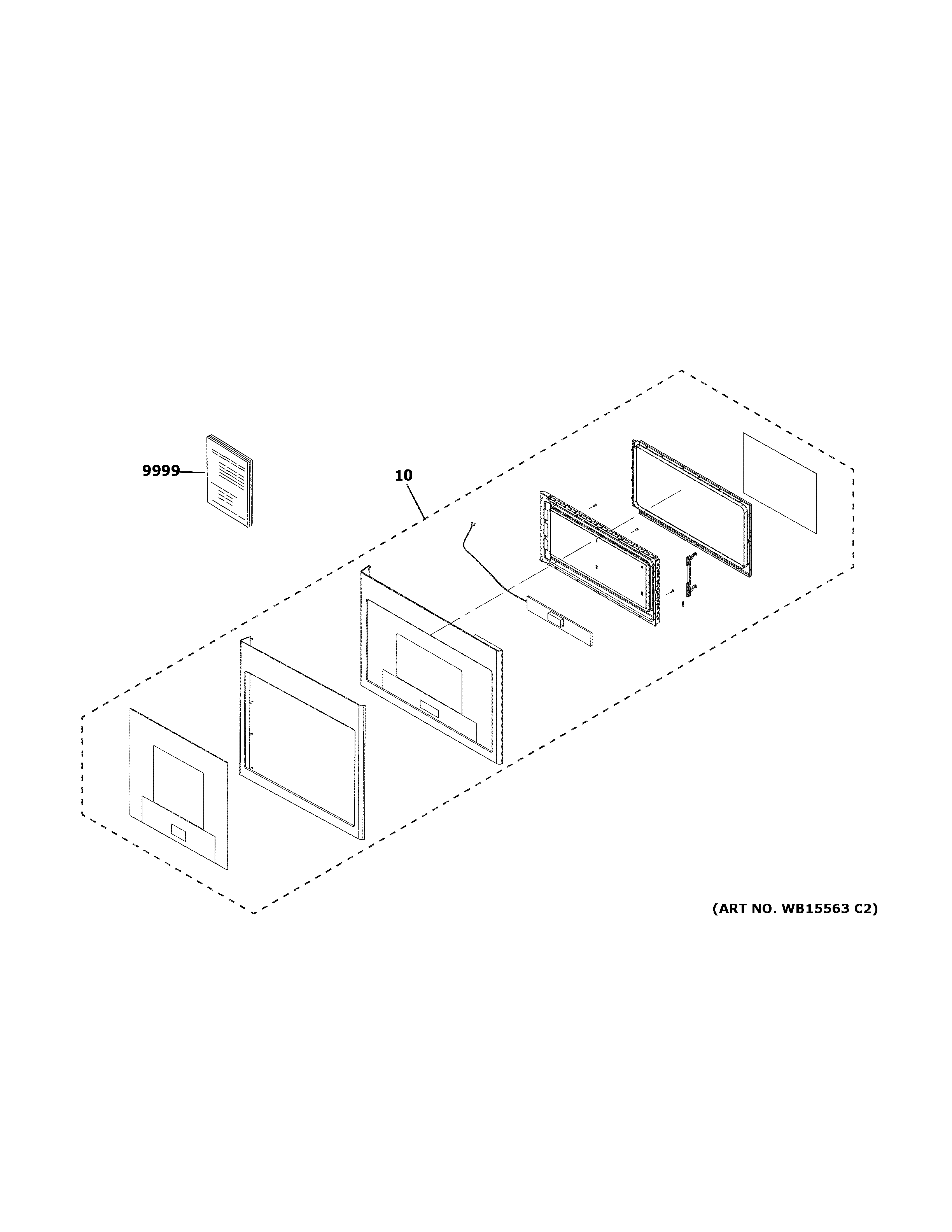

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#40

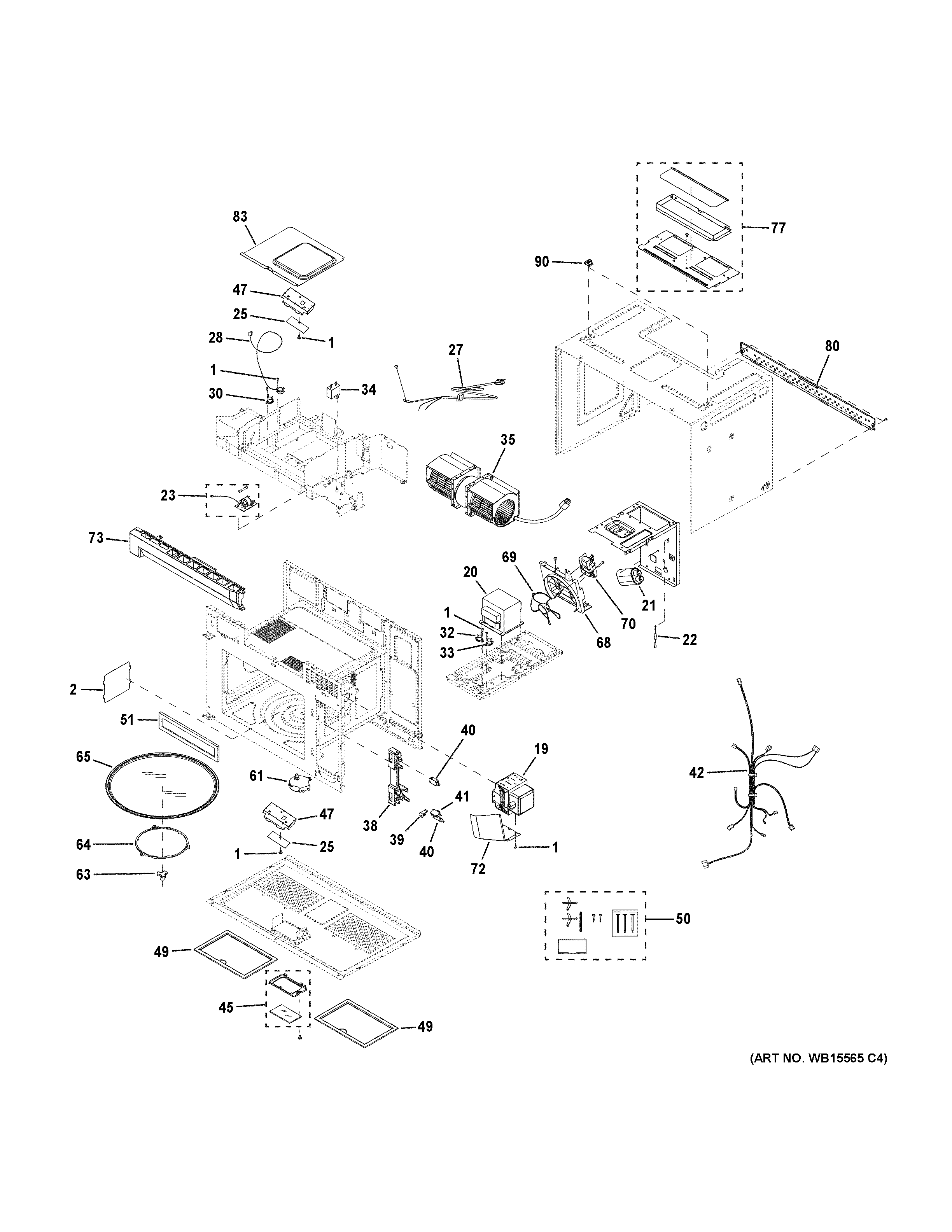

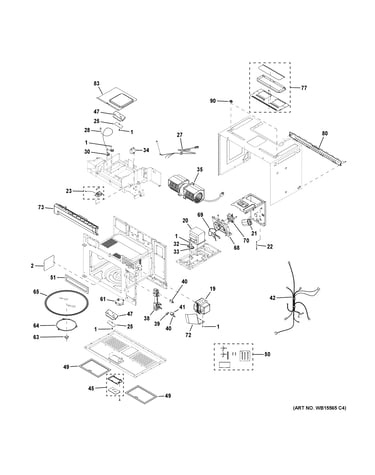

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
13% OFF Phone Price : $37.79
In Stock
Lever Switch WB02X28938
#39

Oven cavity parts diagram

Lever switch

Part #WB02X28938

Replaced by #WB03X10348

?
Manufacturer substitution
This part replaces WB02X28938. Substitute parts can look different from the original.
BEST SELLER
$31.87 |
14% OFF Phone Price : $36.87
In Stock
Microwave High-voltage Diode WB26X28935
#22

Oven cavity parts diagram

Microwave high-voltage diode

Part #WB26X28935

BEST SELLER
$50.11 |
9% OFF Phone Price : $55.11
In Stock
Thermostat WB24X28948
#32

Oven cavity parts diagram

Thermostat

Part #WB24X28948

Replaced by #WB27X11212

?
Manufacturer substitution
This part replaces WB24X28948. Substitute parts can look different from the original.
$31.51 |
14% OFF Phone Price : $36.51
In Stock
Grease Filte WB02X28930
#49

Oven cavity parts diagram

Grease filte

Part #WB02X28930

Replaced by #WB06X10608

?
Manufacturer substitution
This part replaces WB02X28930. Substitute parts can look different from the original.
$48.47 |
9% OFF Phone Price : $53.47
In Stock
Damper Brack WB02X28951
#77

Oven cavity parts diagram

Damper brack

Part #WB02X28951

Replaced by #WB06X10938

?
Manufacturer substitution
This part replaces WB02X28951. Substitute parts can look different from the original.
$117.99 |
8% OFF Phone Price : $127.99
In Stock
Glass Tray WB63X28931
#65

Oven cavity parts diagram

Glass tray

Part #WB63X28931

$99.11 |
9% OFF Phone Price : $109.11
In Stock
Motor Fan WB26X28943
#70

Oven cavity parts diagram

Motor fan

Part #WB26X28943

$111.10
In Stock
Fan WB02X28928
#69

Oven cavity parts diagram

Fan

Part #WB02X28928

$45.74
In Stock
Wire Harness WB18X36326
#42

Oven cavity parts diagram

Wire harness

Part #WB18X36326

$80.27
In Stock
