Model # HDR-CX260VB Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX260VB digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

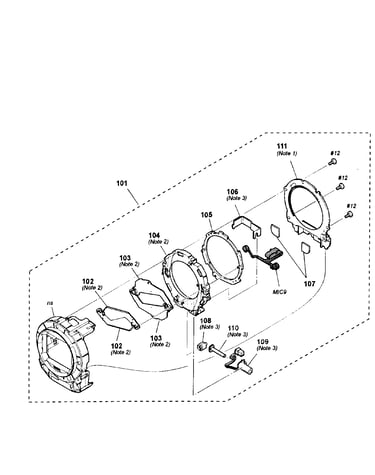

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Sheet Radiation 440899301
Sheet radiation

Part #440899301

This item is not returnable
In Stock
Lcd Panel A1854122A
#LCD

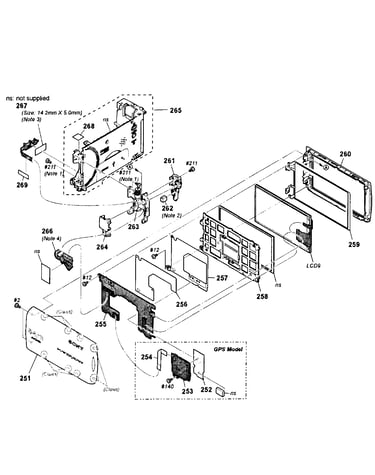

Lcd assy diagram

Lcd panel

Part #A1854122A

In Stock
Tape 441468001
#155

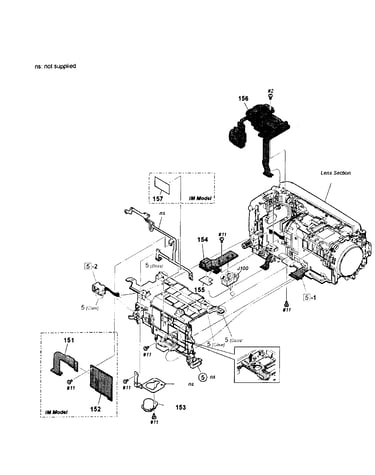

Main assy 3 diagram

Tape

Part #441468001

This item is not returnable
In Stock
Flex Tape 264930001
#267

Lcd assy diagram

Flex tape

Part #264930001

In Stock
Pcb Pd-458 A1851186A
#255

Lcd assy diagram

Pcb pd-458

Part #A1851186A

In Stock
Pcb Fp1487 188492511
#266

Lcd assy diagram

Pcb fp1487

Part #188492511

In Stock
Hdmi Cable 183908021
#NI

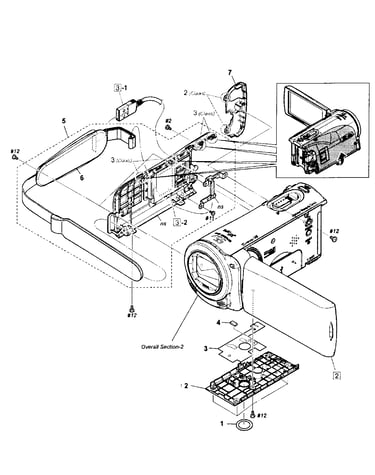

Main assy 1 diagram

Hdmi cable

Part #183908021

In Stock
Dc Jack 184265861
#J901

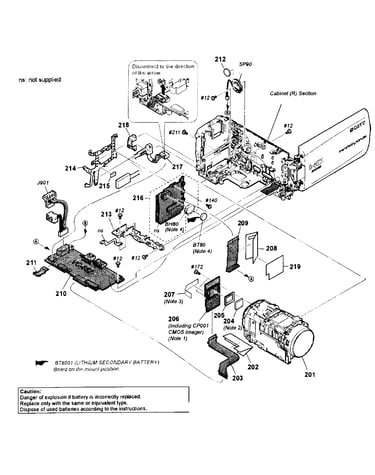

Lens assy diagram

Dc jack

Part #184265861

In Stock
Cabinet Front A1854077A
#52

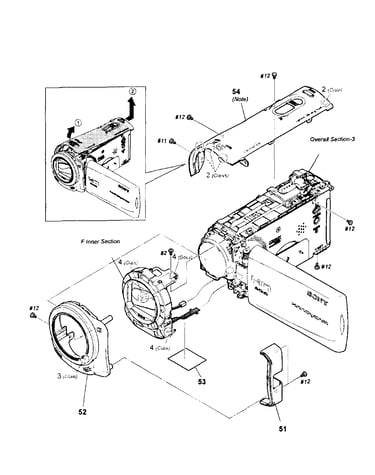

Main assy 2 diagram

Cabinet front

Part #A1854077A

In Stock
Cabinet Lt A1854067A
#5

Main assy 1 diagram

Cabinet lt

Part #A1854067A

In Stock
