Kenmore
Furnace

Model # 867773930 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867773930 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Thermocouple 600271
#6

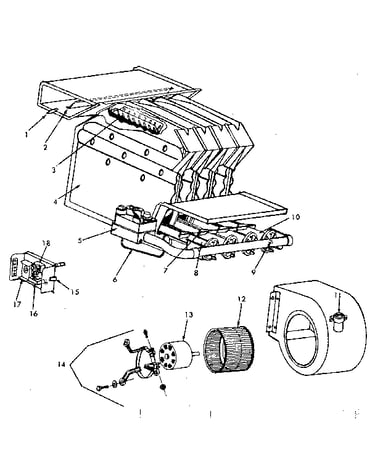

Functional replacement parts diagram

Thermocouple

Part #600271

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#12

Functional replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Orifice 1147472
#9

Functional replacement parts diagram

Orifice

Part #1147472

$71.62
In Stock
Transformer 638010
#16

Functional replacement parts diagram

Transformer

Part #638010

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 638010. Substitute parts can look different from the original.
$10.99
In Stock
F&l Control 638188
#17

Functional replacement parts diagram

F&l control

Part #638188

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 751816
#11

Functional replacement parts diagram

Capacitor

Part #751816

Replaced by #12907

?
Manufacturer substitution
This part replaces 751816. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Blower Motor 638017
#13

Functional replacement parts diagram

Blower motor

Part #638017

The manufacturer no longer makes this part, and there's no substitute part

Dpdt Relay 96467
#18

Functional replacement parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Switch 638099
#15

Functional replacement parts diagram

Switch

Part #638099

Replaced by #607900

?
Manufacturer substitution
This part replaces 638099. Substitute parts can look different from the original.
$26.43 |
16% OFF Phone Price : $31.43
In Stock

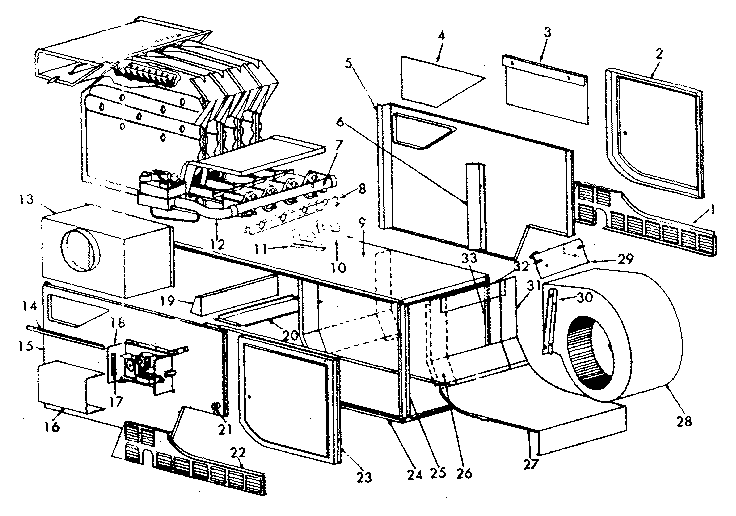

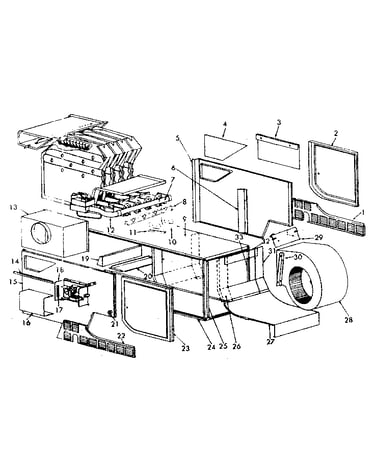

Door Knob 99376
#21

Non functional replacement parts diagram

Door knob

Part #99376

The manufacturer no longer makes this part, and there's no substitute part
