Model # ZIDS240WBSS Official GE double drawer refrigerator

Here are the diagrams and repair parts for Official GE ZIDS240WBSS double drawer refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Dryer Filter WR86X0096
#35

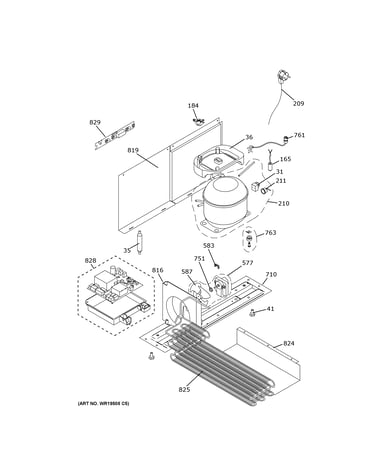

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Logic Harness WR23X10460
#850

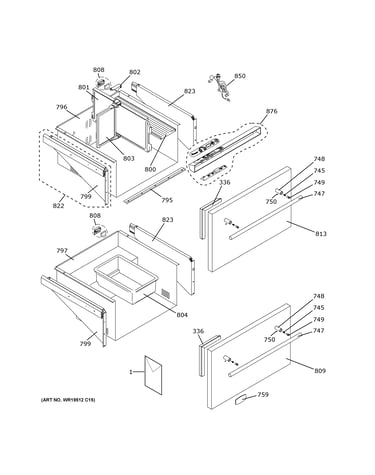

Doors & controls diagram

Logic harness

Part #WR23X10460

$106.06
In Stock
Refrigerator Condenser Fan Motor Assembly WR60X10163
#577

Machine compartment diagram

Refrigerator condenser fan motor assembly

Part #WR60X10163

$198.84 |
5% OFF Phone Price : $208.84
In Stock
Wine Cooler Run Capacitor WR62X10033
#165

Machine compartment diagram

Wine cooler run capacitor

Part #WR62X10033

$79.02 |
6% OFF Phone Price : $84.02
In Stock
Wine Cooler Electronic Control Board WR55X10408
#829

Machine compartment diagram

Wine cooler electronic control board

Part #WR55X10408

$213.82
Back Order
Temperature Sensor WR55X10457
#474

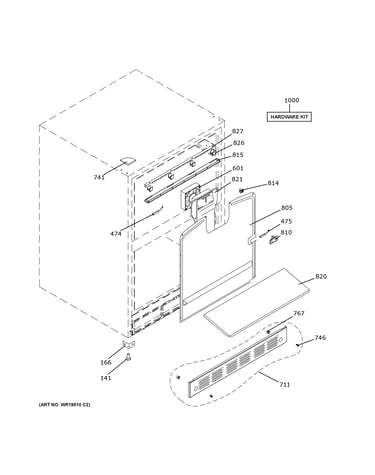

Cabinet & shelves diagram

Temperature sensor

Part #WR55X10457

Replaced by #WR55X10409

?
Manufacturer substitution
This part replaces WR55X10457. Substitute parts can look different from the original.
$54.14 |
8% OFF Phone Price : $59.14
In Stock
Keypad WR05X10014
#876

Doors & controls diagram

Keypad

Part #WR05X10014

Replaced by #WR55X35306

?
Manufacturer substitution
This part replaces WR05X10014. Substitute parts can look different from the original.
$398.30
In Stock
Drip Tray WR17X11673
#36

Machine compartment diagram

Drip tray

Part #WR17X11673

Replaced by #WR17X10374

?
Manufacturer substitution
This part replaces WR17X11673. Substitute parts can look different from the original.
$56.71
In Stock
Handle Screw WR01X10454
#745

Doors & controls diagram

Handle screw

Part #WR01X10454

$10.24 |
16% OFF Phone Price : $12.24
In Stock
Door Drawer WR21X10096
#813

Doors & controls diagram

Door drawer

Part #WR21X10096

$386.11
In Stock
