Kelvinator SH205C1QB room air conditioner - lk34087070

Kelvinator SH205C1QB room air conditioner - lk34087070 Parts

Here are the diagrams and repair parts for Kelvinator SH205C1QB room air conditioner - lk34087070, as well as links to manuals and error code tables, if available.

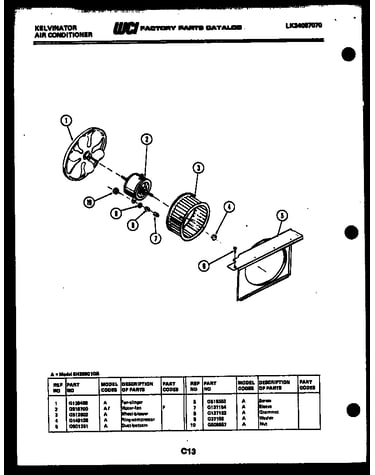

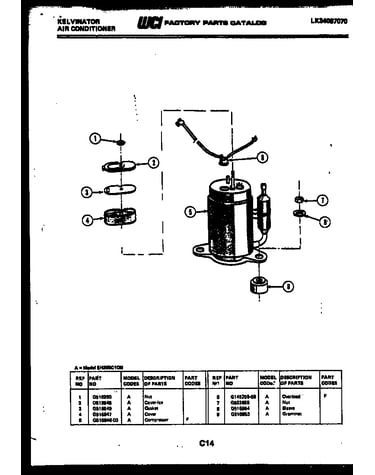

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for SH205C1QB Room Air Conditioner - LK34087070

  • Screw for Kelvinator SH205C1QB - Part G513456

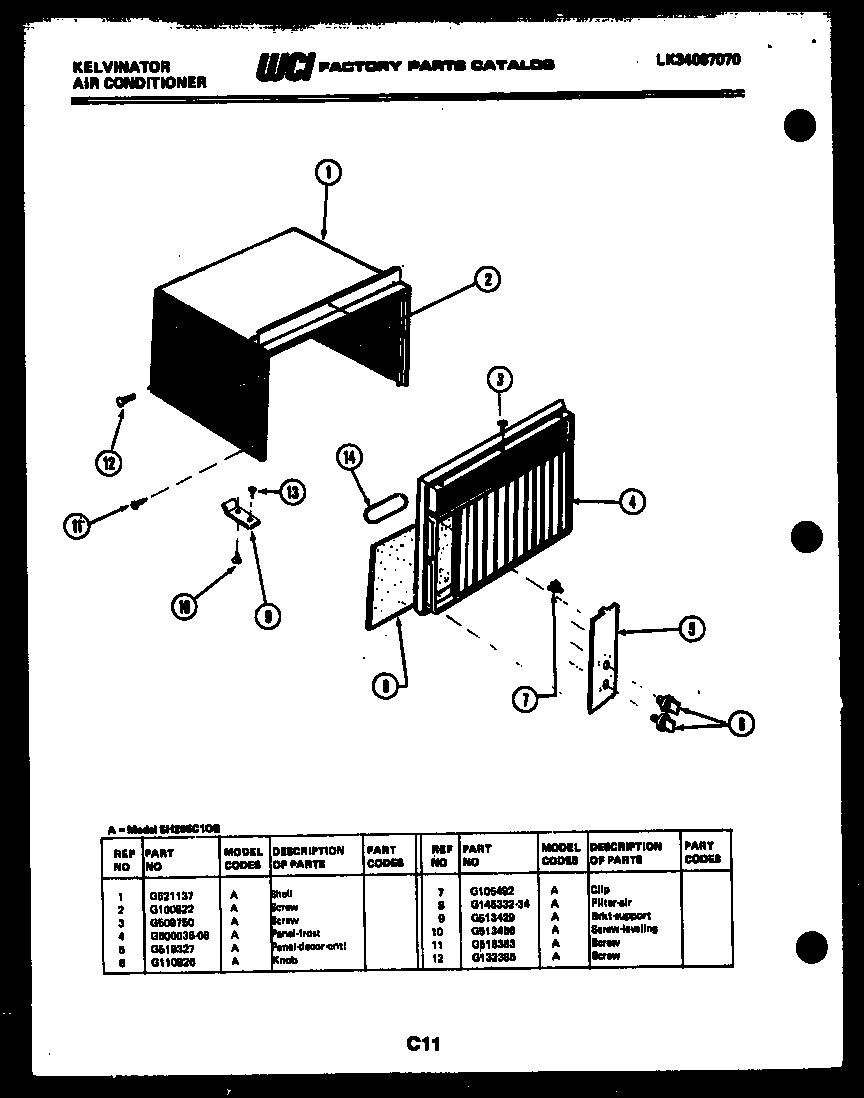

    Cabinet parts diagram

    Screw

    Part #G513456
    In Stock
    $27.44
    Minus Item
    Qty
    Plus Item
  • Channel for Kelvinator SH205C1QB - Part 5314532703

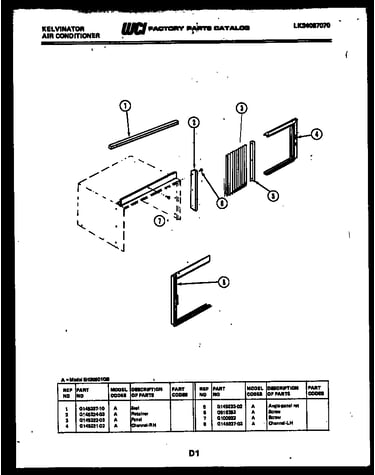

    Cabinet parts diagram

    Channel

    Part #G145327-03

    Replaced by #5314532703

    Info Icon
    Manufacturer substitution
    This part replaces G145327-03. Substitute parts can look different from the original.
    In Stock
    $56.45
    Minus Item
    Qty
    Plus Item
  • Seal for Kelvinator SH205C1QB - Part G149187-03

    Unit parts diagram

    Seal

    Part #G149308-04

    Replaced by #G149187-03

    Info Icon
    Manufacturer substitution
    This part replaces G149308-04. Substitute parts can look different from the original.
    In Stock
    $35.28
    Minus Item
    Qty
    Plus Item
  • Control for Kelvinator SH205C1QB - Part 5300520897

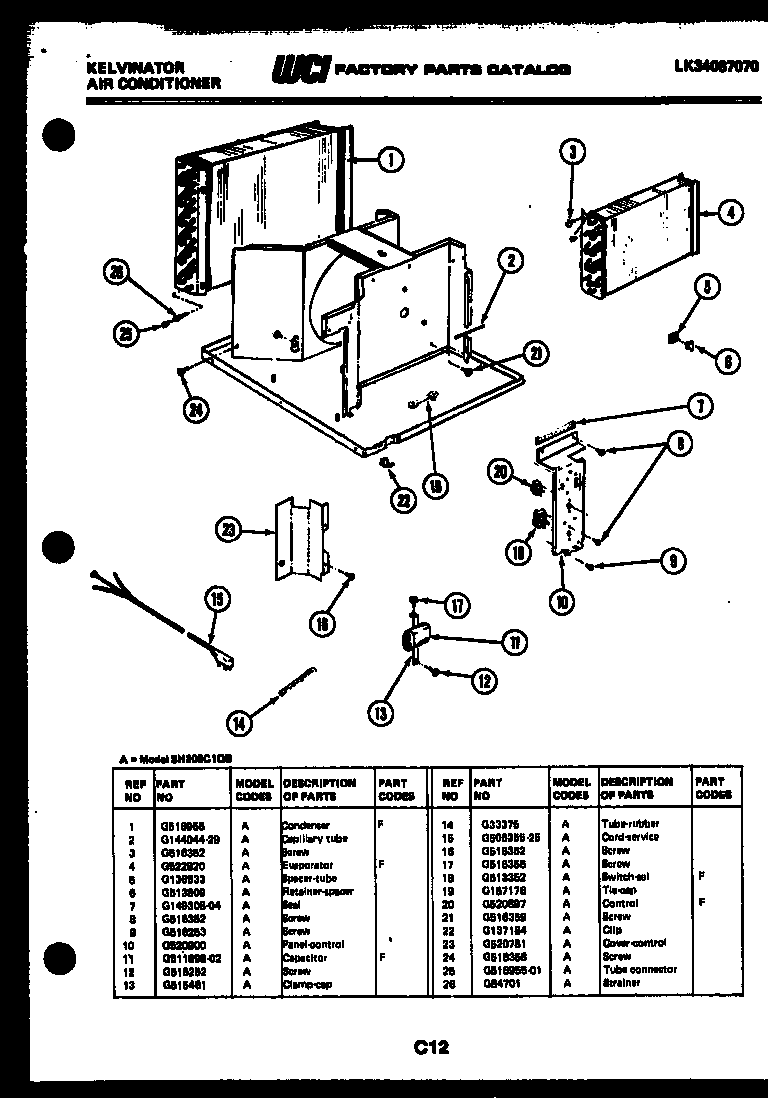

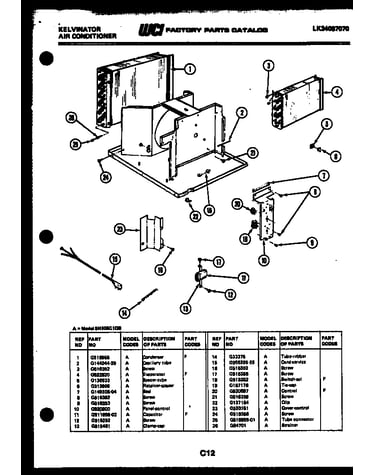

    Unit parts diagram

    Control

    Part #G520897

    Replaced by #5300520897

    Info Icon
    Manufacturer substitution
    This part replaces G520897. Substitute parts can look different from the original.
    In Stock
    $95.57
    Minus Item
    Qty
    Plus Item
  • Seal for Kelvinator SH205C1QB - Part 5314533704

    Cabinet parts diagram

    Seal

    Part #G145337-10

    Replaced by #5314533704

    Info Icon
    Manufacturer substitution
    This part replaces G145337-10. Substitute parts can look different from the original.
    In Stock
    $49.22
    Minus Item
    Qty
    Plus Item
  • Channel for Kelvinator SH205C1QB - Part 5314532103

    Cabinet parts diagram

    Channel

    Part #G145321-03

    Replaced by #5314532103

    Info Icon
    Manufacturer substitution
    This part replaces G145321-03. Substitute parts can look different from the original.
    In Stock
    $44.84
    Minus Item
    Qty
    Plus Item
  • Retainer-hds for Kelvinator SH205C1QB - Part 5304414933

    Cabinet parts diagram

    Retainer

    Part #G145324-03

    Replaced by #5304414933

    Info Icon
    Manufacturer substitution
    This part replaces G145324-03. Substitute parts can look different from the original.
    In Stock
    $51.44
    Minus Item
    Qty
    Plus Item
  • Clip for Kelvinator SH205C1QB - Part 3017930

    Cabinet parts diagram

    Clip

    Part #G105492

    Replaced by #3017930

    Info Icon
    Manufacturer substitution
    This part replaces G105492. Substitute parts can look different from the original.
    In Stock
    $25.17
    Minus Item
    Qty
    Plus Item
  • Screw for Kelvinator SH205C1QB - Part 5300516352

    Screw

    Part #G516352

    Replaced by #5300516352

    Info Icon
    Manufacturer substitution
    This part replaces G516352. Substitute parts can look different from the original.
    In Stock
    $25.13
    Minus Item
    Qty
    Plus Item
  • Bracket for Kelvinator SH205C1QB - Part 5300135987

    Cabinet parts diagram

    Bracket

    Part #G513429

    Replaced by #5300135987

    Info Icon
    Manufacturer substitution
    This part replaces G513429. Substitute parts can look different from the original.
    In Stock
    $49.88
    Minus Item
    Qty
    Plus Item
