Kelvinator M528D2SA room air conditioner - lk34087020 Parts

Here are the diagrams and repair parts for Kelvinator M528D2SA room air conditioner - lk34087020, as well as links to manuals and error code tables, if available.

Kelvinator M528D2SA room air conditioner - lk34087020
By Schematic

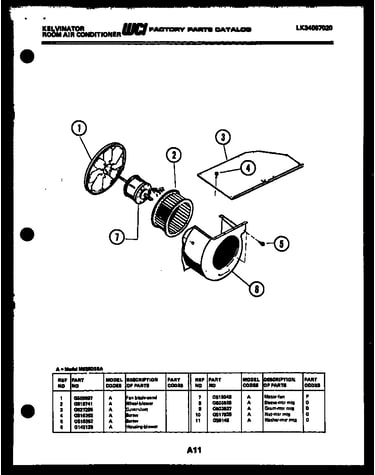

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for M528D2SA Room Air Conditioner - LK34087020

  • Louver for Kelvinator M528D2SA - Part 5308047511

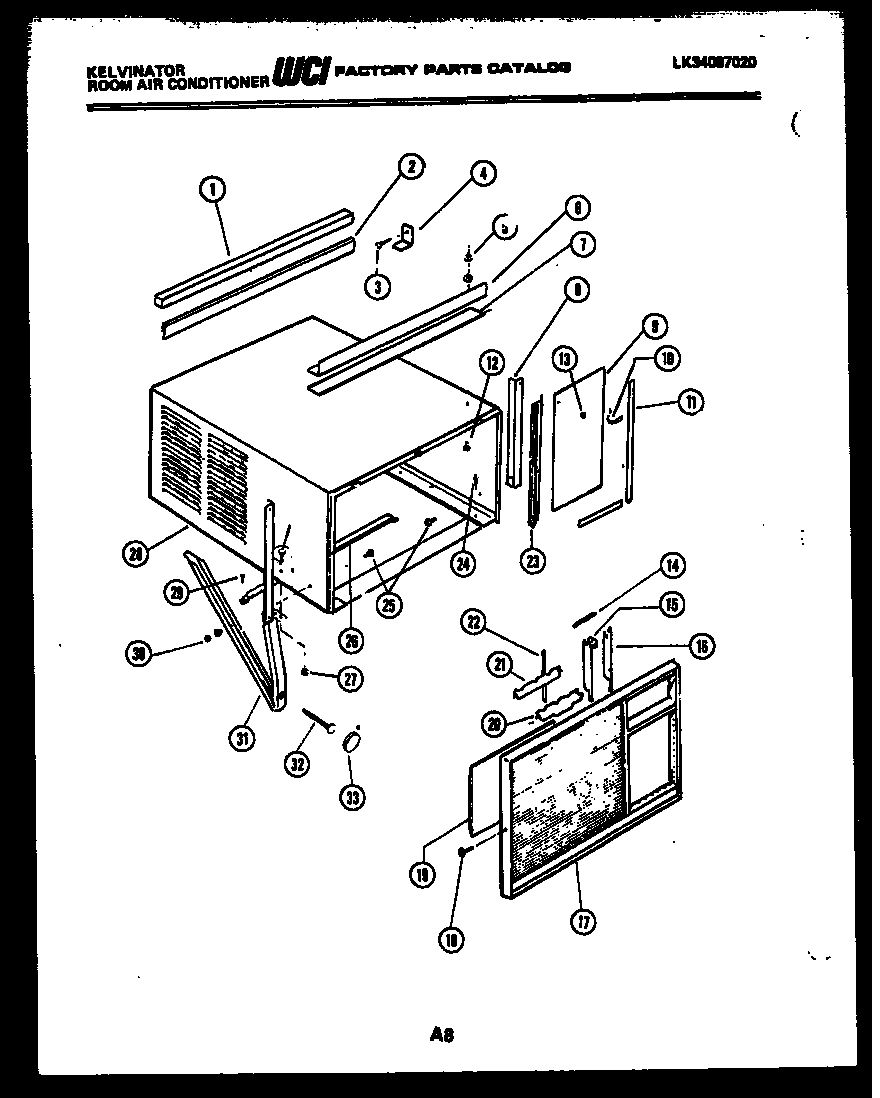

    Cabinet parts diagram

    Louver

    Part #G157750

    Replaced by #5308047511

    Info Icon
    Manufacturer substitution
    This part replaces G157750. Substitute parts can look different from the original.
    In Stock
    $46.95
    Minus Item
    Qty
    Plus Item
  • Cord for Kelvinator M528D2SA - Part 5303302611

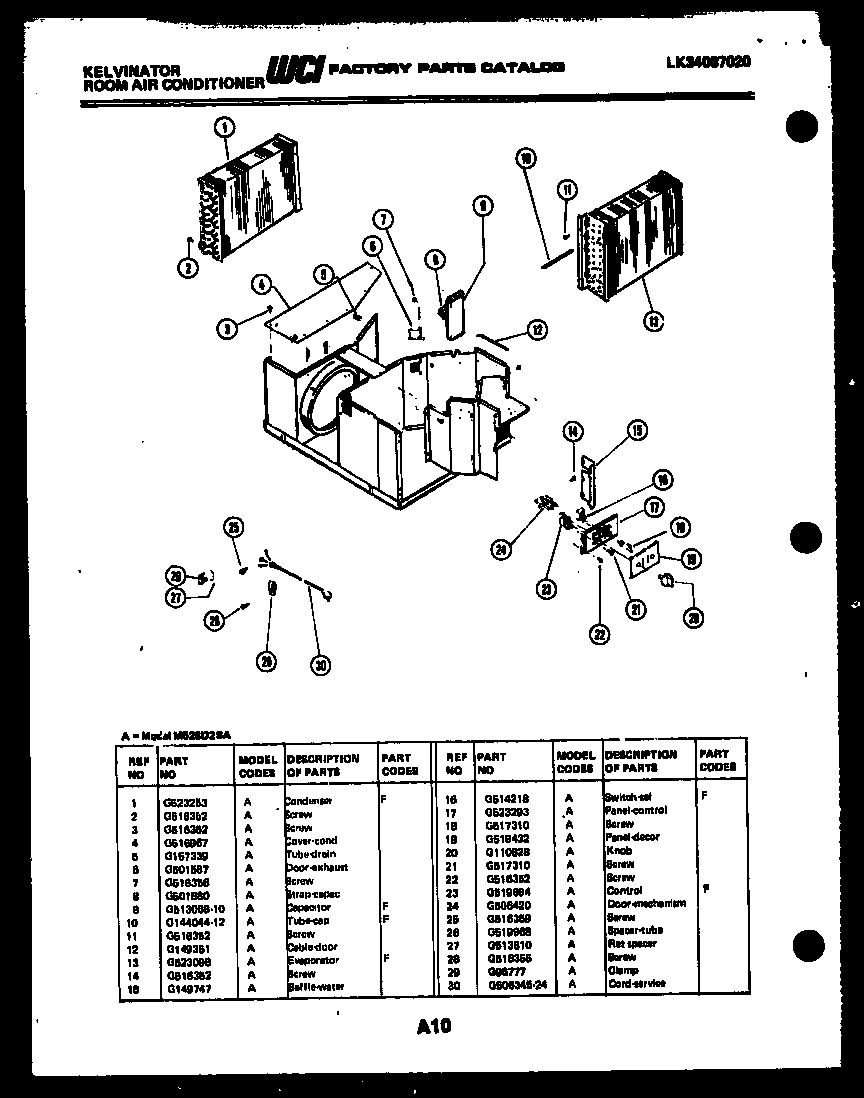

    Unit parts diagram

    Cord

    Part #G506345-24

    Replaced by #5303302611

    Info Icon
    Manufacturer substitution
    This part replaces G506345-24. Substitute parts can look different from the original.
    In Stock
    $113.64
    Minus Item
    Qty
    Plus Item
  • Terminal Cover Nut for Kelvinator M528D2SA - Part 5303211017

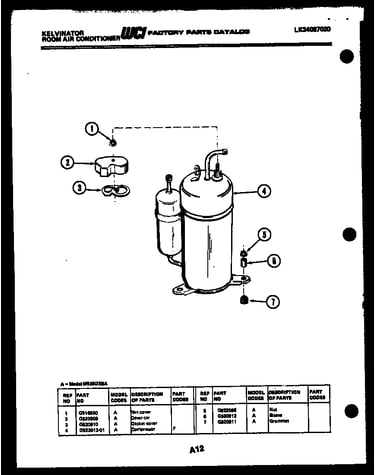

    Compressor diagram

    Cover Nut

    Part #G516950

    Replaced by #5303211017

    Info Icon
    Manufacturer substitution
    This part replaces G516950. Substitute parts can look different from the original.
    In Stock
    $36.79
    Minus Item
    Qty
    Plus Item
  • Screw for Kelvinator M528D2SA - Part 5300516984

    Screw

    Part #G516984

    Replaced by #5300516984

    Info Icon
    Manufacturer substitution
    This part replaces G516984. Substitute parts can look different from the original.
    In Stock
    $27.57
    Minus Item
    Qty
    Plus Item
  • Tube for Kelvinator M528D2SA - Part 5300108378

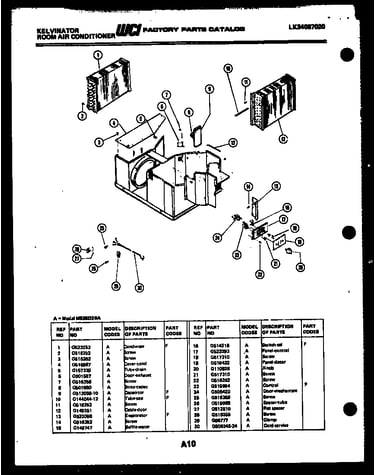

    Unit parts diagram

    Tube

    Part #G144044-12

    Replaced by #5300108378

    Info Icon
    Manufacturer substitution
    This part replaces G144044-12. Substitute parts can look different from the original.
    In Stock
    $36.19
    Minus Item
    Qty
    Plus Item
  • Screw for Kelvinator M528D2SA - Part 5300516352

    Screw

    Part #G516352

    Replaced by #5300516352

    Info Icon
    Manufacturer substitution
    This part replaces G516352. Substitute parts can look different from the original.
    In Stock
    $25.13
    Minus Item
    Qty
    Plus Item
  • Seal for Kelvinator M528D2SA - Part G149187-03

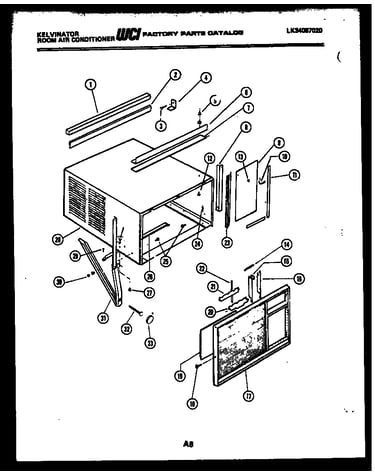

    Cabinet parts diagram

    Seal

    Part #G149187-05

    Replaced by #G149187-03

    Info Icon
    Manufacturer substitution
    This part replaces G149187-05. Substitute parts can look different from the original.
    In Stock
    $35.28
    Minus Item
    Qty
    Plus Item
  • Screw for Kelvinator M528D2SA - Part 5300516984

    Cabinet parts diagram

    Screw

    Part #G516357

    Replaced by #5300516984

    Info Icon
    Manufacturer substitution
    This part replaces G516357. Substitute parts can look different from the original.
    In Stock
    $27.57
    Minus Item
    Qty
    Plus Item
  • Panel for Kelvinator M528D2SA - Part 5300100078

    Cabinet parts diagram

    Panel

    Part #G149202-03

    Replaced by #5300100078

    Info Icon
    Manufacturer substitution
    This part replaces G149202-03. Substitute parts can look different from the original.
    In Stock
    $54.32
    Minus Item
    Qty
    Plus Item
  • Retainer for Kelvinator M528D2SA - Part 5303001821

    Cabinet parts diagram

    Clip

    Part #G117313

    Replaced by #5303001821

    Info Icon
    Manufacturer substitution
    This part replaces G117313. Substitute parts can look different from the original.
    In Stock
    $28.50
    Minus Item
    Qty
    Plus Item
