Frigidaire
Wall Oven/Microwave Combo

Model # REM77BDB1 Official Frigidaire wall oven - lf32090380

Here are the diagrams and repair parts for Official Frigidaire REM77BDB1 wall oven - lf32090380, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

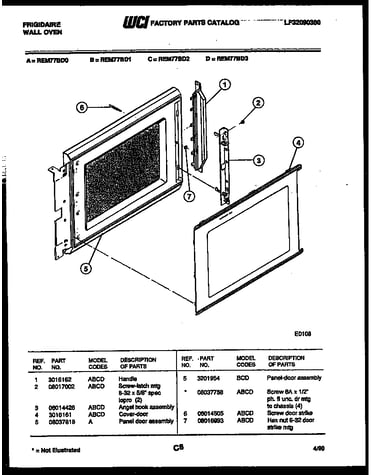

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |

Light Bulb/l 08037649
#49

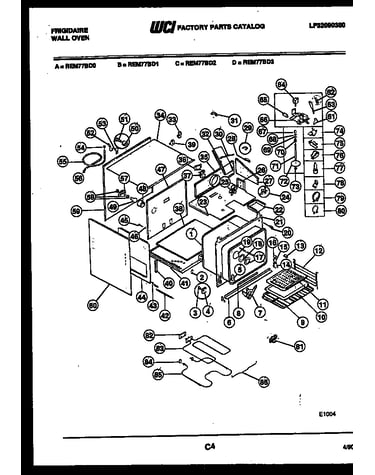

Lower body parts diagram

Light bulb/l

Part #08037649

Replaced by #316538904

?
Manufacturer substitution
This part replaces 08037649. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Screw 5303051043
#8

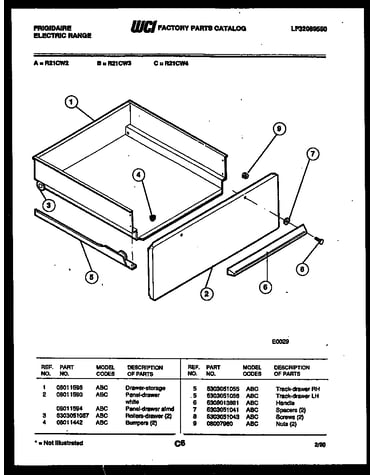

Drawer parts diagram

Screw

Part #5303051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
In Stock
Element 08010472
#83

Lower body parts diagram

Element

Part #08010472

Replaced by #220T017P02

?
Manufacturer substitution
This part replaces 08010472. Substitute parts can look different from the original.
$121.49
8% OFF Phone Price : $131.49
In Stock
Screw 08012774
#13A

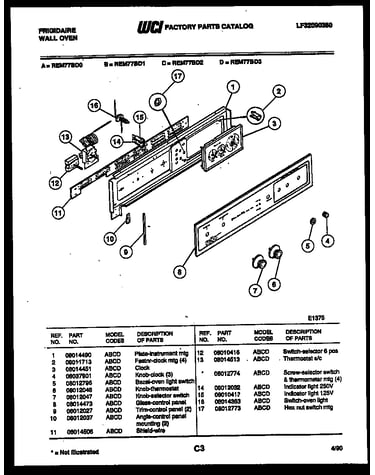

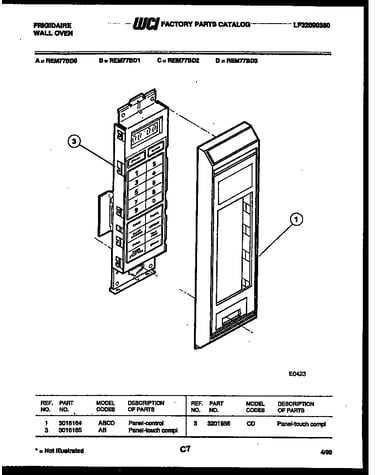

Control panel diagram

Screw

Part #08012774

Replaced by #5303292005

?
Manufacturer substitution
This part replaces 08012774. Substitute parts can look different from the original.
This item is not returnable
In Stock
Label 3018849
#28E

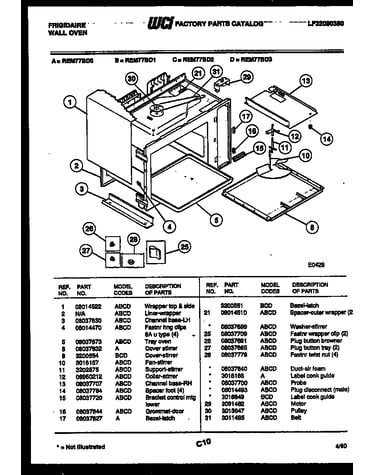

Upper body parts diagram

Label

Part #3018849

Replaced by #5303018849

?
Manufacturer substitution
This part replaces 3018849. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 08011725
#50

Lower body parts diagram

Nut

Part #08011725

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 08011725. Substitute parts can look different from the original.
This item is not returnable
$18.59
10% OFF Phone Price : $20.59
In Stock
Screw 08014502
#7A

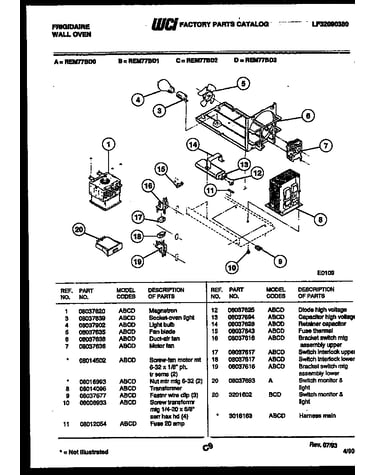

Power control diagram

Screw

Part #08014502

Replaced by #5308014502

?
Manufacturer substitution
This part replaces 08014502. Substitute parts can look different from the original.
This item is not returnable
In Stock
Base 08014432
#41

Lower body parts diagram

Base

Part #08014432

Replaced by #036T030W05-18

?
Manufacturer substitution
This part replaces 08014432. Substitute parts can look different from the original.
In Stock
Nut 08007960
#9

Drawer parts diagram

Nut

Part #08007960

Replaced by #3051038

?
Manufacturer substitution
This part replaces 08007960. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket 08012087
#10

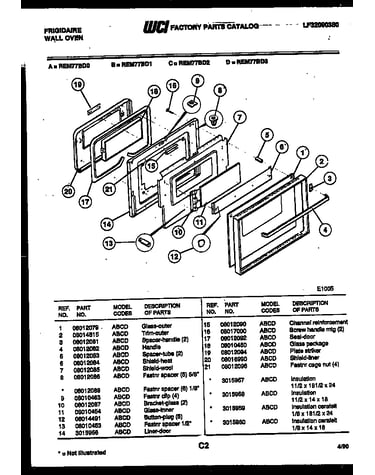

Lower oven door parts diagram

Bracket

Part #08012087

Replaced by #072T760F01-18

?
Manufacturer substitution
This part replaces 08012087. Substitute parts can look different from the original.
This item is not returnable
