Schwinn
Exercise Cycle

Model # 202 Official Schwinn cycle

Here are the diagrams and repair parts for Official Schwinn 202 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Sprt Frame 18083
#6

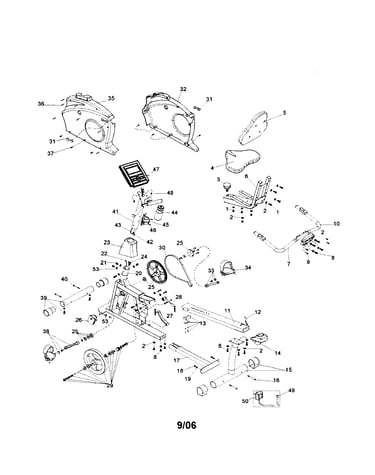

Cycle diagram

Sprt frame

Part #18083

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Stabilizer, Front 001-1025
#39

Cycle diagram

Exercise cycle stabilizer, front

Part #001-1025

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Speed Sensor 25023

#NI06

All parts diagram

Exercise cycle speed sensor

Part #25023

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Flat Washer 18101
Exercise cycle flat washer

Part #18101

The manufacturer no longer makes this part, and there's no substitute part

Shroud, R 001-1027
#32

Cycle diagram

Shroud, r

Part #001-1027

The manufacturer no longer makes this part, and there's no substitute part

Round Head Screw, M5 X 10 18094
#48

Cycle diagram

Round head screw, m5 x 10

Part #18094

The manufacturer no longer makes this part, and there's no substitute part

Bumper Assembly 18053
#13

Cycle diagram

Bumper assembly

Part #18053

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Wire Harness, Lower 18064
#22

Cycle diagram

Exercise cycle wire harness, lower

Part #18064

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 92436
#18

Cycle diagram

Hex nut

Part #92436

The manufacturer no longer makes this part, and there's no substitute part

Exercise Cycle Stabilizer End Cap, Rear 18112

#NI07

All parts diagram

Exercise cycle stabilizer end cap, rear

Part #18112

The manufacturer no longer makes this part, and there's no substitute part
