Whirlpool ACU114XE4 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACU114XE4 air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for ACU114XE4 Air Conditioner

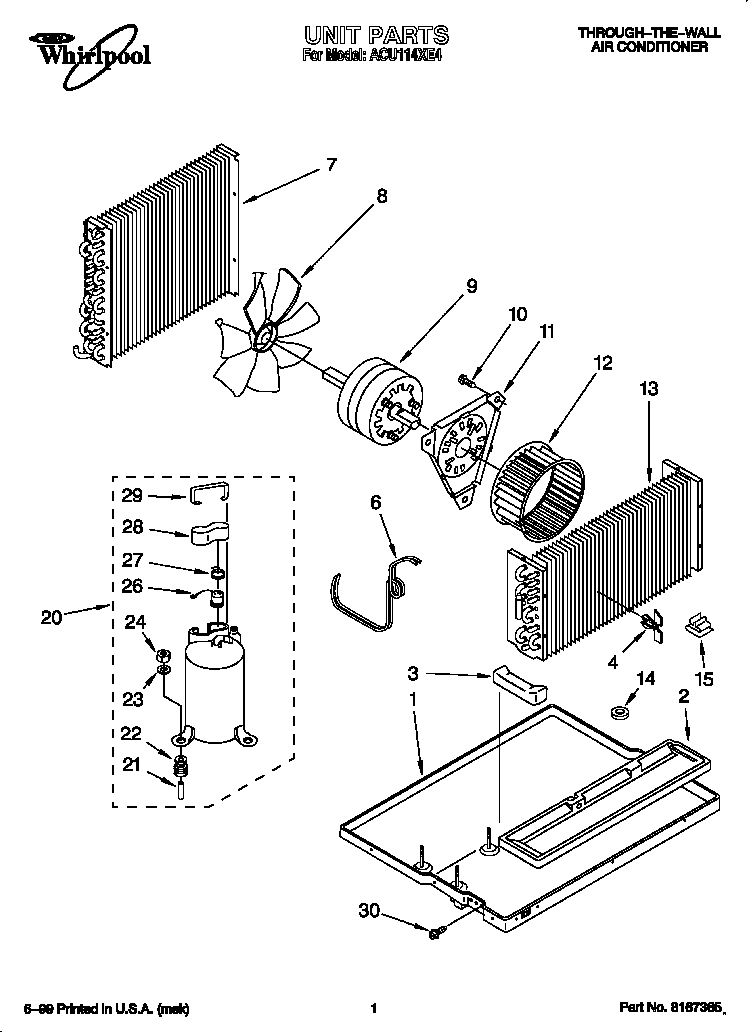

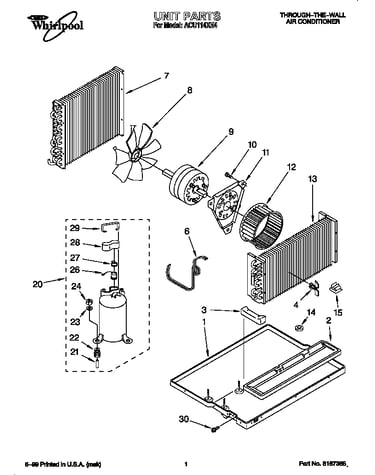

Unit diagram
Overload
In Stock$187.92
Qty

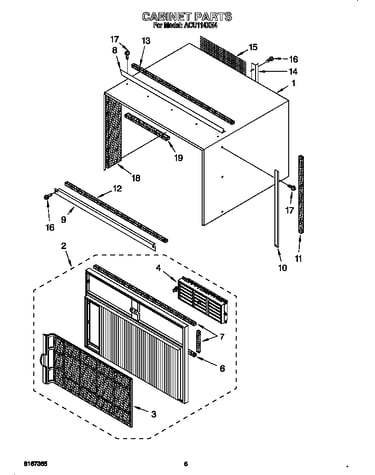

Cabinet diagram
Seal Strip
Part #789742Replaced by #WP854334
Manufacturer substitutionThis part replaces 789742. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17

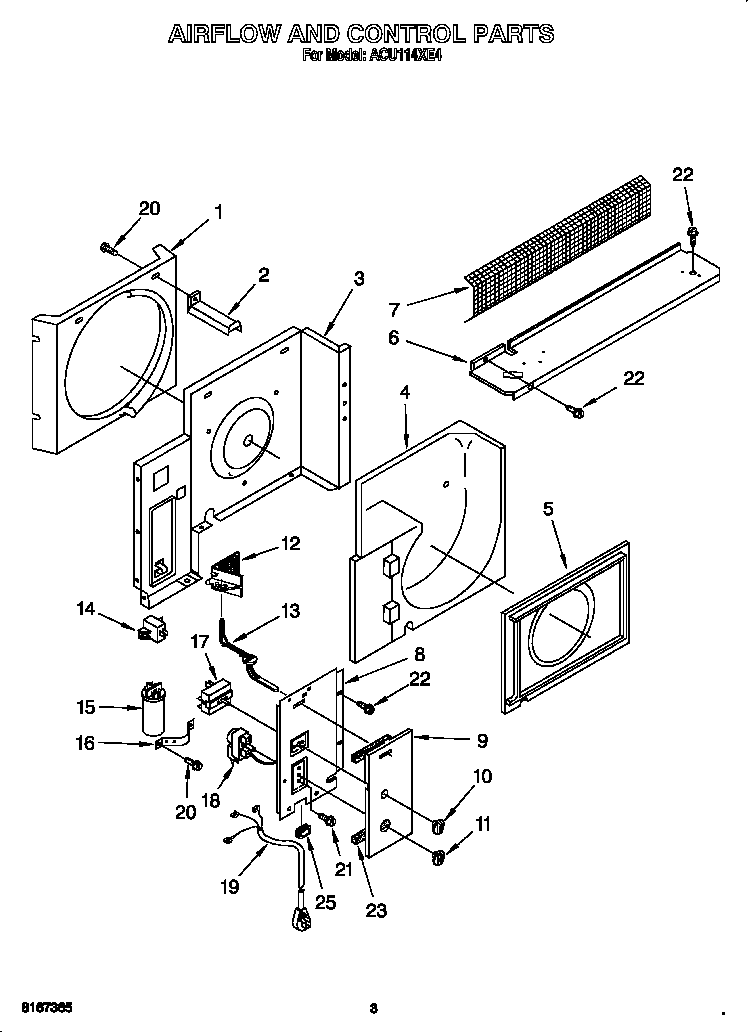

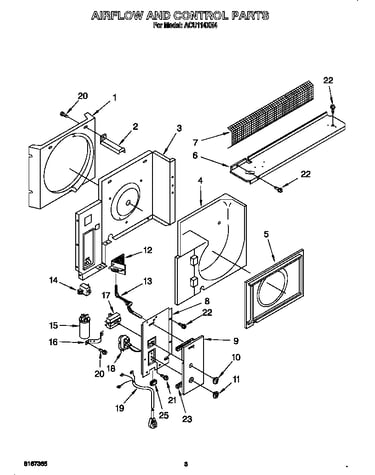

QtyAirflow and control diagram
Spacer
Part #789623Replaced by #WP854334
Manufacturer substitutionThis part replaces 789623. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Seal Strip
Part #789740Replaced by #WP854334
Manufacturer substitutionThis part replaces 789740. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Seal Strip
Part #789741Replaced by #WP854334
Manufacturer substitutionThis part replaces 789741. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyUnit diagram
Compressor
Part #789865
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Drip Pan
Part #789677
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Retainer
Part #789824
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Dividing Wall
Part #789758
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Cabinet
Part #4378882
The manufacturer no longer makes this part, and there's no substitute part
