Frigidaire
Room Air Conditioner

Model # FAH106S2TA Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH106S2TA room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

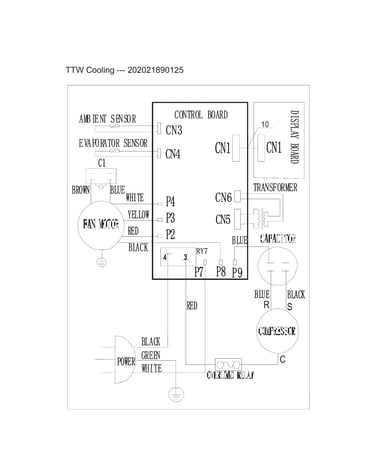

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Room Air Conditioner Rear Grille 5304470975
#28

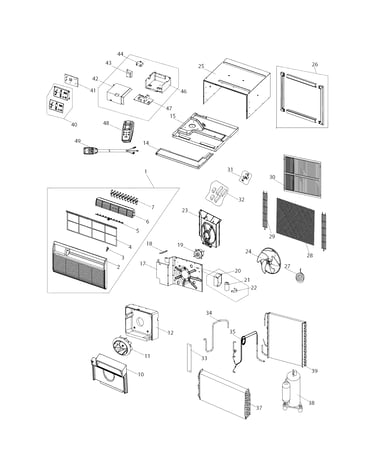

Recommended spare parts diagram

Room air conditioner rear grille

Part #5304470975

$20.69
19% OFF Phone Price : $25.69
In Stock
Room Air Conditioner Air Filter 5304470951
#4

Recommended spare parts diagram

Room air conditioner air filter

Part #5304470951

Replaced by #5304528926

?
Manufacturer substitution
This part replaces 5304470951. Substitute parts can look different from the original.
In Stock
Air Conditioner Blower Wheel 5304471193
#11

Recommended spare parts diagram

Air conditioner blower wheel

Part #5304471193

In Stock
Room Air Conditioner Foam Seal 5304470974
#27

Recommended spare parts diagram

Room air conditioner foam seal

Part #5304470974

In Stock
Room Air Conditioner Fan Motor Capacitor 5304471077
#44

Recommended spare parts diagram

Room air conditioner fan motor capacitor

Part #5304471077

This item is not returnable
$38.67
11% OFF Phone Price : $43.67
In Stock
Room Air Conditioner Transformer 5304471063
#43

Recommended spare parts diagram

Room air conditioner transformer

Part #5304471063

$72.69
6% OFF Phone Price : $77.69
In Stock
Room Air Conditioner Condenser Fan Blade 5304470971
#24

Recommended spare parts diagram

Room air conditioner condenser fan blade

Part #5304470971

In Stock
Room Air Conditioner Electronic Control Board Assembly 5304471197
#41

Recommended spare parts diagram

Room air conditioner electronic control board assembly

Part #5304471197

$115.95
8% OFF Phone Price : $125.95
In Stock
Control Panel 5304471196
#40

Recommended spare parts diagram

Control panel

Part #5304471196

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5304471062
#39

Recommended spare parts diagram

Condenser

Part #5304471062

The manufacturer no longer makes this part, and there's no substitute part
