Reverse Osmosis System

Model # GNSV30CCC Official GE water system

Here are the diagrams and repair parts for Official GE GNSV30CCC water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Reverse Osmosis System Filter Assembly (replaces Fxslc, Ws35x10026, Ws35x10028) FXSVC
#100

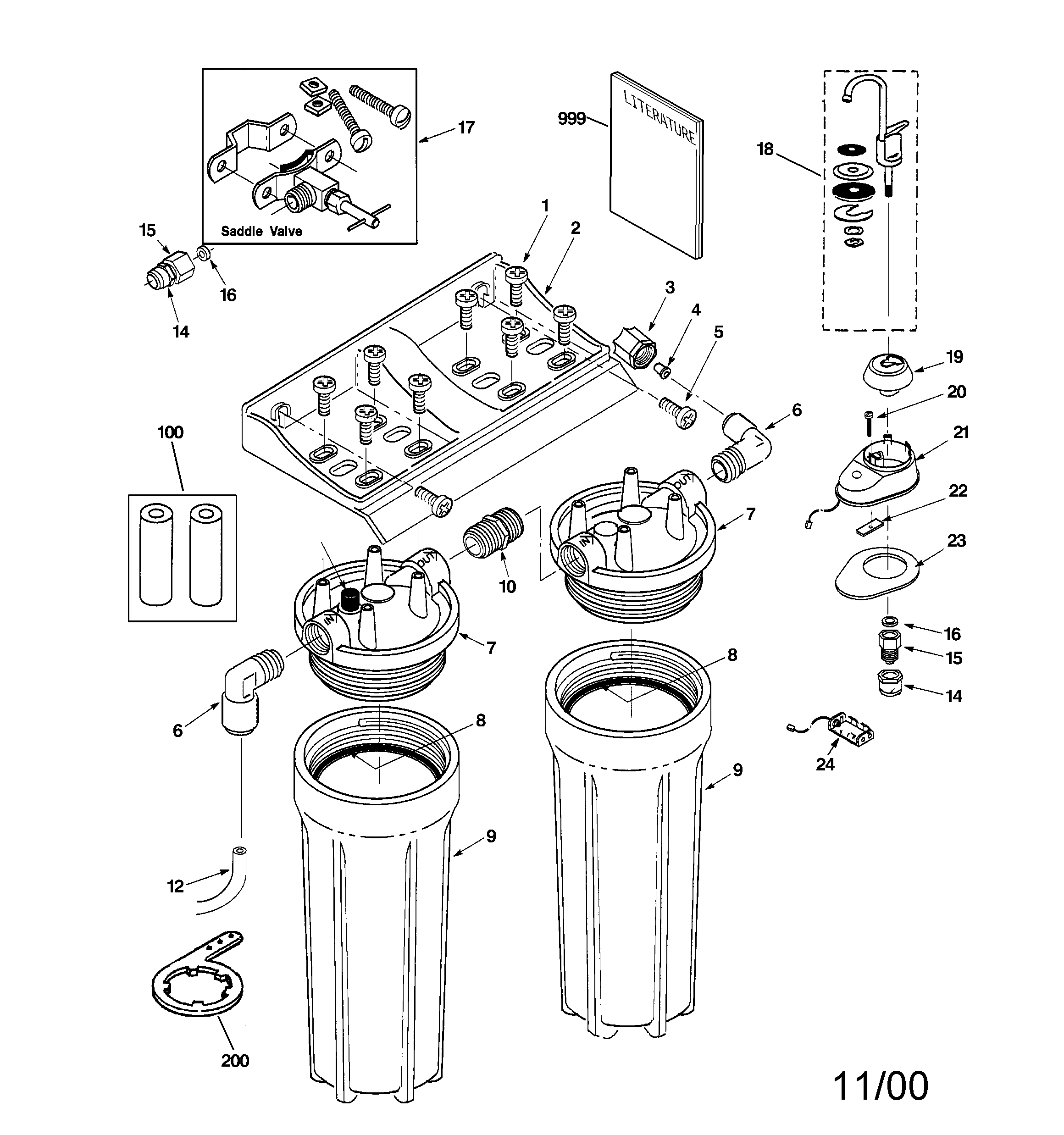

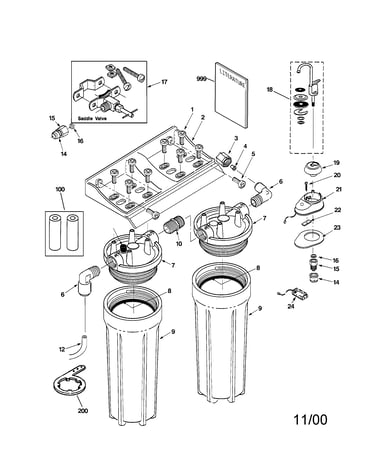

Undersink water system diagram

Reverse osmosis system filter assembly (replaces fxslc, ws35x10026, ws35x10028)

Part #FXSVC

Get free shipping with Automatic Reorder

$59.00
8% OFF Phone Price : $64.00
In Stock
Sump Wrench WX5X140
#200

Undersink water system diagram

Sump wrench

Part #WX5X140

$22.59
18% OFF Phone Price : $27.59
In Stock
Elbow 3/8 WS22X10002
#6

Undersink water system diagram

Elbow 3/8

Part #WS22X10002

Replaced by #9004503

?
Manufacturer substitution
This part replaces WS22X10002. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 3/8 WS02X10004
#14

Undersink water system diagram

Nut 3/8

Part #WS02X10004

Replaced by #7207920

?
Manufacturer substitution
This part replaces WS02X10004. Substitute parts can look different from the original.
This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Insert Tube WS22X10007
#4

Undersink water system diagram

Insert tube

Part #WS22X10007

Replaced by #7131349

?
Manufacturer substitution
This part replaces WS22X10007. Substitute parts can look different from the original.
$8.19
11% OFF Phone Price : $9.19
In Stock
Faucet-bsq WS10X10026
#18

Undersink water system diagram

Faucet-bsq

Part #WS10X10026

In Stock
Faucet Base WS10X10010
#19

Undersink water system diagram

Faucet base

Part #WS10X10010

In Stock
Washer WS03X10002
#16

Undersink water system diagram

Washer

Part #WS03X10002

Replaced by #1260600

?
Manufacturer substitution
This part replaces WS03X10002. Substitute parts can look different from the original.
This item is not returnable
In Stock
Holder Batt WS06X10001
#24

Undersink water system diagram

Holder batt

Part #WS06X10001

Replaced by #7162552

?
Manufacturer substitution
This part replaces WS06X10001. Substitute parts can look different from the original.
In Stock
Screw #10-14 WS02X10003
#5

Undersink water system diagram

Screw #10-14

Part #WS02X10003

Replaced by #9006053

?
Manufacturer substitution
This part replaces WS02X10003. Substitute parts can look different from the original.
This item is not returnable
In Stock
