Model # 52870456 Official LXI television

Here are the diagrams and repair parts for Official LXI 52870456 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Plate 46-3134
#6

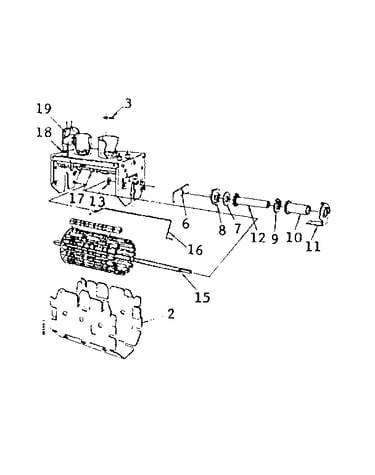

View vhf tuner 95-500-1 diagram

Plate

Part #46-3134

The manufacturer no longer makes this part, and there's no substitute part

Washer 46-729
#7

View vhf tuner 95-500-1 diagram

Washer

Part #46-729

The manufacturer no longer makes this part, and there's no substitute part

Drive 46-39196
#9

View vhf tuner 95-500-1 diagram

Drive

Part #46-39196

The manufacturer no longer makes this part, and there's no substitute part

Shaft 39-452-3
#12

View vhf tuner 95-500-1 diagram

Shaft

Part #39-452-3

The manufacturer no longer makes this part, and there's no substitute part

Fastener 22-52-1
#36

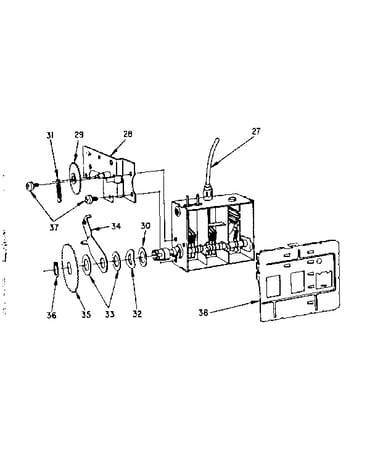

Uhf tuner 95-570-4 (used with chassis 70455, 70456 diagram

Fastener

Part #22-52-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 58-816
#33

Uhf tuner 95-570-4 (used with chassis 70455, 70456 diagram

Washer

Part #58-816

The manufacturer no longer makes this part, and there's no substitute part

Washer 58-813
#30

Uhf tuner 95-570-4 (used with chassis 70455, 70456 diagram

Washer

Part #58-813

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-764-0
#77

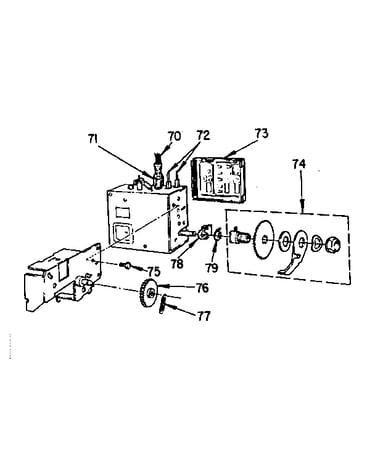

Uhf tuner 95-585-3 (used with chassis 70457, 70458, 70459) diagram

Spring

Part #70-764-0

The manufacturer no longer makes this part, and there's no substitute part

Drive 46-39261
#79

Uhf tuner 95-585-3 (used with chassis 70457, 70458, 70459) diagram

Drive

Part #46-39261

The manufacturer no longer makes this part, and there's no substitute part

Assembly 46-84159
#19

View vhf tuner 95-500-1 diagram

Assembly

Part #46-84159

The manufacturer no longer makes this part, and there's no substitute part
