Amana AC14010C1D-P1225024R room air conditioner Parts
Here are the diagrams and repair parts for Amana AC14010C1D-P1225024R room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for AC14010C1D-P1225024R Room Air Conditioner

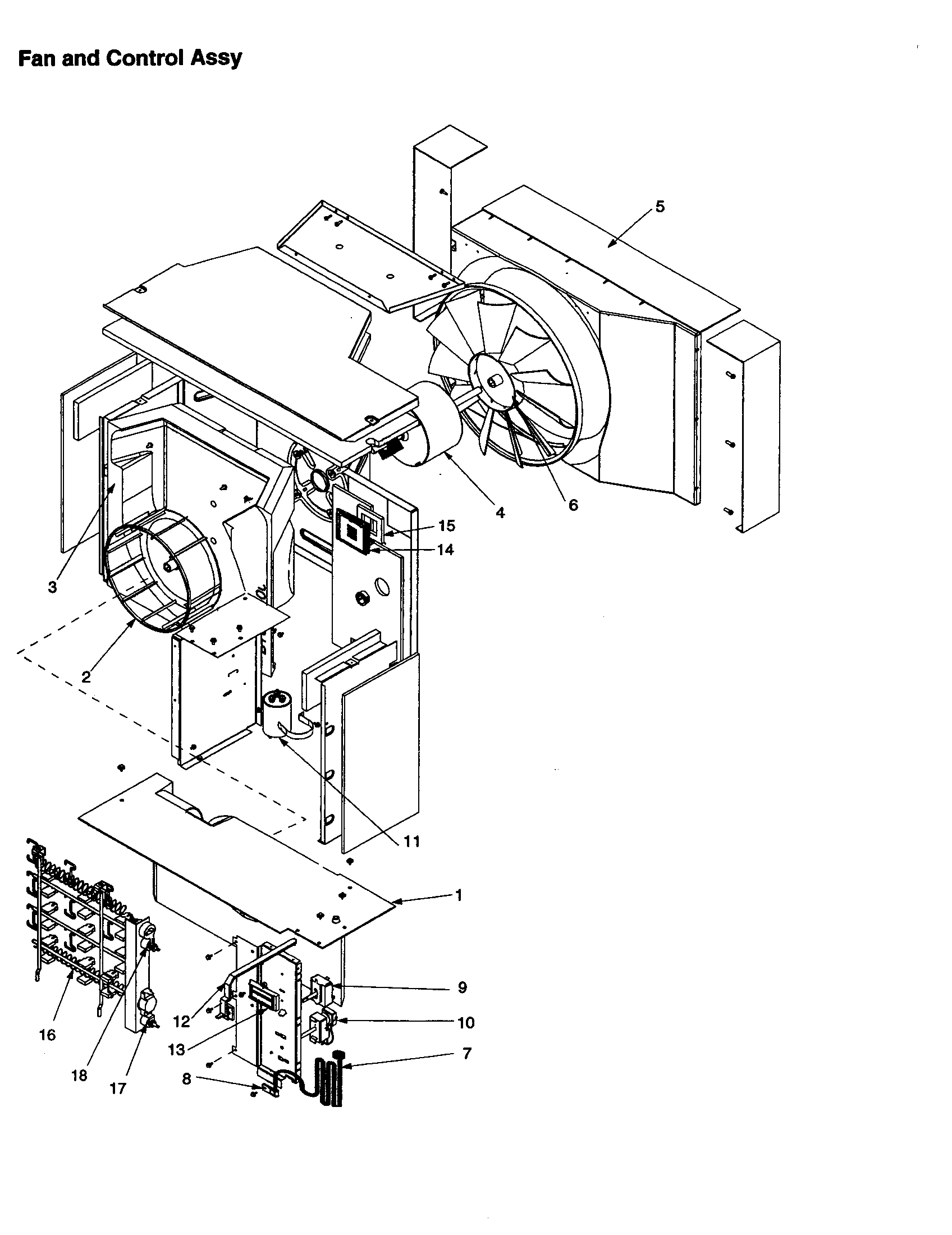

Fan and control assembly diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50
Qty

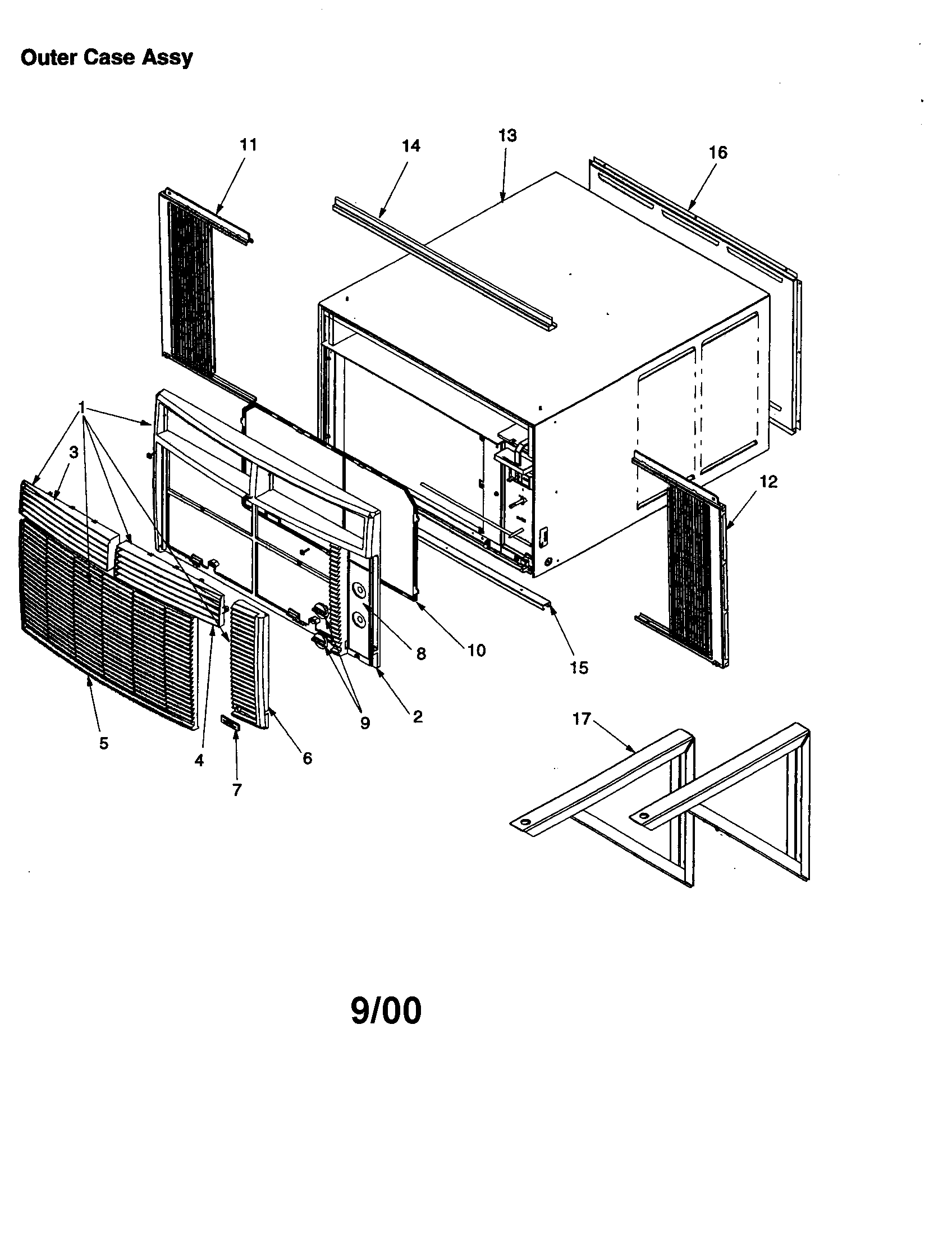

Outer case diagram
Control Knob
Part #BT3075631Replaced by #WPBT3075631
Manufacturer substitutionThis part replaces BT3075631. Substitute parts can look different from the original.In Stock$56.59QtyCompressor assembly diagram
Overload
Part #BT1243705
The manufacturer no longer makes this part, and there's no substitute part

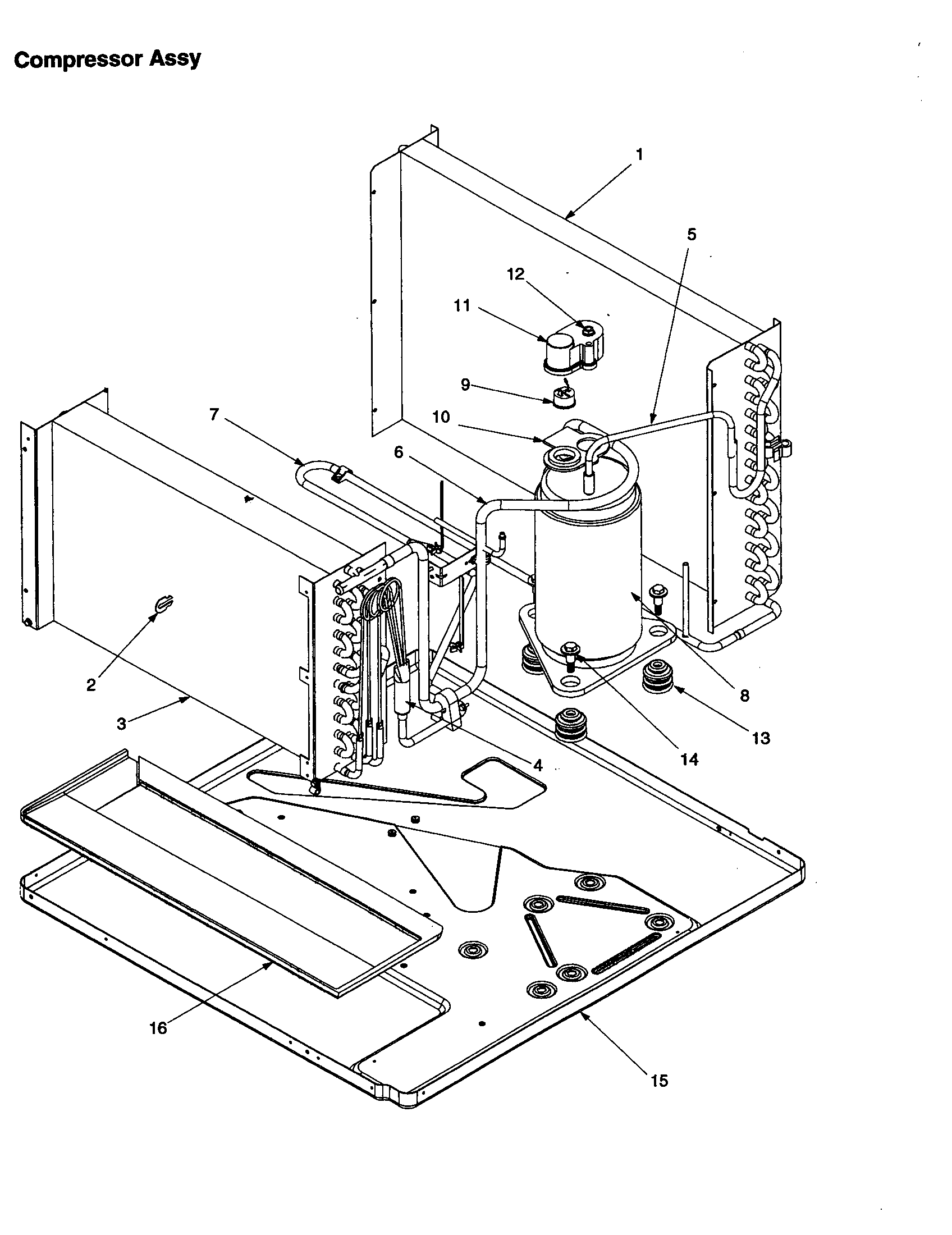

Compressor assembly diagram
Cap Tube Assembly
Part #3093863
The manufacturer no longer makes this part, and there's no substitute part

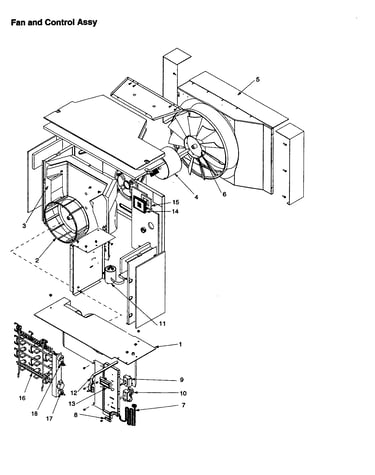

Fan and control assembly diagram
Damper Slide
Part #BT3076302
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Foam ,75 X 1.50 (3.5 Ft)
Part #BT1392600
The manufacturer no longer makes this part, and there's no substitute part

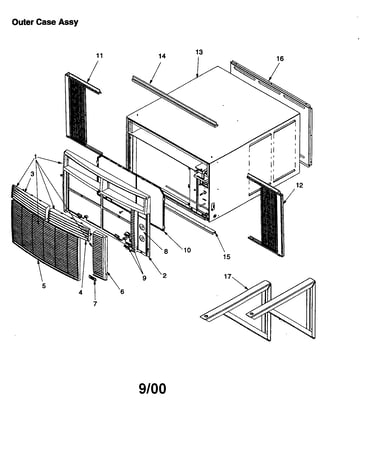

Outer case diagram
Panel
Part #3002206P
The manufacturer no longer makes this part, and there's no substitute part
Outer case diagram
Shutter
Part #BT3074112
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Limit Switch
Part #BT1243735
The manufacturer no longer makes this part, and there's no substitute part
Outer case diagram
Front Frame
Part #BT3075102
The manufacturer no longer makes this part, and there's no substitute part
