Model # MUY-GE12NA Official Mitsubishi split-system air conditioner heat pump

Here are the diagrams and repair parts for Official Mitsubishi MUY-GE12NA split-system air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Nylon Nut Inverter E12E84451
#9

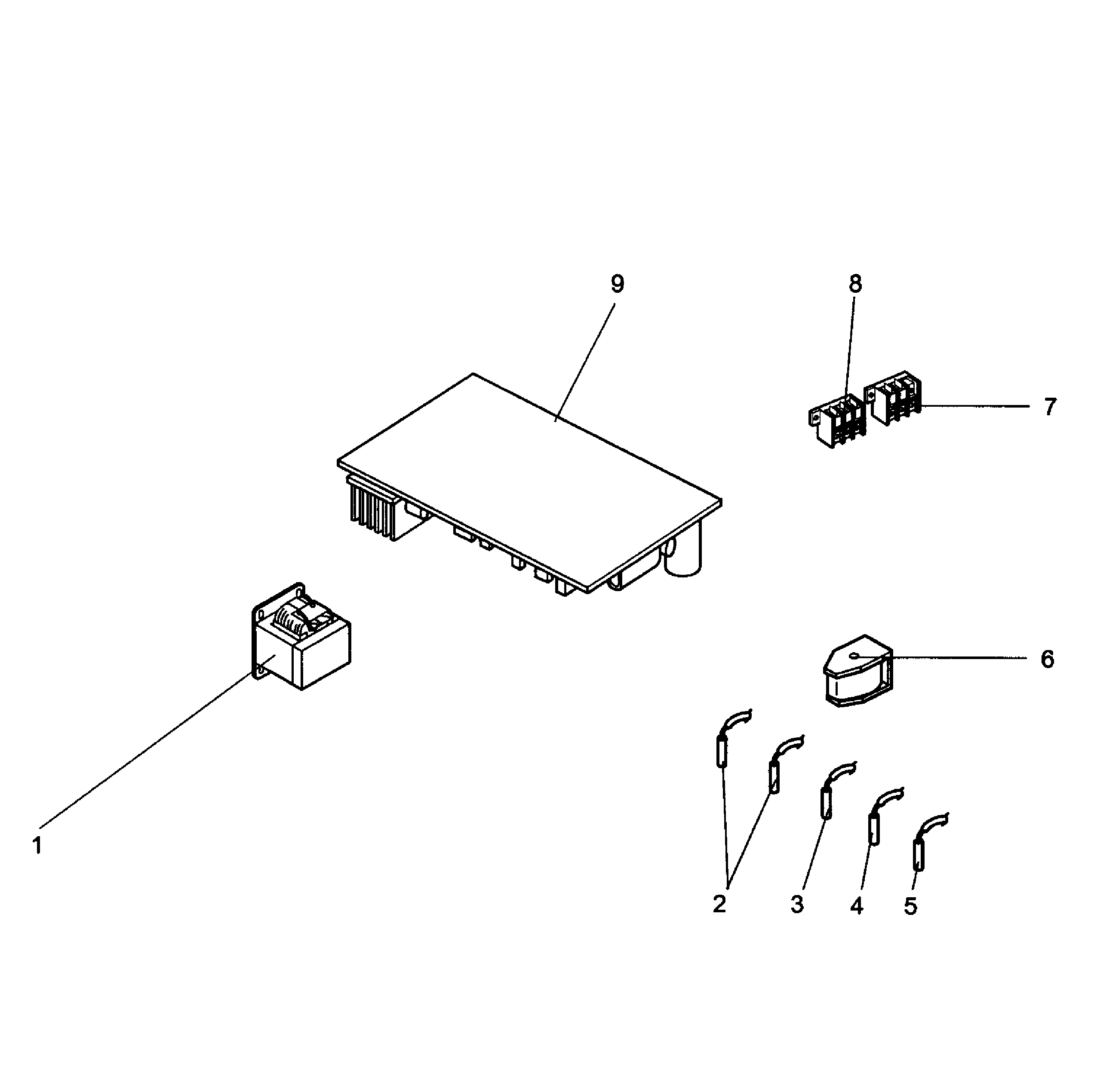

Pcb assy diagram

Nylon nut inverter

Part #E12E84451

$342.99
In Stock
Terminal E12A53374
#7

Pcb assy diagram

Terminal

Part #E12A53374

The manufacturer no longer makes this part, and there's no substitute part

Terminal E12927374
#8

Pcb assy diagram

Terminal

Part #E12927374

The manufacturer no longer makes this part, and there's no substitute part

Stop Valve E12927662
#8

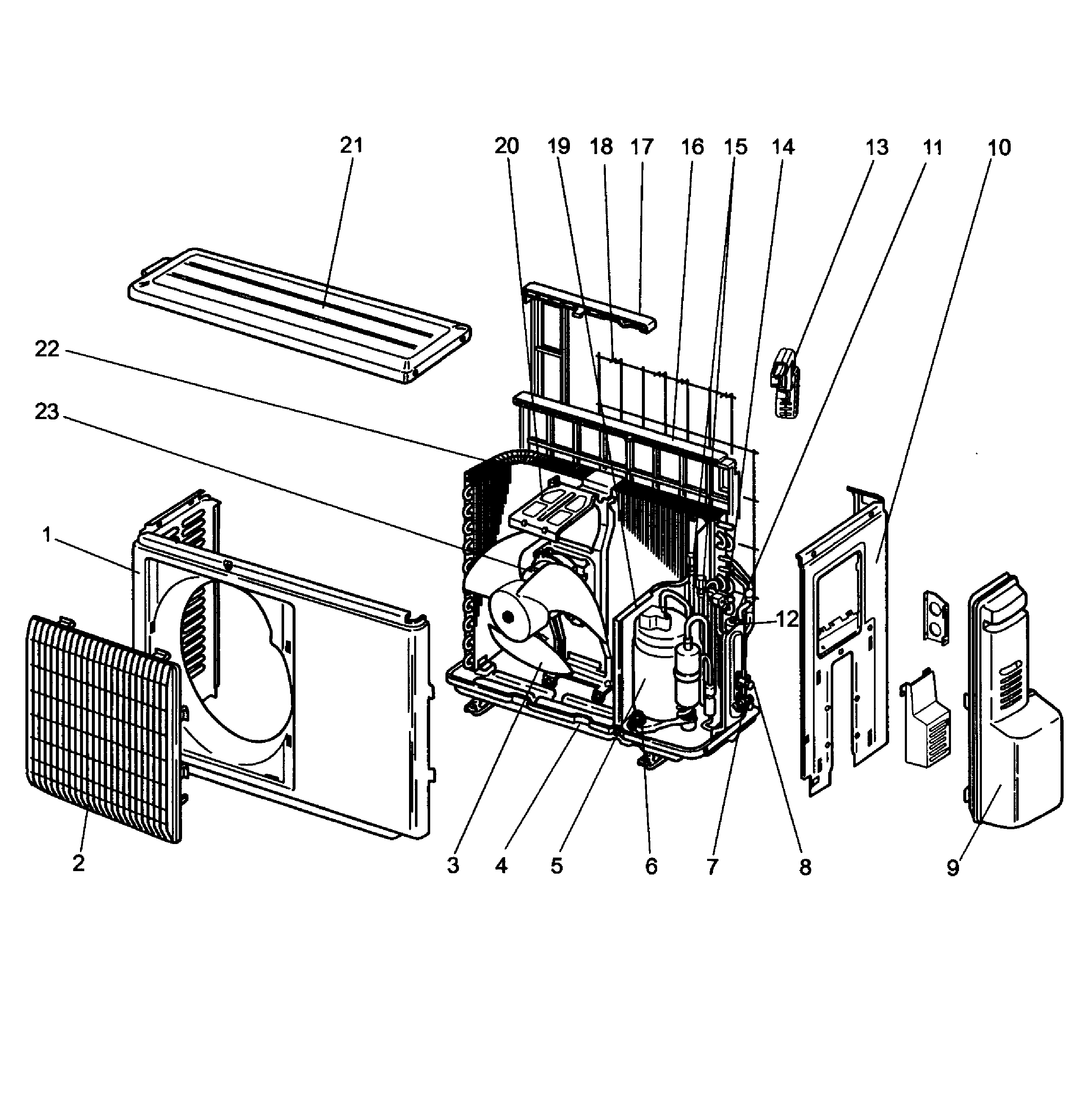

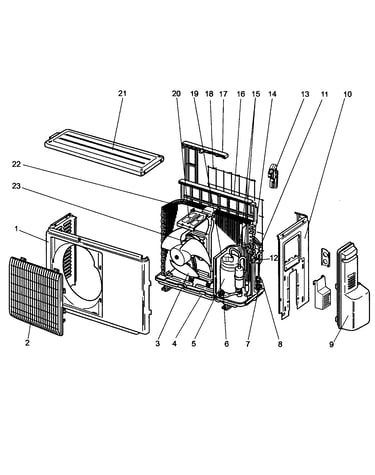

Cabinet assy diagram

Stop valve

Part #E12927662

The manufacturer no longer makes this part, and there's no substitute part

Cabinet E12927232
#1

Cabinet assy diagram

Cabinet

Part #E12927232

The manufacturer no longer makes this part, and there's no substitute part

Varistor E12661385
#11

Pcb assy diagram

Varistor

Part #E12661385

The manufacturer no longer makes this part, and there's no substitute part

Expansion E12A54640
#11

Cabinet assy diagram

Expansion

Part #E12A54640

The manufacturer no longer makes this part, and there's no substitute part

Outdr Heat E12C34307
#5

Pcb assy diagram

Outdr heat

Part #E12C34307

The manufacturer no longer makes this part, and there's no substitute part

Top Panel E12927297
#21

Cabinet assy diagram

Top panel

Part #E12927297

The manufacturer no longer makes this part, and there's no substitute part

Fuse E12784382
#10

Pcb assy diagram

Fuse

Part #E12784382

The manufacturer no longer makes this part, and there's no substitute part
