Model # 486245452 Official Craftsman electric assist kit

Here are the diagrams and repair parts for Official Craftsman 486245452 electric assist kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#3

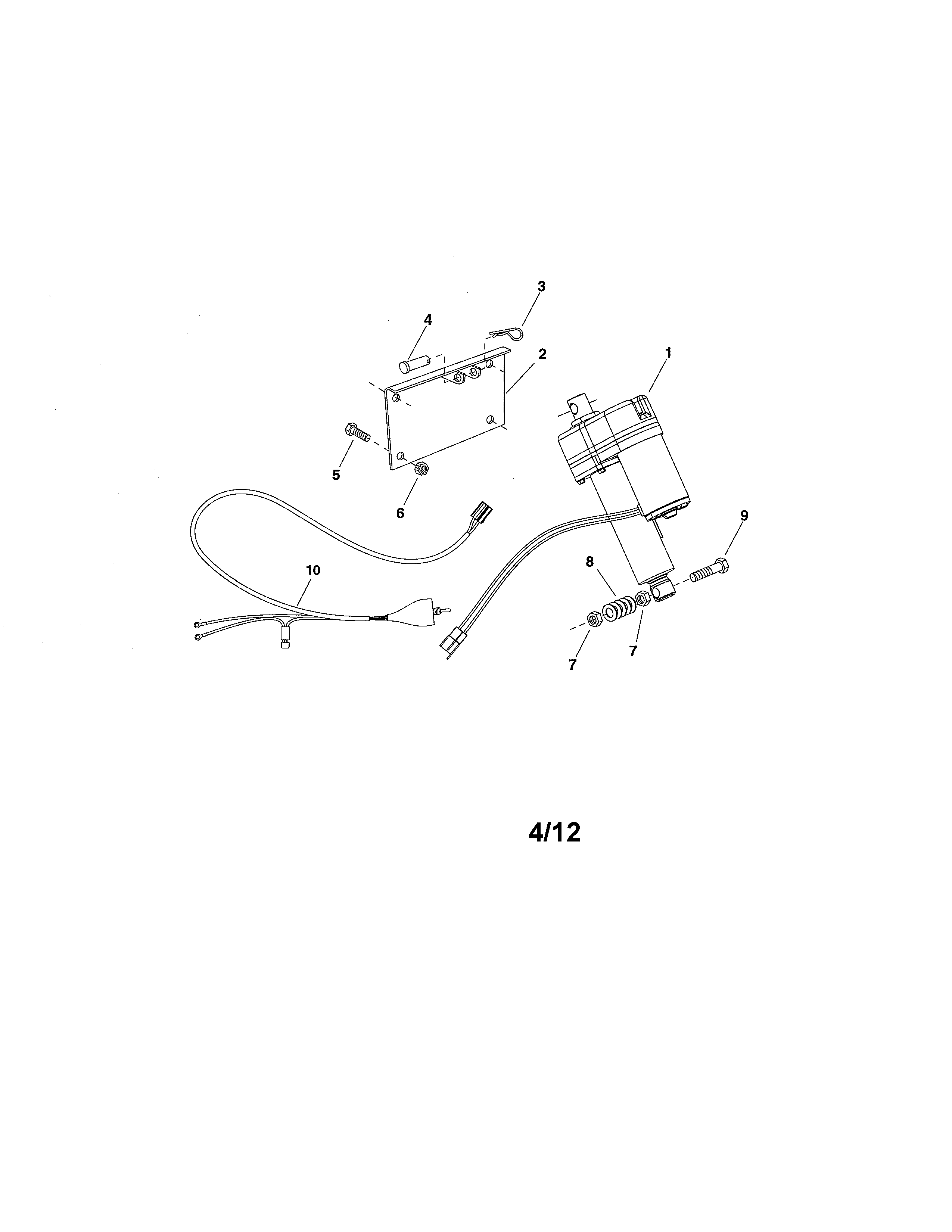

Electric assist kit diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
In Stock
Lawn Tractor Attachment Screw, 3/8-16 X 1-in 43001
#5

Electric assist kit diagram

Lawn tractor attachment screw, 3/8-16 x 1-in

Part #43001

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Nut, 1/2-in 43262
#7

Electric assist kit diagram

Lawn tractor attachment nut, 1/2-in

Part #43262

This item is not returnable
$2.16
In Stock
Actuator 42549
#1

Electric assist kit diagram

Actuator

Part #42549

$683.89
In Stock
Lawn Tractor Flat Washer 1540-59
#8

Electric assist kit diagram

Lawn tractor flat washer

Part #1540-59

This item is not returnable
$2.16
In Stock
Lawn Tractor Dozer Blade Attachment Hex Nut 43510
#9

Electric assist kit diagram

Lawn tractor dozer blade attachment hex nut

Part #43510

This item is not returnable
$2.16
In Stock
Switch With Fuse 42550
#10

Electric assist kit diagram

Switch with fuse

Part #42550

$114.62
In Stock
Lawn Tractor Dump Cart Nut HA21362
#6

Electric assist kit diagram

Lawn tractor dump cart nut

Part #HA21362

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Snowblower Clevis Pin HA23505
#4

Electric assist kit diagram

Snowblower clevis pin

Part #HA23505

This item is not returnable
$6.83
In Stock
Owner's Manual 42551

#NI01

All parts diagram

Owner's manual

Part #42551

The manufacturer no longer makes this part, and there's no substitute part
