Model # GUWE/GUWC Official Weatherking upflow furnace

Here are the diagrams and repair parts for Official Weatherking GUWE-GUWC upflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

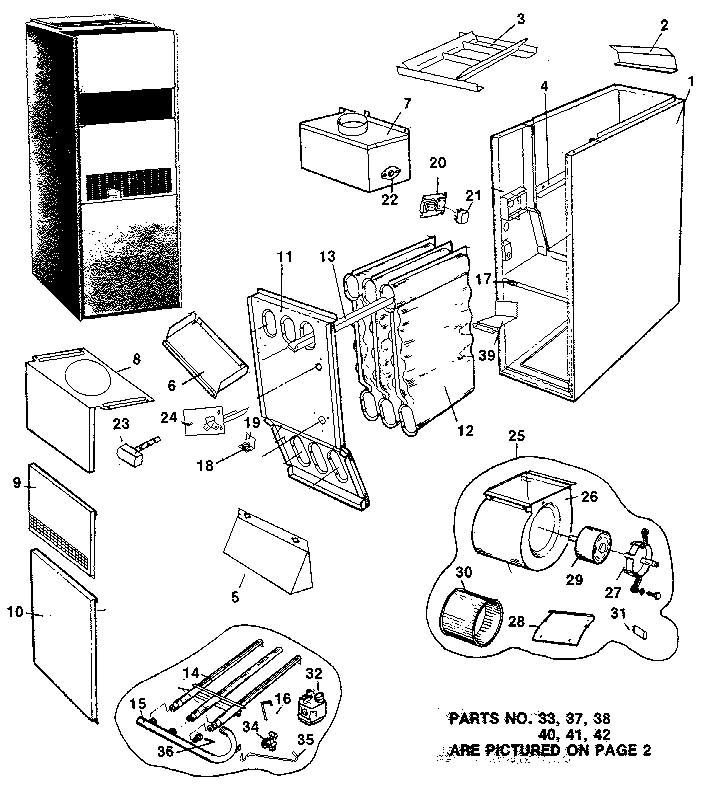

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

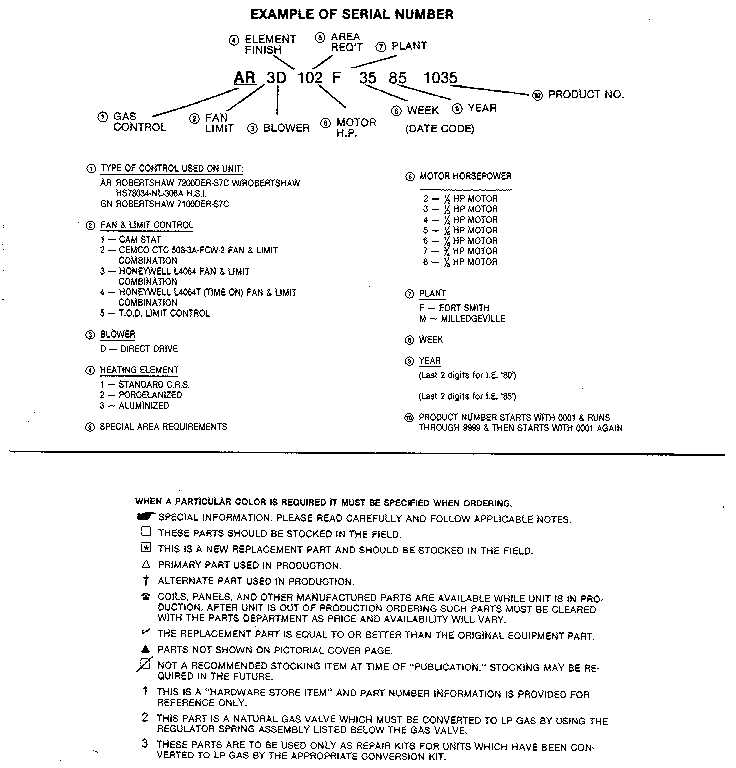

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Motor 51-18828-11

#29A

All parts diagram

Motor

Part #51-18828-11

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 43-20847-11

#31

All parts diagram

Capacitor

Part #43-20847-11

Replaced by #12907

?
Manufacturer substitution
This part replaces 43-20847-11. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Motor 51-20814-11

#29

All parts diagram

Motor

Part #51-20814-11

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel 70-20602-01

#30C

All parts diagram

Furnace blower fan wheel

Part #70-20602-01

$126.40 |
7% OFF Phone Price : $136.40
In Stock
Lckot Timer 62-21940-01

#NI

All parts diagram

Lckot timer

Part #62-21940-01

Replaced by #BG1600M51EF-1AA

?
Manufacturer substitution
This part replaces 62-21940-01. Substitute parts can look different from the original.
$205.62 |
5% OFF Phone Price : $215.62
In Stock
Pilot 62-19640-04

#NII

All parts diagram

Pilot

Part #62-19640-04

$63.96
In Stock
Orifice 62-42137-86

#NI

All parts diagram

Orifice

Part #62-42137-86

$105.62
In Stock
Limit Switch 47-22383-13

#22B

All parts diagram

Limit switch

Part #47-22383-13

$26.62
In Stock
Blow Cutoff AE-64401-18

#28C

All parts diagram

Blow cutoff

Part #AE-64401-18

$23.58
In Stock
Bracket AE-61259-01

#16A

All parts diagram

Bracket

Part #AE-61259-01

$9.20
In Stock
