Amana CES1123HER/P9920806R commercial room air conditioner & heat pump - 100 series Parts
Here are the diagrams and repair parts for Amana CES1123HER/P9920806R commercial room air conditioner & heat pump - 100 series, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

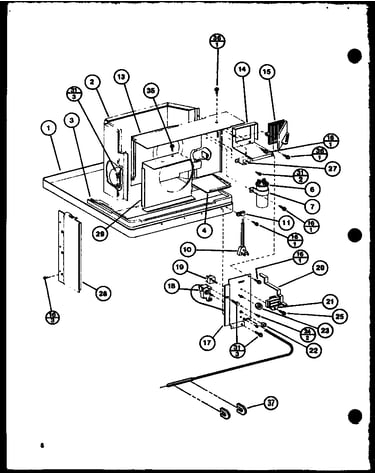

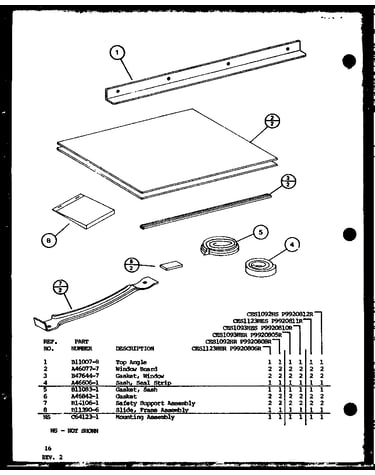

Browse Parts for CES1123HER/P9920806R Commercial Room Air Conditioner & Heat Pump - 100 Series
(ces1093her/p9920805r) (ces1092hr/p9920808r) (ces1093hes/p9920810r) (ces1092hs/p9920812r) diagram
Overload
Part #D4976693
The manufacturer no longer makes this part, and there's no substitute part
(ces1093her/p9920805r) (ces1092hr/p9920808r) (ces1093hes/p9920810r) (ces1092hs/p9920812r) diagram
Grommet
Part #B4793601
The manufacturer no longer makes this part, and there's no substitute part
(ces1123her/p9920806r) (ces1123hes/p9920811r) diagram
Use 10329001
Part #B1378601
The manufacturer no longer makes this part, and there's no substitute part
(ces1123her/p9920806r) (ces1123hes/p9920811r) diagram
Suction Tube
Part #D9945501
The manufacturer no longer makes this part, and there's no substitute part
(ces1093her/p9920805r) (ces1092hr/p9920808r) (ces1093hes/p9920810r) (ces1092hs/p9920812r) diagram
Mounting Plate
Part #D6989201
The manufacturer no longer makes this part, and there's no substitute part

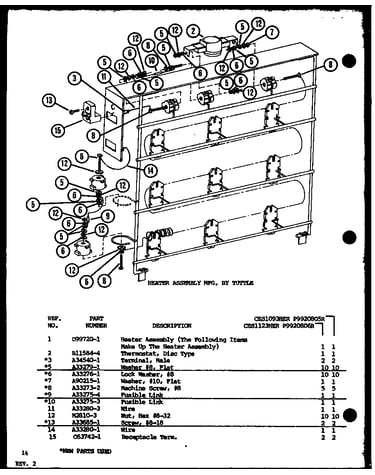

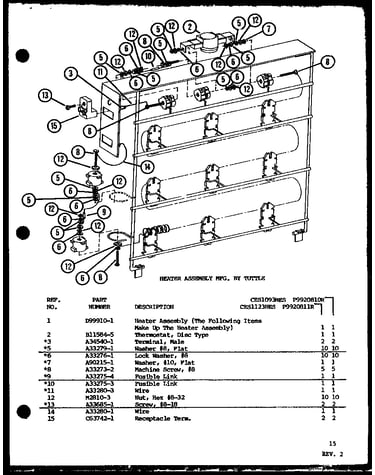

Heater assembly (ces1093her/p9920805r) (ces1123her/p9920806r) diagram
Heater
Part #D9972001
The manufacturer no longer makes this part, and there's no substitute part

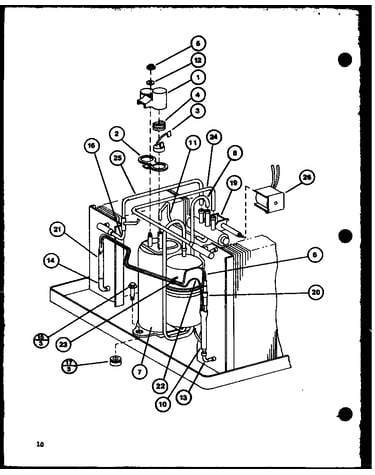

(ces1123her/p9920806r) (ces1123hes/p9920811r) diagram
Terminal Gasket
Part #A3436701
The manufacturer no longer makes this part, and there's no substitute part

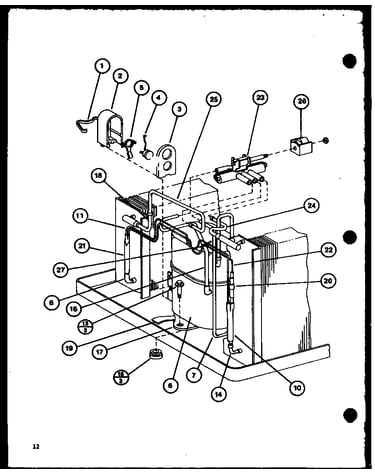

(ces1093her/p9920805r) (ces1092hr/p9920808r) (ces1093hes/p9920810r) (ces1092hs/p9920812r) diagram
Use D4976697
Part #D4976699
The manufacturer no longer makes this part, and there's no substitute part

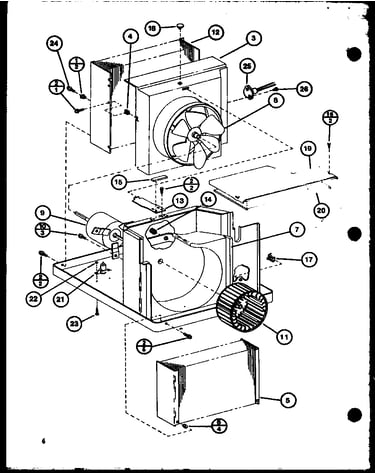

Evaporator and fan motor diagram
Clip
Part #M0118702
The manufacturer no longer makes this part, and there's no substitute part

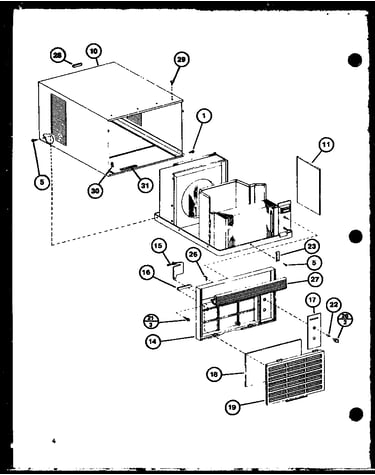

Exterior parts diagram
Plug
Part #M0310012
The manufacturer no longer makes this part, and there's no substitute part
