Dacor
Wine & Beverage Cooler

Model # EF24RWCZ1SS Official Dacor wine cooler

Here are the diagrams and repair parts for Official Dacor EF24RWCZ1SS wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Wine Cooler Carbon Air Filter 101844
#500

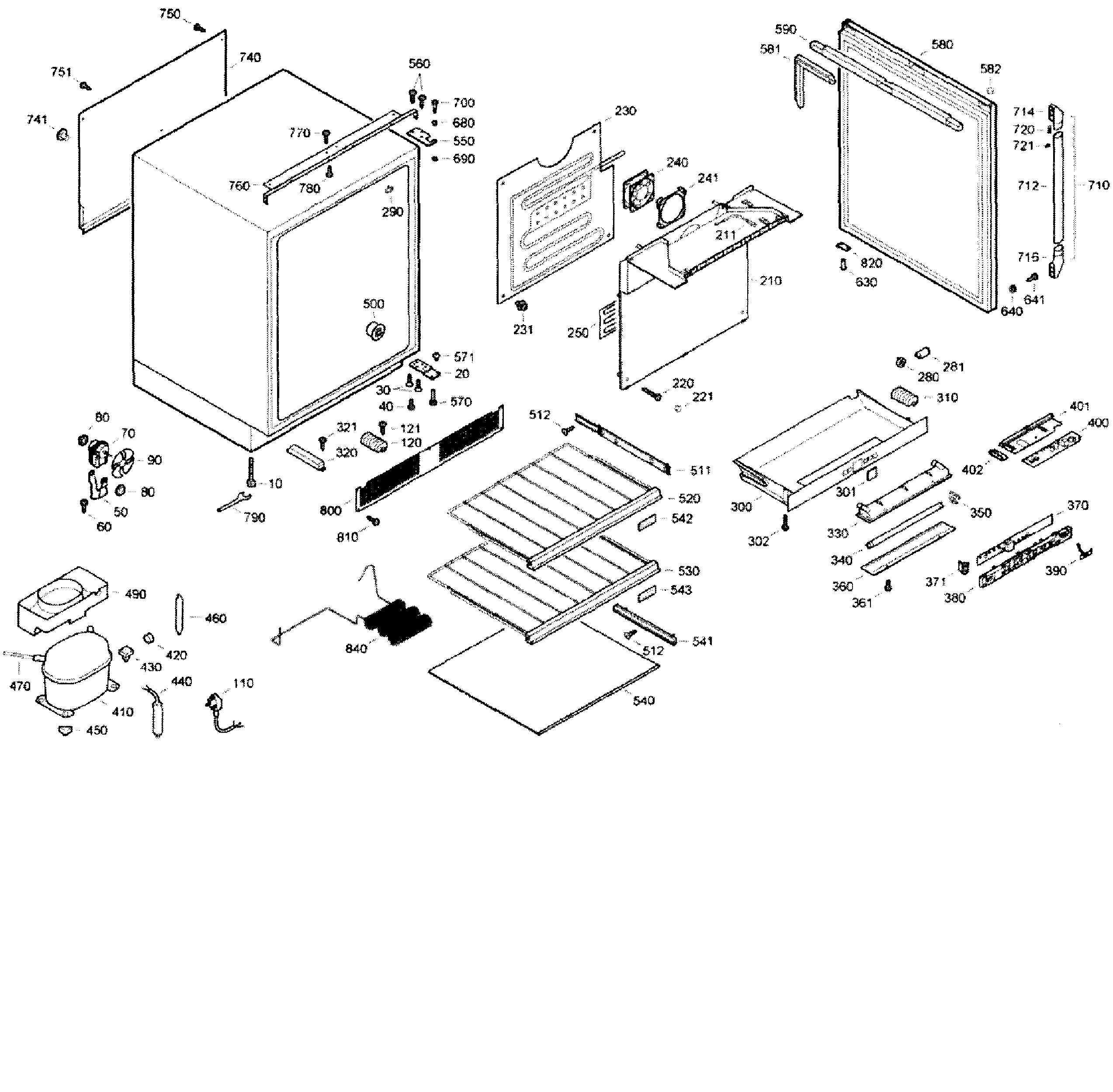

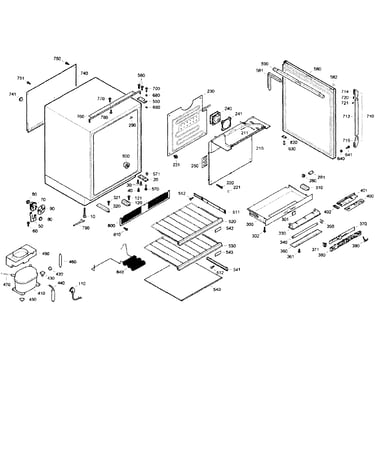

Wine cooler diagram

Wine cooler carbon air filter

Part #101844

$84.49
In Stock
Compact Fan 101791
#70

Wine cooler diagram

Compact fan

Part #101791

$330.49
In Stock
Screw 101757
#780

Wine cooler diagram

Screw

Part #101757

This item is not returnable
$2.16
In Stock
Lamp Cover 101833
#360

Wine cooler diagram

Lamp cover

Part #101833

$36.49
In Stock
Compact Fan 101783
#240

Wine cooler diagram

Compact fan

Part #101783

$480.49
In Stock
Compressor 101792
#410

Wine cooler diagram

Compressor

Part #101792

$1006.49
In Stock
Tapping Screw 101758
#361

Wine cooler diagram

Tapping screw

Part #101758

This item is not returnable
$3.99
In Stock
Lamp Holder 101780
#350

Wine cooler diagram

Lamp holder

Part #101780

$12.49
In Stock
Evaporator 101770
#230

Wine cooler diagram

Evaporator

Part #101770

$254.99
In Stock
Bracket 101828
#401

Wine cooler diagram

Bracket

Part #101828

$17.49
In Stock
