Model # SV-AS10PP Official Panasonic still camera

Here are the diagrams and repair parts for Official Panasonic SV-AS10PP still camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Ac Adapter VSK0626
#106

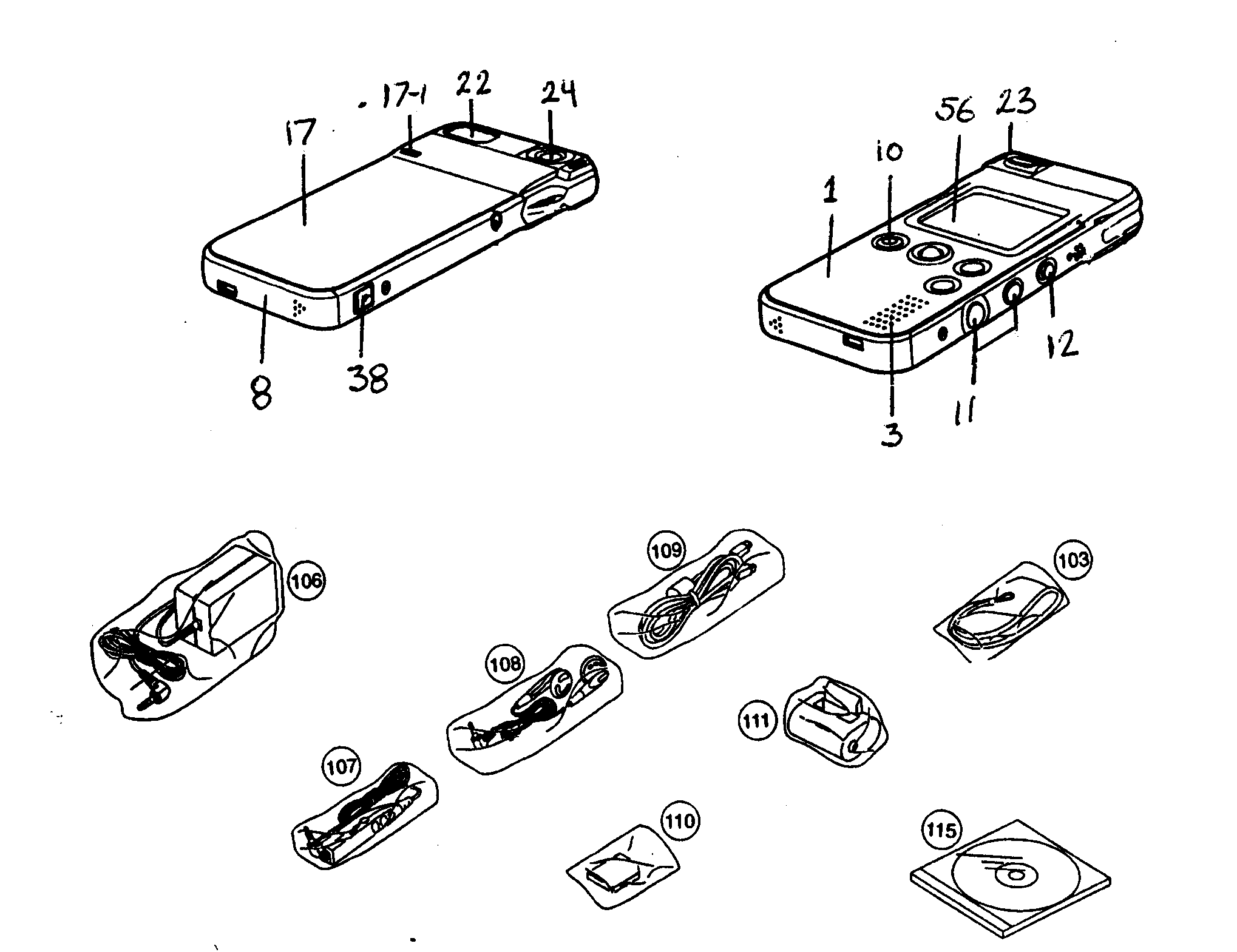

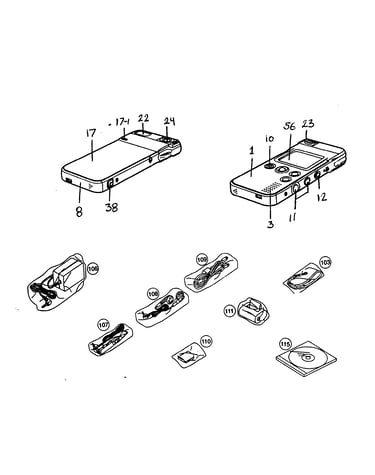

Cabinet parts diagram

Ac adapter

Part #VSK0626

Replaced by #VSK0626-2

?
Manufacturer substitution
This part replaces VSK0626. Substitute parts can look different from the original.
$65.99
In Stock
Usb Cable K1HA09BD0001
#109

Cabinet parts diagram

Usb cable

Part #K1HA09BD0001

Replaced by #K2KZ4CB00010

?
Manufacturer substitution
This part replaces K1HA09BD0001. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Earphone L0BAB0000173
#108

Cabinet parts diagram

Earphone

Part #L0BAB0000173

The manufacturer no longer makes this part, and there's no substitute part

Led Lens VGL1067
#17-1

Cabinet parts diagram

Led lens

Part #VGL1067

The manufacturer no longer makes this part, and there's no substitute part

Front Cabinet Unit(silver) VYK0W74
#17

Cabinet parts diagram

Front cabinet unit(silver)

Part #VYK0W74

The manufacturer no longer makes this part, and there's no substitute part

Card/battery Door(si,blue) VKF3815
#8

Cabinet parts diagram

Card/battery door(si,blue)

Part #VKF3815

The manufacturer no longer makes this part, and there's no substitute part

Mechanism Shutter L9ZZ00000201
#22

Cabinet parts diagram

Mechanism shutter

Part #L9ZZ00000201

The manufacturer no longer makes this part, and there's no substitute part

Button Menu/rev/shutter VGU9450
#10

Cabinet parts diagram

Button menu/rev/shutter

Part #VGU9450

The manufacturer no longer makes this part, and there's no substitute part

Ccd Cba Pcb VEP22347A
#NI

Cabinet parts diagram

Ccd cba pcb

Part #VEP22347A

The manufacturer no longer makes this part, and there's no substitute part

Ccd Cabinet Unit(silver) VYK0W81
#24

Cabinet parts diagram

Ccd cabinet unit(silver)

Part #VYK0W81

The manufacturer no longer makes this part, and there's no substitute part
