Model # 79651028900 Official Kenmore laundry pedestal

Here are the diagrams and repair parts for Official Kenmore 79651028900 laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 14 parts |

Laundry Appliance Pedestal Leg Guide MJH40343501

#A101

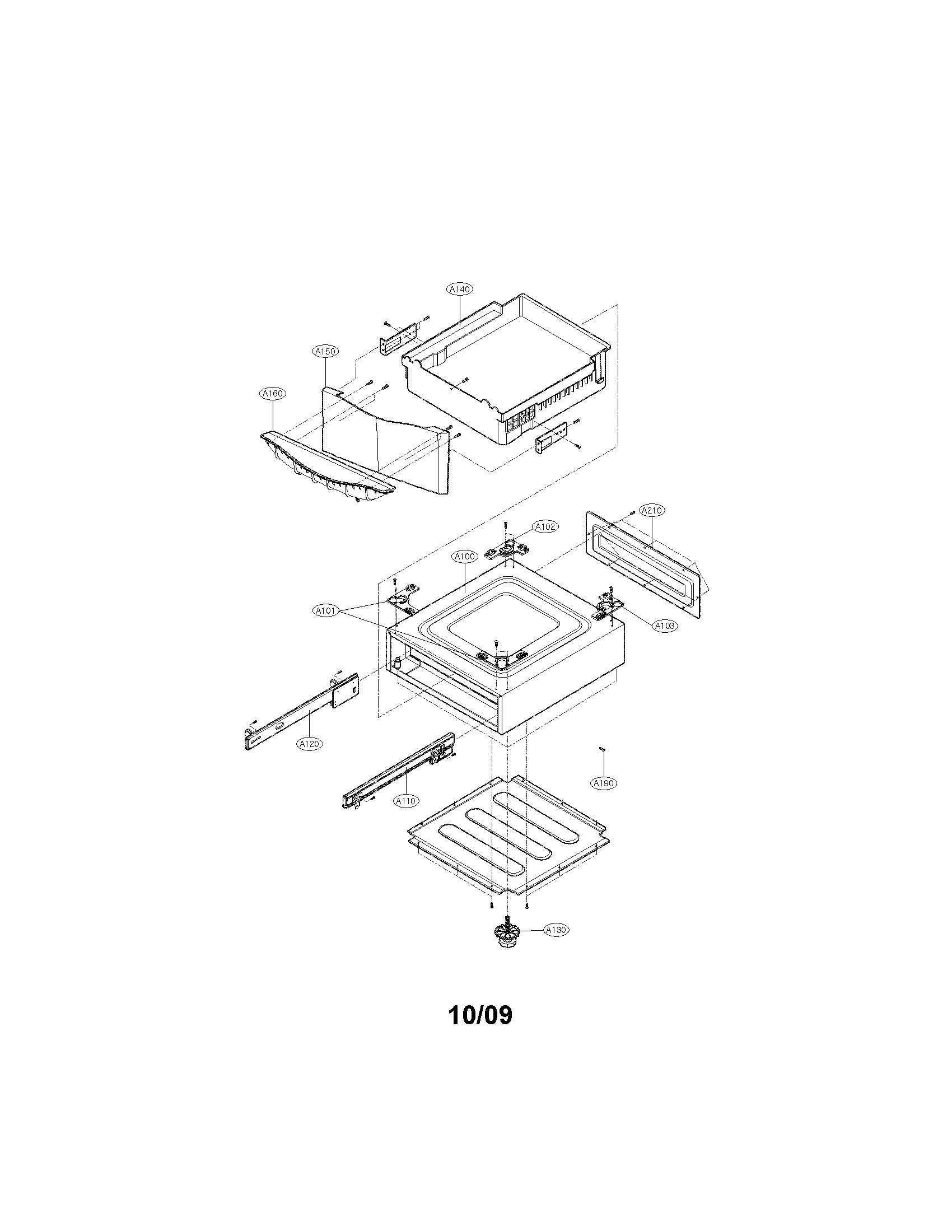

Pedestal parts diagram

Laundry appliance pedestal leg guide

Part #MJH40343501

This item is not returnable

$14.84 |

12% OFF Phone Price : $16.84

In Stock

Qty

Laundry Appliance Pedestal Leg Guide MJH40343901

#A103

Pedestal parts diagram

Laundry appliance pedestal leg guide

Part #MJH40343901

This item is not returnable

$14.84 |

12% OFF Phone Price : $16.84

In Stock

Qty

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0001A

#A110

Pedestal parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0001A

$87.98 |

5% OFF Phone Price : $92.98

In Stock

Qty

Laundry Appliance Pedestal Drawer 4870ER0004A

#A140

Pedestal parts diagram

Laundry appliance pedestal drawer

Part #4870ER0004A

$114.94 |

8% OFF Phone Price : $124.94

In Stock

Qty

Laundry Appliance Pedestal Leg Guide MJH40343701

#A102

Pedestal parts diagram

Laundry appliance pedestal leg guide

Part #MJH40343701

This item is not returnable

$14.84 |

12% OFF Phone Price : $16.84

In Stock

Qty

Laundry Appliance Pedestal Cabinet Back Panel 3550ER0035A

#A210

Pedestal parts diagram

Laundry appliance pedestal cabinet back panel

Part #3550ER0035A

$49.47

In Stock

Qty

Laundry Appliance Pedestal Leveling Leg Assembly AFC72755402

#A130

Pedestal parts diagram

Laundry appliance pedestal leveling leg assembly

Part #AFC72755402

This item is not returnable

$14.84 |

12% OFF Phone Price : $16.84

In Stock

Qty

Laundry Appliance Pedestal Screw 1FTF0403399

#A190

Pedestal parts diagram

Laundry appliance pedestal screw

Part #1FTF0403399

This item is not returnable

$6.17 |

14% OFF Phone Price : $7.17

In Stock

Qty

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0002A

#A120

Pedestal parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0002A

$87.98 |

5% OFF Phone Price : $92.98

In Stock

Qty

#A100

Pedestal parts diagram

Frame assembly

Part #3071ER0007U

The manufacturer no longer makes this part, and there's no substitute part
