Amana AC15090C2D-P1225031R room air conditioner Parts
Here are the diagrams and repair parts for Amana AC15090C2D-P1225031R room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for AC15090C2D-P1225031R Room Air Conditioner

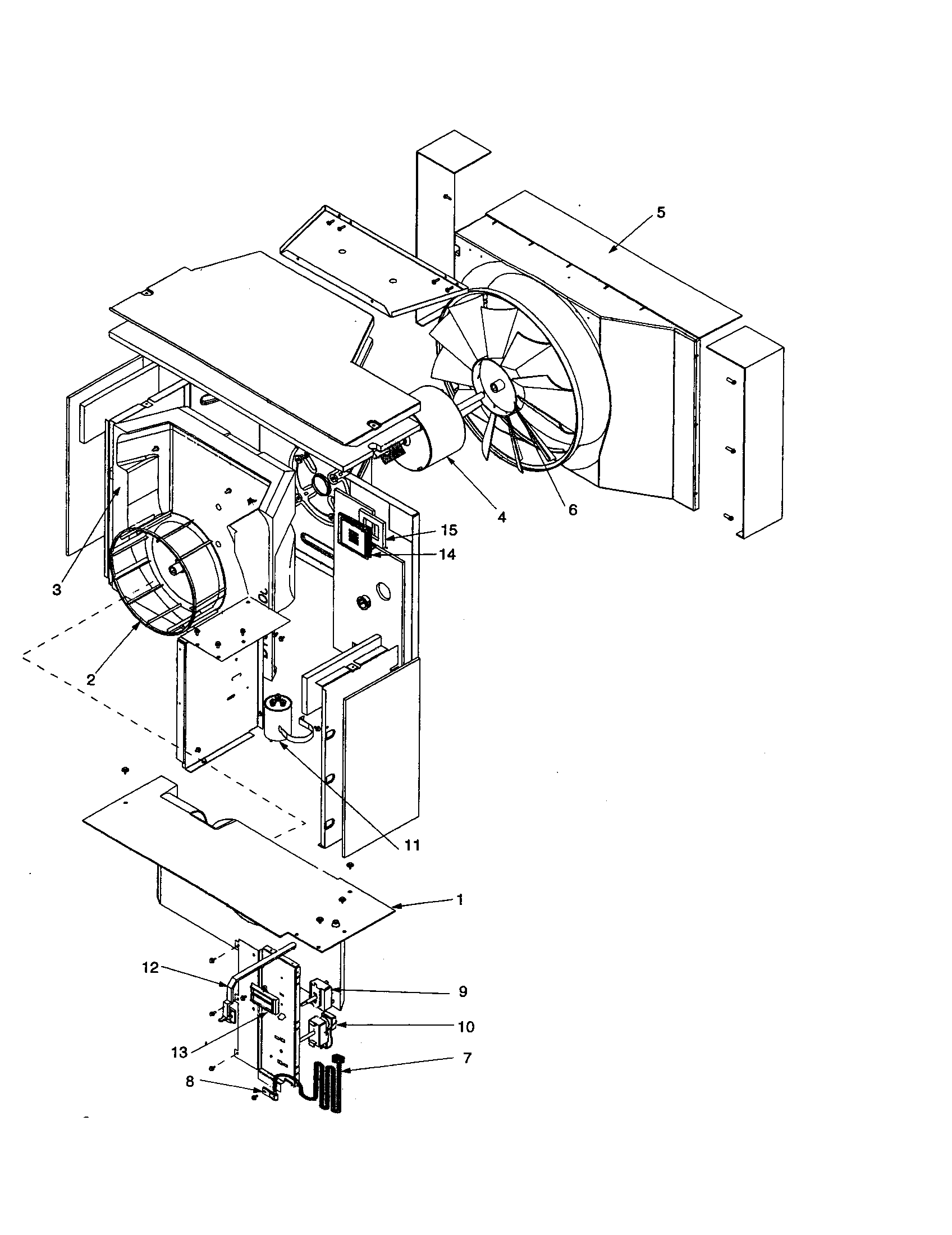

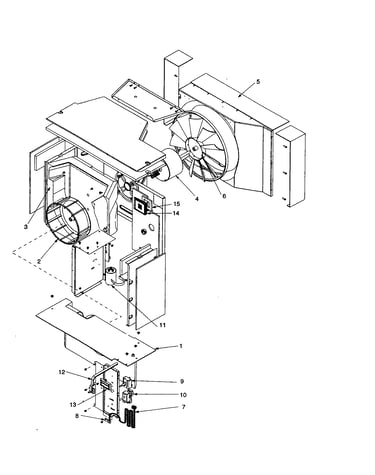

Fan and control assembly diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50
Qty
#NI
All parts diagram
Manual-use And Care
Part #RAC-OM-06-A
The manufacturer no longer makes this part, and there's no substitute part

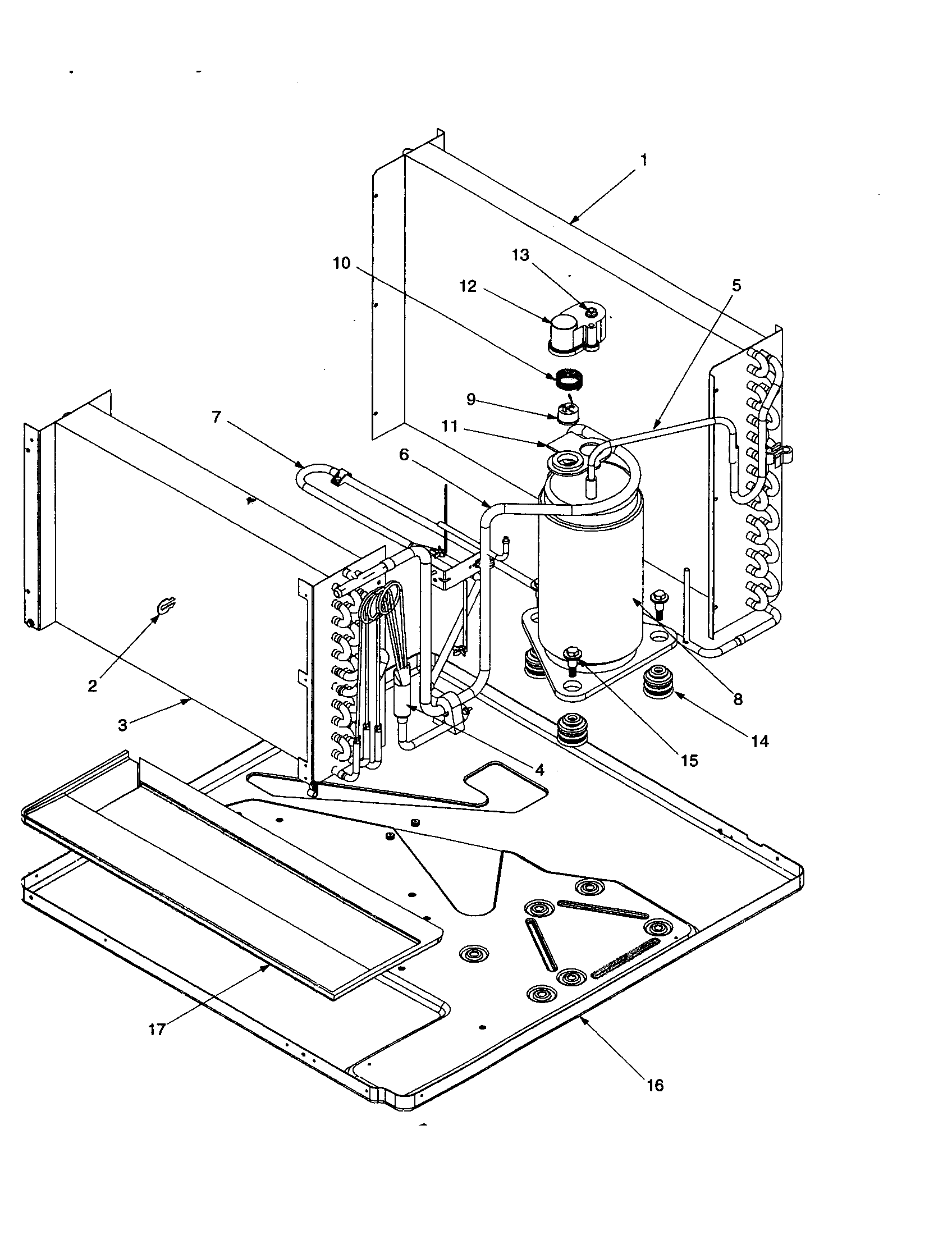

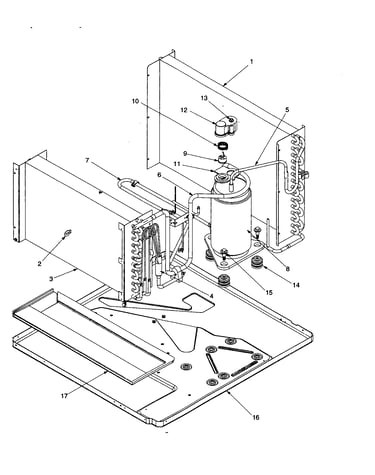

Compressor diagram
Cap Compression (te10085w2a, Te10085w2a Rev A, Te10085w2a Rev B, Te10085w2b)
Part #BT3055504
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Kit, Hard St
Part #3093200S
The manufacturer no longer makes this part, and there's no substitute part

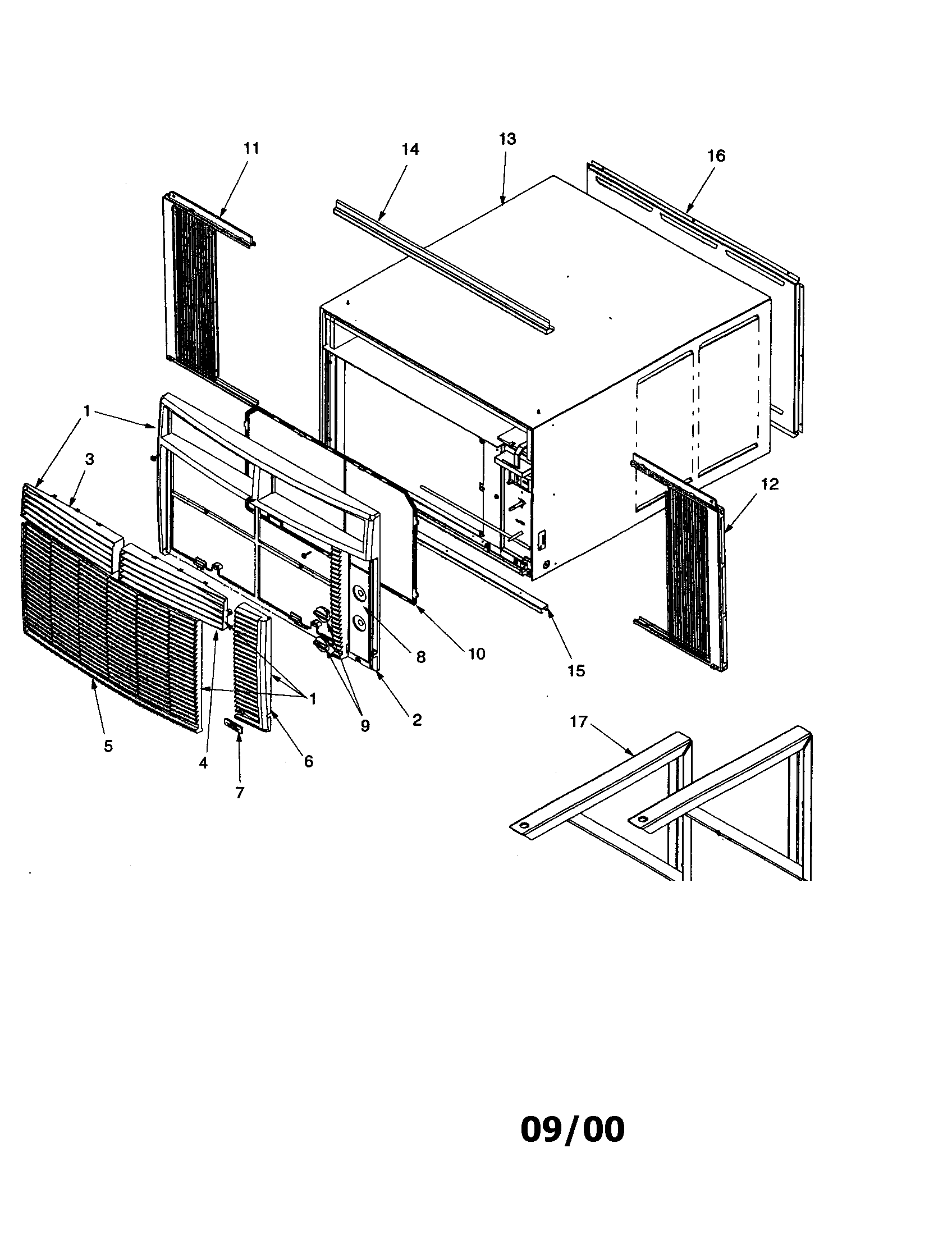

Outer case diagram
Panel
Part #3002206P
The manufacturer no longer makes this part, and there's no substitute part
Outer case diagram
Control Knob
Part #BT3075631
The manufacturer no longer makes this part, and there's no substitute part
Compressor diagram
Overload
Part #BT1243717
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Air Conditioner Blower Scroll
Part #BT3006005
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Motor
Part #BT1340003
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Air Conditioner Blower Partition
Part #BT3010004
The manufacturer no longer makes this part, and there's no substitute part
