Model #95E Official Clarke welder

Here are the diagrams and repair parts for Clarke 95E welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 18 parts

    Cable Input#14

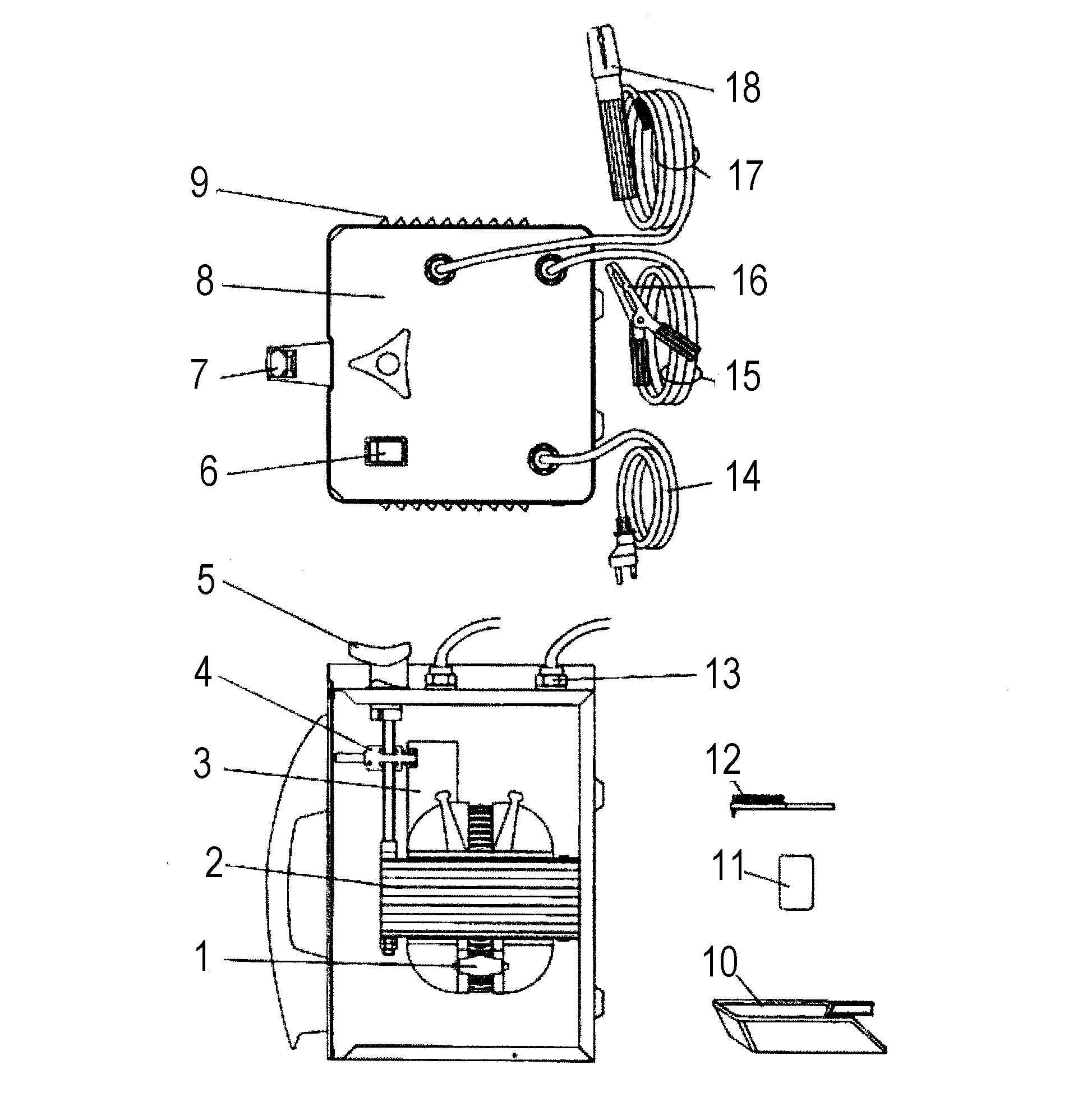

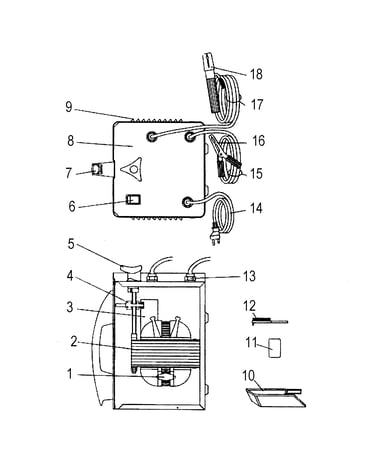

    Welder Diagram

    Cable input

    Part #WE20220018

    The manufacturer no longer makes this part, and there's no substitute part

    Brush#12

    Welder Diagram

    Brush

    Part #WE21905011

    The manufacturer no longer makes this part, and there's no substitute part

    Dark Glass#11

    Welder Diagram

    Dark glass

    Part #WE21905007

    The manufacturer no longer makes this part, and there's no substitute part

    Clamp#13

    Welder Diagram

    Clamp

    Part #WE21605010

    The manufacturer no longer makes this part, and there's no substitute part

    Thermostat#1

    Welder Diagram

    Thermostat

    Part #WE22210016

    The manufacturer no longer makes this part, and there's no substitute part

    WELDING CABLE#17

    Welder Diagram

    Welding cable

    Part #WE43205069

    The manufacturer no longer makes this part, and there's no substitute part

    Hand Wheel#5

    Welder Diagram

    Hand wheel

    Part #WE21800047

    The manufacturer no longer makes this part, and there's no substitute part

    PILOT LIGHT SWITCH YELLOW#6

    Welder Diagram

    Pilot light switch yellow

    Part #WE22200022

    The manufacturer no longer makes this part, and there's no substitute part

    PLASTIC MASK#10

    Welder Diagram

    Plastic mask

    Part #WE21905002

    The manufacturer no longer makes this part, and there's no substitute part

    SHUNT YOKE#4

    Welder Diagram

    Shunt yoke

    Part #WE33815001

    The manufacturer no longer makes this part, and there's no substitute part
