Kenmore
Central Air Conditioner

Model # 25371251 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25371251 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Clamp 27669
#34

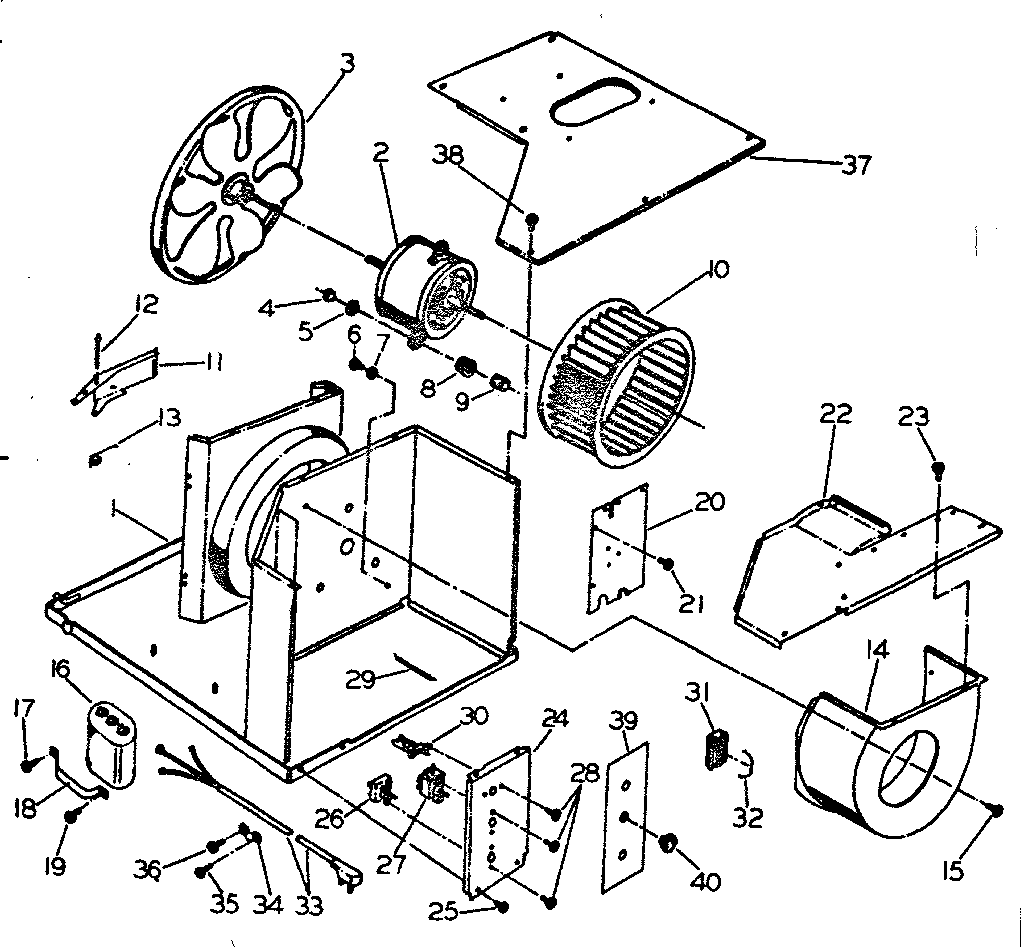

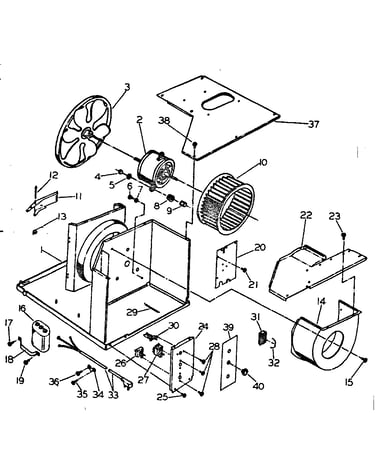

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 126340
#2

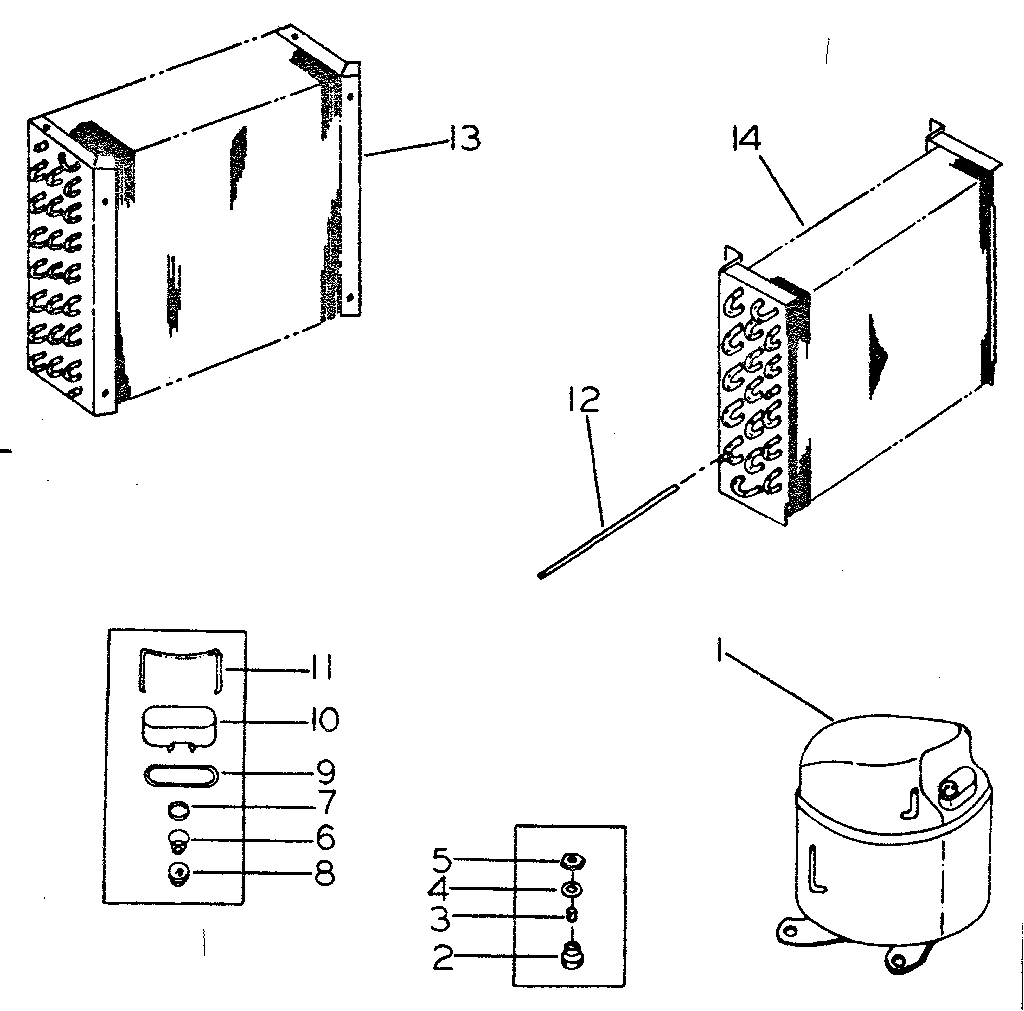

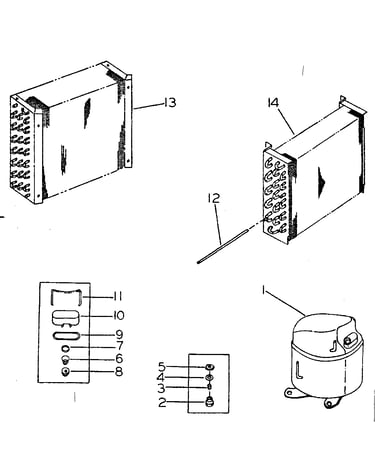

Refrigeration system parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
12% OFF Phone Price : $41.56
In Stock
Screw 100819
#27

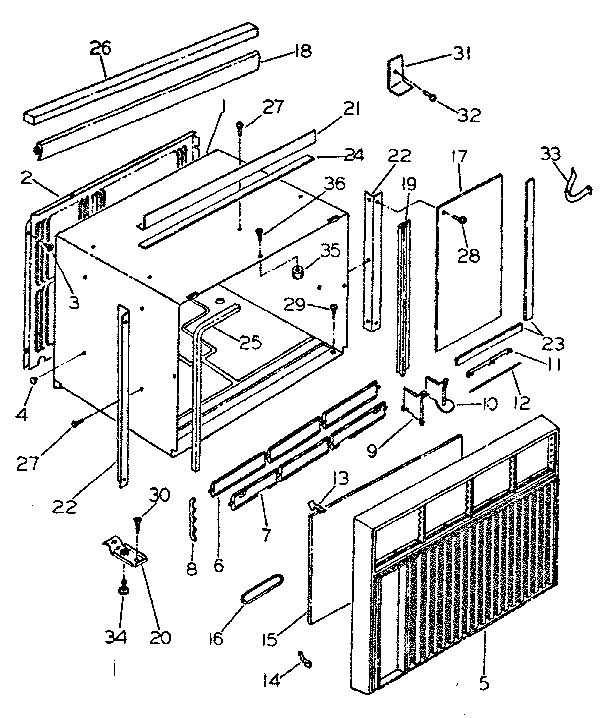

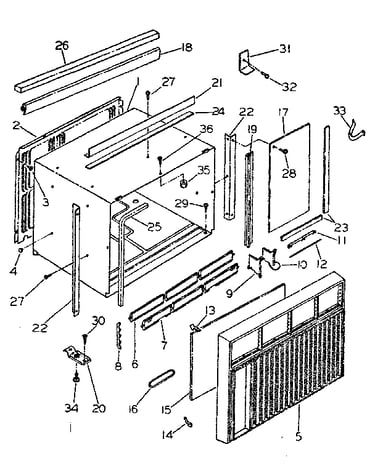

Cabinet and front parts diagram

Screw

Part #100819

Replaced by #08003581

?
Manufacturer substitution
This part replaces 100819. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Compressor AJ610GT-257
#1

Refrigeration system parts diagram

Compressor

Part #AJ610GT-257

The manufacturer no longer makes this part, and there's no substitute part

Screw 119700
#36

Cabinet and front parts diagram

Screw

Part #119700

The manufacturer no longer makes this part, and there's no substitute part

Door Mech 151642
#30

Electrical system & air handling parts diagram

Door mech

Part #151642

The manufacturer no longer makes this part, and there's no substitute part

Seal 149187-15
#24

Cabinet and front parts diagram

Seal

Part #149187-15

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 113269
#3

Refrigeration system parts diagram

Sleeve

Part #113269

The manufacturer no longer makes this part, and there's no substitute part

Clip 112571
#14

Cabinet and front parts diagram

Clip

Part #112571

The manufacturer no longer makes this part, and there's no substitute part

Louver 136381
#9

Cabinet and front parts diagram

Louver

Part #136381

The manufacturer no longer makes this part, and there's no substitute part
