Model # ES1093HER/P6968402R Official Amana room air conditioner heat pump - 100 series

Here are the diagrams and repair parts for Official Amana ES1093HER-P6968402R room air conditioner heat pump - 100 series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Frame Screw M0241116
#30

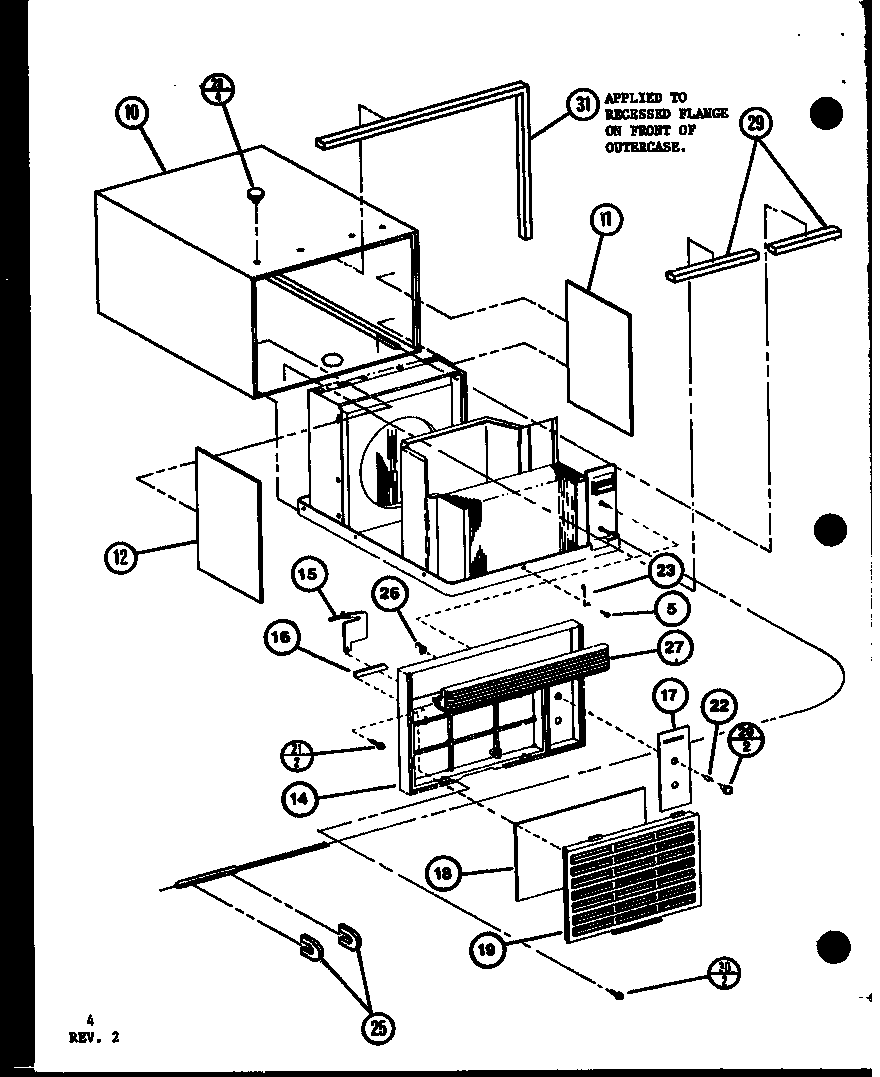

Exterior parts diagram

Frame screw

Part #M0241116

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
74% OFF MSRP : $17.00
In Stock
Screw M0241118
#21

Exterior parts diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Terminal Nut A3436601
#5

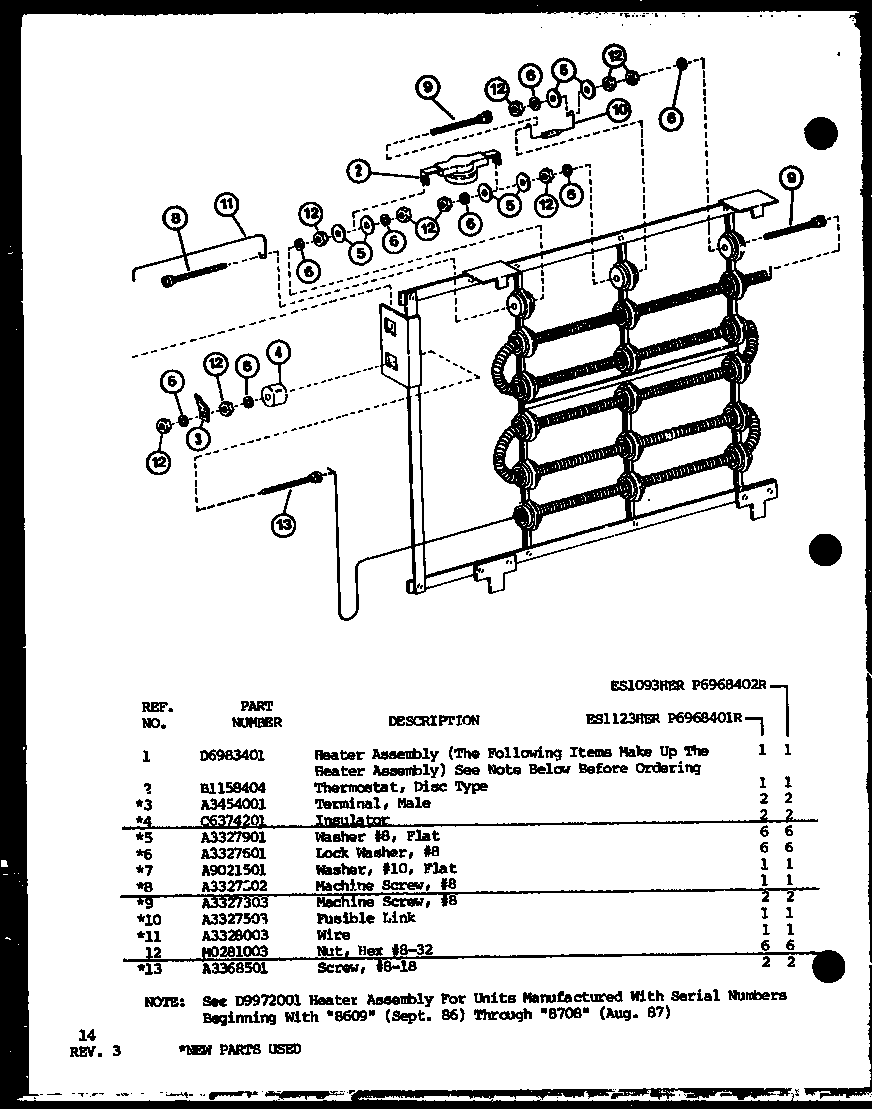

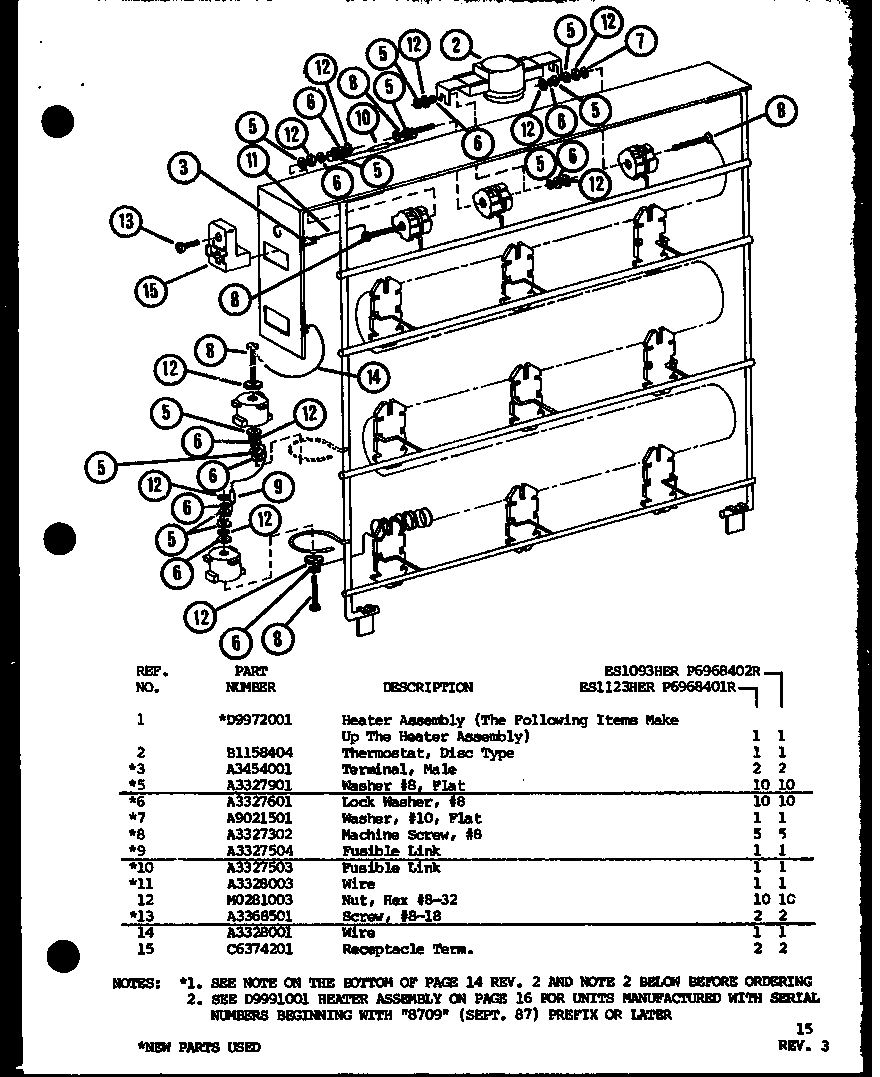

(es1123her/p6968401r) (es1123hes/p6968409r) diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Screw M0245116
#25B

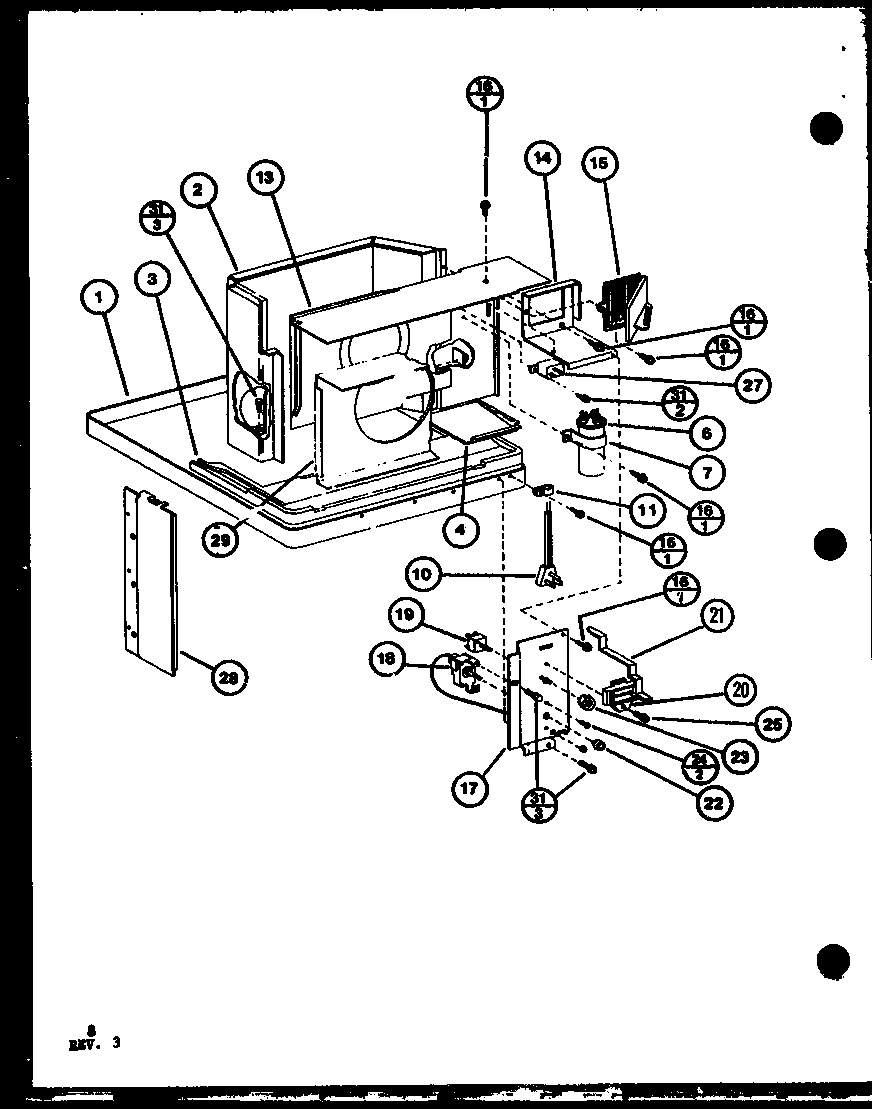

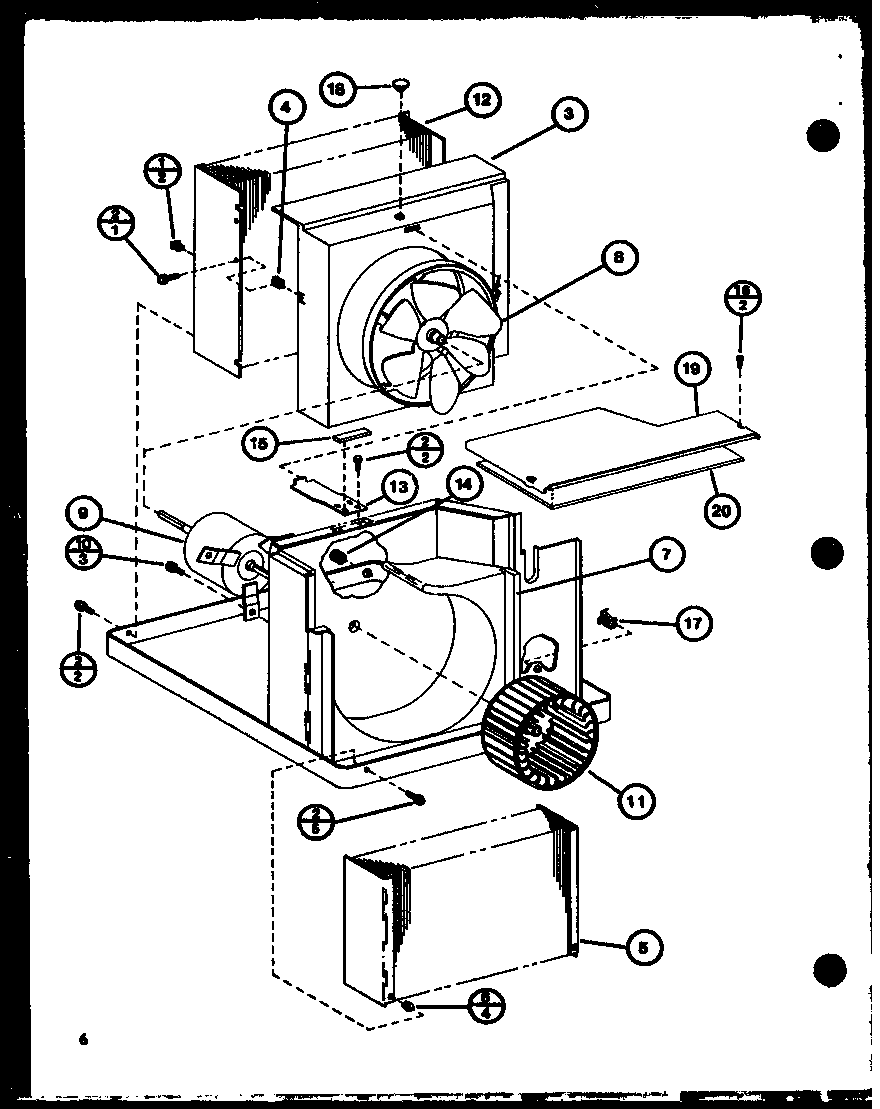

Interior parts diagram

Screw

Part #M0245116

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces M0245116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Control C6397701
#21

Interior parts diagram

Control

Part #C6397701

Replaced by #C6397701

?
Manufacturer substitution
This part replaces C6397701. Substitute parts can look different from the original.
$11.96
In Stock

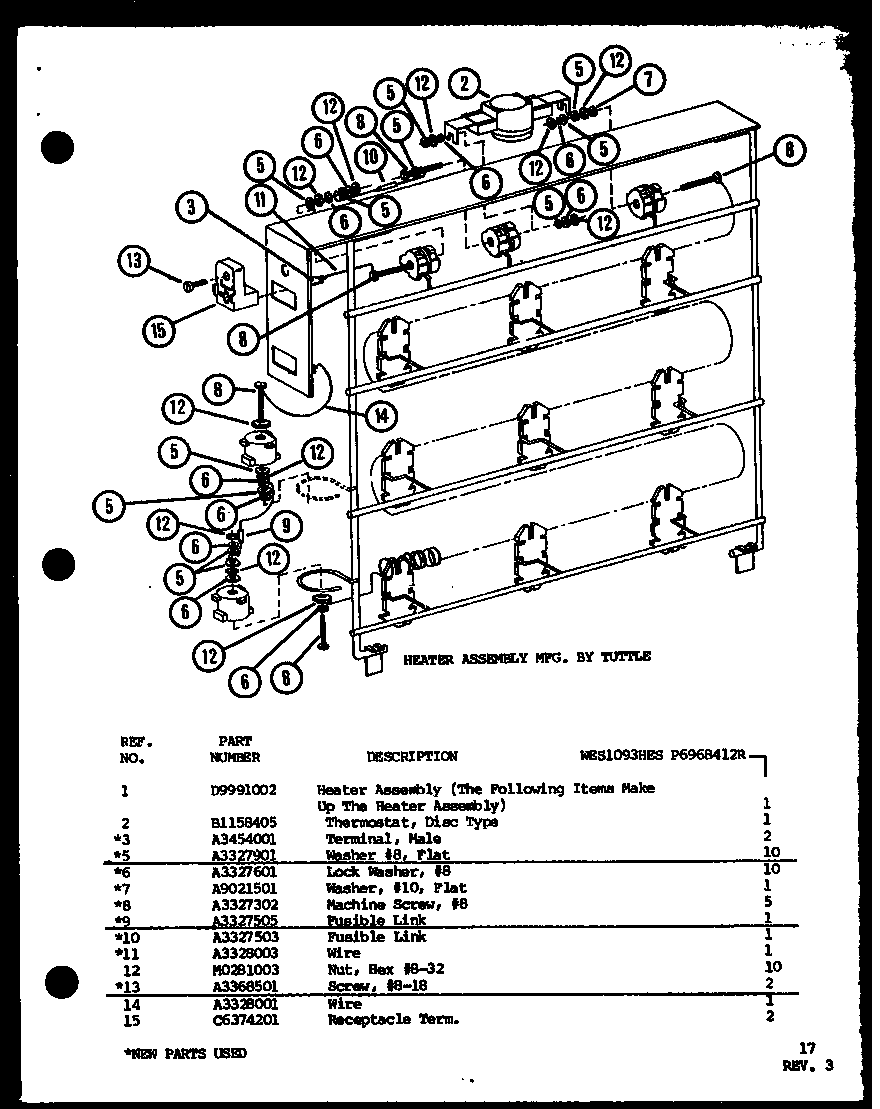

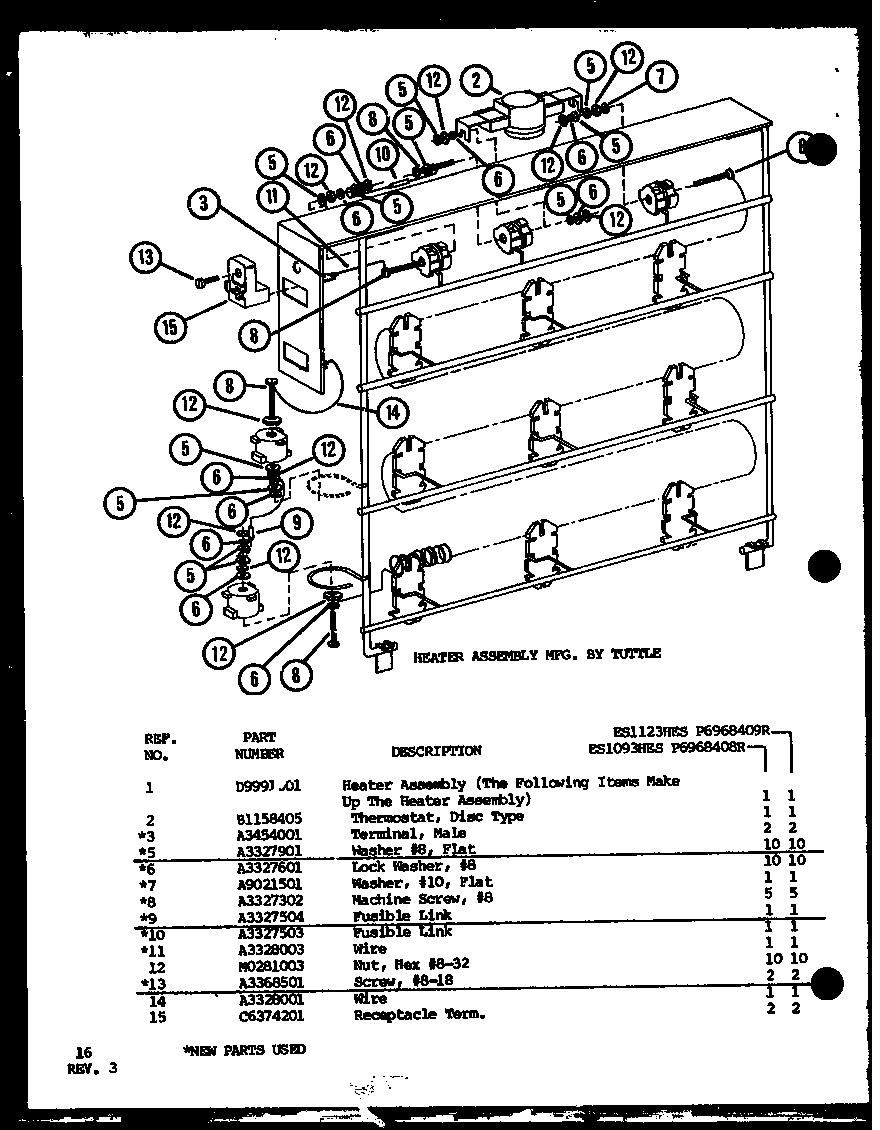

Fusible Link A3327505
#9

(wes1093hes/p6968412r) diagram

Fusible link

Part #A3327505

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob D7795807
#20C

Exterior parts diagram

Burner knob

Part #D7795807

The manufacturer no longer makes this part, and there's no substitute part

Tube Condenser C6433701
#24

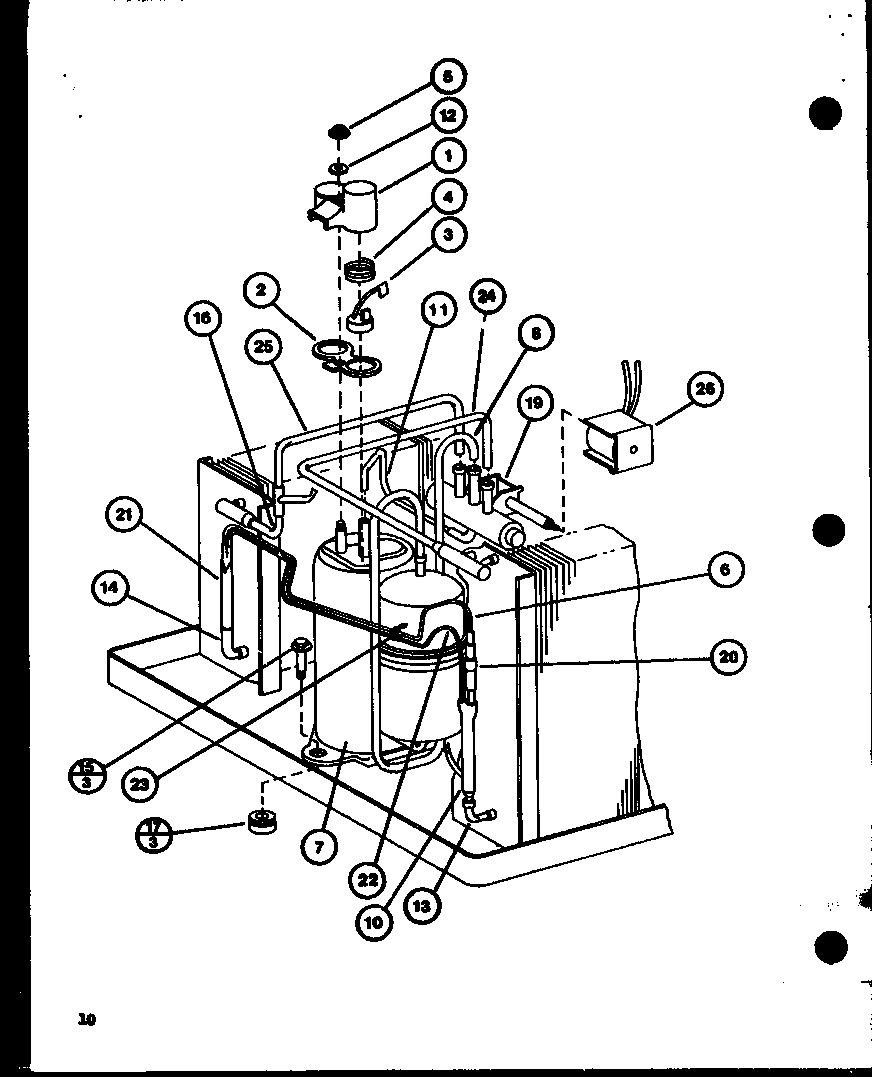

(es1123her/p6968401r) (es1123hes/p6968409r) diagram

Tube condenser

Part #C6433701

The manufacturer no longer makes this part, and there's no substitute part

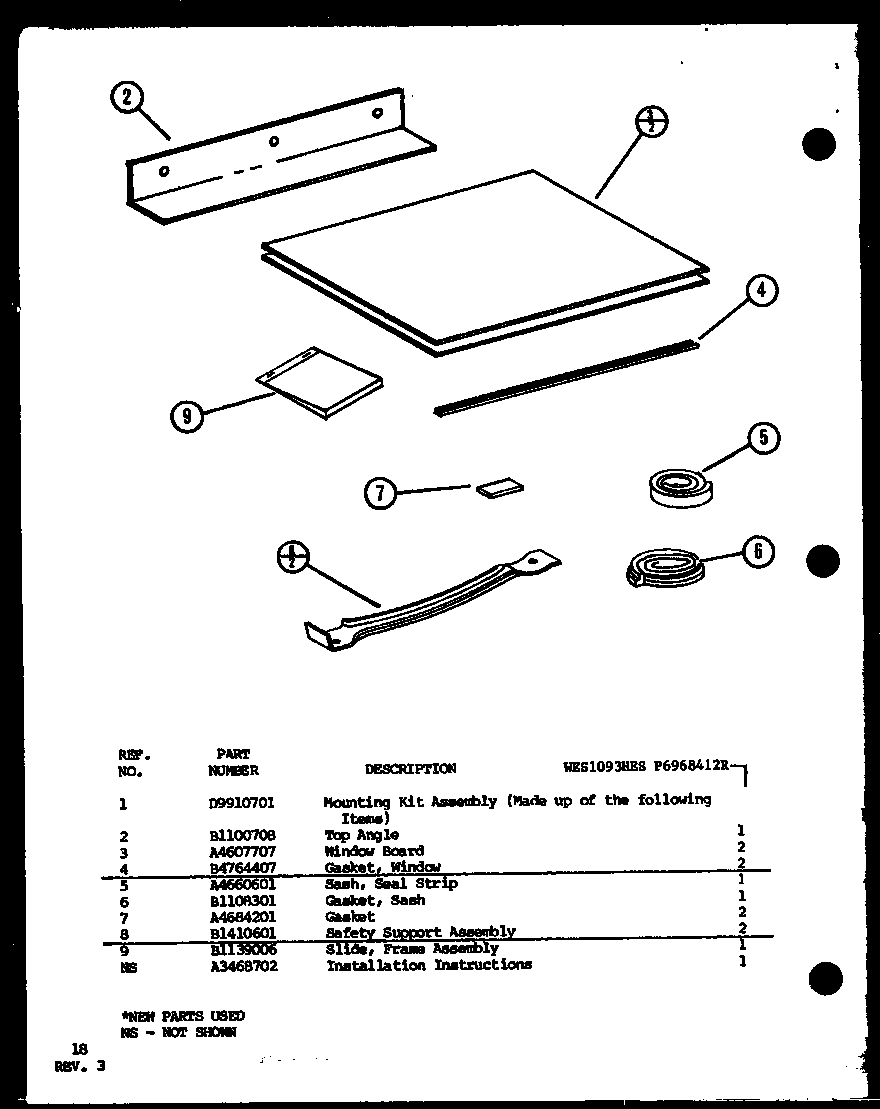

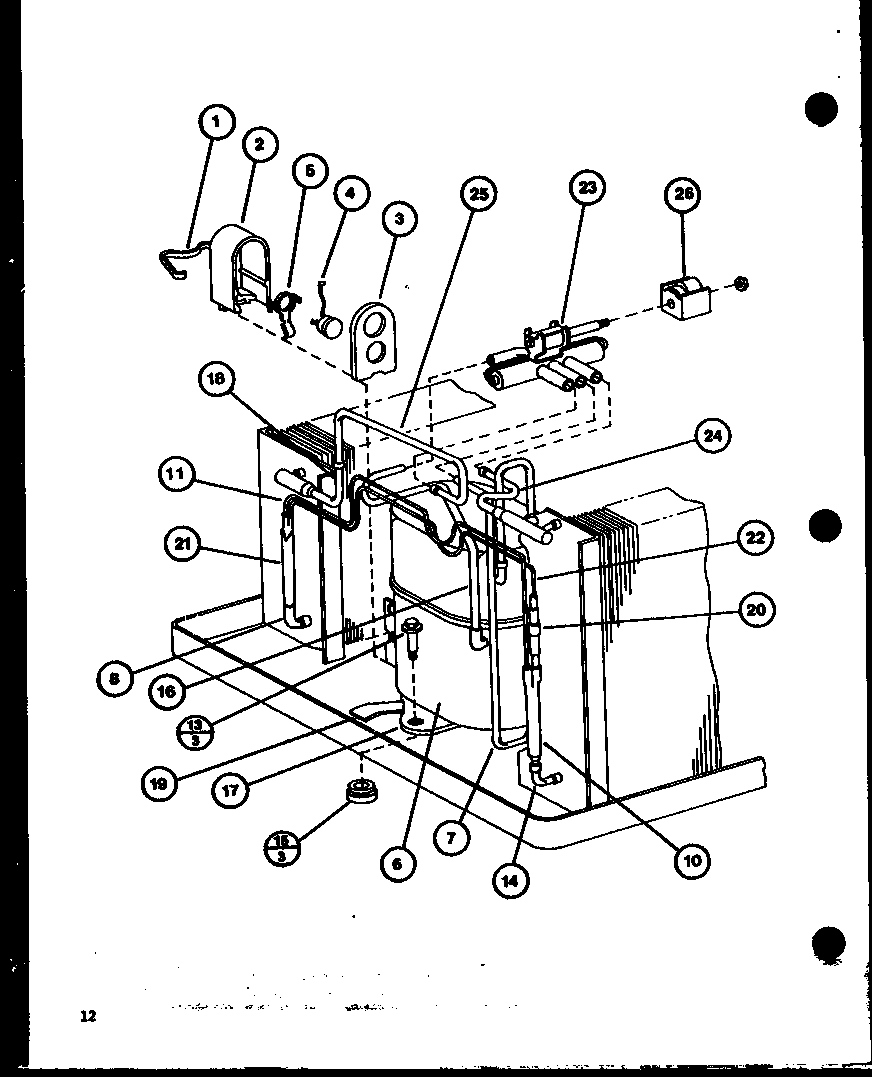

Window Gasket B4764407
#4

(wes1093hes/p6968412r) diagram

Window gasket

Part #B4764407

The manufacturer no longer makes this part, and there's no substitute part

Wire A3328003
Wire

Part #A3328003

The manufacturer no longer makes this part, and there's no substitute part
