Model # 143784162 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143784162 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Lawn Mower O-ring 631028
#25

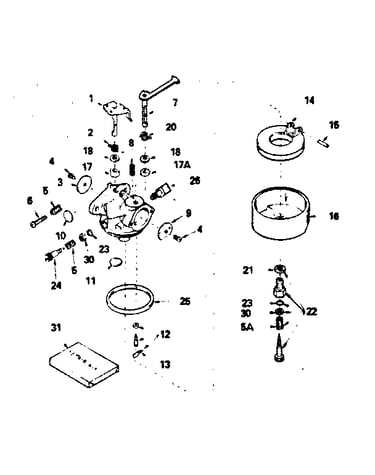

Carburetor no. 632284 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#12

Carburetor no. 632284 diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.12 |
17% OFF Phone Price : $12.12
In Stock
Spark Plug 33636
#196

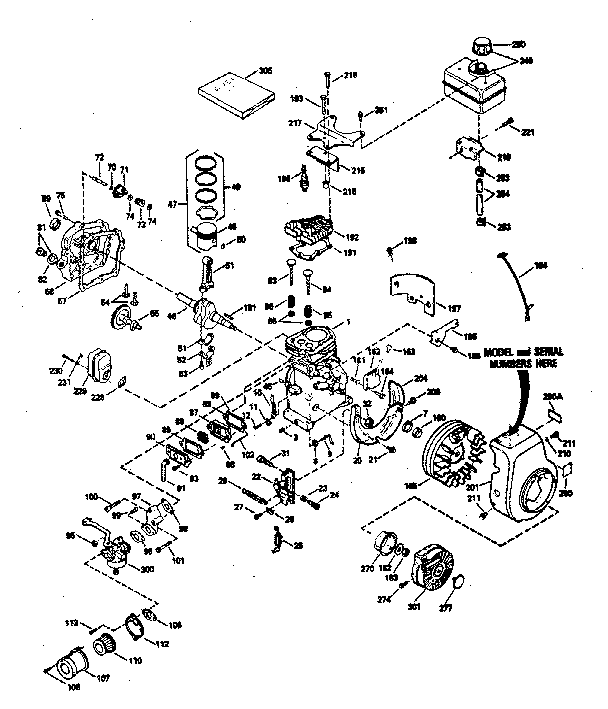

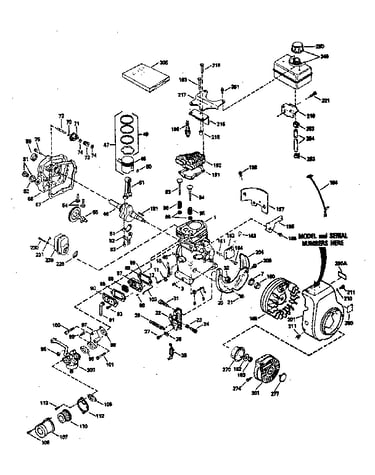

Engine diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80 |
17% OFF Phone Price : $5.80
In Stock
Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#98

Engine diagram

Lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.64 |
23% OFF MSRP : $4.70
In Stock
Starter 590642
Starter

Part #590642

Replaced by #590785

?
Manufacturer substitution
This part replaces 590642. Substitute parts can look different from the original.
BEST SELLER
$30.47 |
14% OFF Phone Price : $35.47
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#12

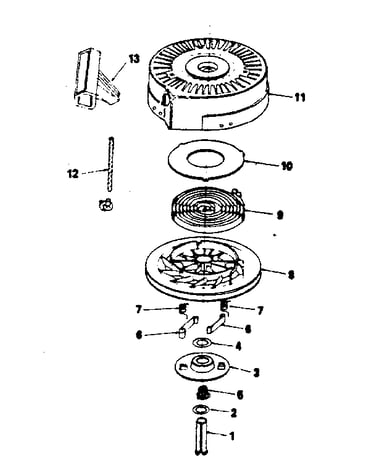

Rewind starter no. 590642 diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#253

Engine diagram

Lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Rebuild Kit 31840
#31

Carburetor no. 632284 diagram

Lawn & garden equipment engine carburetor rebuild kit

Part #31840

This item is not returnable
$22.60 |
18% OFF Phone Price : $27.60
In Stock
Screw 650884
#274

Engine diagram

Screw

Part #650884

Replaced by #650926

?
Manufacturer substitution
This part replaces 650884. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Carburetor Float 631024
#15

Carburetor no. 632284 diagram

Carburetor float

Part #631024

This item is not returnable
$2.16
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
