Model # 143104111 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143104111 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |

Gasket 27110
#20

Carburetor no.30514 (lmb-2) diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug 27244
#28

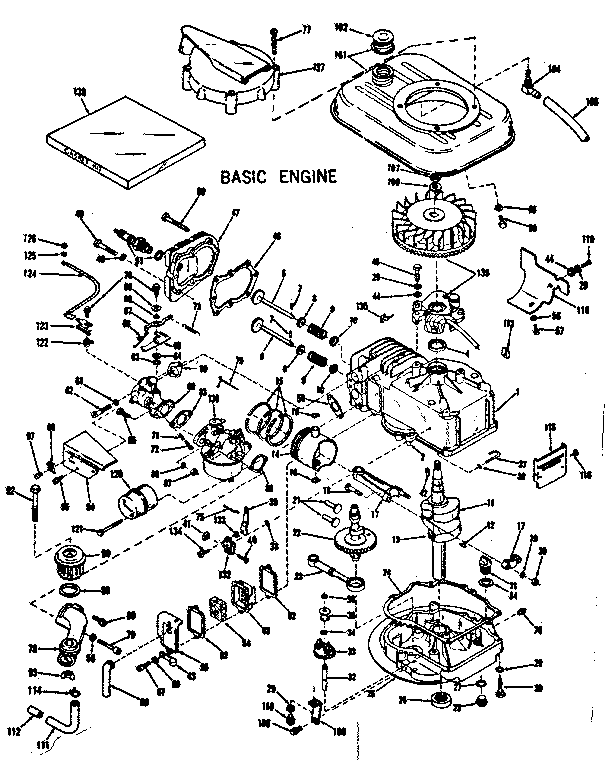

Basic engine diagram

Drain plug

Part #27244

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 30117
#33

Basic engine diagram

Gear assembly

Part #30117

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#58

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 29914
#23

Basic engine diagram

Pump assembly

Part #29914

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

Carburetor no.30514 (lmb-2) diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#32

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

/gov Clamp 29916
#132

Basic engine diagram

/gov clamp

Part #29916

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#85

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Extension 29516
#118

Basic engine diagram

Extension

Part #29516

The manufacturer no longer makes this part, and there's no substitute part
