Model # 15548 Official Craftsman airless paint sprayer

Here are the diagrams and repair parts for Official Craftsman 15548 airless paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Cord EC010400AV
#11

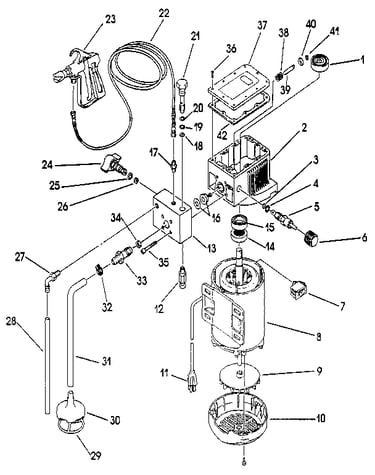

Motor assembly diagram

Cord

Part #EC010400AV

The manufacturer no longer makes this part, and there's no substitute part

Front Plate AL061601AV
#81

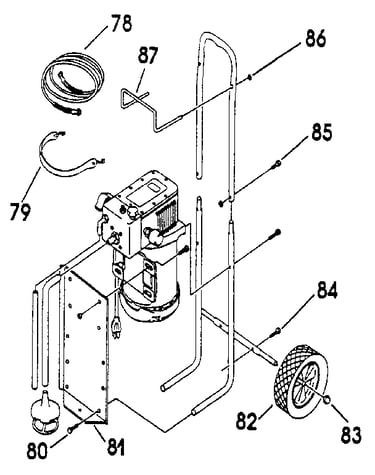

Main frame diagram

Front plate

Part #AL061601AV

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp ST069400AV
#32

Motor assembly diagram

Hose clamp

Part #ST069400AV

The manufacturer no longer makes this part, and there's no substitute part

5/16" Bolt ST012800AV
#85

Main frame diagram

5/16" bolt

Part #ST012800AV

The manufacturer no longer makes this part, and there's no substitute part

Trigger Lock AL117800AJ
#63

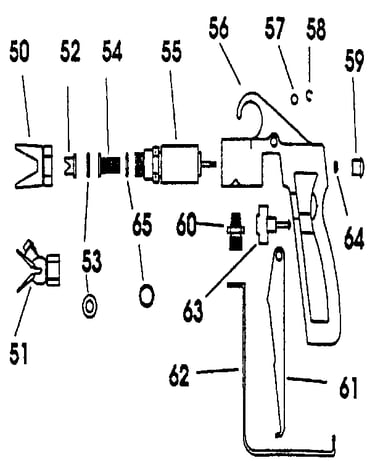

Spray gun diagram

Trigger lock

Part #AL117800AJ

The manufacturer no longer makes this part, and there's no substitute part

Seal AL045503AV
#14

Motor assembly diagram

Seal

Part #AL045503AV

The manufacturer no longer makes this part, and there's no substitute part

Gun W/o Tip AL0126101A
#65B

Spray gun diagram

Gun w/o tip

Part #AL0126101A

The manufacturer no longer makes this part, and there's no substitute part

5/16" Bolt ST070626AV
#80

Main frame diagram

5/16" bolt

Part #ST070626AV

The manufacturer no longer makes this part, and there's no substitute part

Cover AL045101AV
#37

Motor assembly diagram

Cover

Part #AL045101AV

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm AL125800AJ
#16

Motor assembly diagram

Diaphragm

Part #AL125800AJ

The manufacturer no longer makes this part, and there's no substitute part
