Model # FC4DNB060000AAAA Official Carrier air handler

Here are the diagrams and repair parts for Official Carrier FC4DNB060000AAAA air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Central Air Conditioner Air Handler Air Filter 317659-405
#10

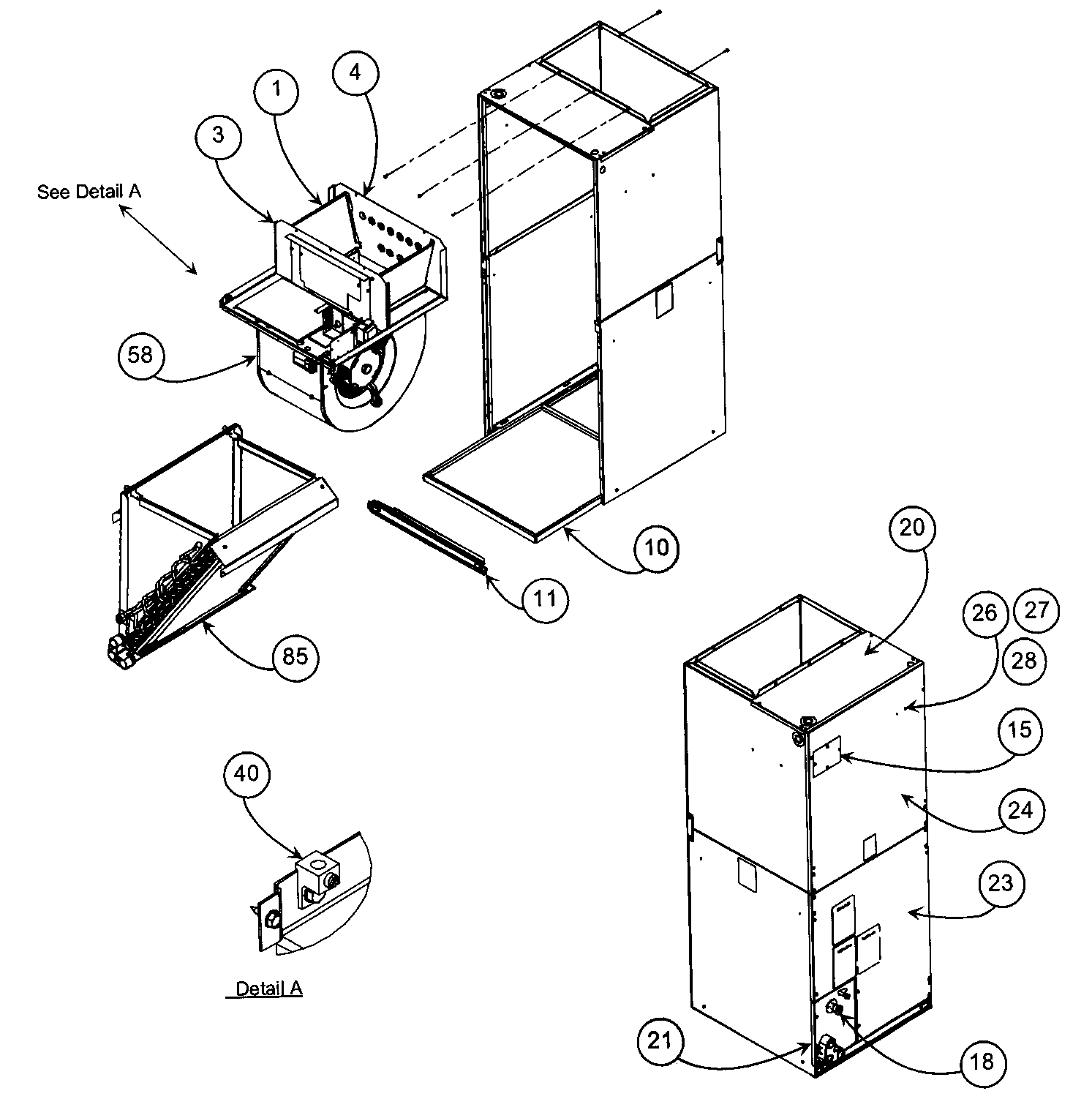

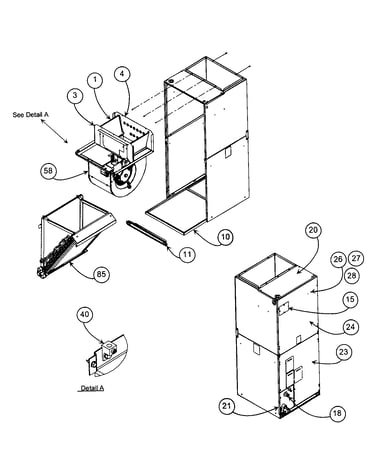

Cabinet parts diagram

Central air conditioner air handler air filter

Part #317659-405

$66.33 |
7% OFF Phone Price : $71.33
In Stock
Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
#39

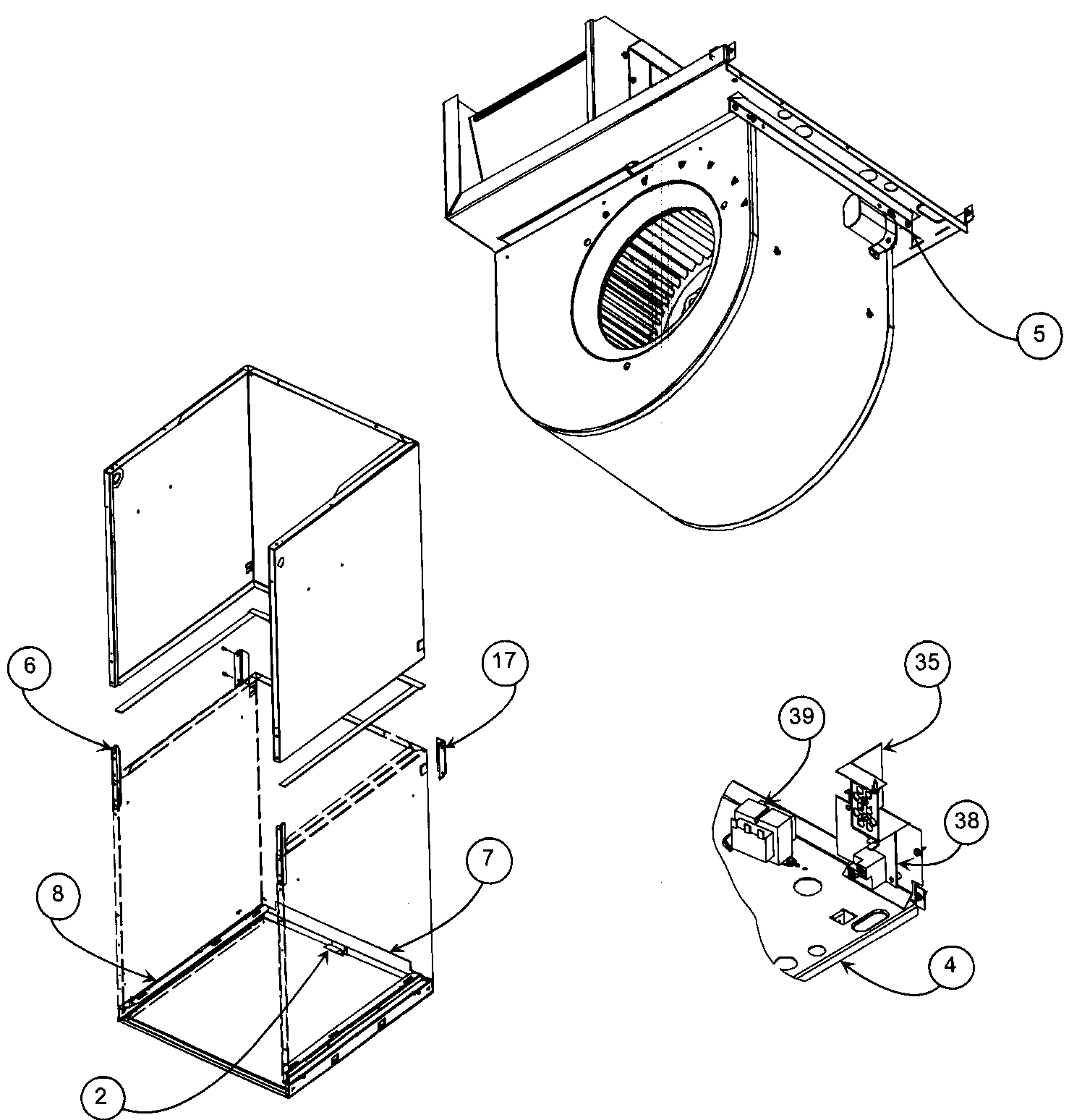

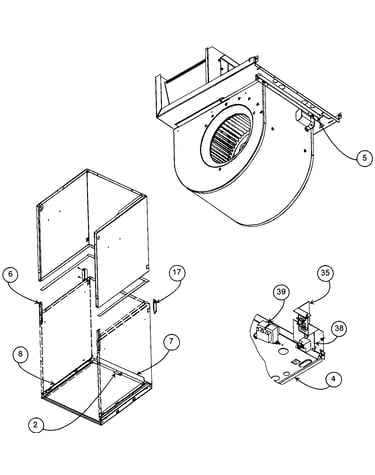

Base/blower assy diagram

Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

$104.52
In Stock
Latch 314875-201
#NI

Cabinet parts diagram

Latch

Part #314875-201

This item is not returnable
$2.16
In Stock
Central Air Conditioner Air Handler Fan Control Board HK61EA010
#38

Base/blower assy diagram

Central air conditioner air handler fan control board

Part #HK61EA010

$123.58 |
7% OFF Phone Price : $133.58
In Stock
Diode Board HK61EA003
#NI

Cabinet parts diagram

Diode board

Part #HK61EA003

The manufacturer no longer makes this part, and there's no substitute part

Support 329709-401
#NI

Cabinet parts diagram

Support

Part #329709-401

$14.14
In Stock
125,kit E/heat 10kw-fused KFCEH0901N10
#NI

Cabinet parts diagram

125,kit e/heat 10kw-fused

Part #KFCEH0901N10

$446.53
In Stock
Carrier 15kw3ph Non-fused Electric Htr KFCEH1601315
#NI

Cabinet parts diagram

Carrier 15kw3ph non-fused electric htr

Part #KFCEH1601315

$761.60
In Stock
Pcb HK61EA001
#NI

Cabinet parts diagram

Pcb

Part #HK61EA001

$662.88
In Stock
Central Air Conditioner Air Handler Heating Element KFCEH2901N09
#NI

Cabinet parts diagram

Central air conditioner air handler heating element

Part #KFCEH2901N09

$661.87
In Stock
