Model # AZ31H15D3DV6 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ31H15D3DV6 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Room Air Conditioner Rotary Switch WP28X56
#86

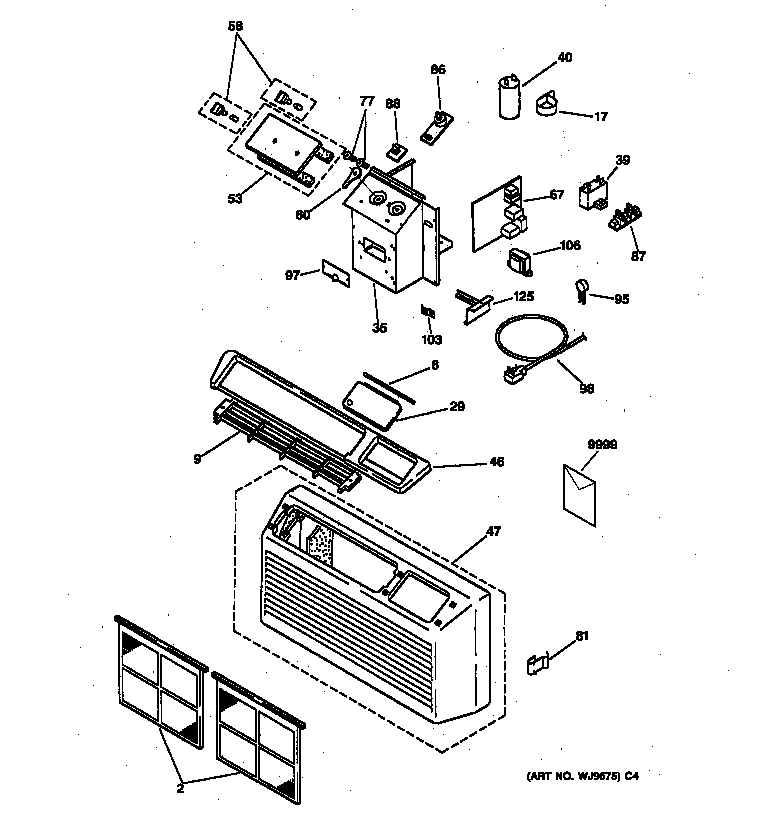

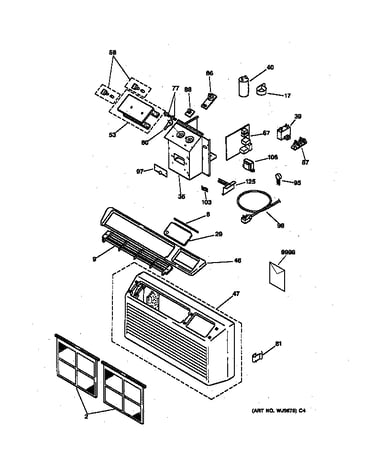

Controls & grill assembly diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Zoneline 310 49-7284
#9999B

Controls & grill assembly diagram

Zoneline 310

Part #49-7284

Replaced by #49-7366

?
Manufacturer substitution
This part replaces 49-7284. Substitute parts can look different from the original.
$8.49
In Stock
Mounting Plate WP79X76
#130

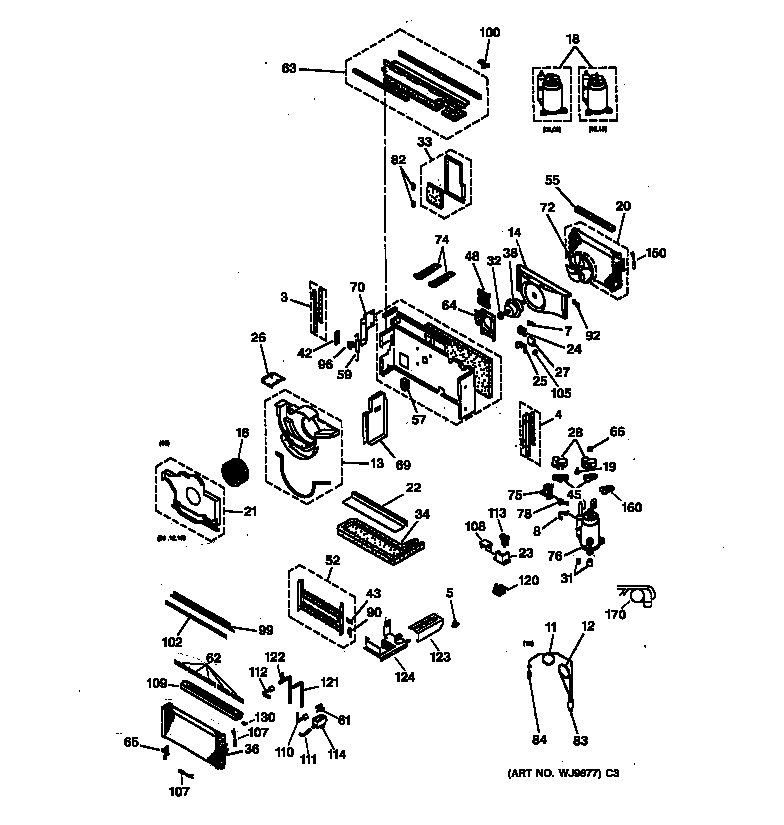

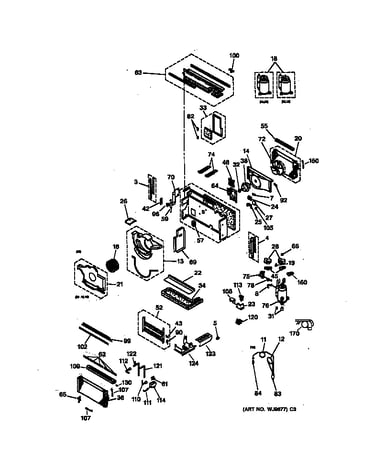

Motor, compressor & system components diagram

Mounting plate

Part #WP79X76

The manufacturer no longer makes this part, and there's no substitute part

Screw WP1X34
#76

Motor, compressor & system components diagram

Screw

Part #WP1X34

The manufacturer no longer makes this part, and there's no substitute part

Damper Le WJ14X163
#96

Motor, compressor & system components diagram

Damper le

Part #WJ14X163

The manufacturer no longer makes this part, and there's no substitute part

Panel Side R WP82X19
#4

Motor, compressor & system components diagram

Panel side r

Part #WP82X19

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan WP70X121
#109

Motor, compressor & system components diagram

Drain pan

Part #WP70X121

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket WP1X46
#61

Motor, compressor & system components diagram

Mounting bracket

Part #WP1X46

The manufacturer no longer makes this part, and there's no substitute part

Discharge Grille WP71X46
#9

Controls & grill assembly diagram

Discharge grille

Part #WP71X46

The manufacturer no longer makes this part, and there's no substitute part

Accum Cla WJ2X504
#8

Motor, compressor & system components diagram

Accum cla

Part #WJ2X504

The manufacturer no longer makes this part, and there's no substitute part
