Jenn-Air JMW3430HP00 built-in oven with microwave

Jenn-Air JMW3430HP00 built-in oven with microwave Parts

Here are the diagrams and repair parts for Jenn-Air JMW3430HP00 built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

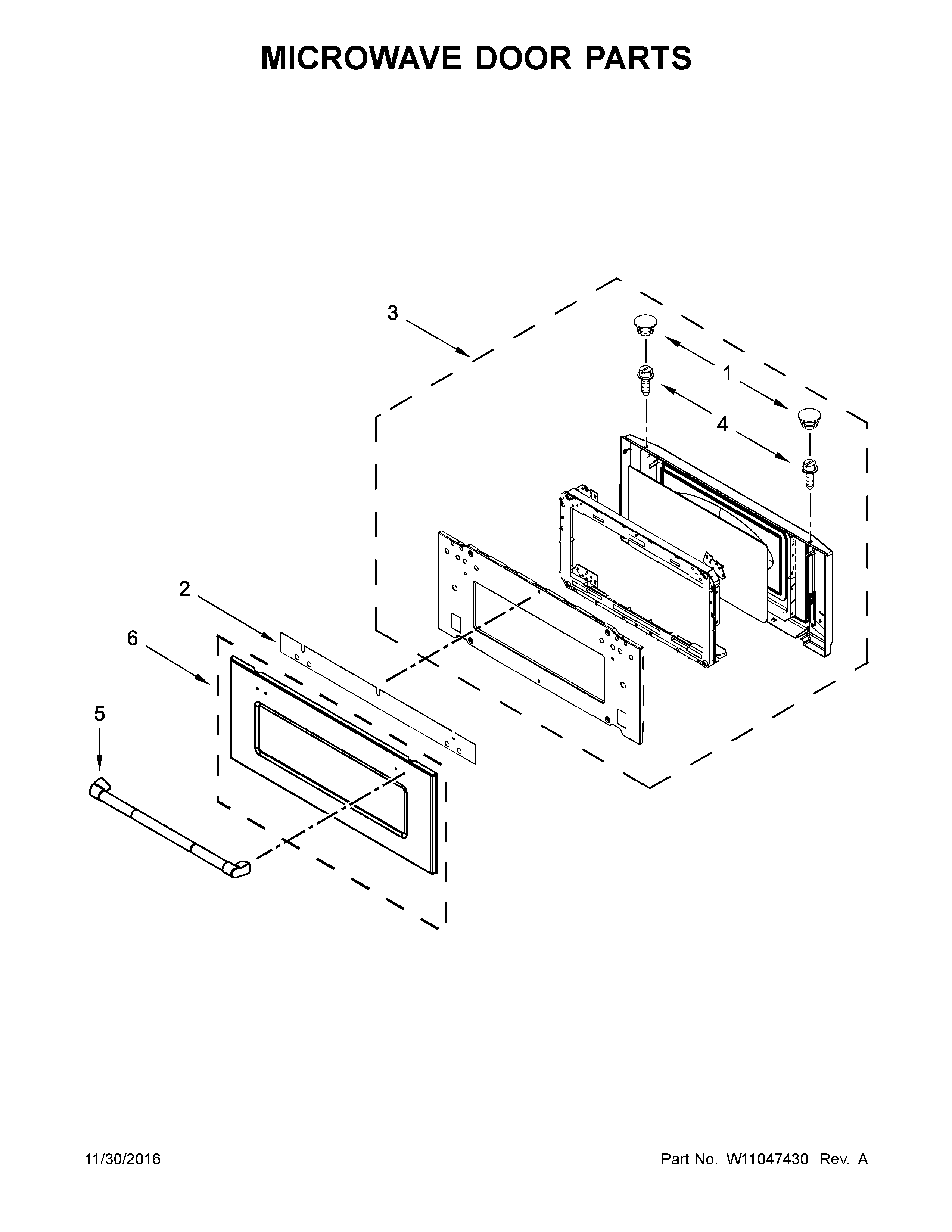

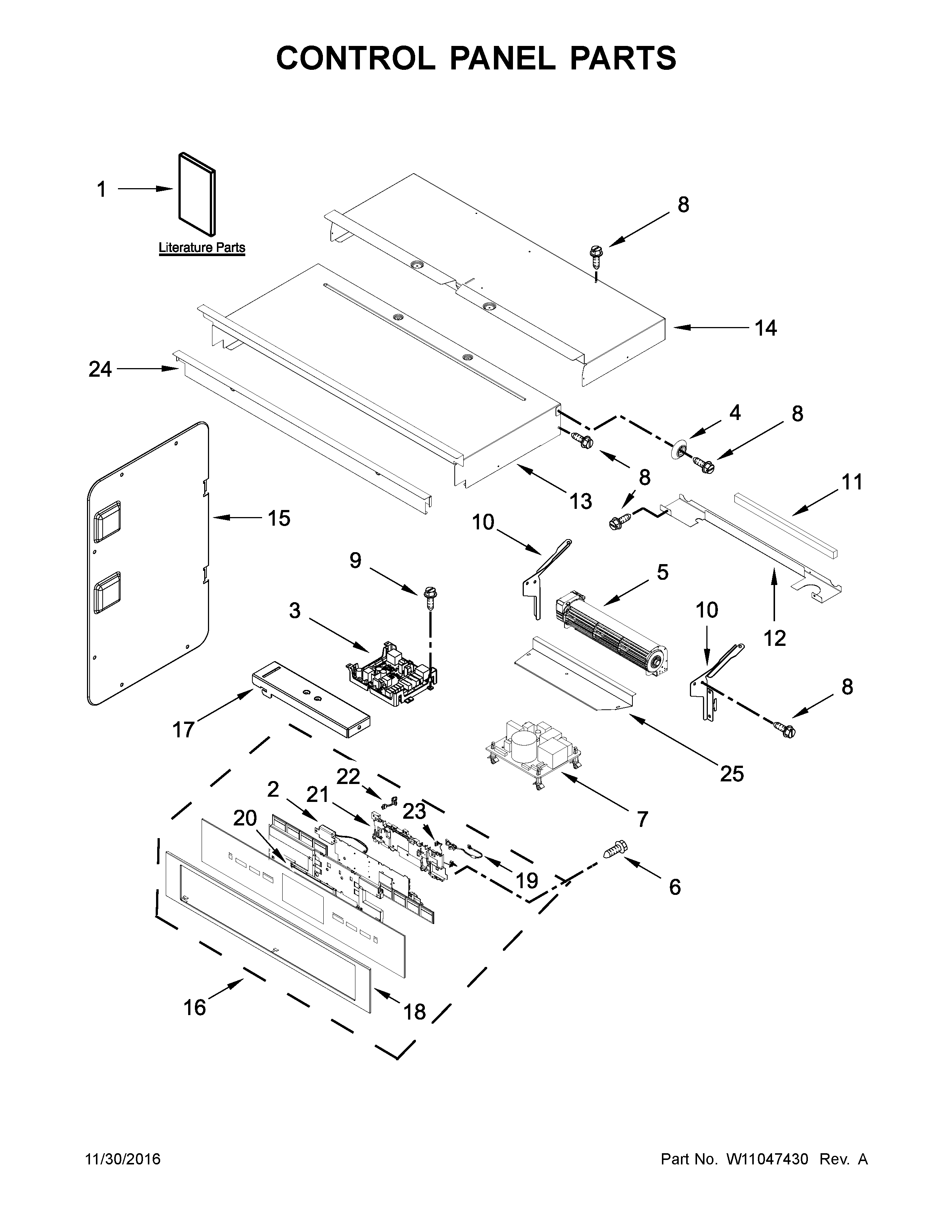

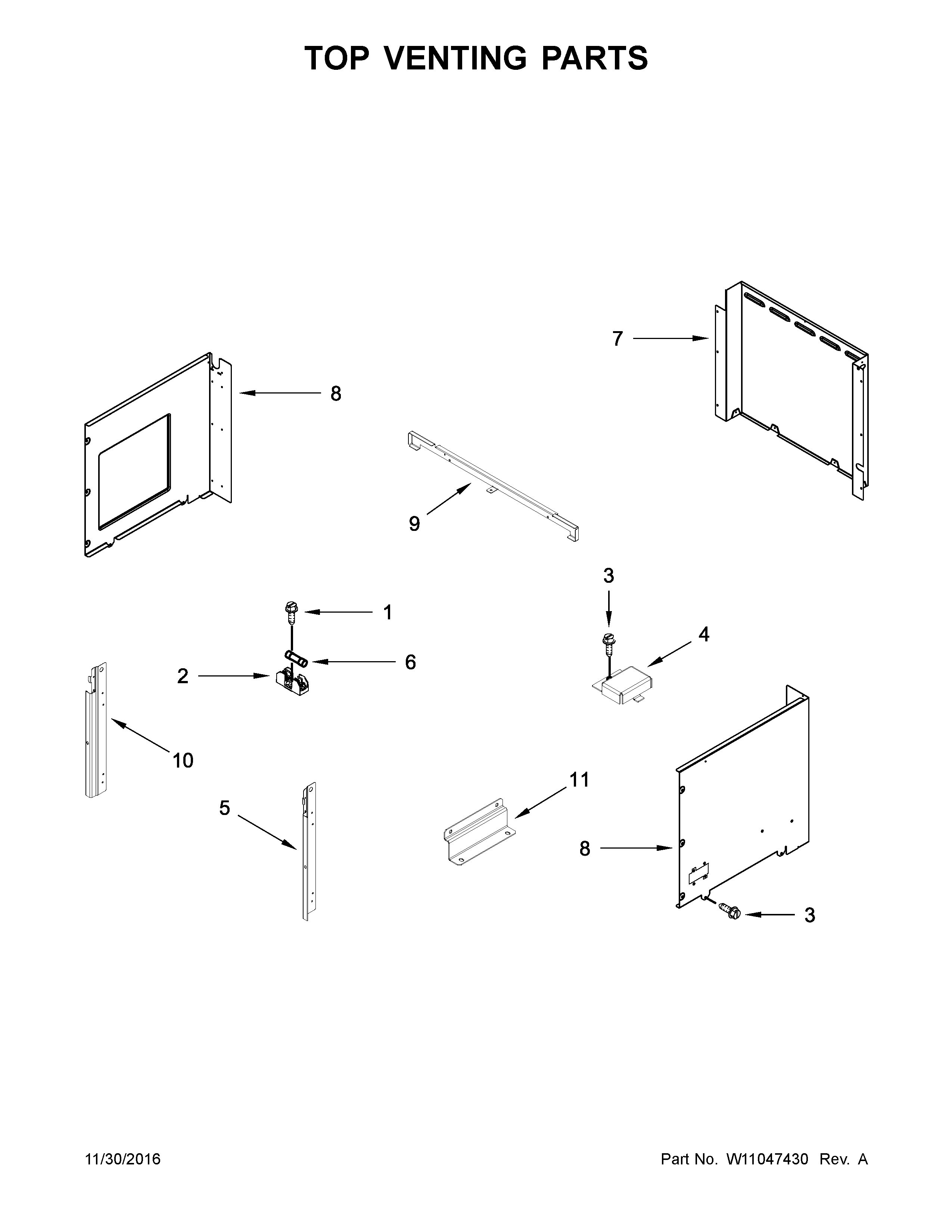

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW3430HP00 Built-In Oven with Microwave

  • Appliance Silicone Sealant for Jenn-Air JMW3430HP00 - Part WP482338

    Optional parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $24.46
    27% OFF Was : $33.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Microwave Inverter Board for Jenn-Air JMW3430HP00 - Part W10217711

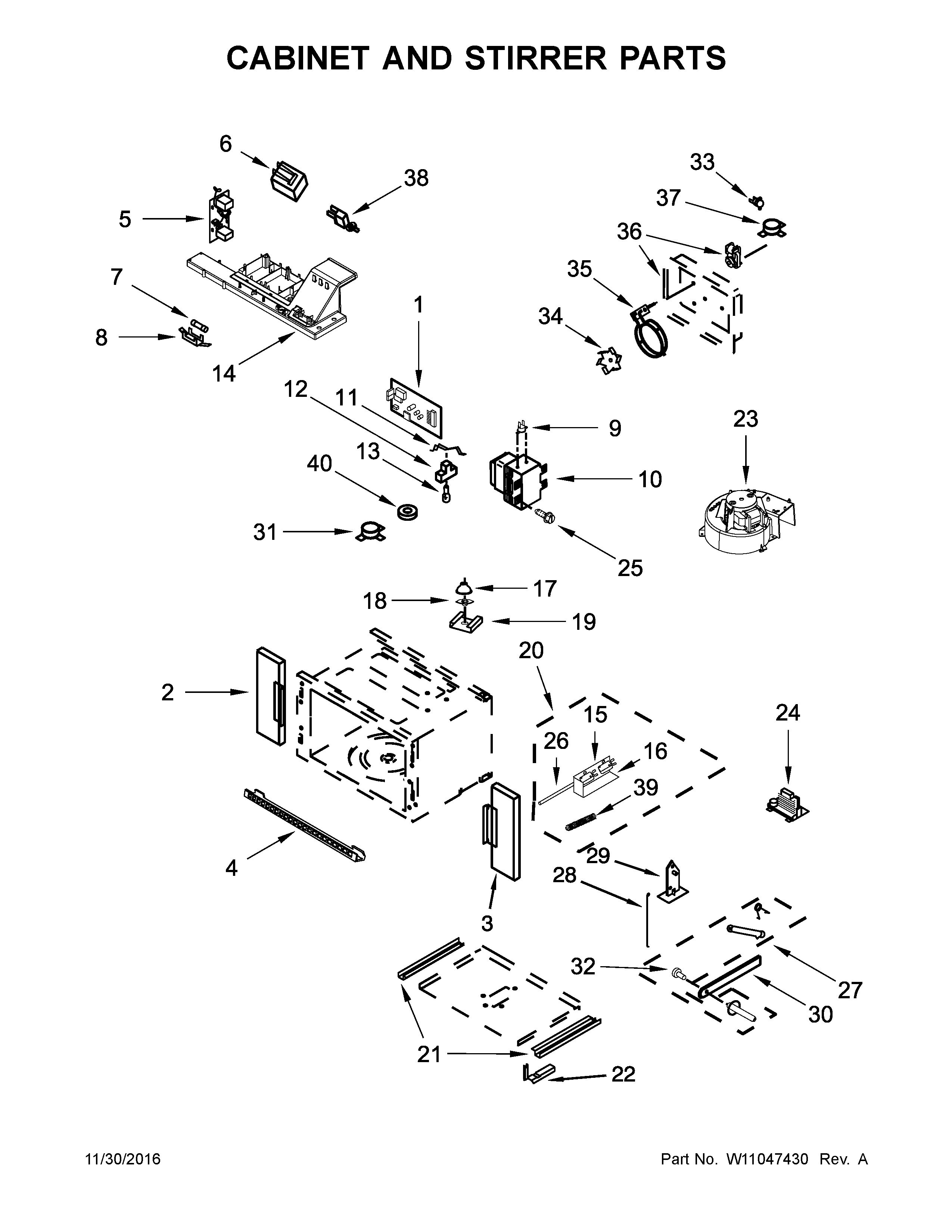

    Cabinet and stirrer parts diagram

    Inverter

    Part #W10468206

    Replaced by #W10217711

    Info Icon
    Manufacturer substitution
    This part replaces W10468206. Substitute parts can look different from the original.
    In Stock
    $208.46
    10% OFF Was : $230.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for Jenn-Air JMW3430HP00 - Part WP4449751

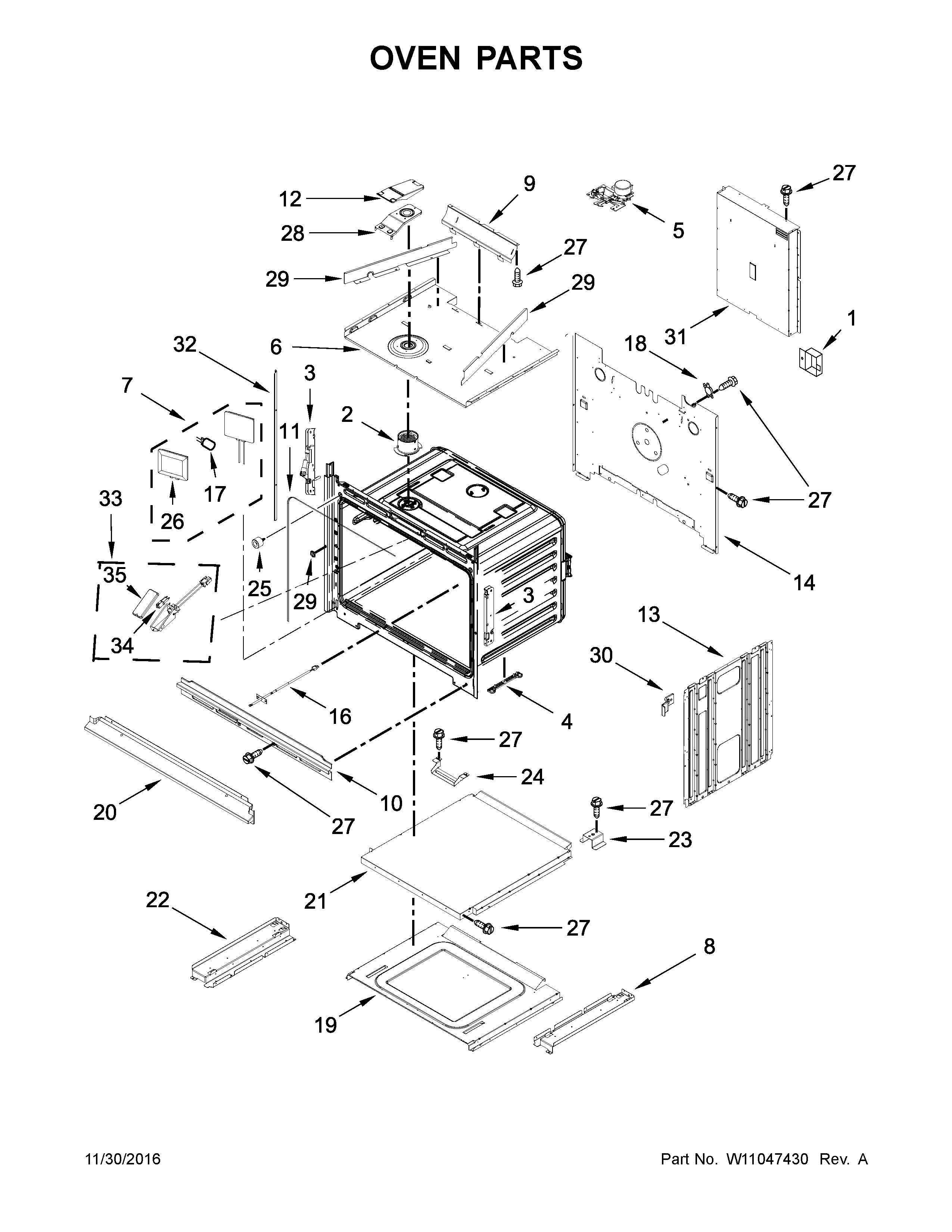

    Oven parts diagram

    Range High-limit Thermostat

    Part #4449751

    Replaced by #WP4449751

    Info Icon
    Manufacturer substitution
    This part replaces 4449751. Substitute parts can look different from the original.
    In Stock
    $75.39
    39% OFF Was : $123.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Jenn-Air JMW3430HP00 - Part W11545804

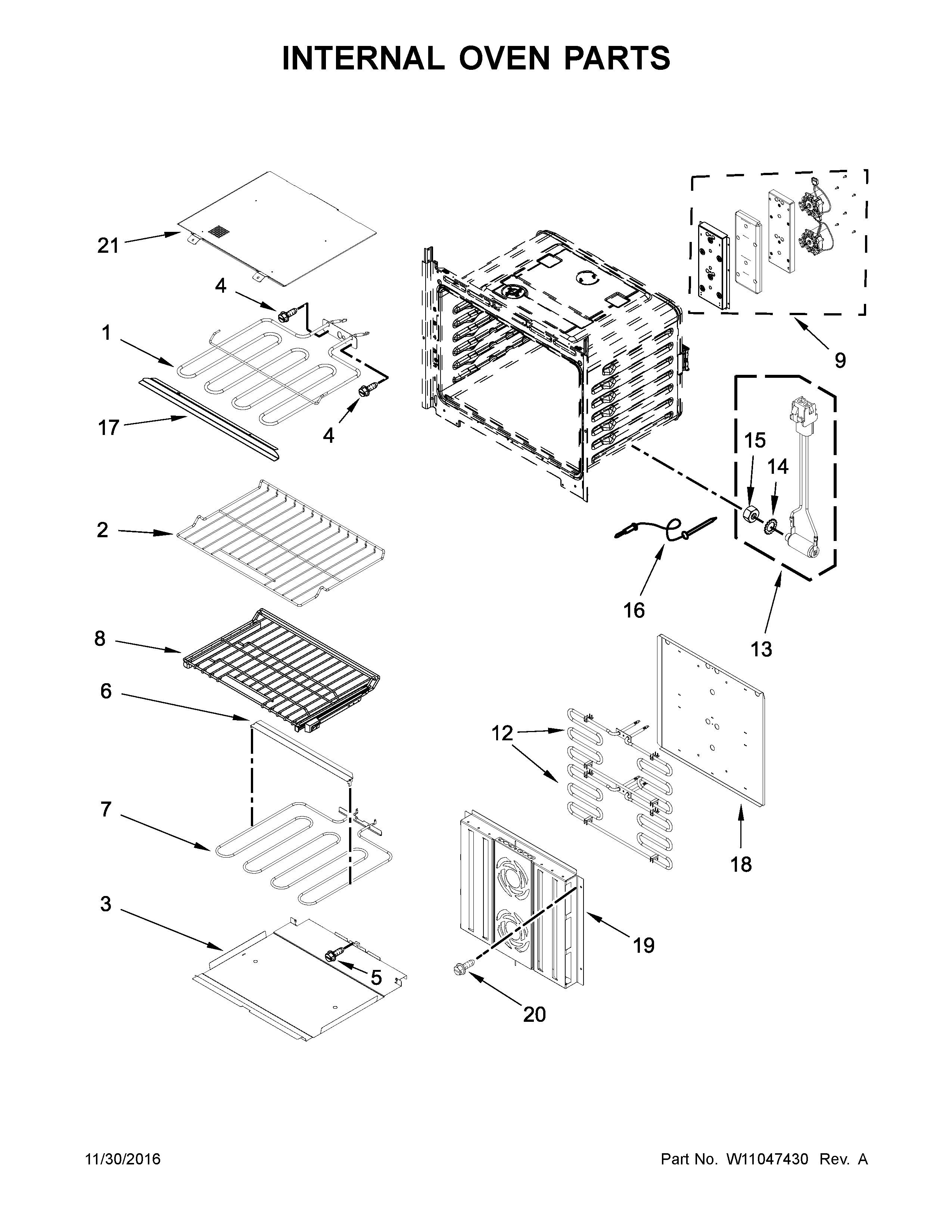

    Internal oven parts diagram

    Range Bake Element

    Part #W10546517

    Replaced by #W11545804

    Info Icon
    Manufacturer substitution
    This part replaces W10546517. Substitute parts can look different from the original.
    In Stock
    $48.03
    31% OFF Was : $69.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for Jenn-Air JMW3430HP00 - Part W11724411

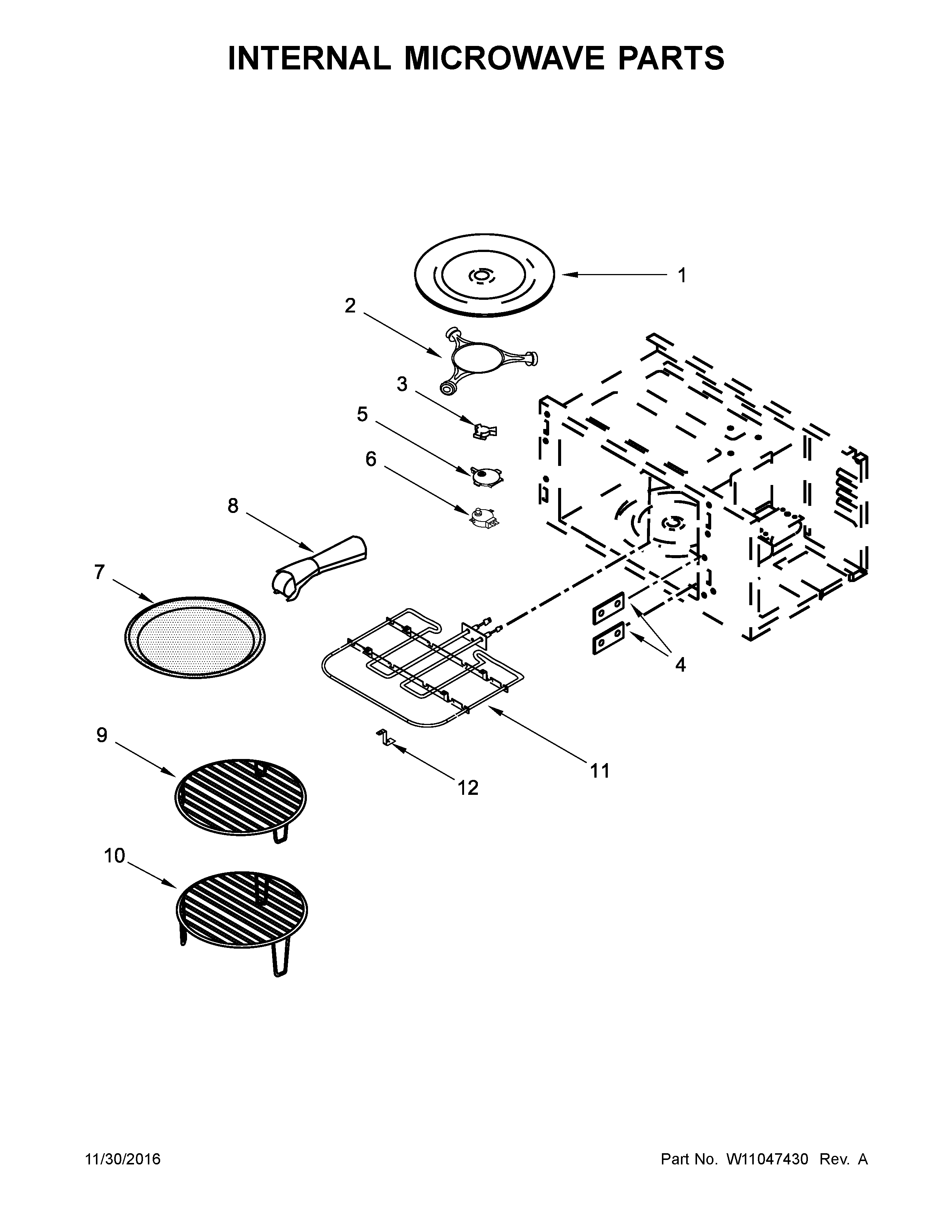

    Internal microwave parts diagram

    Whirlpool Wall Oven Microwave Element Clip

    Part #461967753871

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 461967753871. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Wire Harness for Jenn-Air JMW3430HP00 - Part W11449277

    Cabinet and stirrer parts diagram

    Conversion Harness

    Part #W10371813

    Replaced by #W11449277

    Info Icon
    Manufacturer substitution
    This part replaces W10371813. Substitute parts can look different from the original.
    In Stock
    $243.06
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Inner Glass for Jenn-Air JMW3430HP00 - Part WPW10618107

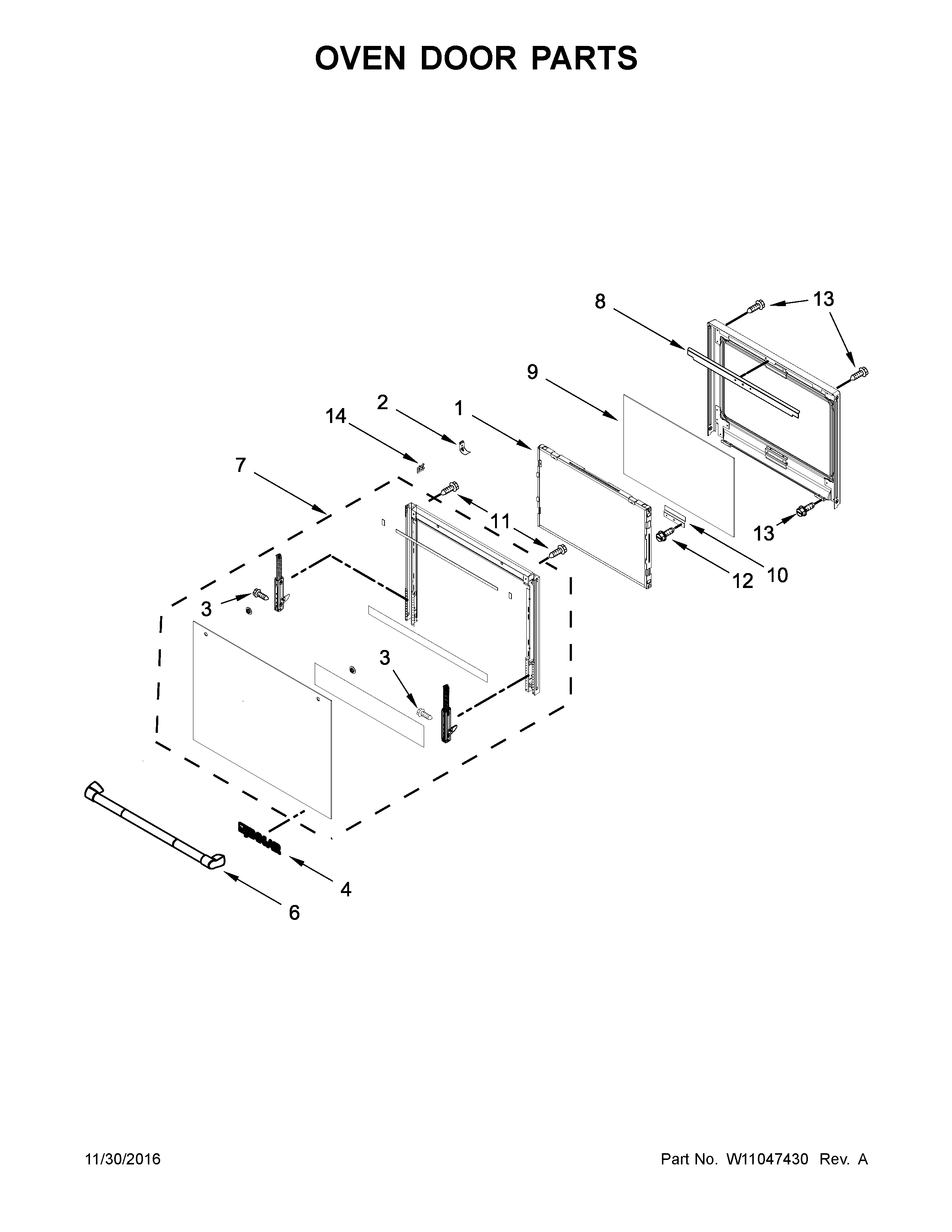

    Oven door parts diagram

    Wall Oven Door Inner Glass

    Part #W10618107

    Replaced by #WPW10618107

    Info Icon
    Manufacturer substitution
    This part replaces W10618107. Substitute parts can look different from the original.
    In Stock
    $131.21
    8% OFF Phone Price : $143.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Temperature Sensor for Jenn-Air JMW3430HP00 - Part W10859573

    Oven parts diagram

    Wako Minerva

    Part #W10622170

    Replaced by #W10859573

    Info Icon
    Manufacturer substitution
    This part replaces W10622170. Substitute parts can look different from the original.
    In Stock
    $109.04
    10% OFF Phone Price : $121.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Fuse for Jenn-Air JMW3430HP00 - Part W11188752

    Cabinet and stirrer parts diagram

    Fuse Mda 20a

    Part #241908600053

    Replaced by #W11188752

    Info Icon
    Manufacturer substitution
    This part replaces 241908600053. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.41
    15% OFF Phone Price : $13.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for Jenn-Air JMW3430HP00 - Part W10883049

    Oven parts diagram

    Door Latch

    Part #W10618131

    Replaced by #W10883049

    Info Icon
    Manufacturer substitution
    This part replaces W10618131. Substitute parts can look different from the original.
    In Stock
    $199.02
    6% OFF Phone Price : $211.02Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
