Thermador
Wall Oven/Microwave Combo

Model # MEMC301EB01 Official Thermador electric oven

Here are the diagrams and repair parts for Official Thermador MEMC301EB01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

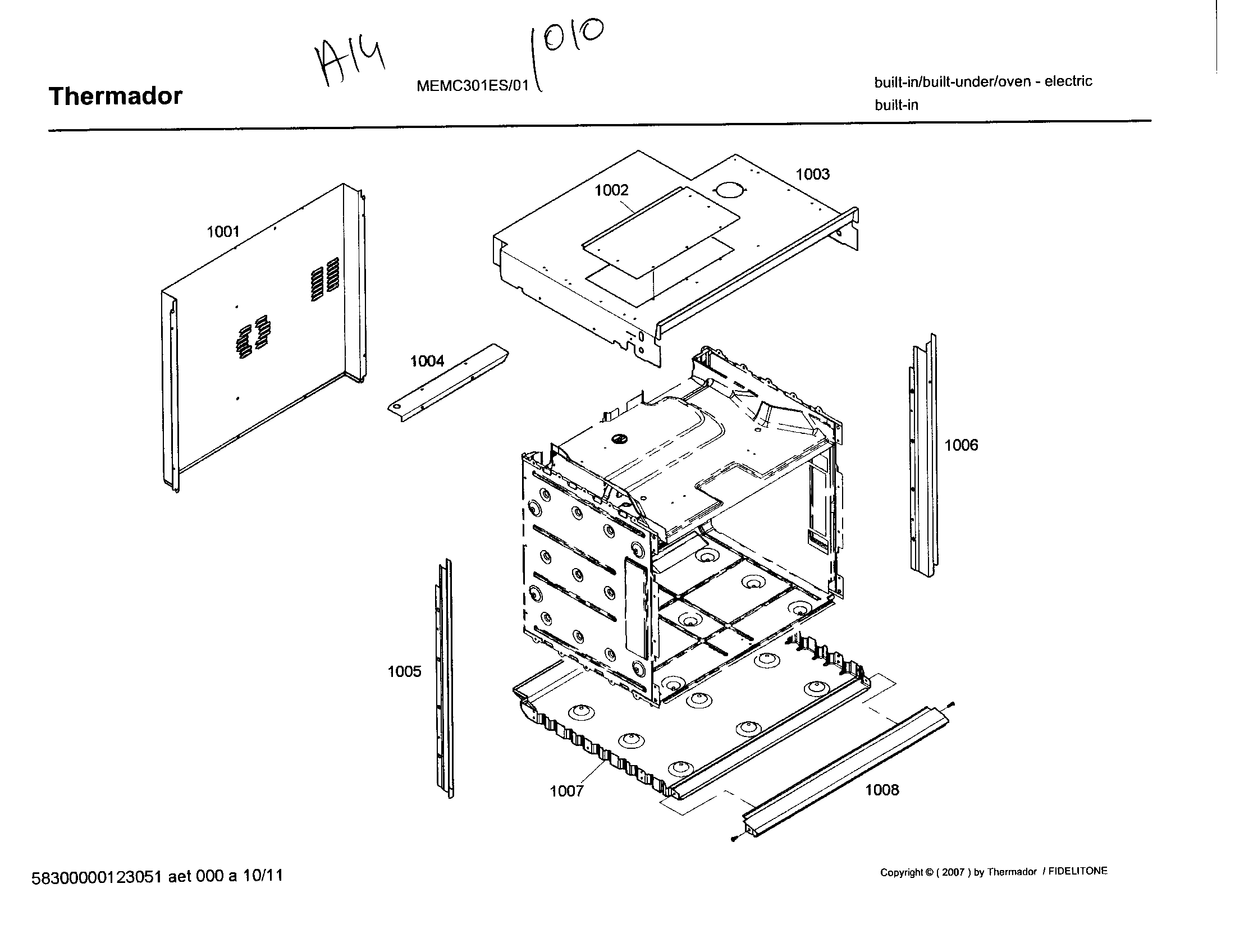

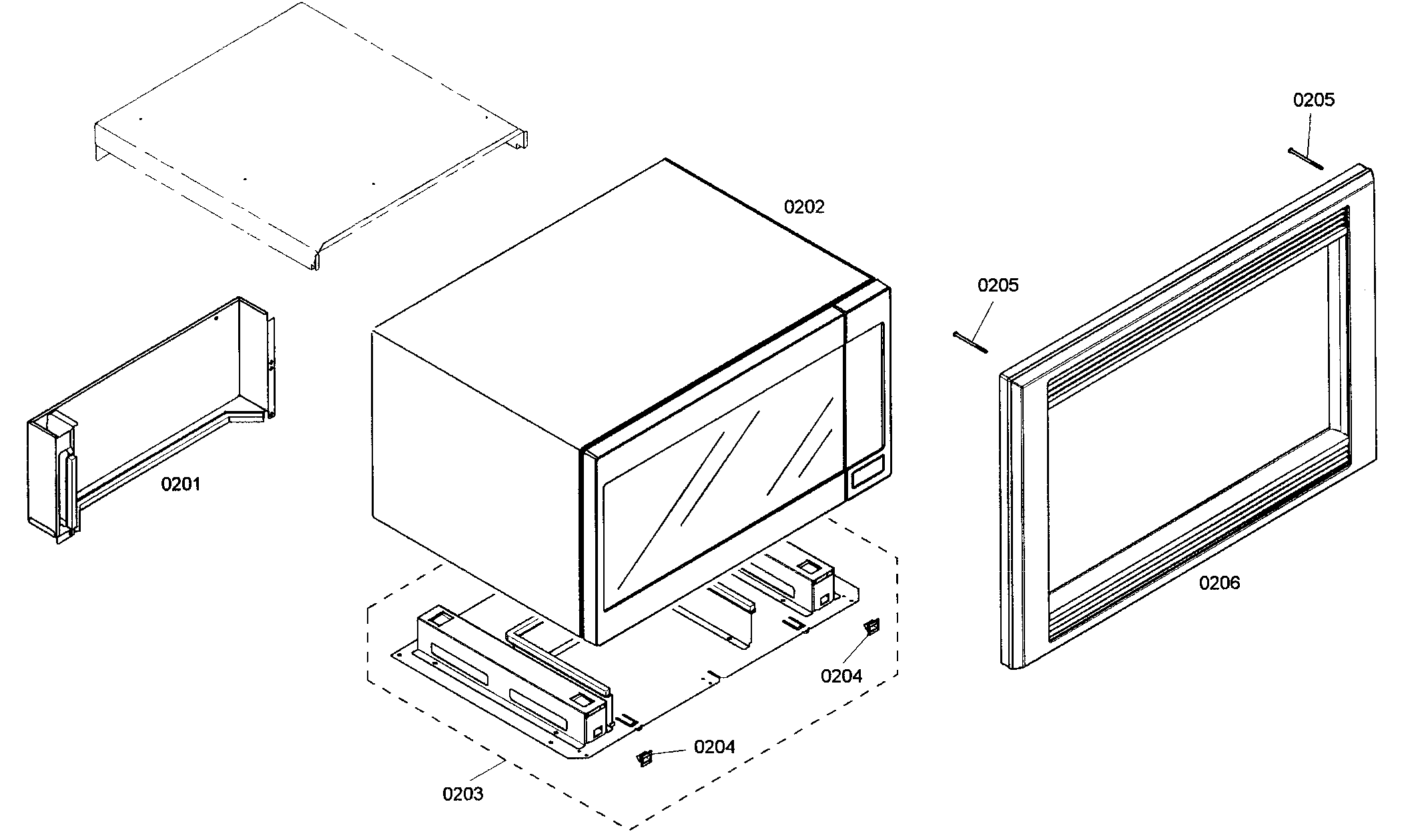

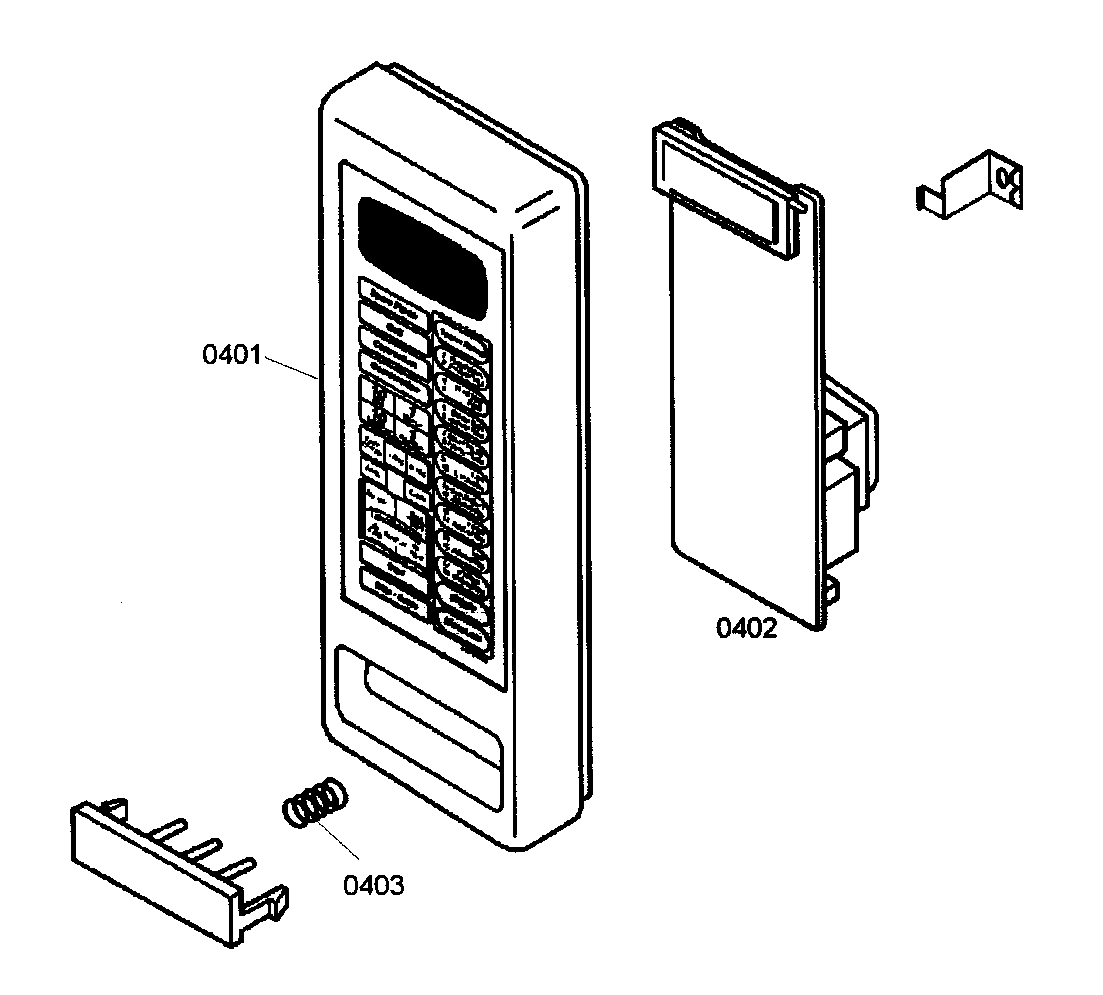

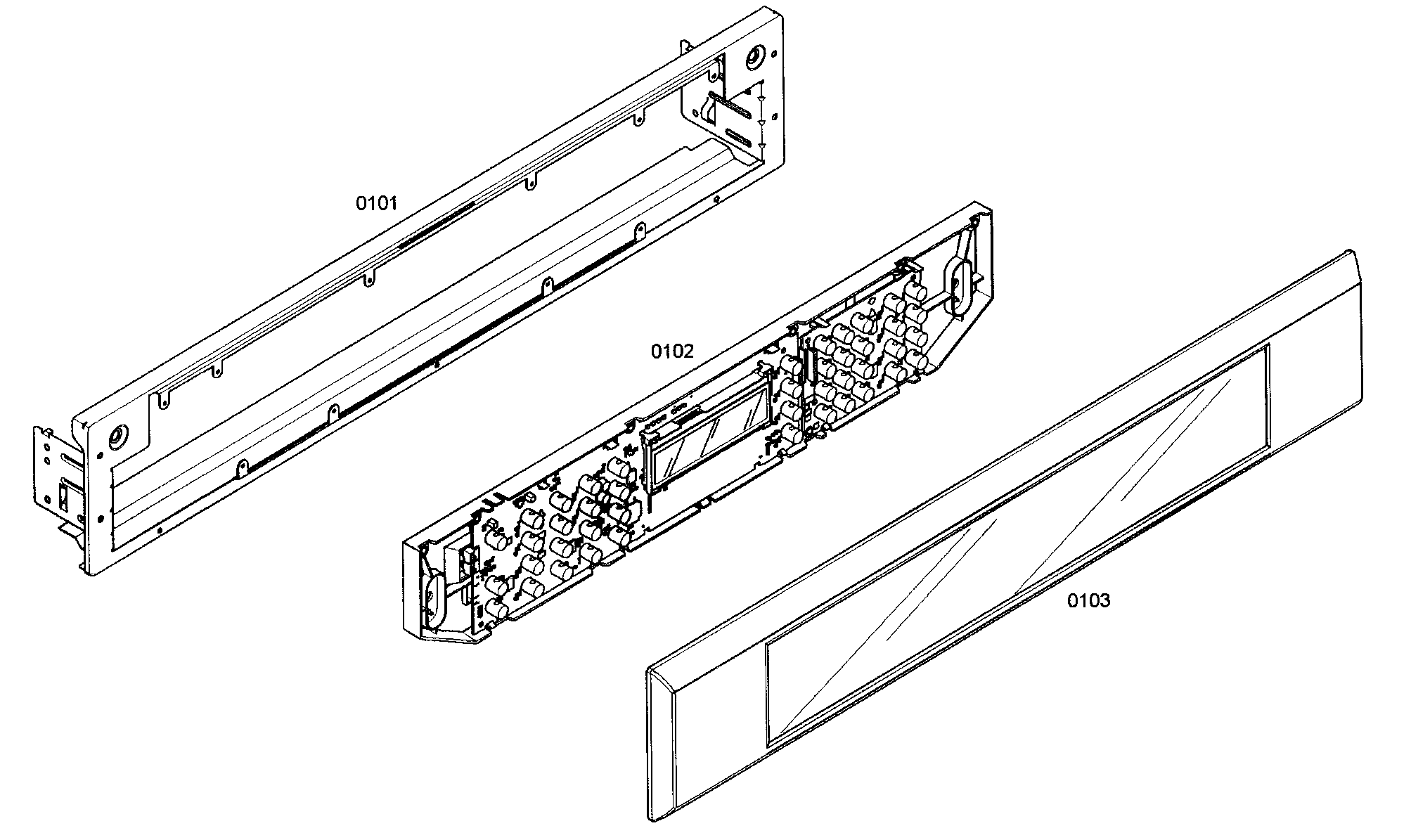

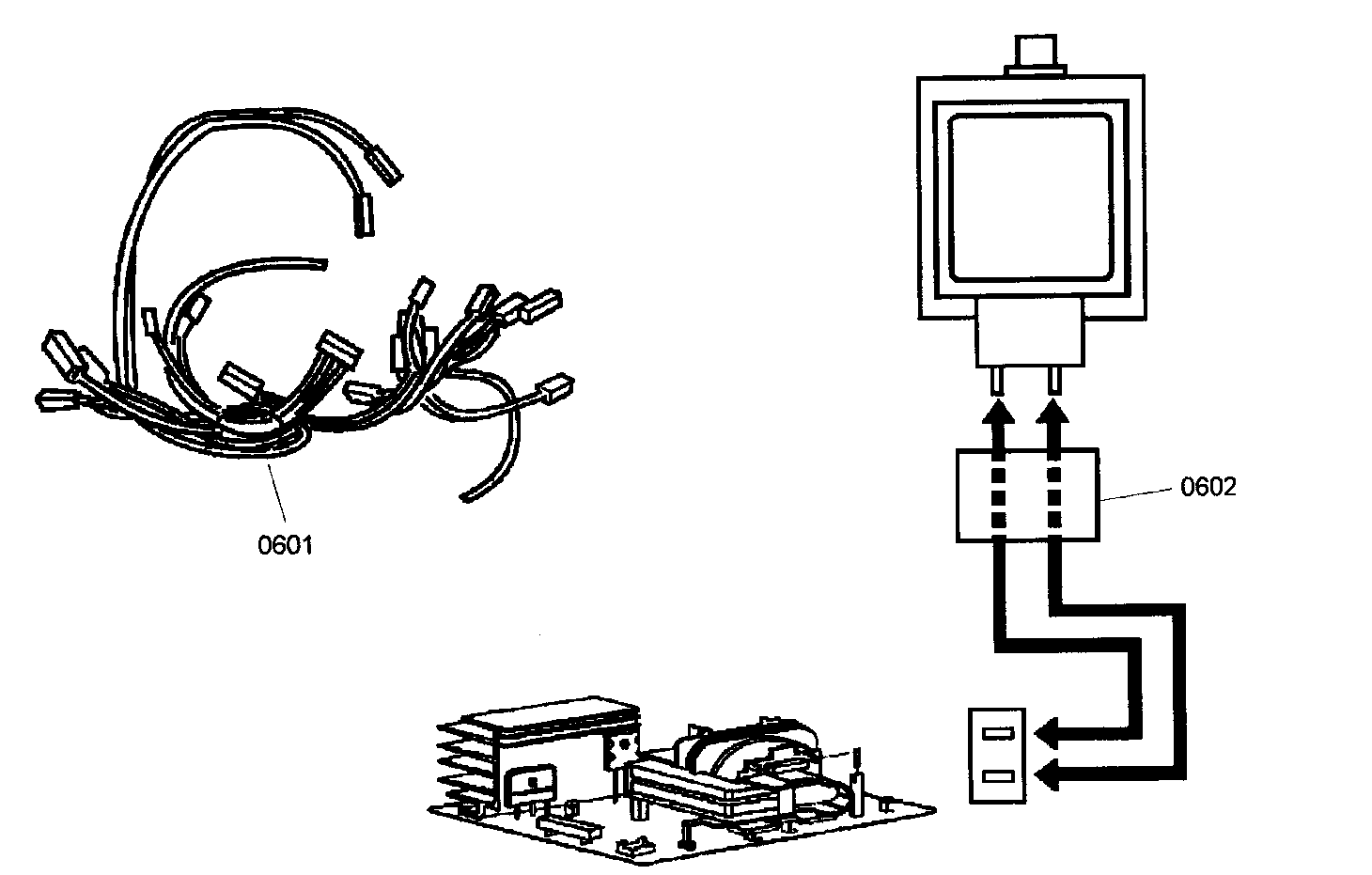

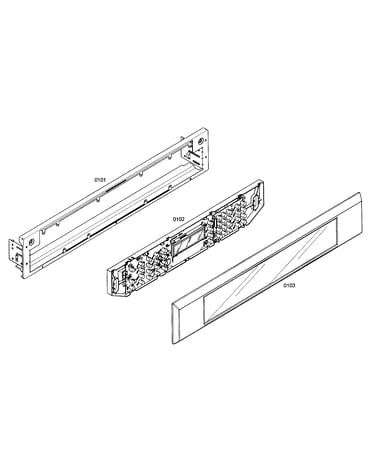

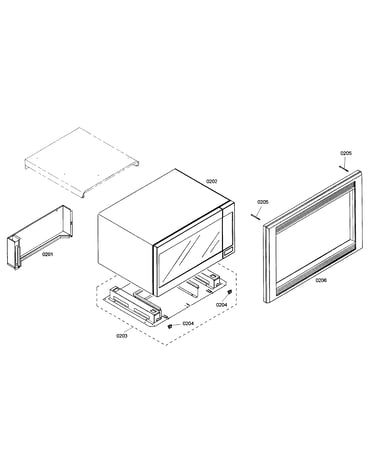

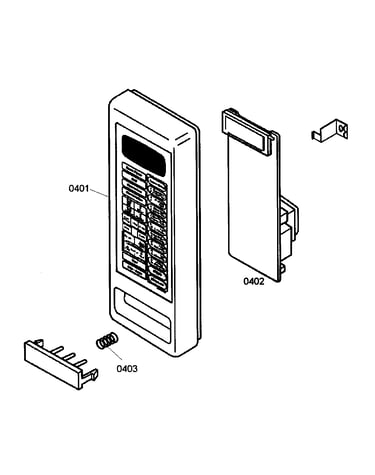

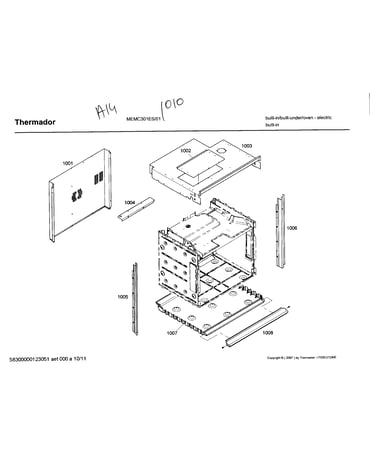

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Switch 154550
#305

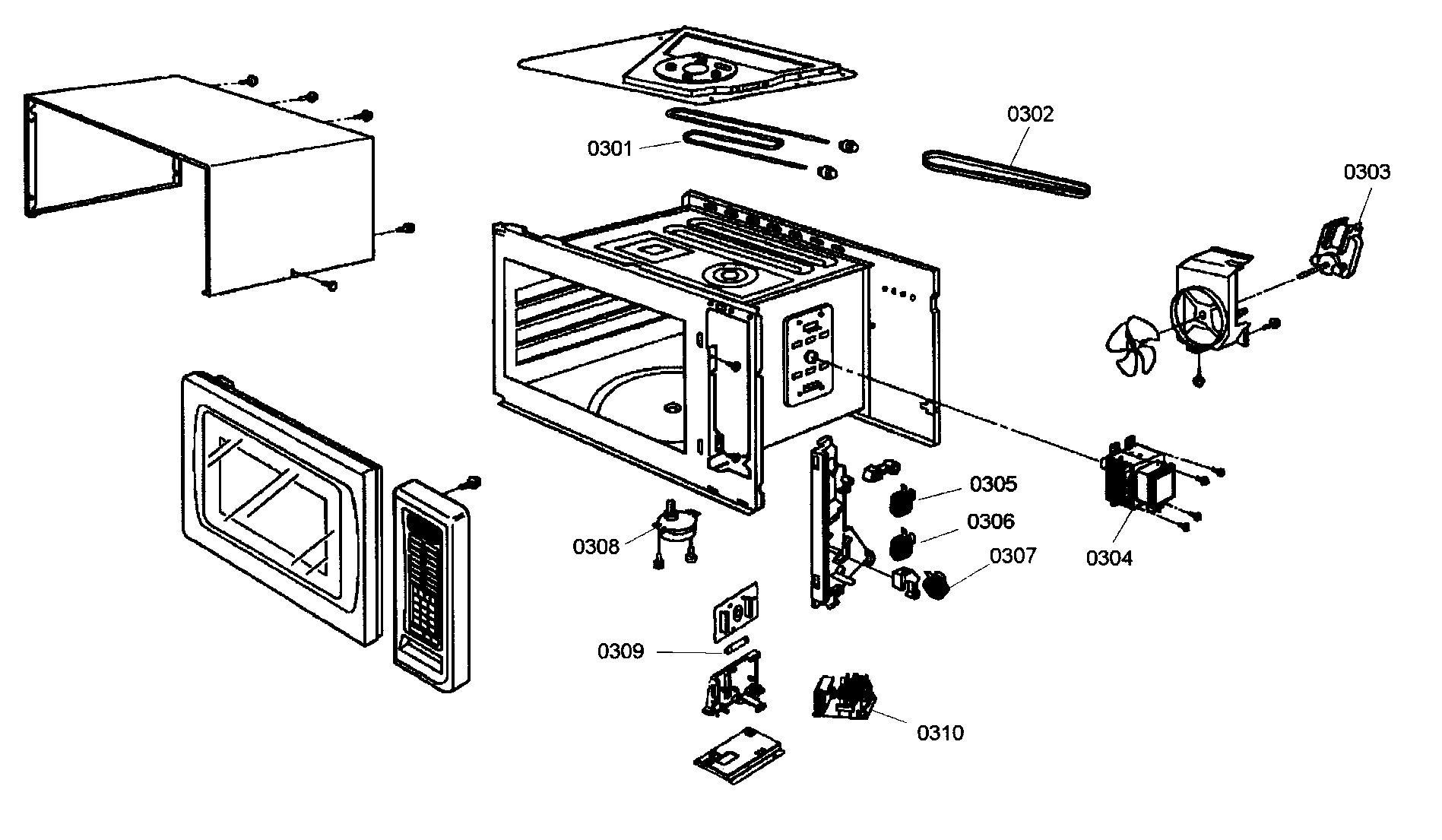

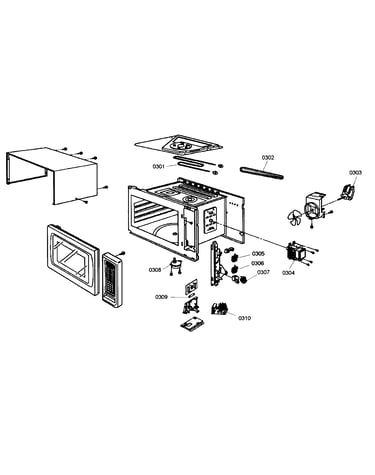

Microwave parts 2 diagram

Switch

Part #154550

Replaced by #00614767

?
Manufacturer substitution
This part replaces 154550. Substitute parts can look different from the original.
This item is not returnable
$22.79 |
18% OFF Phone Price : $27.79
In Stock
Sensor 642855
#808

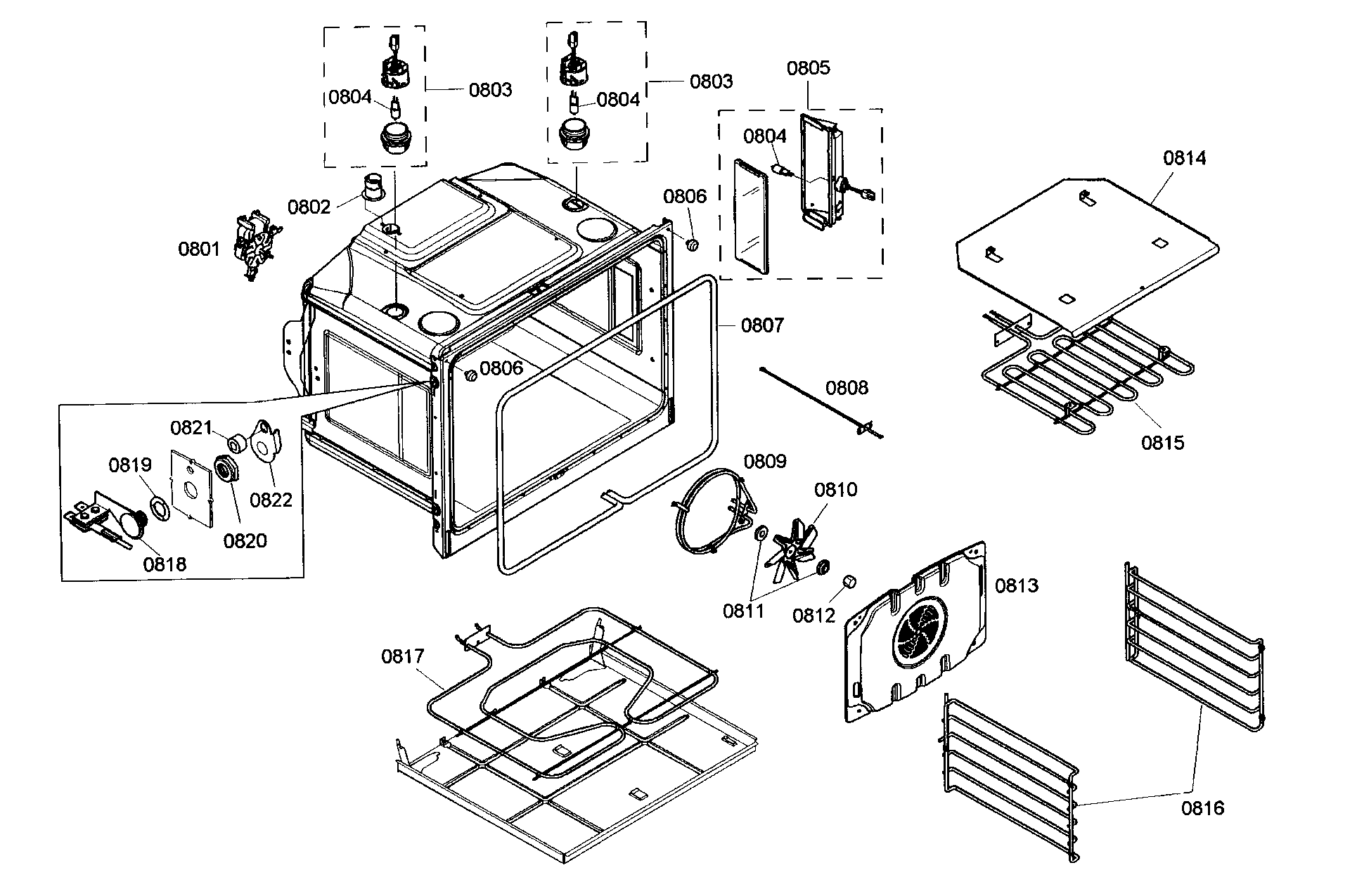

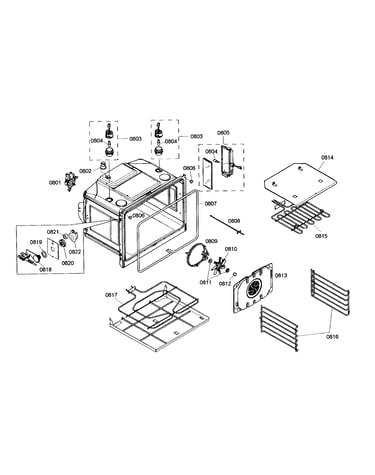

Oven parts 1 diagram

Sensor

Part #642855

Replaced by #00642855

?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
$64.49 |
7% OFF Phone Price : $69.49
In Stock
Element 144667
#815

Oven parts 1 diagram

Element

Part #144667

Replaced by #00144667

?
Manufacturer substitution
This part replaces 144667. Substitute parts can look different from the original.
$120.09 |
8% OFF Phone Price : $130.09
In Stock
Fuse 413608
#712

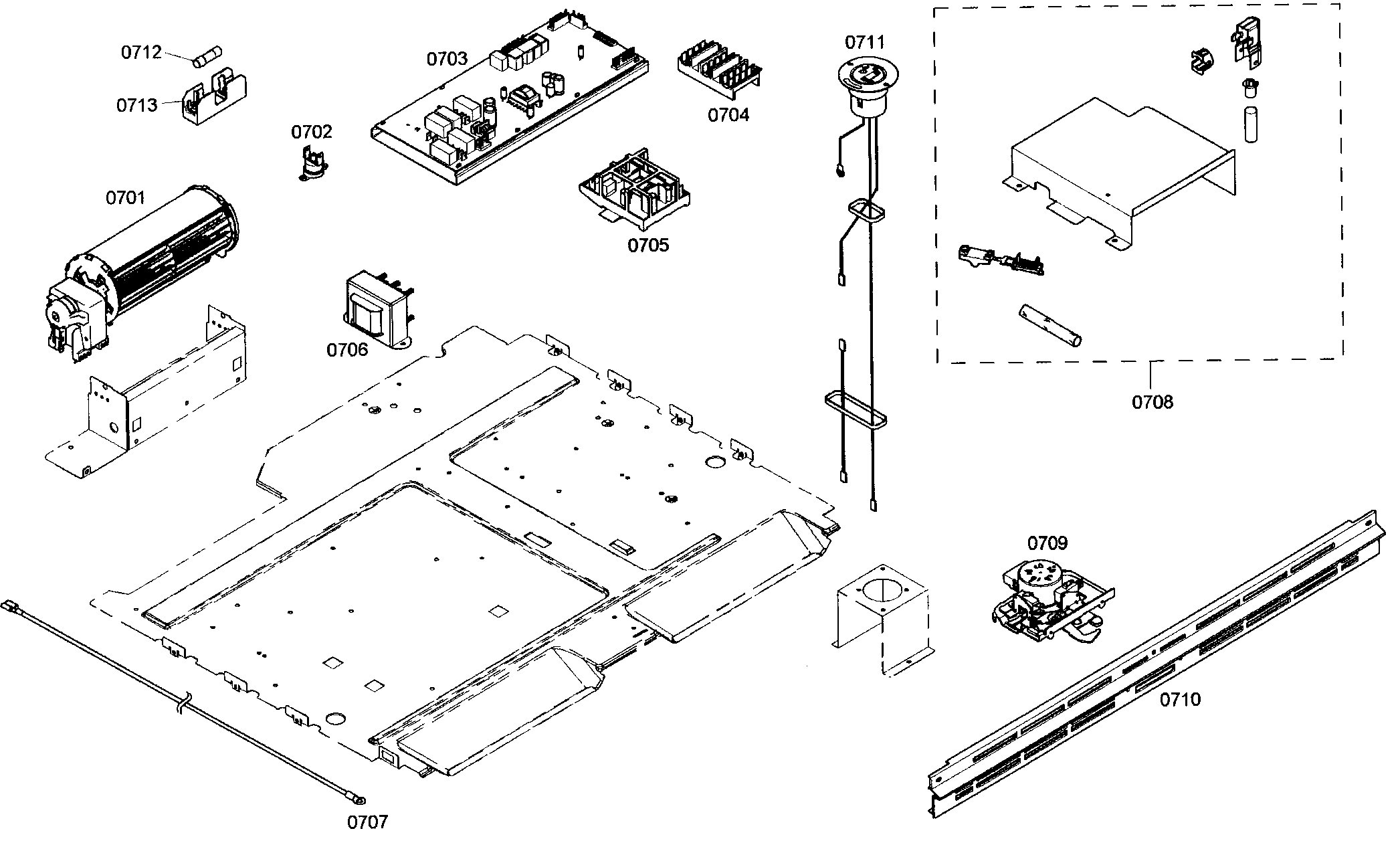

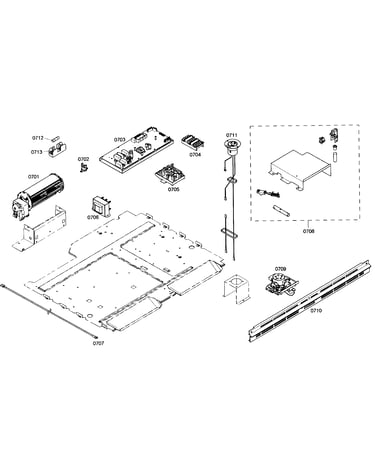

Pcb assy diagram

Fuse

Part #413608

Replaced by #00413608

?
Manufacturer substitution
This part replaces 413608. Substitute parts can look different from the original.
$42.89
In Stock
Glass Panel 478309
#904

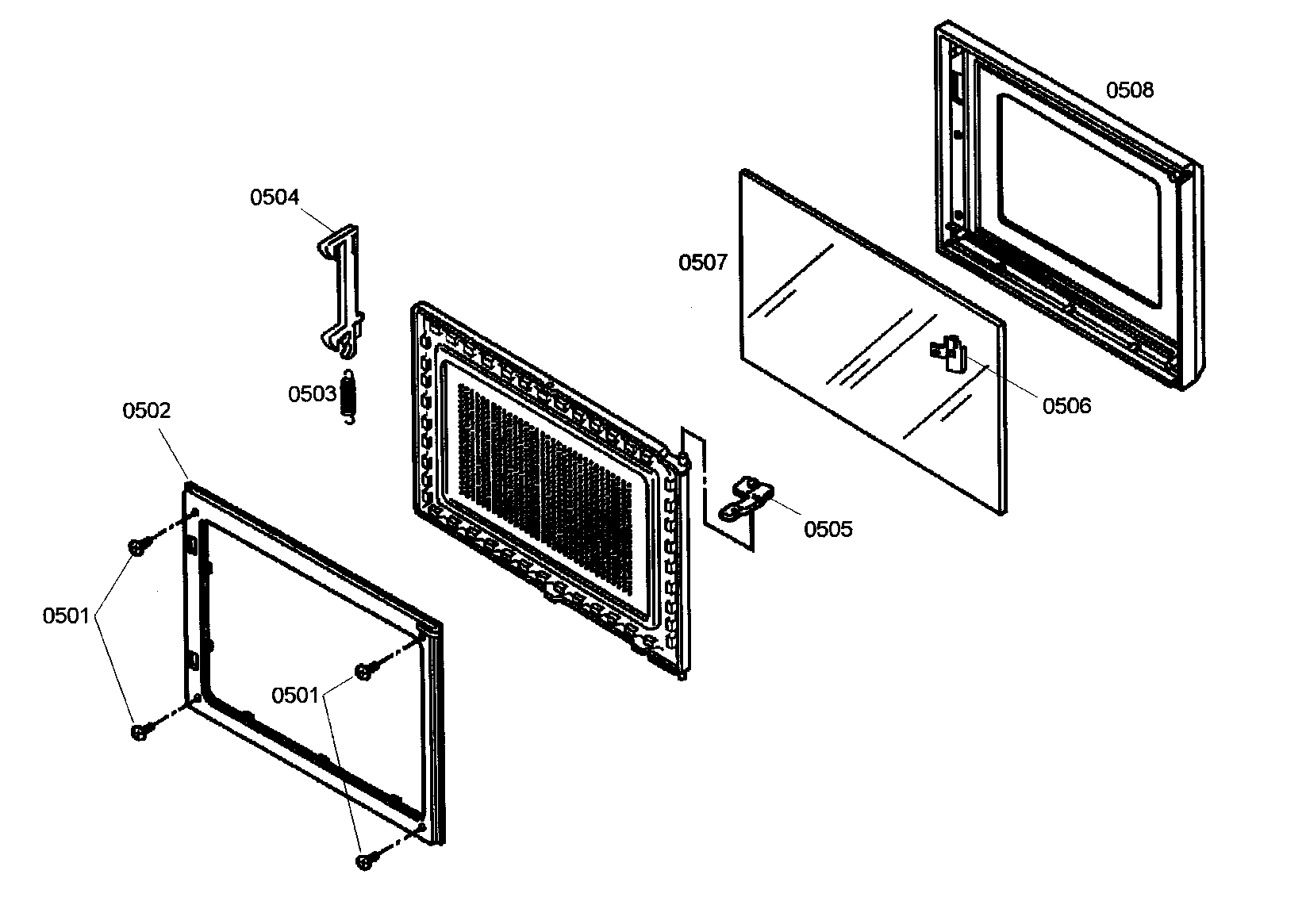

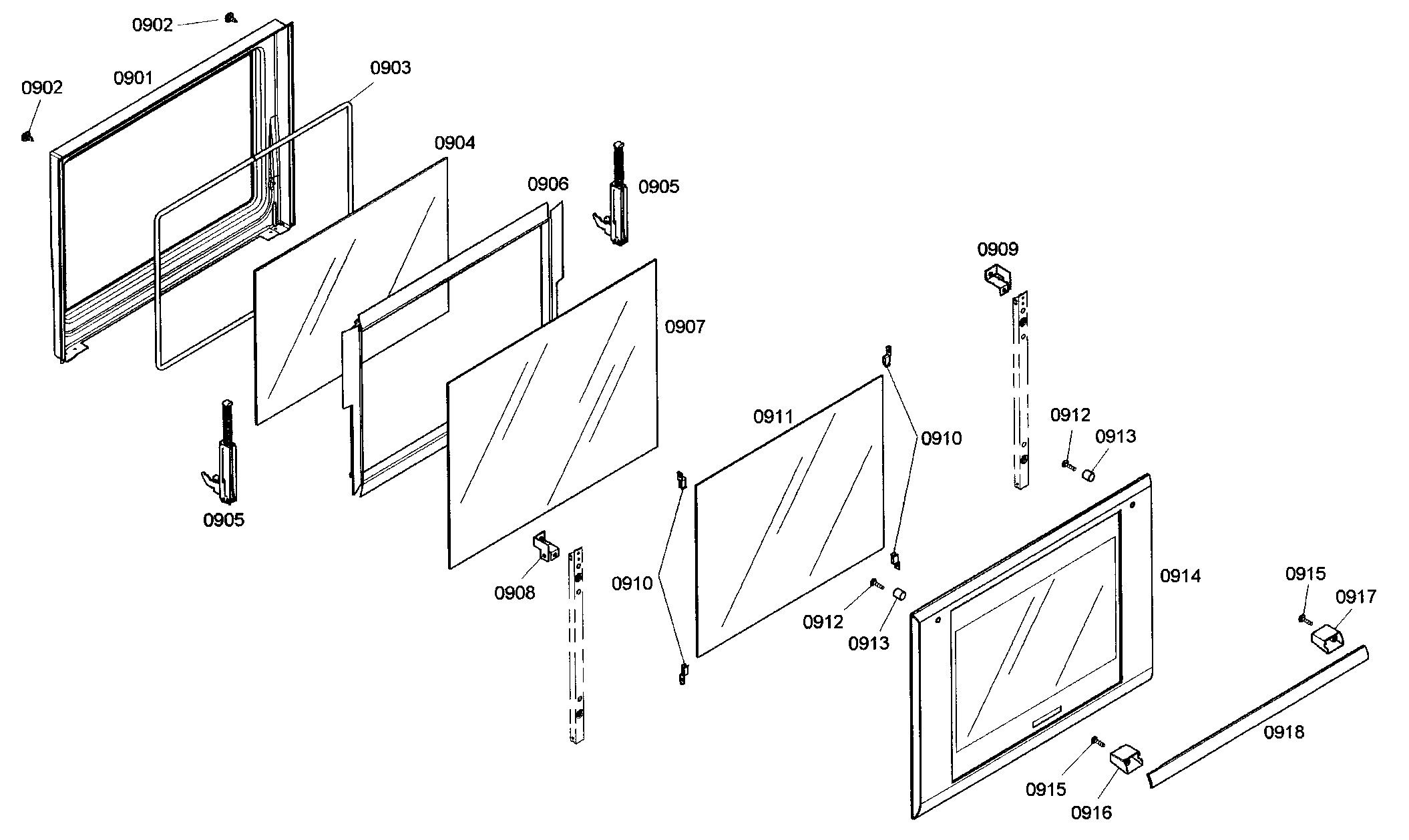

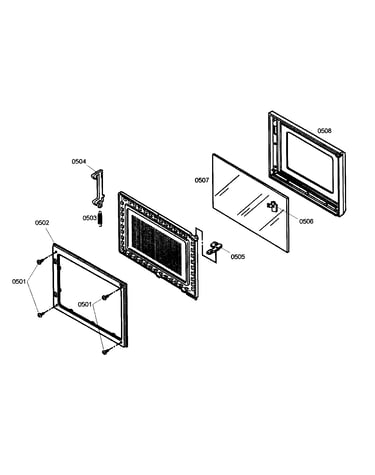

Door assy diagram

Glass panel

Part #478309

Replaced by #00770023

?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
$182.39 |
5% OFF Phone Price : $192.39
In Stock
Element 144648
#817

Oven parts 1 diagram

Element

Part #144648

Replaced by #00144648

?
Manufacturer substitution
This part replaces 144648. Substitute parts can look different from the original.
$108.49 |
8% OFF Phone Price : $118.49
In Stock
Power Supply 663802
#705

Pcb assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
7% OFF Phone Price : $138.19
In Stock
Power Supply 643049
#310

Microwave parts 2 diagram

Power supply

Part #643049

Replaced by #00641857

?
Manufacturer substitution
This part replaces 643049. Substitute parts can look different from the original.
$415.80 |
$10.00 OFF Phone Price : $425.80
In Stock
Shelf 478316
#1102

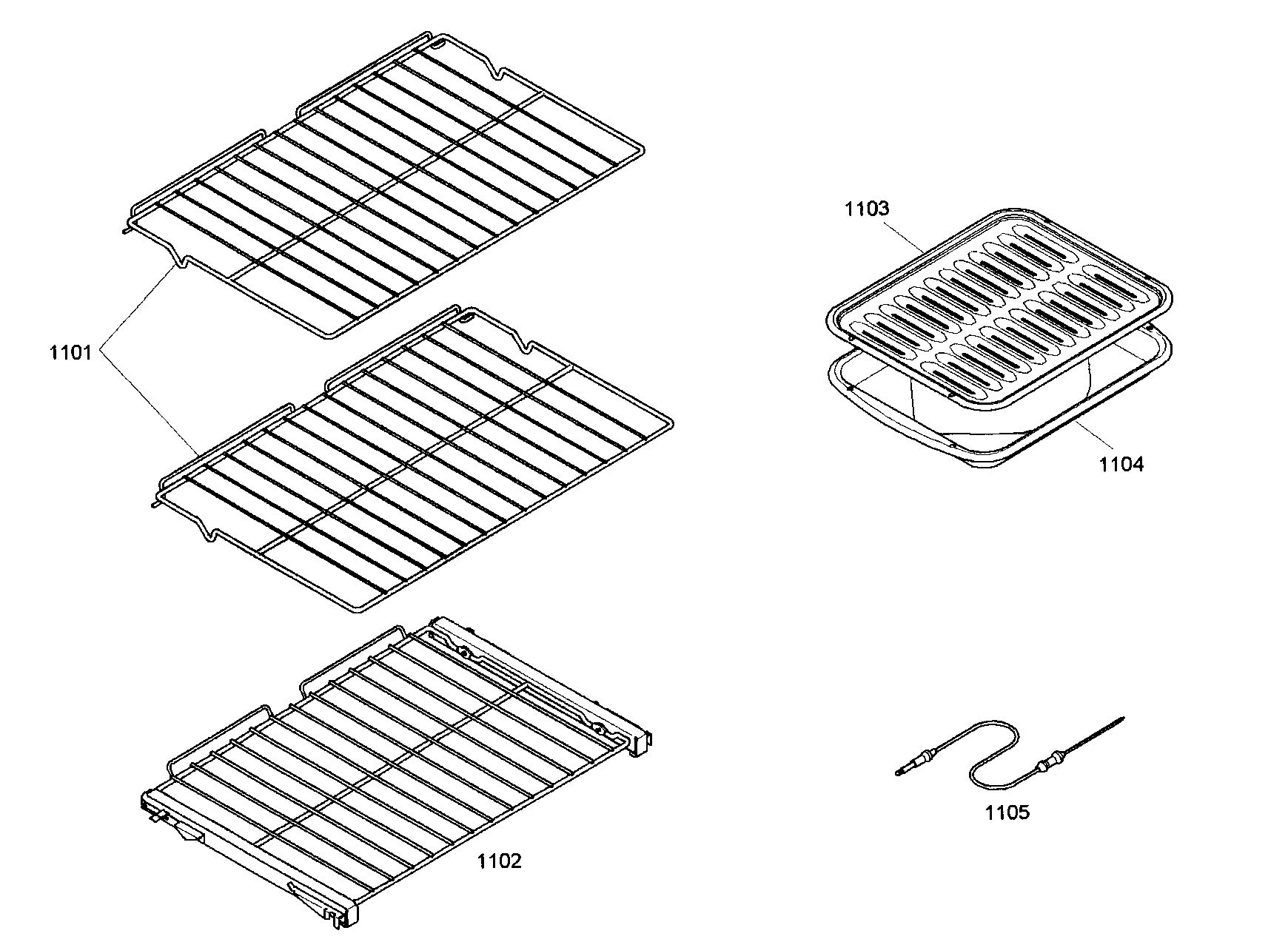

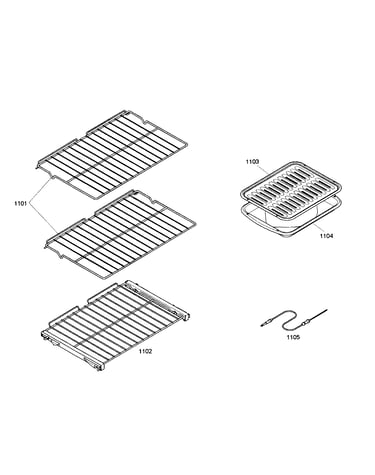

Shelf assy diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$10.00 OFF Phone Price : $404.03
In Stock
Switch 415826
#306

Microwave parts 2 diagram

Switch

Part #415826

Replaced by #00415826

?
Manufacturer substitution
This part replaces 415826. Substitute parts can look different from the original.
$40.29 |
11% OFF Phone Price : $45.29
In Stock
