Model # 5KVJ0111BMS0 Official KitchenAid juicer

Here are the diagrams and repair parts for Official KitchenAid 5KVJ0111BMS0 juicer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 61 parts |

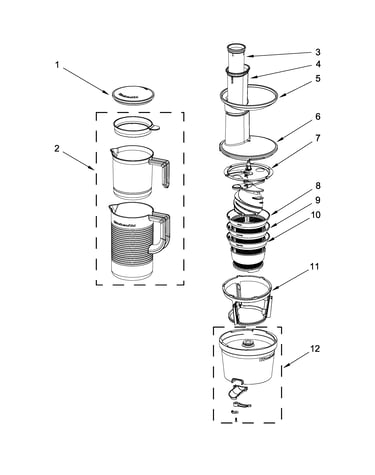

Attachment parts diagram

Container

Part #W10736802

$61.49

In Stock

Qty

#22

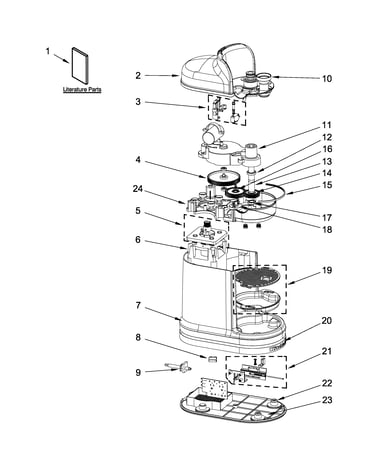

Unit parts diagram

Base

Part #W10736853

$49.29

In Stock

Qty

Unit parts diagram

Gear

Part #W10739275

$74.58

In Stock

Qty

#18

Unit parts diagram

Shaft

Part #W10739273

$41.89

In Stock

Qty

#22A

Unit parts diagram

Foot

Part #W10842679

$40.16

In Stock

Qty

#14

Unit parts diagram

Gear

Part #W10736817

$37.25

In Stock

Qty

#NI

Attachment parts diagram

Juicer screen storage tote

Part #W10842677

$51.58

In Stock

Qty

Attachment parts diagram

Blade

Part #W10724159

$88.15

In Stock

Qty

#7E

Unit parts diagram

Base

Part #W10842689

$186.11

In Stock

Qty

#19

Unit parts diagram

Cover

Part #W10736804

$43.89

In Stock

Qty
