Model # S418C2SB Official Kelvinator room air conditioner - lk34087130

Here are the diagrams and repair parts for Official Kelvinator S418C2SB room air conditioner - lk34087130, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Filter G84701
#3

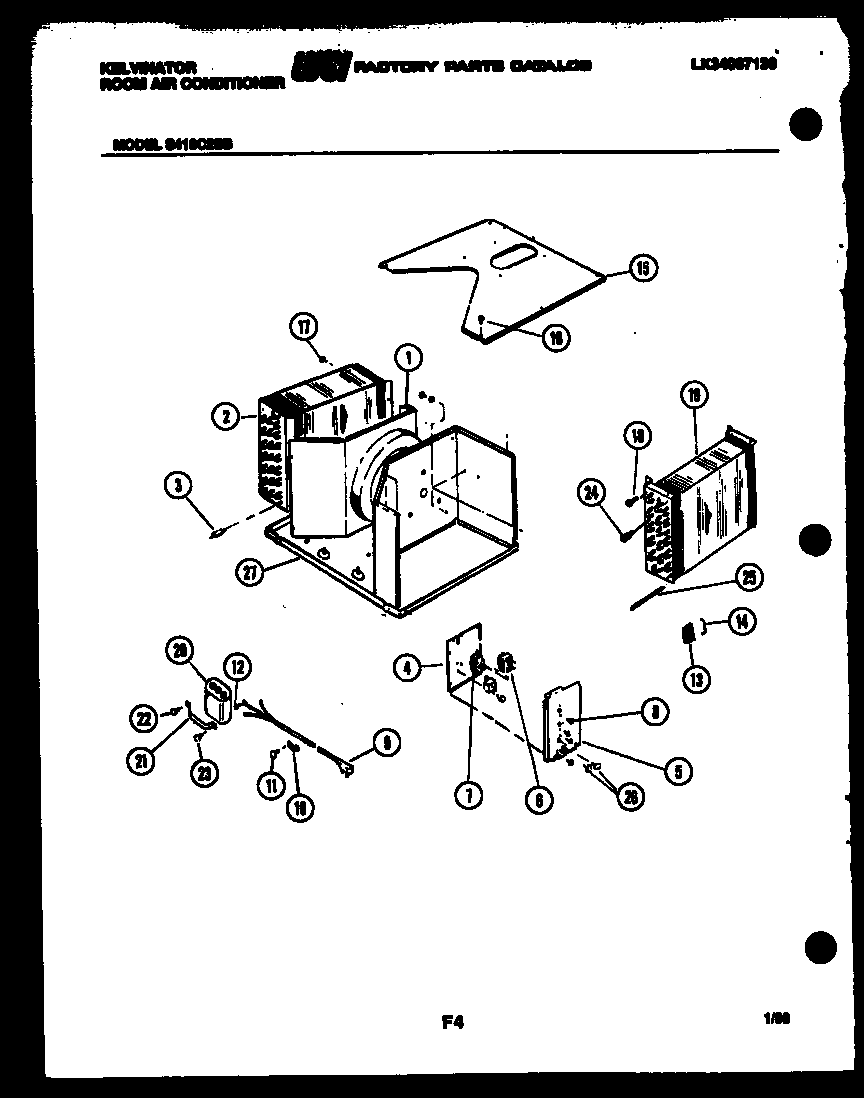

Unit parts diagram

Filter

Part #G84701

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G84701. Substitute parts can look different from the original.
$110.08
In Stock
Screw G500739
#8

Unit parts diagram

Screw

Part #G500739

Replaced by #5303007620

?
Manufacturer substitution
This part replaces G500739. Substitute parts can look different from the original.
$9.49
In Stock
Spacer G136662
#13

Unit parts diagram

Spacer

Part #G136662

The manufacturer no longer makes this part, and there's no substitute part

Louver G505999-02
#3

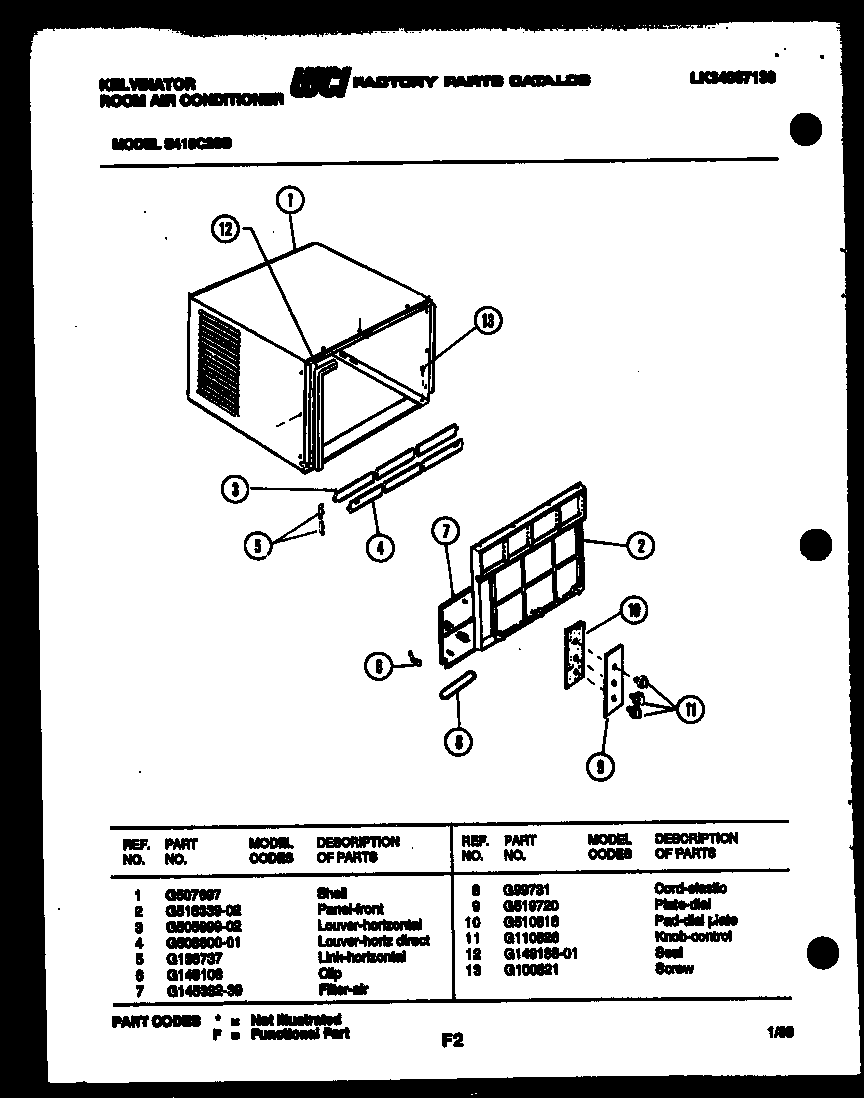

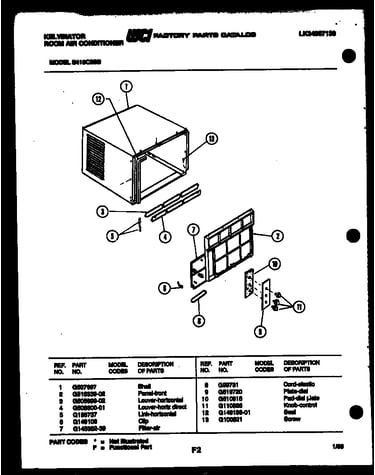

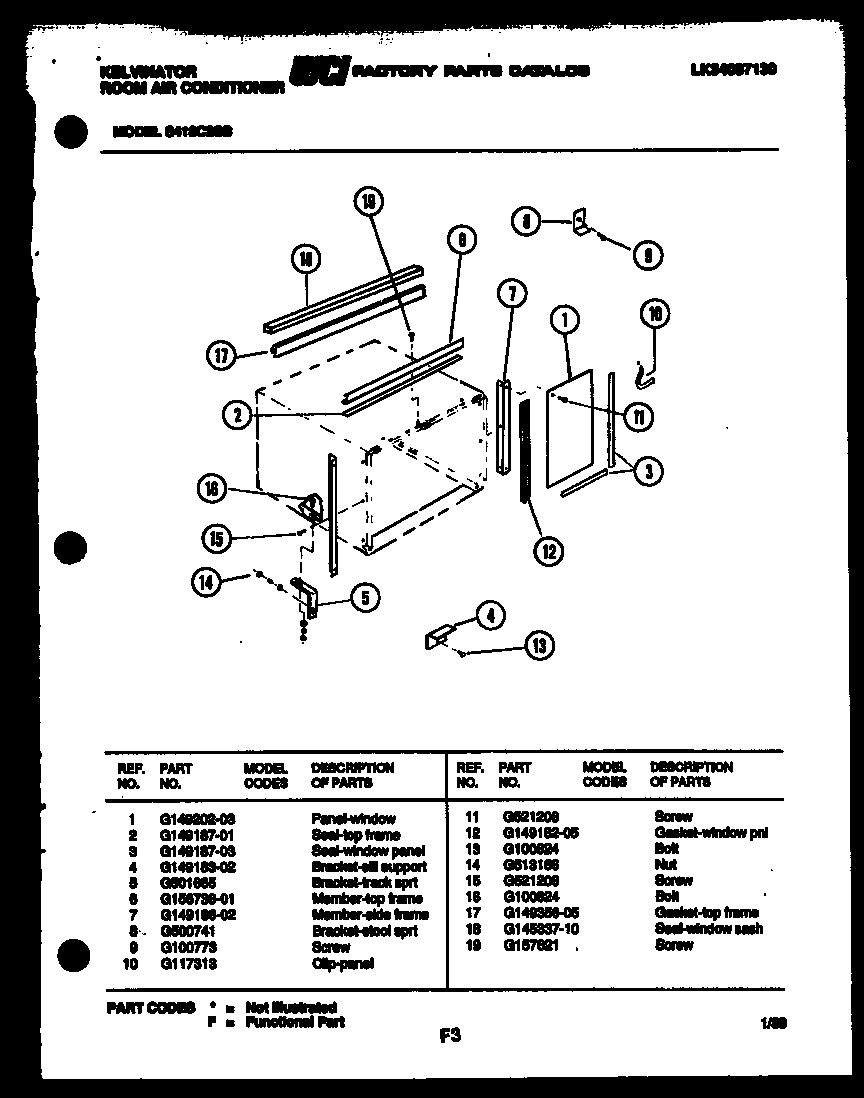

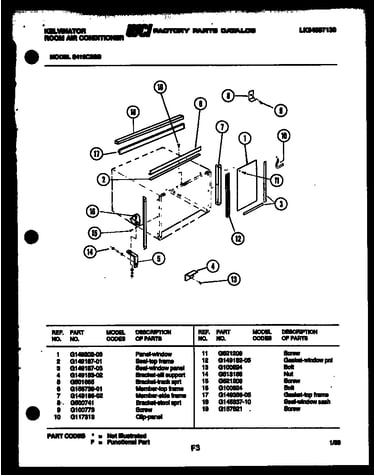

Cabinet parts diagram

Louver

Part #G505999-02

The manufacturer no longer makes this part, and there's no substitute part

Housing G149147-04
#7

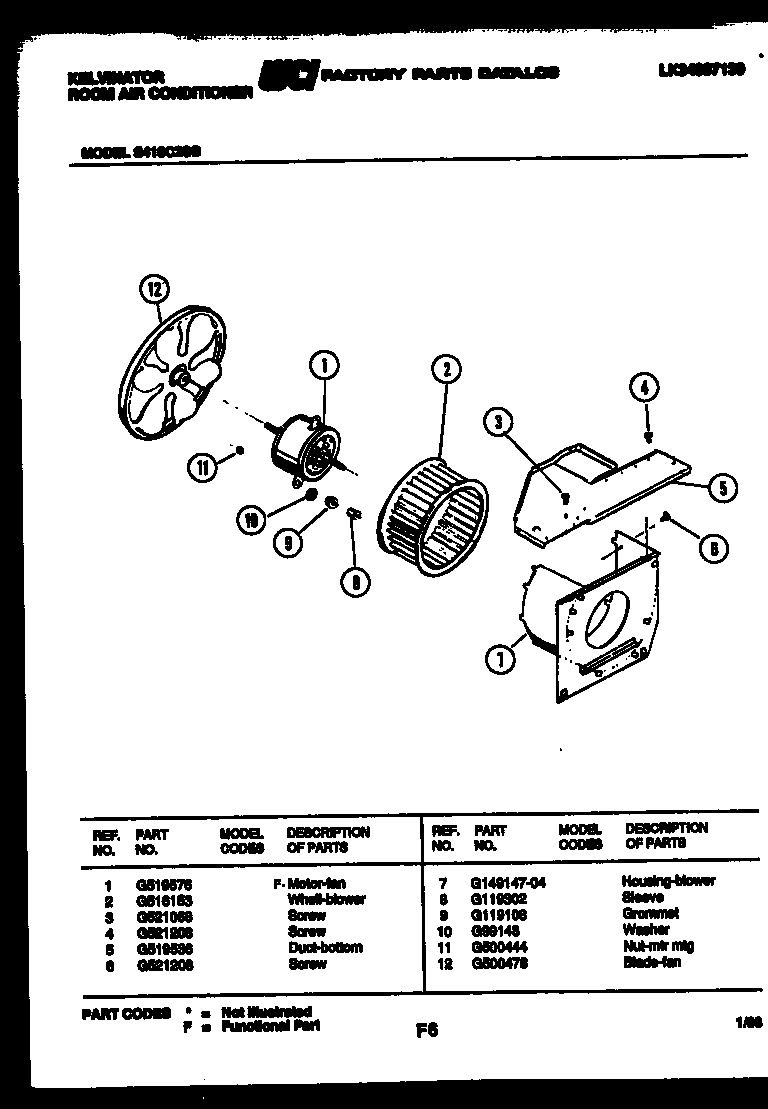

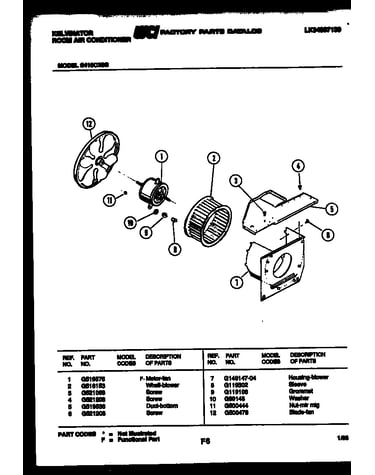

Air handling parts diagram

Housing

Part #G149147-04

The manufacturer no longer makes this part, and there's no substitute part

Cover Nut G516950
#4

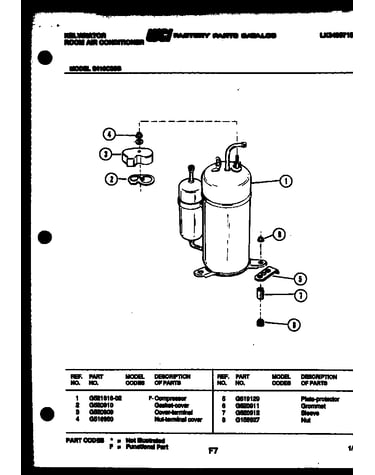

Compressor diagram

Cover nut

Part #G516950

The manufacturer no longer makes this part, and there's no substitute part

Seal G145337-10
#18

Cabinet parts diagram

Seal

Part #G145337-10

The manufacturer no longer makes this part, and there's no substitute part

Frame G149186-02
#7

Cabinet parts diagram

Frame

Part #G149186-02

The manufacturer no longer makes this part, and there's no substitute part

Gasket G149182-05
#12

Cabinet parts diagram

Gasket

Part #G149182-05

The manufacturer no longer makes this part, and there's no substitute part

Screw G100773
#9

Cabinet parts diagram

Screw

Part #G100773

The manufacturer no longer makes this part, and there's no substitute part
