Model # 580328320 Official Craftsman portable ac generator

Here are the diagrams and repair parts for Official Craftsman 580328320 portable ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

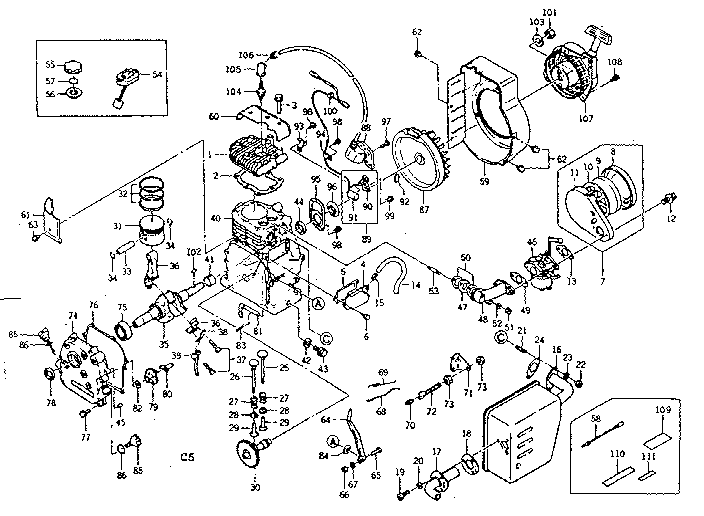

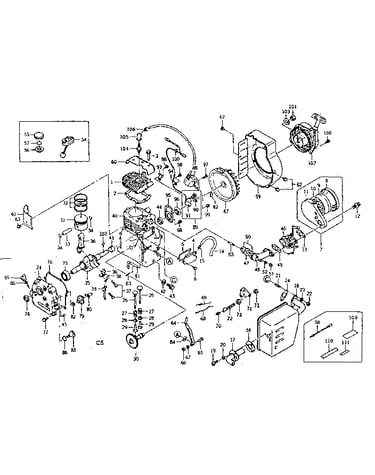

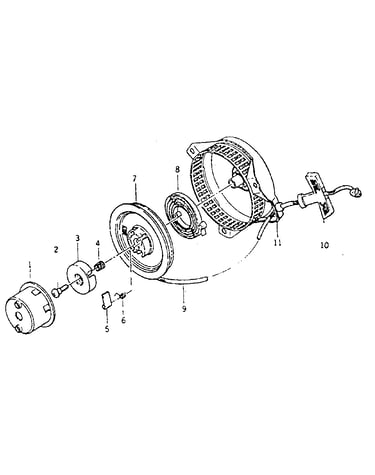

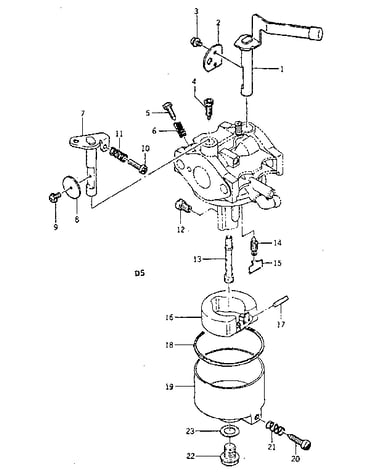

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 223 parts |

#38

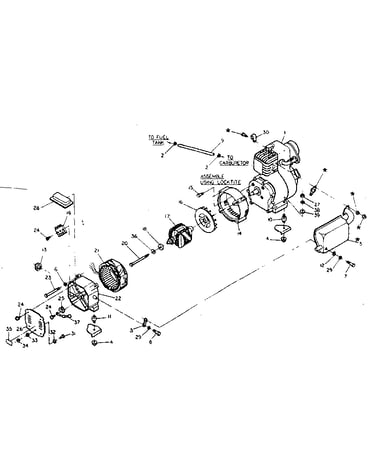

Stator assembly diagram

Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

#18

Stator assembly diagram

Bearing

Part #65791

The manufacturer no longer makes this part, and there's no substitute part

#11

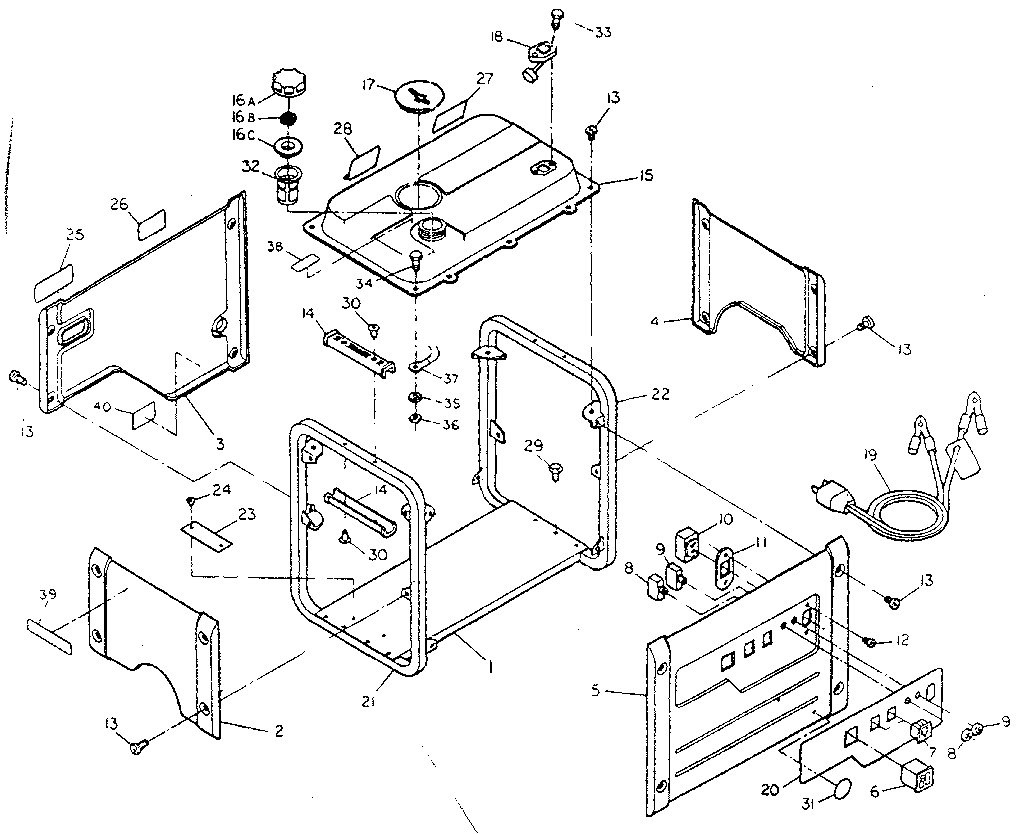

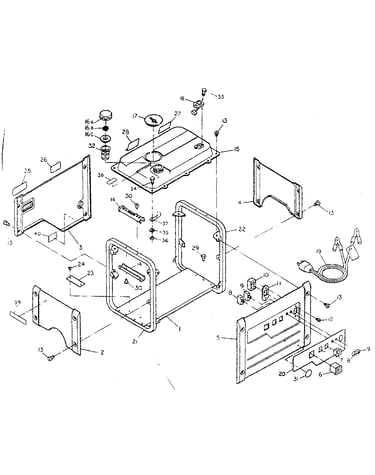

Cradle and enclosure diagram

Bracket

Part #66822

Replaced by #66822GS

$21.49

In Stock

Qty

#25

Stator assembly diagram

Brush assembly

Part #66386

Replaced by #66386GS

This item is not returnable

$29.69 |

14% OFF Phone Price : $34.69

In Stock

Qty

#11

Stator assembly diagram

Vib mount

Part #66443B

Replaced by #66443BGS

$30.20

In Stock

Qty

#24

Stator assembly diagram

Screw

Part #66849

Replaced by #66849GS

$8.69

In Stock

Qty

#19

Cradle and enclosure diagram

Cable

Part #65787

Replaced by #65787GS

This item is not returnable

$18.00 |

10% OFF Phone Price : $20.00

In Stock

Qty

#14

Stator assembly diagram

Hsg adapt

Part #66365

Replaced by #66365GS

$98.98

In Stock

Qty

#39

Stator assembly diagram

Washer

Part #49810

The manufacturer no longer makes this part, and there's no substitute part

#33

Stator assembly diagram

Nut

Part #52856

Replaced by #52856GS

This item is not returnable

$5.97

In Stock

Qty
