Amana 100C-2RL room air conditioner Parts
Here are the diagrams and repair parts for Amana 100C-2RL room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 100C-2RL Room Air Conditioner
Insulation - Evaporator Duct
Part #C4246401
The manufacturer no longer makes this part, and there's no substitute part

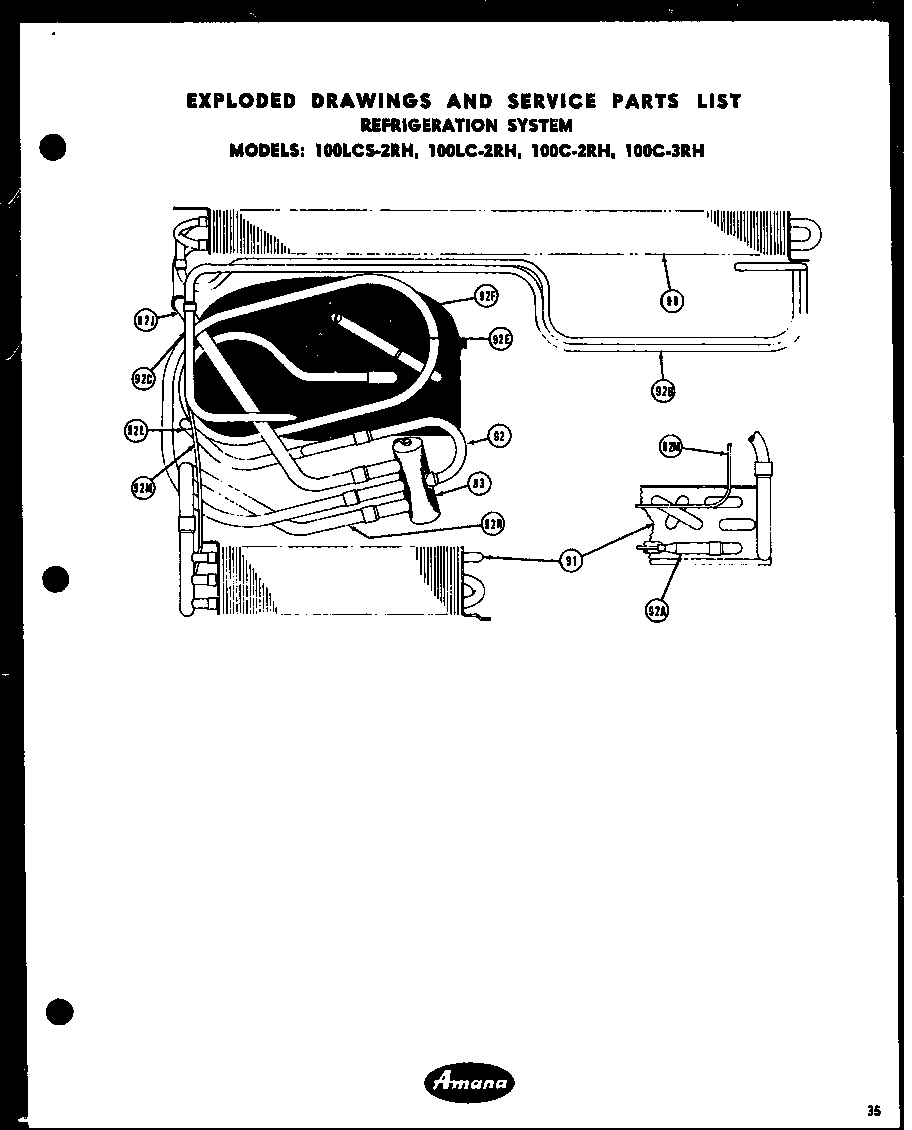

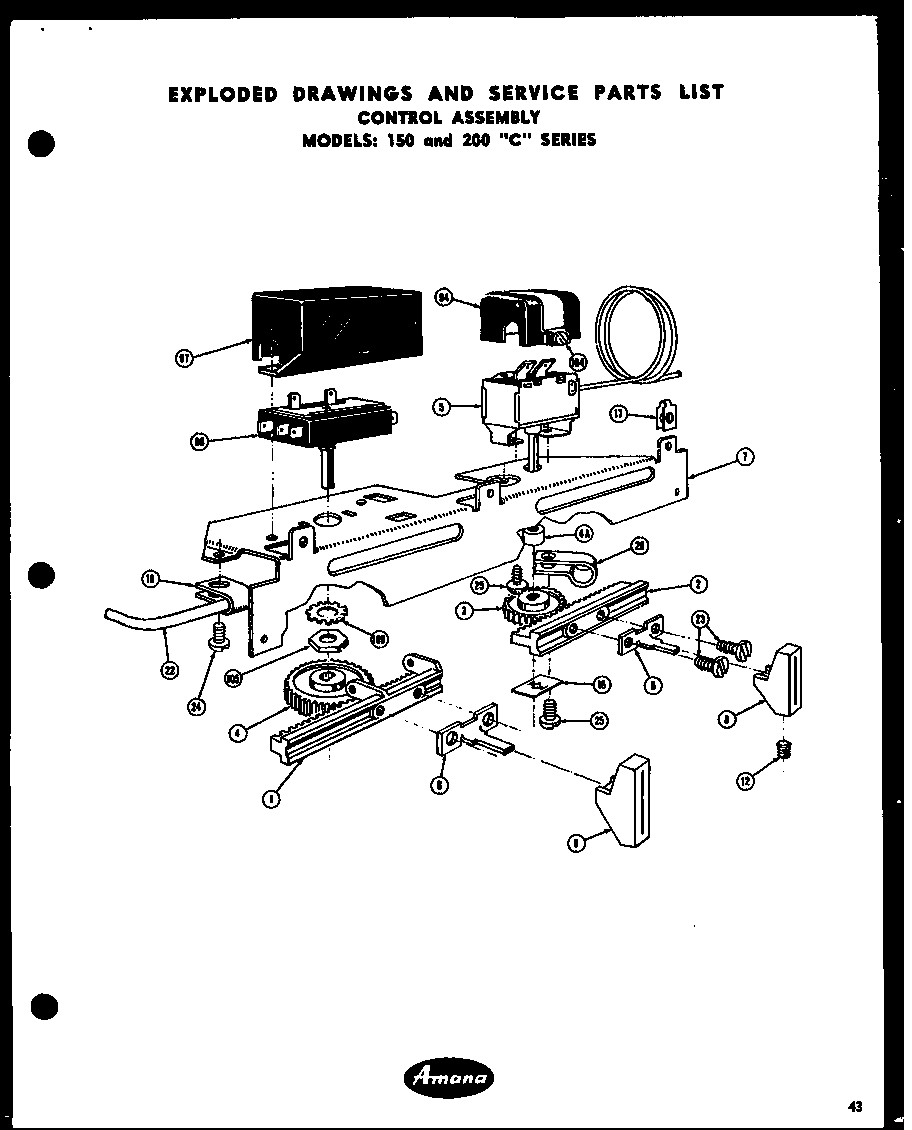

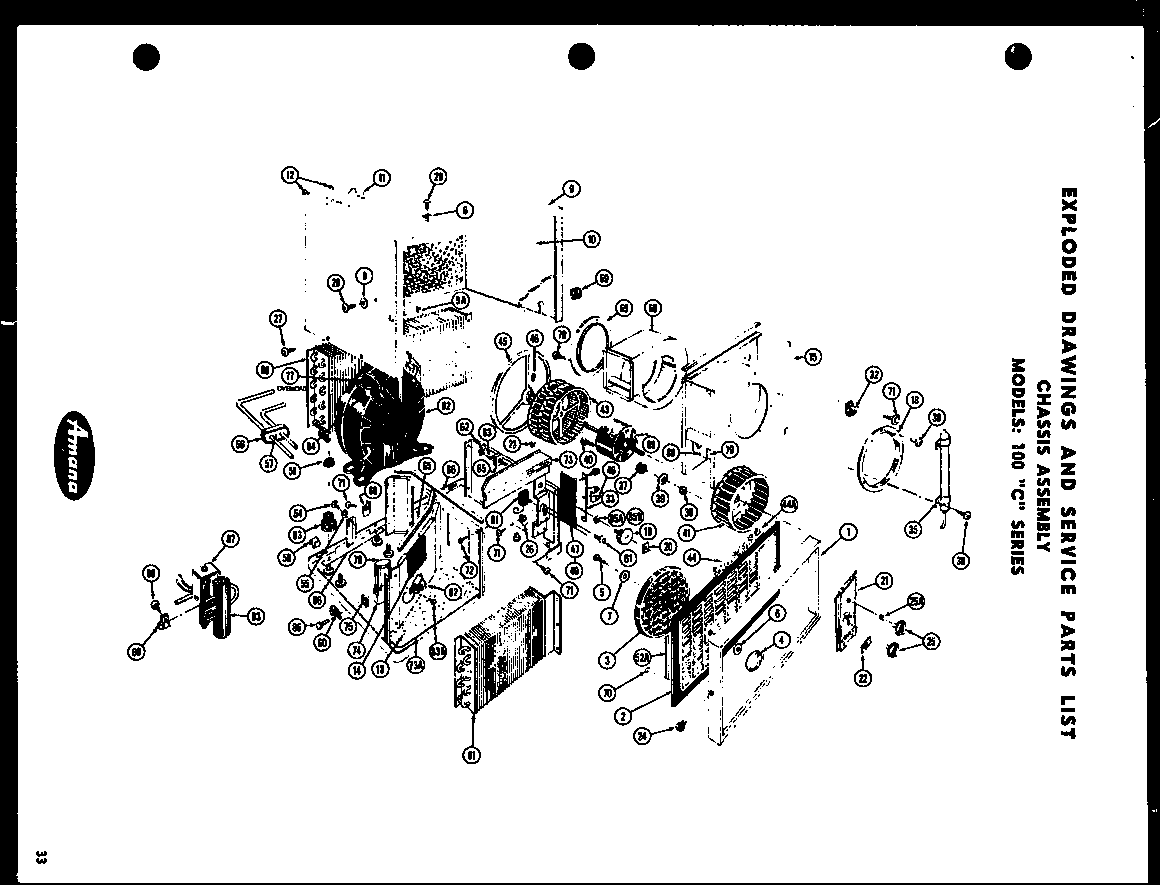

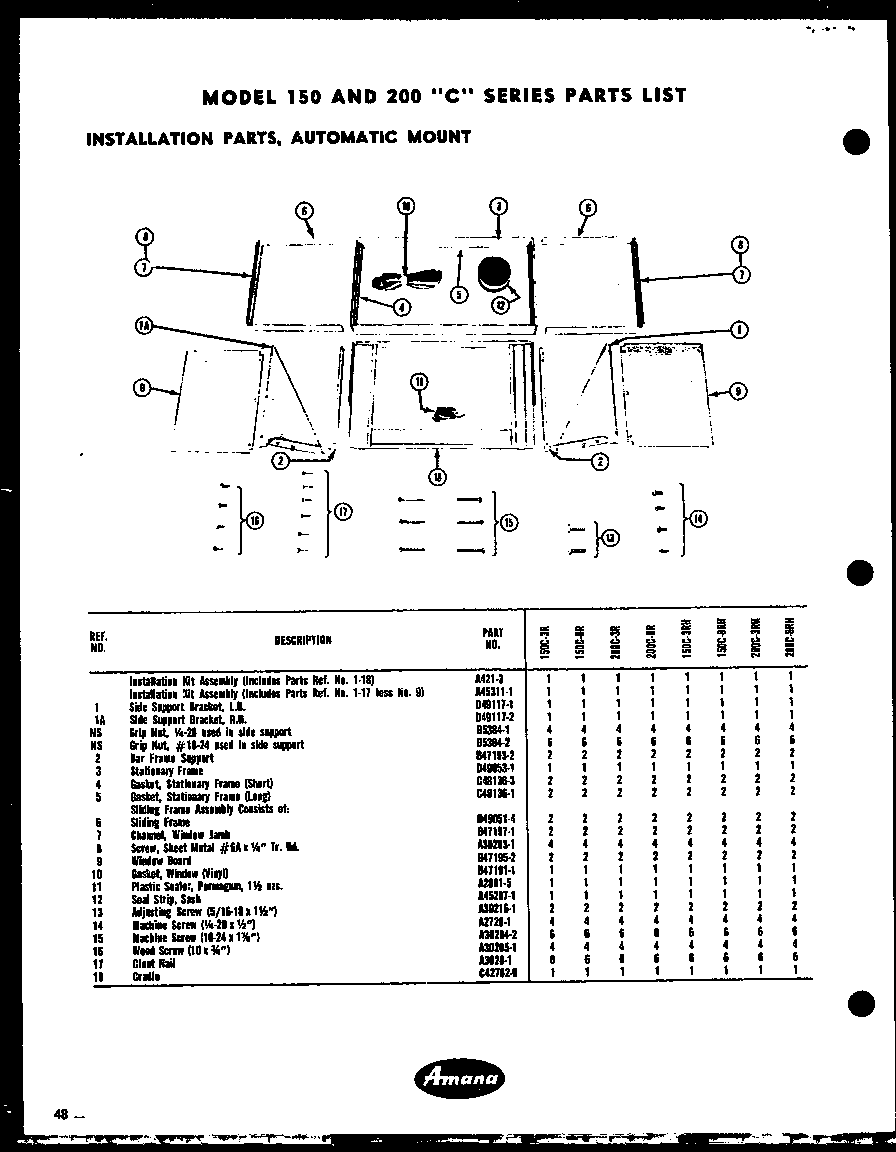

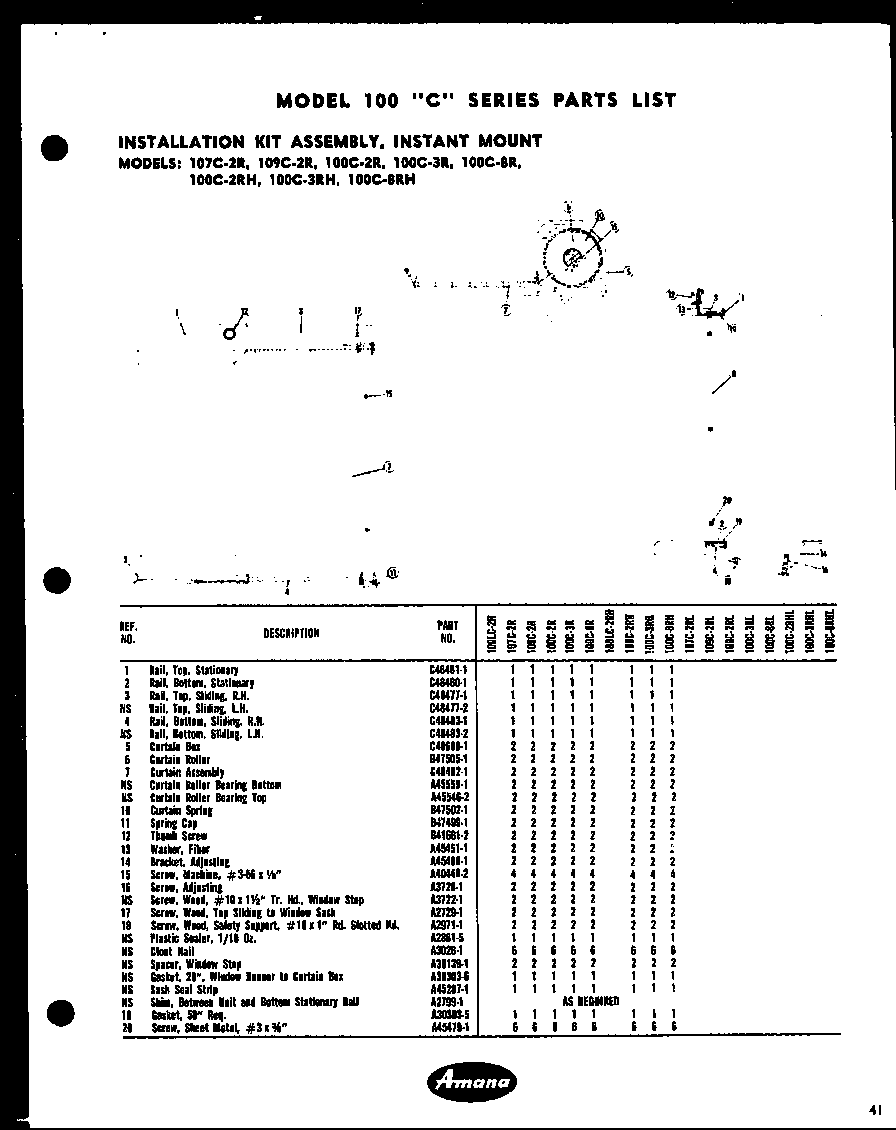

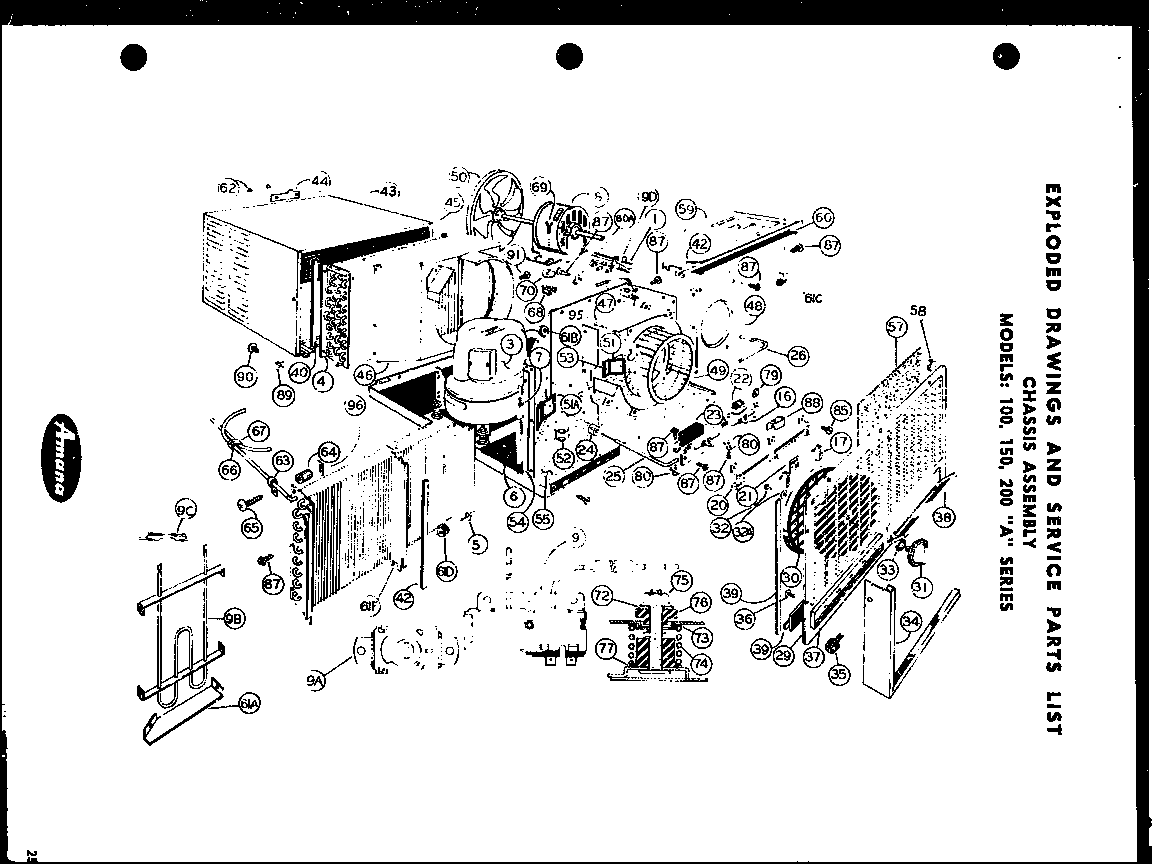

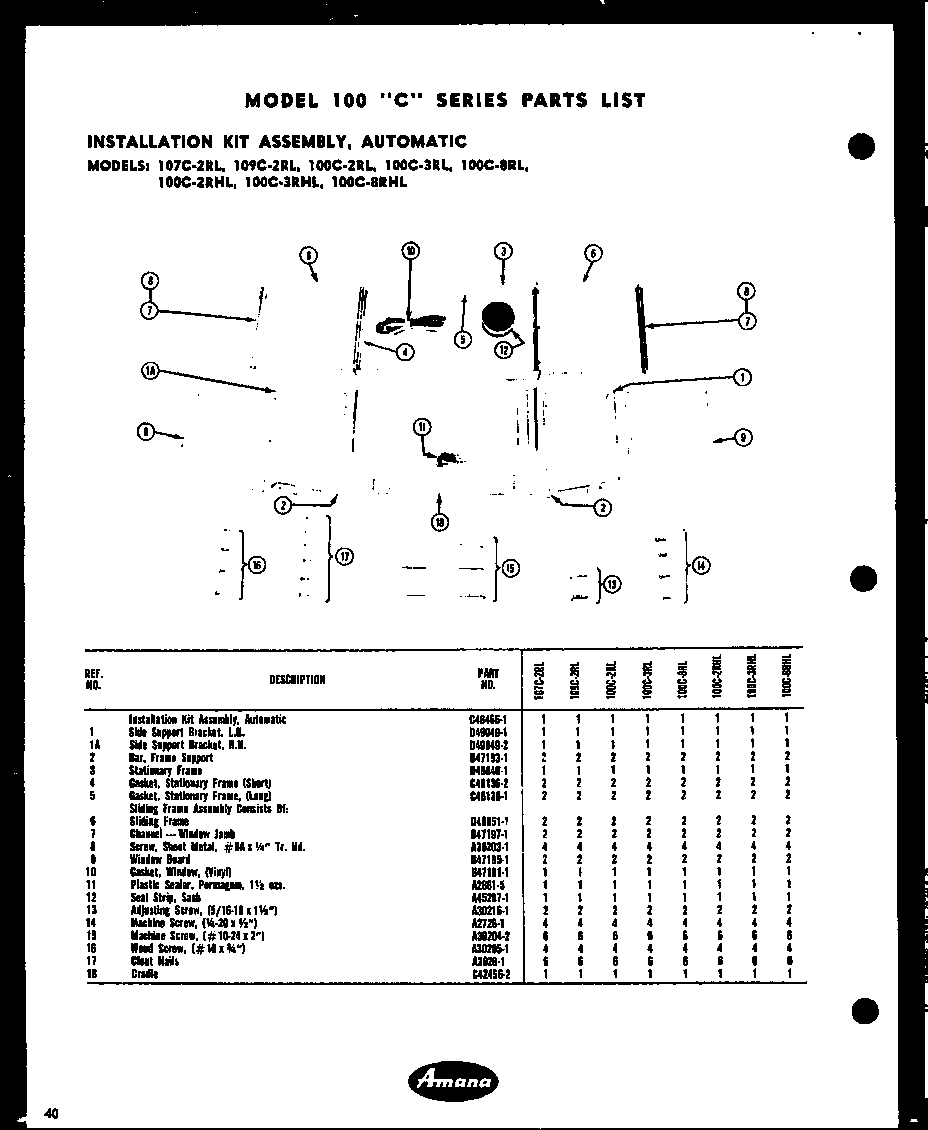

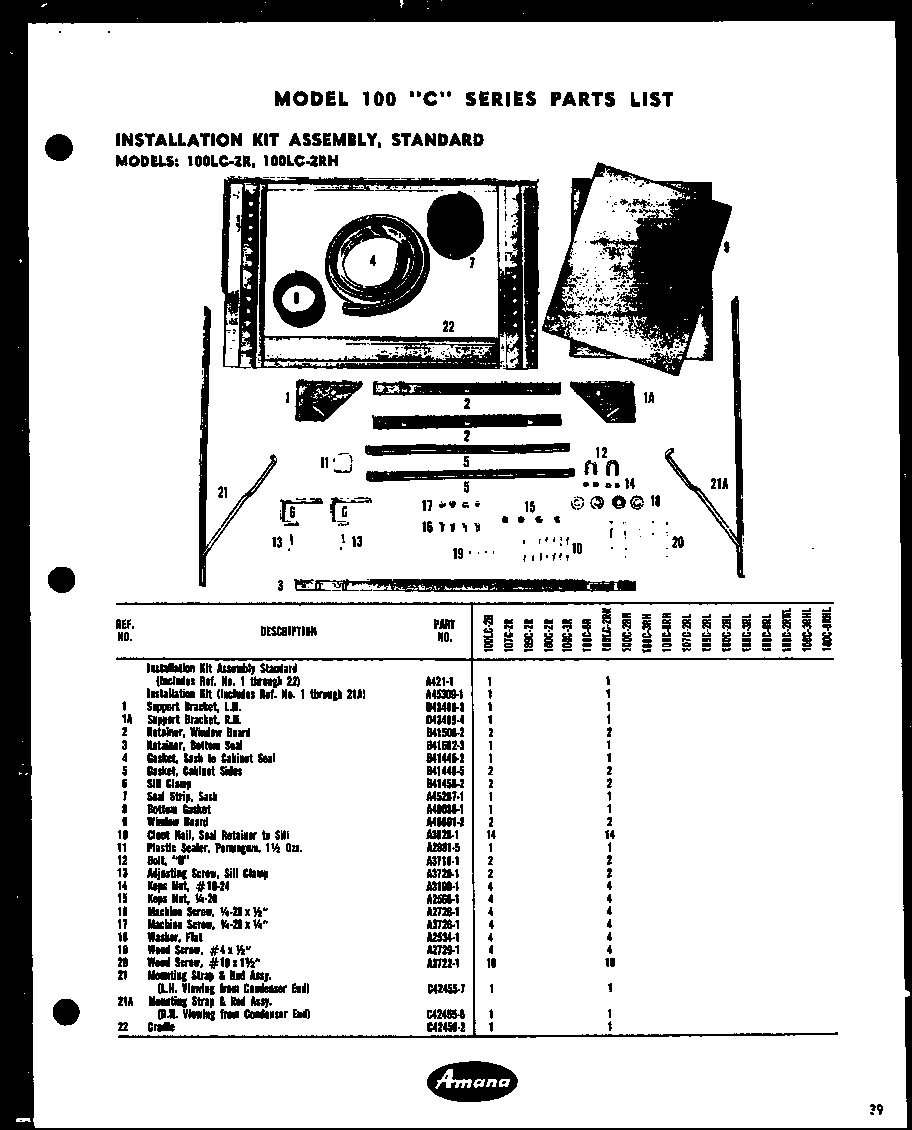

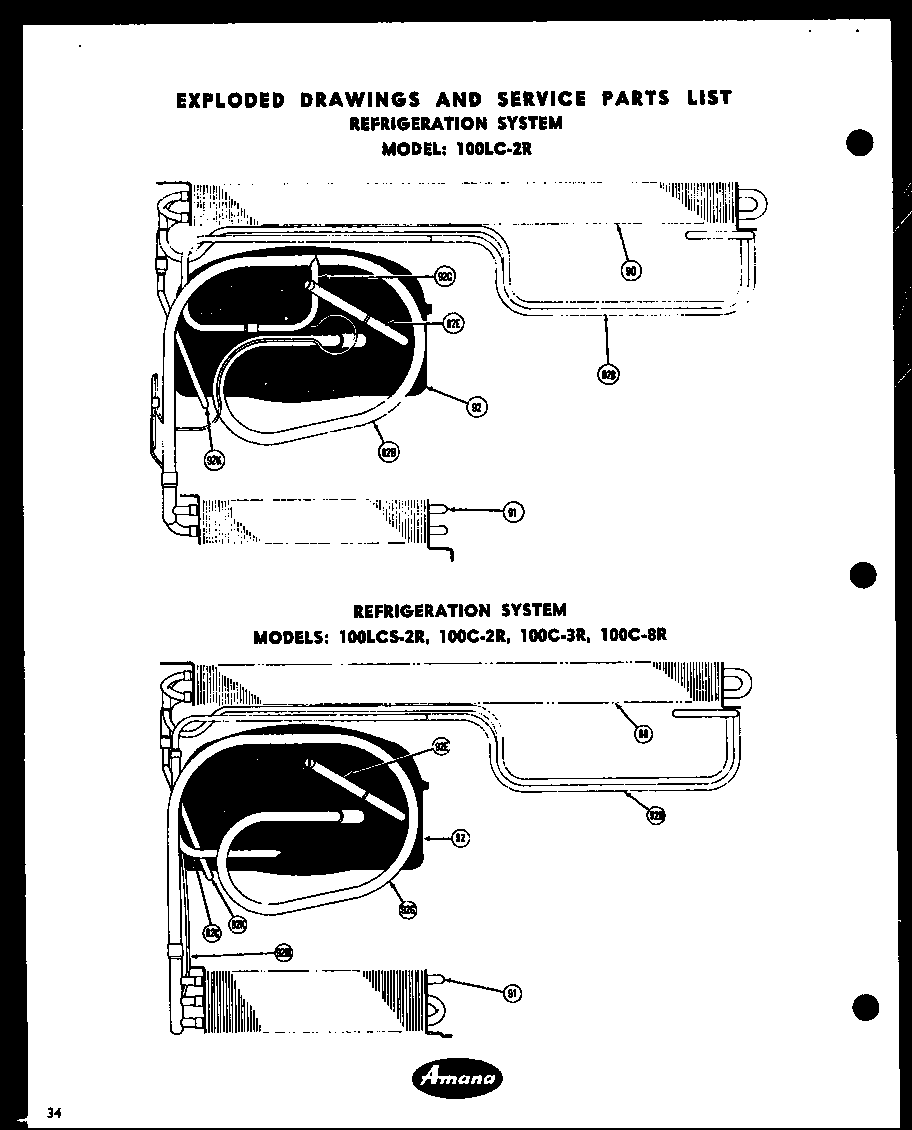

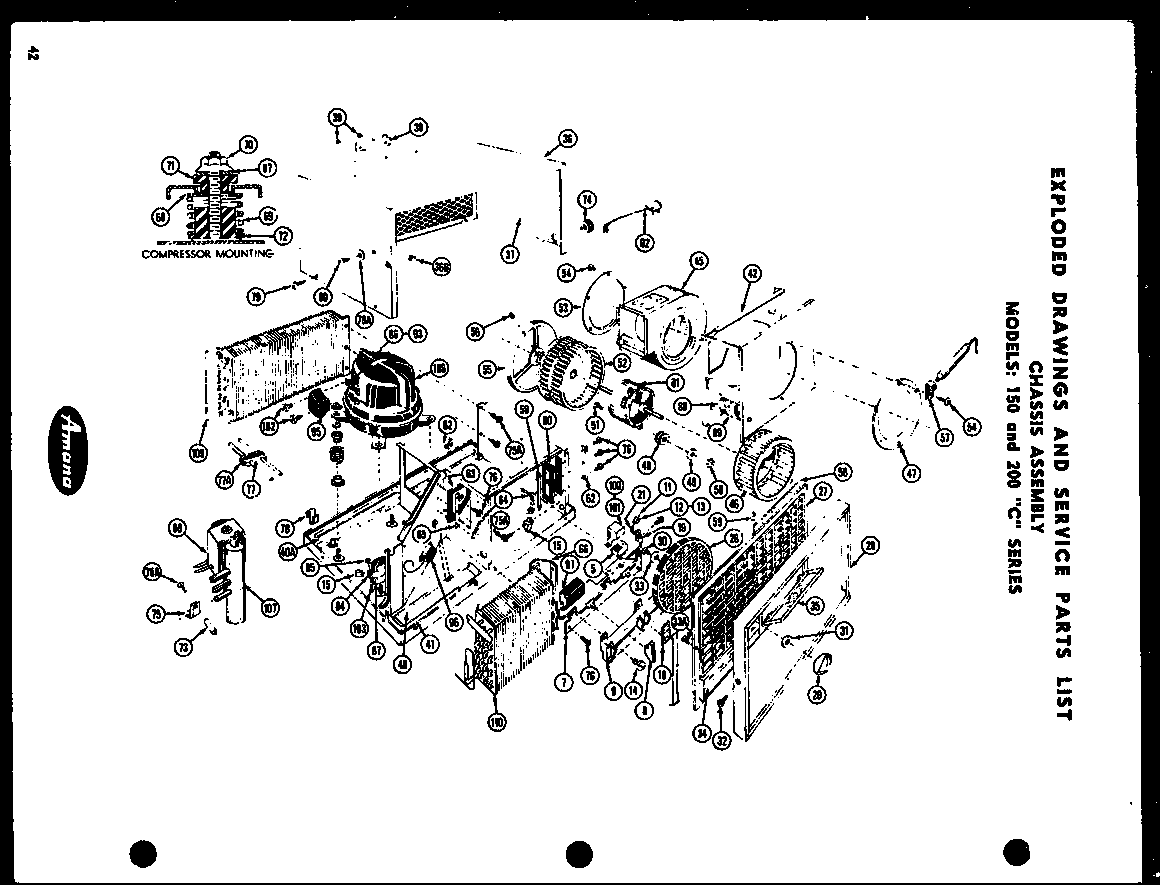

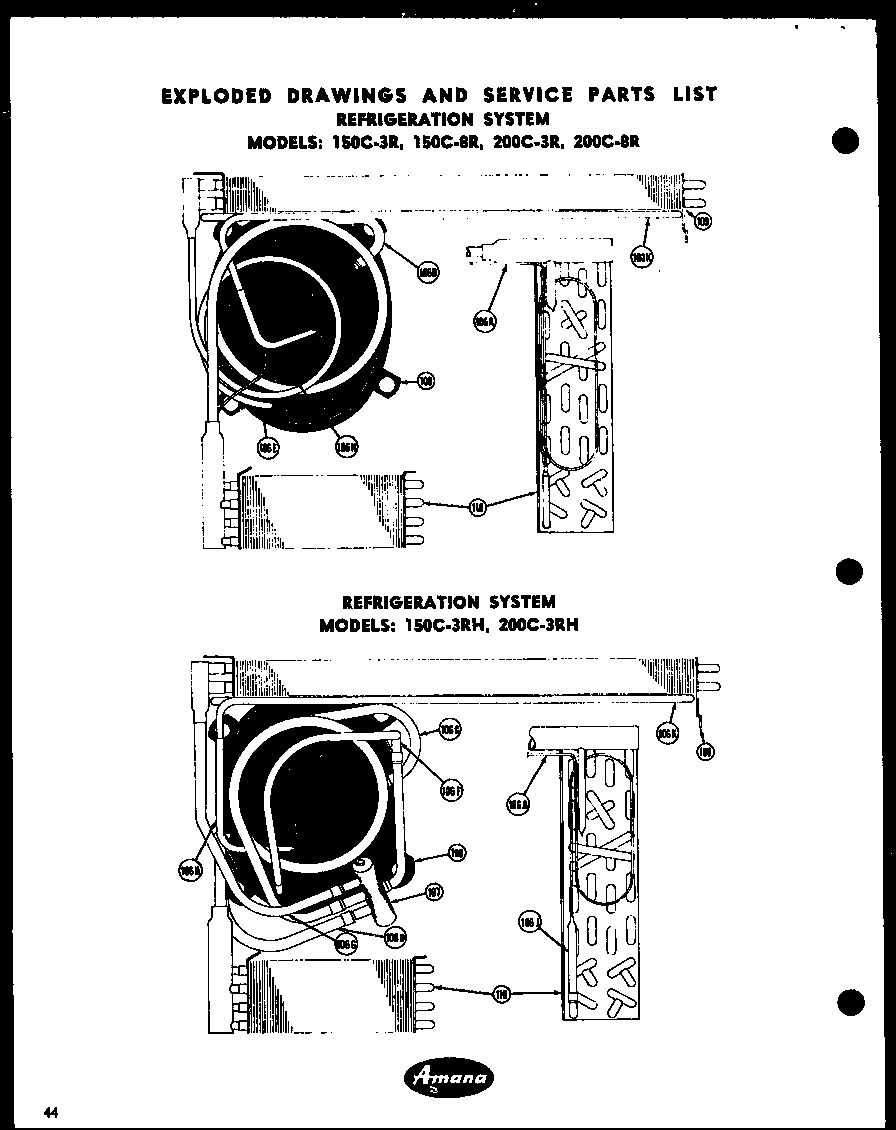

(100c-2r) (100c-3r) (100c-8r) (100c-2rh) (100c-3rh) (100c-8rh) (100c-2rl) (100c-3rl) (100c-8rl) (100c-2rhl) diagram
Overload Protector (spencer #mra4966)
Part #A4505801
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Insulating Paper, Dummy Terminal
Part #A4509701
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Wiring Harness, Fan Motor
Part #C4825201
The manufacturer no longer makes this part, and there's no substitute part
(100c-2r) (100c-3r) (100c-8r) (100c-2rh) (100c-3rh) (100c-8rh) (100c-2rl) (100c-3rl) (100c-8rl) (100c-2rhl) diagram
Capacitor, Comp. Run, (17.5mfd - 370v.)
Part #B4758502
The manufacturer no longer makes this part, and there's no substitute part
(107c-2r) (109c-2r) (100c-2r) (100c-3r) (100c-8r) (100c-2rh) (100c-3rh) (100c-8rh) diagram
Gasket
Part #A3030305
The manufacturer no longer makes this part, and there's no substitute part

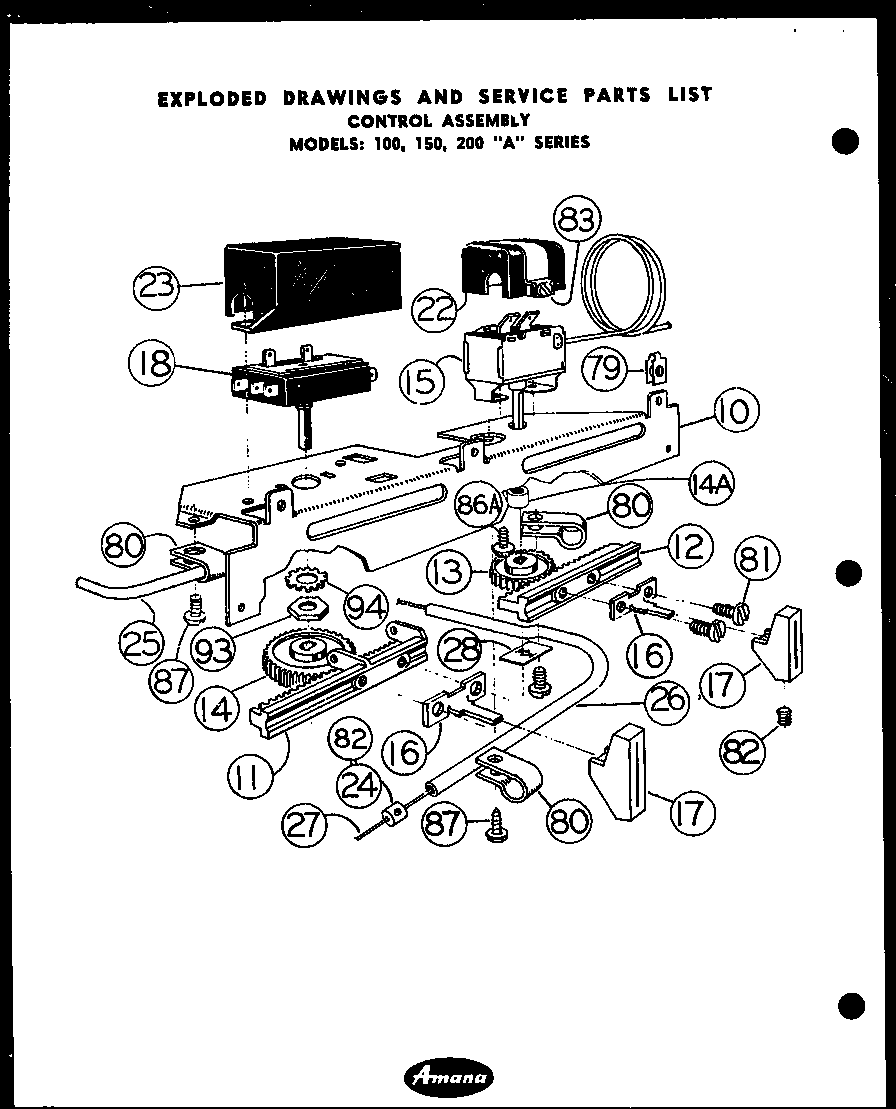

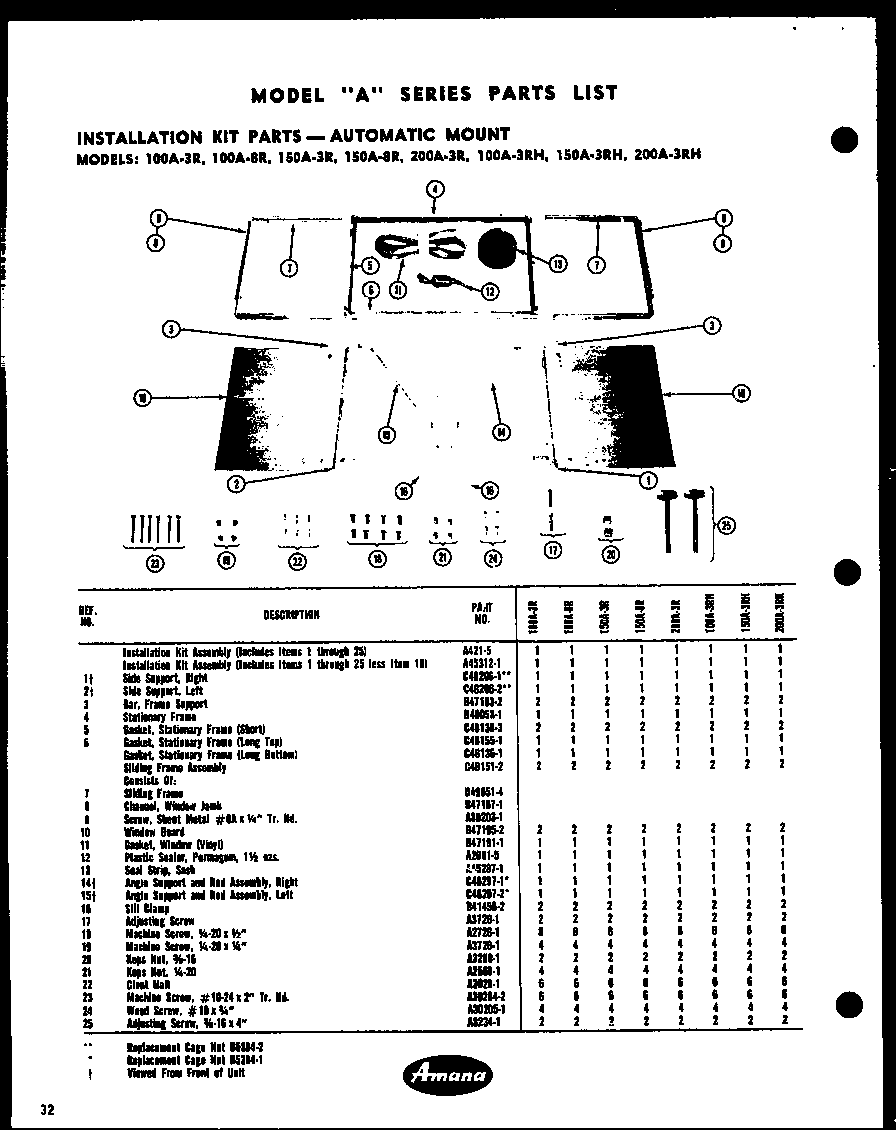

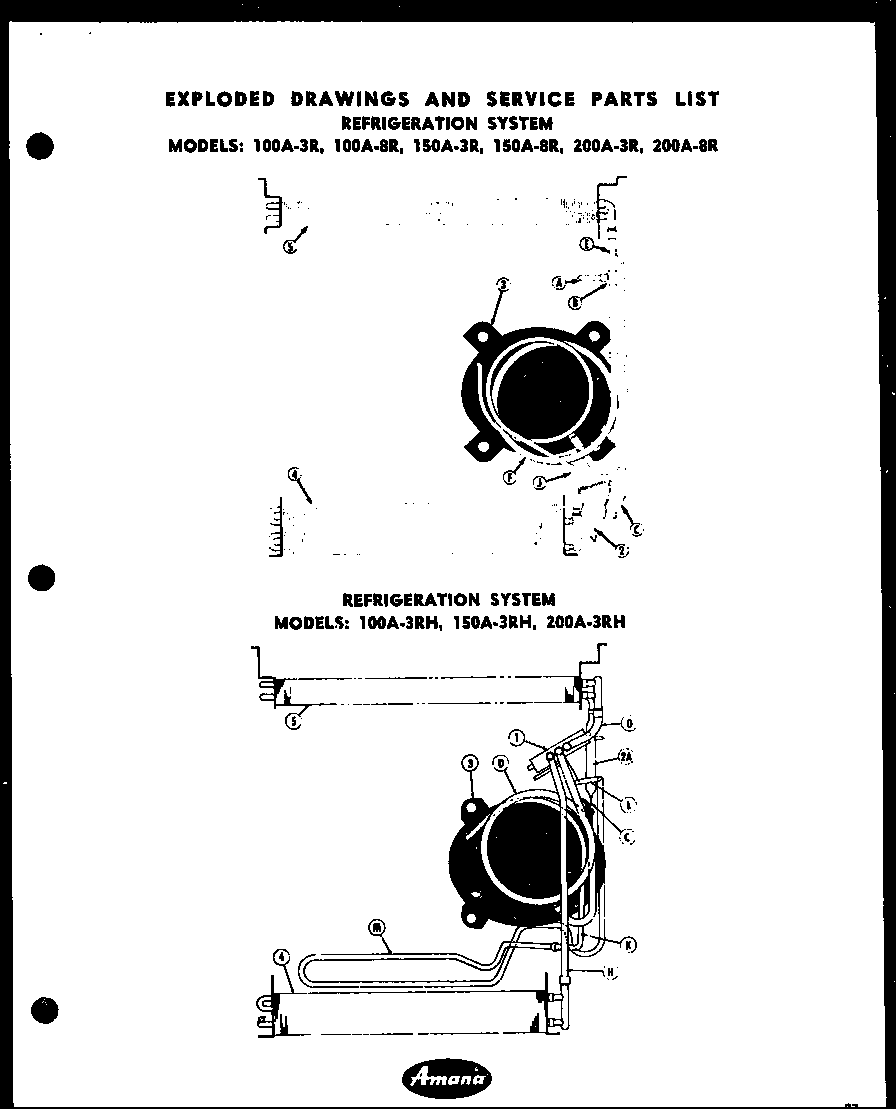

(100a-3r) (100a-8r) (150a-3r) (150a-8r) (200a-3r) (100a-3rh) (150a-3rh) (200a-3rh) diagram
No. 8b X 3/8 Washer Hex Head
Part #A0229401
The manufacturer no longer makes this part, and there's no substitute part
Fan Motor Mounting Grommet
Part #A4536001
The manufacturer no longer makes this part, and there's no substitute part
(100a-3r) (100a-8r) (150a-3r) (150a-8r) (200a-3r) (100a-3rh) (150a-3rh) (200a-3rh) diagram
Grommet
Part #A0349901
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Compressor Wiring Harness
Part #C4825701
The manufacturer no longer makes this part, and there's no substitute part
