Water Pump

Model # 390251882 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251882 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

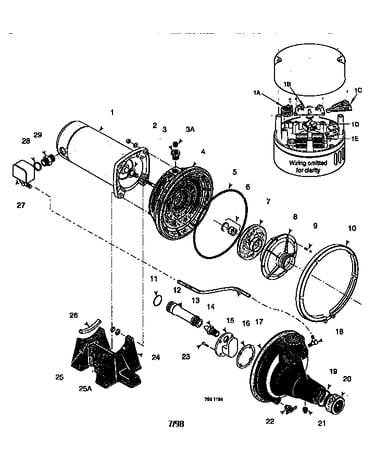

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Pump Housing O-ring (replaces U9-200) U9-399
#5

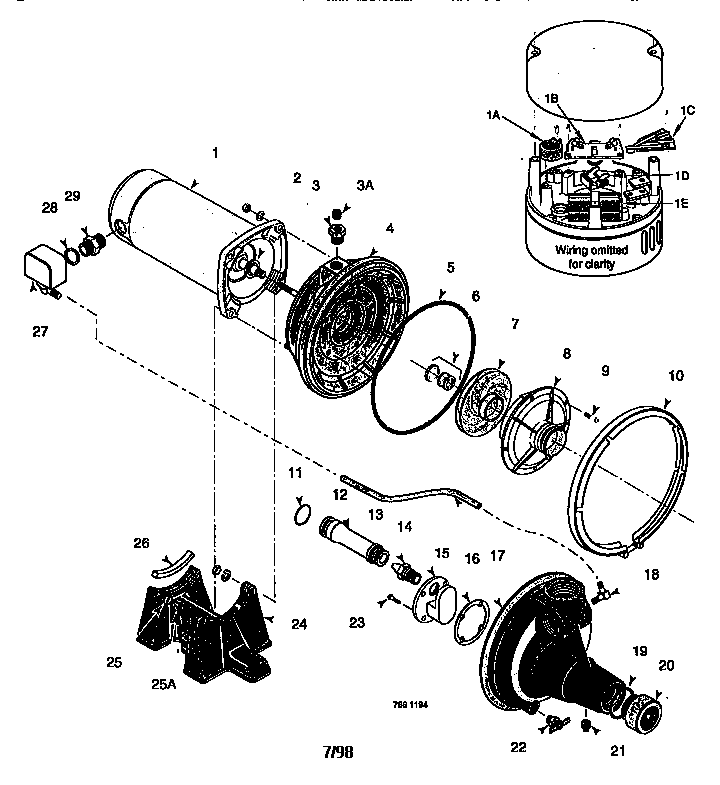

Replacement parts diagram

Pump housing o-ring (replaces u9-200)

Part #U9-399

This item is not returnable
$28.33 |
15% OFF Phone Price : $33.33
In Stock
Pump Body Gasket J20-18
#15

Replacement parts diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
0-ring U9-226
#19

Replacement parts diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Check Valve (replaces N12-12p) N166-5P
#20

Replacement parts diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
7% OFF Phone Price : $133.89
In Stock
Pump Rear Body L176-47P
#4

Replacement parts diagram

Pump rear body

Part #L176-47P

$276.09 |
$10.00 OFF Phone Price : $286.09
In Stock
Pump Impeller Housing Clamp C19-54SS
#10

Replacement parts diagram

Pump impeller housing clamp

Part #C19-54SS

$231.69 |
$10.00 OFF Phone Price : $241.69
In Stock
Pump Pressure Switch Tube U37-673P
#17

Replacement parts diagram

Pump pressure switch tube

Part #U37-673P

This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Draincock U212-68T
#22

Replacement parts diagram

Draincock

Part #U212-68T

The manufacturer no longer makes this part, and there's no substitute part

Pump Diffuser J1-39P
#8

Replacement parts diagram

Pump diffuser

Part #J1-39P

$151.89 |
6% OFF Phone Price : $161.89
In Stock
Pad Motor C35-11
#26

Replacement parts diagram

Pad motor

Part #C35-11

This item is not returnable
$6.27
In Stock
