KitchenAid KEHC309JBT07 wall oven Parts
Here are the diagrams and repair parts for KitchenAid KEHC309JBT07 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM

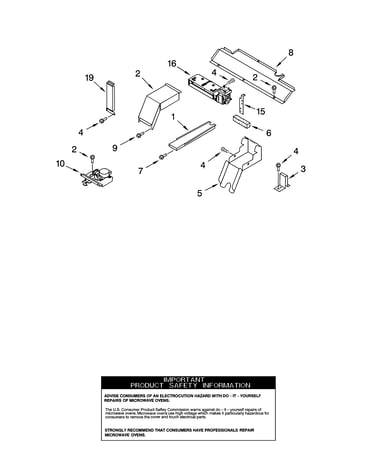

Browse Parts for KEHC309JBT07 Wall Oven

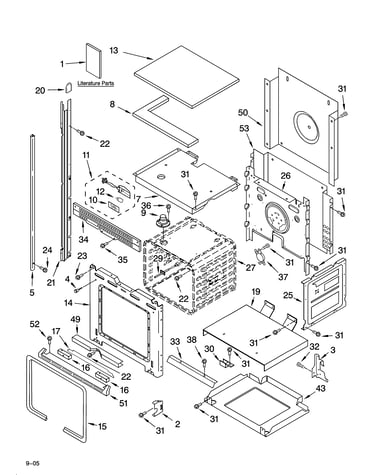

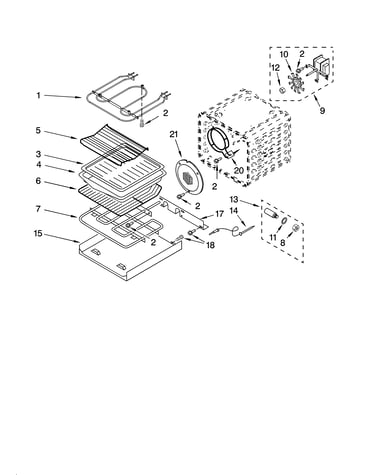

Oven parts diagram
Rear Cover
Part #4451756
The manufacturer no longer makes this part, and there's no substitute part

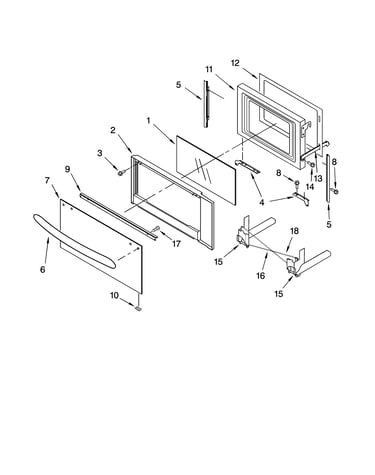

Microwave door parts, optional parts diagram
Oven Door Glass
Part #4452789
The manufacturer no longer makes this part, and there's no substitute part

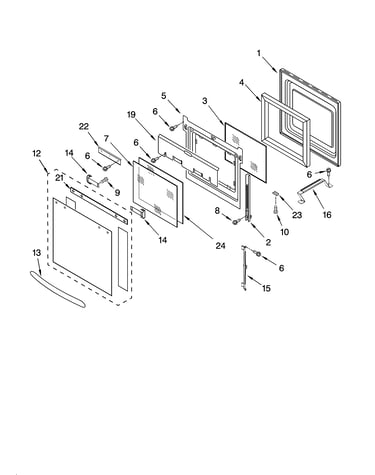

Oven door parts diagram
Oven Mounting Bracket
Part #4455804
The manufacturer no longer makes this part, and there's no substitute part

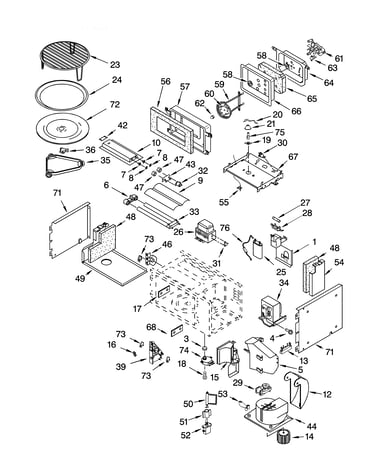

Cabinet and stirrer parts diagram
Insulation
Part #4375410
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer parts diagram
Reflector
Part #4375257
The manufacturer no longer makes this part, and there's no substitute part
(left W/dual)
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part

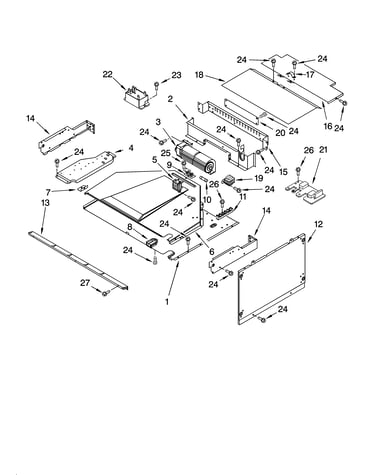

Top venting parts diagram
Cabinet
Part #4450378
The manufacturer no longer makes this part, and there's no substitute part
Microwave door parts, optional parts diagram
Microwave Door Outer Panel (black)
Part #4452211
The manufacturer no longer makes this part, and there's no substitute part
Top venting parts diagram
Air Duct
Part #4451634
The manufacturer no longer makes this part, and there's no substitute part
Door Handle
Part #4452502
The manufacturer no longer makes this part, and there's no substitute part
