Model # 10107360 Official Craftsman 12" metal lathe

Here are the diagrams and repair parts for Official Craftsman 10107360 12" metal lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Carriage Rack Bed, 54-in 9-86-54
#10C

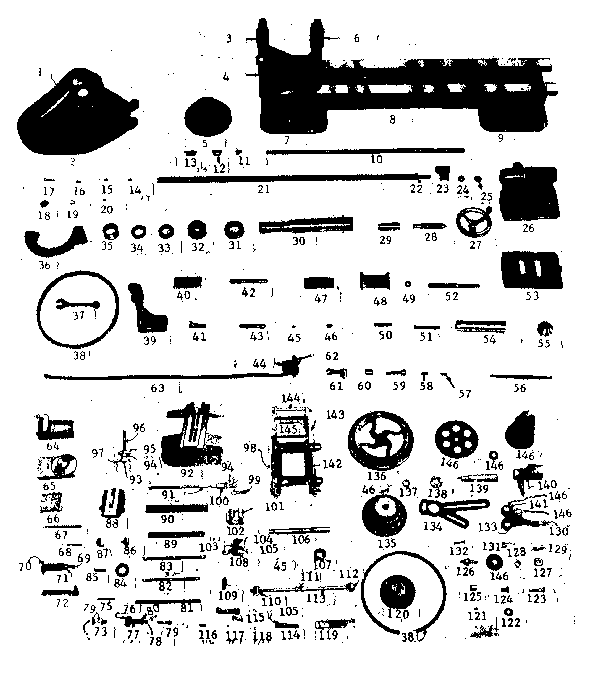

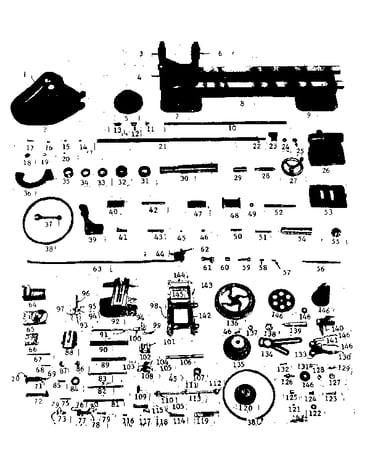

Unit diagram

Carriage rack bed, 54-in

Part #9-86-54

The manufacturer no longer makes this part, and there's no substitute part

Lathe Spring 9-61
#118

Unit diagram

Lathe spring

Part #9-61

The manufacturer no longer makes this part, and there's no substitute part

Carriage Clamp 9-14
#73

Unit diagram

Carriage clamp

Part #9-14

The manufacturer no longer makes this part, and there's no substitute part

Gear Dial 9-64
#80

Unit diagram

Gear dial

Part #9-64

The manufacturer no longer makes this part, and there's no substitute part

Swivel 10-301
#65

Unit diagram

Swivel

Part #10-301

The manufacturer no longer makes this part, and there's no substitute part

Pinion Shaft 9-68
#103

Unit diagram

Pinion shaft

Part #9-68

The manufacturer no longer makes this part, and there's no substitute part

Lathe Traverse Gear 9-102-12S
#105

Unit diagram

Lathe traverse gear

Part #9-102-12S

The manufacturer no longer makes this part, and there's no substitute part

Plunger Spring S8-63
#129

Unit diagram

Plunger spring

Part #S8-63

The manufacturer no longer makes this part, and there's no substitute part

Bushing 10-258
#35

Unit diagram

Bushing

Part #10-258

The manufacturer no longer makes this part, and there's no substitute part

Plunger L3-23
#131

Unit diagram

Plunger

Part #L3-23

The manufacturer no longer makes this part, and there's no substitute part
