Whirlpool ACU104XJ1 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACU104XJ1 air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for ACU104XJ1 Air Conditioner

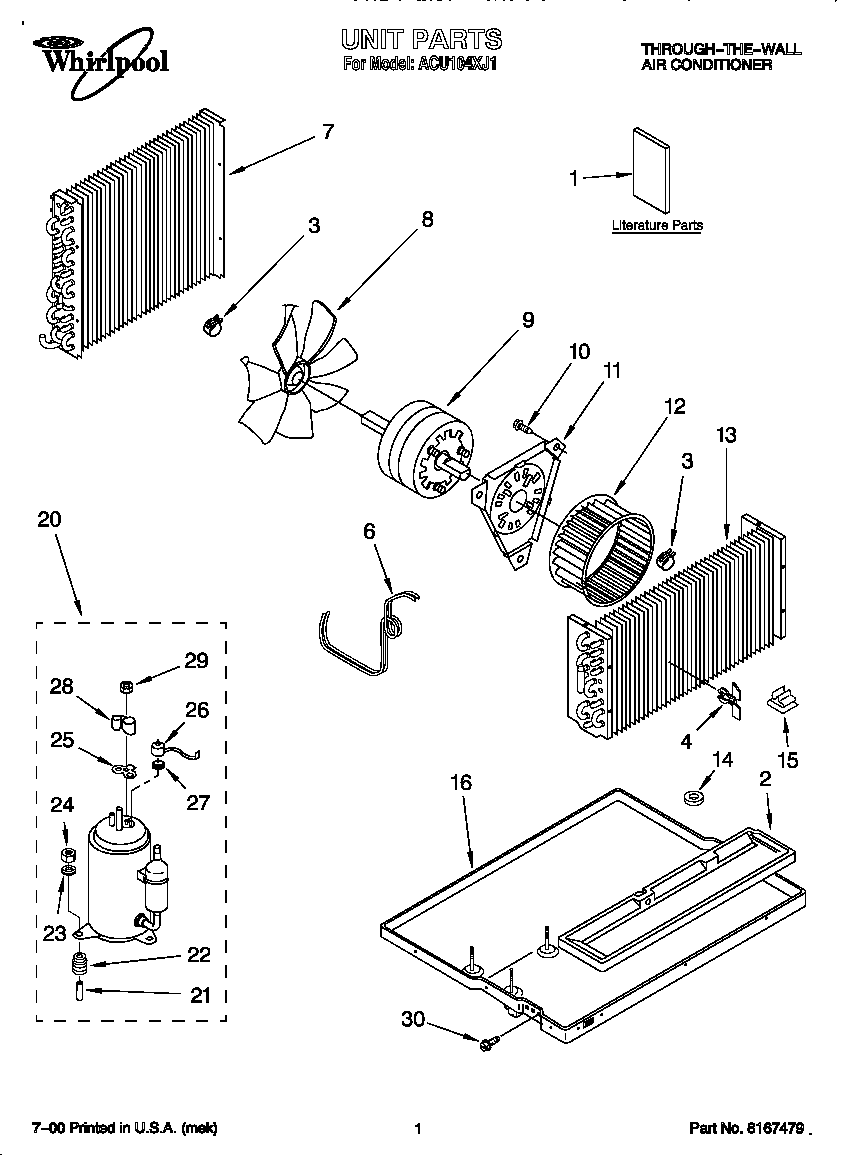

Unit diagram
Washer
Part #789761Replaced by #W11236646
Manufacturer substitutionThis part replaces 789761. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29
Qty

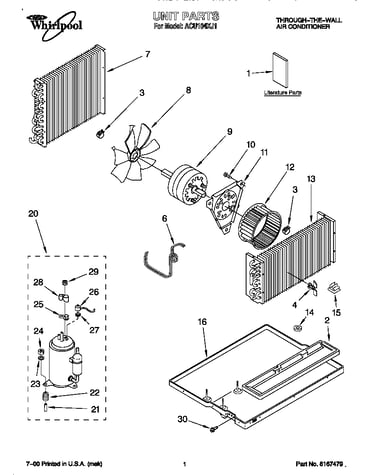

Unit diagram
Spring Overlay
In Stock$27.79QtyUnit diagram
Cover Gasket
Part #789943Replaced by #WP950035
Manufacturer substitutionThis part replaces 789943. Substitute parts can look different from the original.In Stock$66.29QtyCabinet diagram
Seal Strip
Part #789740Replaced by #WP854334
Manufacturer substitutionThis part replaces 789740. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Seal Strip
Part #789741Replaced by #WP854334

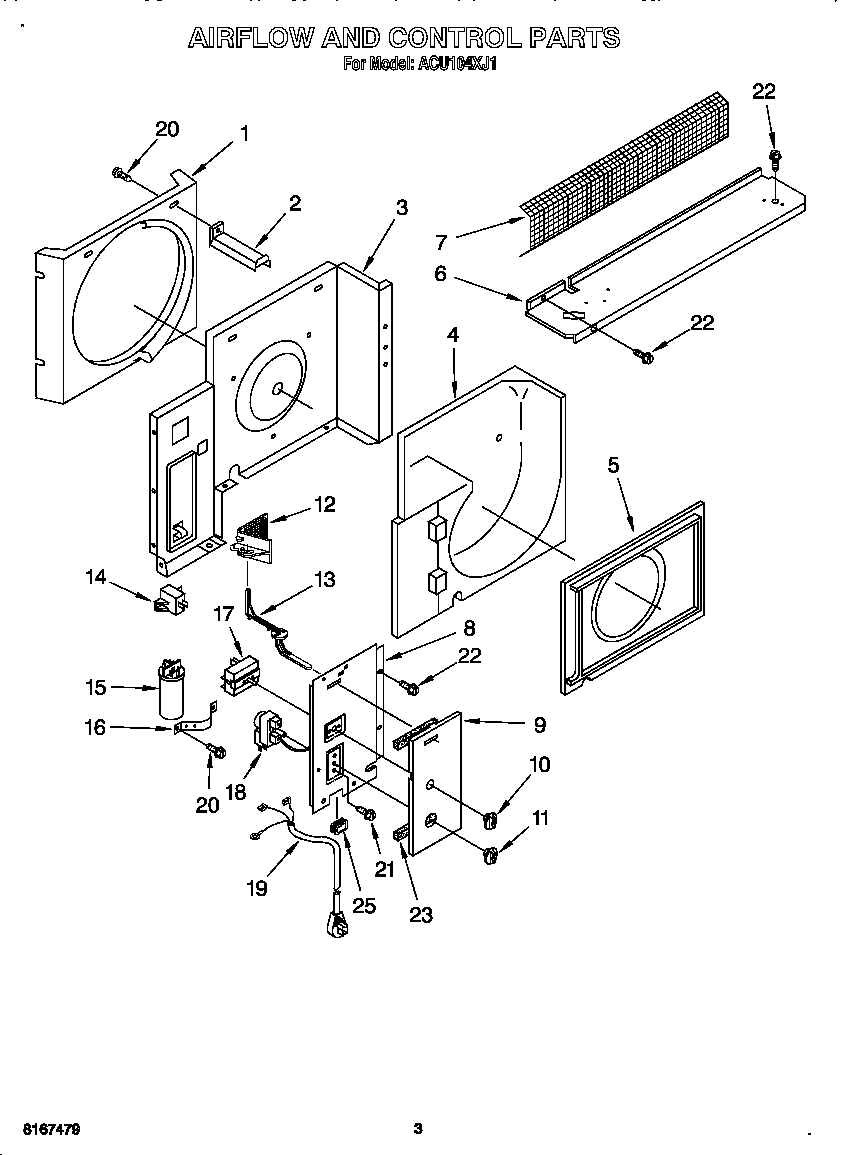

Manufacturer substitutionThis part replaces 789741. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyAirflow and control diagram
Spacer
Part #789623Replaced by #WP854334
Manufacturer substitutionThis part replaces 789623. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyCabinet diagram
Seal Strip
Part #789742Replaced by #WP854334
Manufacturer substitutionThis part replaces 789742. Substitute parts can look different from the original.In Stock$11.1715% OFF Phone Price : $13.17QtyUnit diagram
Fan Motor
Part #789955
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Mounting Sleeve
Part #789783
The manufacturer no longer makes this part, and there's no substitute part

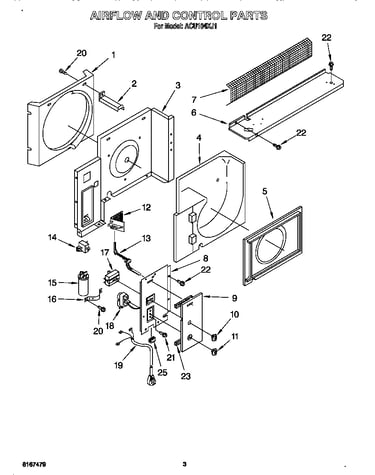

Airflow and control diagram
Run Capacitor
Part #789631
The manufacturer no longer makes this part, and there's no substitute part
