Janitrol
Central Air Conditioner

Model # CX60-1 Official Janitrol condensing unit

Here are the diagrams and repair parts for Official Janitrol CX60-1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Filter Drier B12192-17
#16

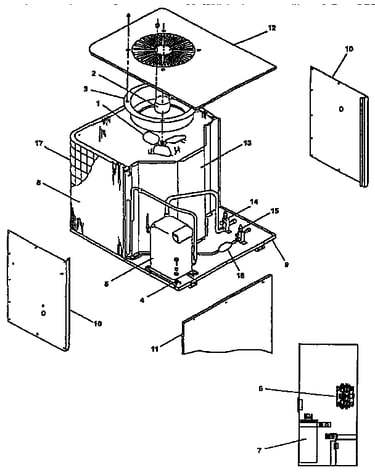

Unit parts diagram

Filter drier

Part #B12192-17

Replaced by #163S

?
Manufacturer substitution
This part replaces B12192-17. Substitute parts can look different from the original.
$48.94 |
9% OFF Phone Price : $53.94
In Stock
Capacitor 55 B9457-5800
#7

Unit parts diagram

Capacitor 55

Part #B9457-5800

Replaced by #CAP050550440RTP

?
Manufacturer substitution
This part replaces B9457-5800. Substitute parts can look different from the original.
$76.89
In Stock
Base Valve 3 B12825-40
#15

Unit parts diagram

Base valve 3

Part #B12825-40

Replaced by #20163801

?
Manufacturer substitution
This part replaces B12825-40. Substitute parts can look different from the original.
$174.10
In Stock
Contactor 35 B13603-25
#6

Unit parts diagram

Contactor 35

Part #B13603-25

Replaced by #CONT2P040024VS

?
Manufacturer substitution
This part replaces B13603-25. Substitute parts can look different from the original.
$55.52 |
8% OFF Phone Price : $60.52
In Stock
Compressor B9266-294
#5

Unit parts diagram

Compressor

Part #B9266-294

Replaced by #ZR54K5EPFV800

?
Manufacturer substitution
This part replaces B9266-294. Substitute parts can look different from the original.
$1609.31
In Stock
Access Panel 17793-04P
#11

Unit parts diagram

Access panel

Part #17793-04P

The manufacturer no longer makes this part, and there's no substitute part

Base Valve 7 B12825-43
#14

Unit parts diagram

Base valve 7

Part #B12825-43

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet B13395-30
#4

Unit parts diagram

Compressor grommet

Part #B13395-30

The manufacturer no longer makes this part, and there's no substitute part

Spray Paint B260S8290

#NI

All parts diagram

Spray paint

Part #B260S8290

The manufacturer no longer makes this part, and there's no substitute part

Coil Cond.,3 12649-03
#8

Unit parts diagram

Coil cond.,3

Part #12649-03

The manufacturer no longer makes this part, and there's no substitute part
