Model # DSC-W570B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W570B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

#154

Lens block diagram

Shield rin

Part #426005702

$11.75

In Stock

Qty

Digital Camera Battery Charger 148752321

#NI

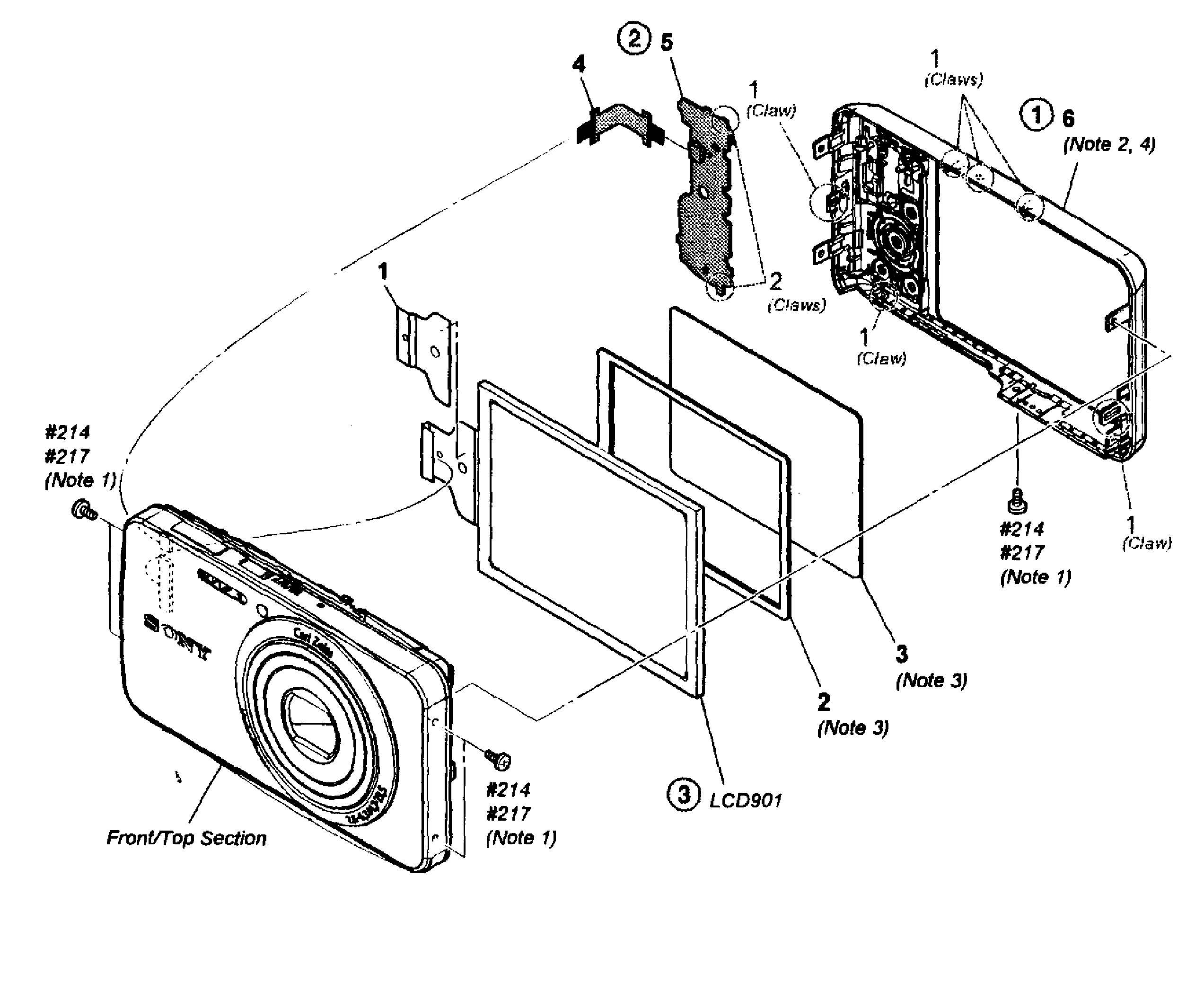

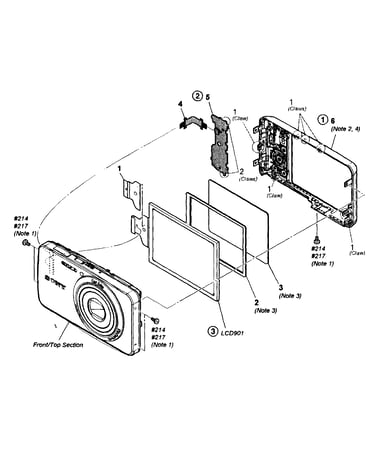

Rear section diagram

Digital camera battery charger

Part #148752321

$93.11

In Stock

Qty

#111

Main section diagram

Sheet

Part #426550701

$15.95

In Stock

Qty

#164

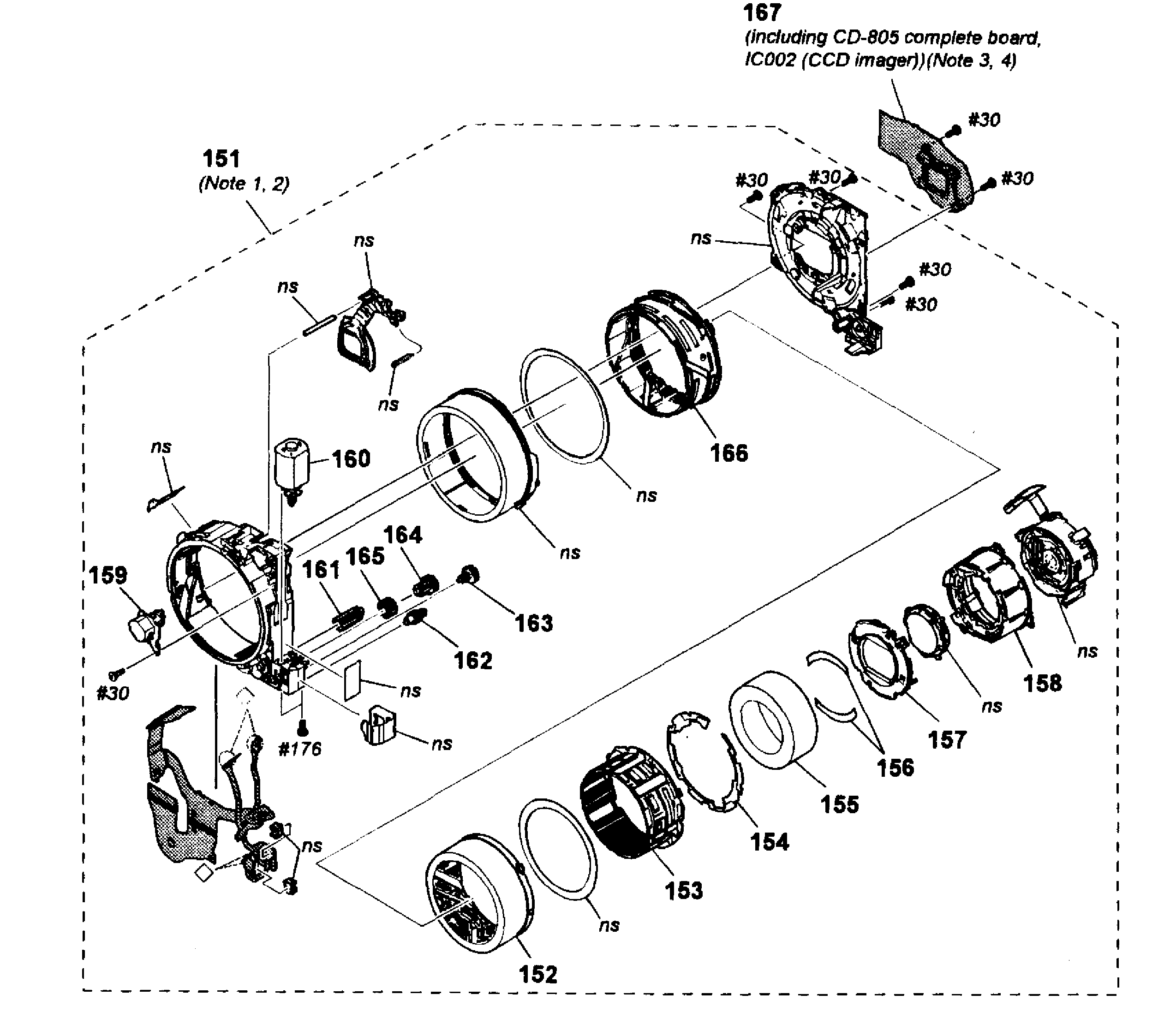

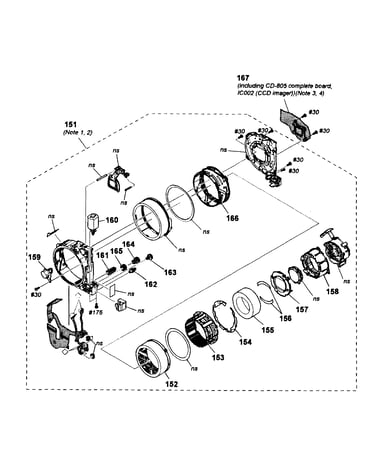

Lens block diagram

Block c

Part #A1799623A

This item is not returnable

$6.49

In Stock

Qty

#160

Lens block diagram

Dc motor

Part #A1799444A

This item is not returnable

$6.49

In Stock

Qty

#110

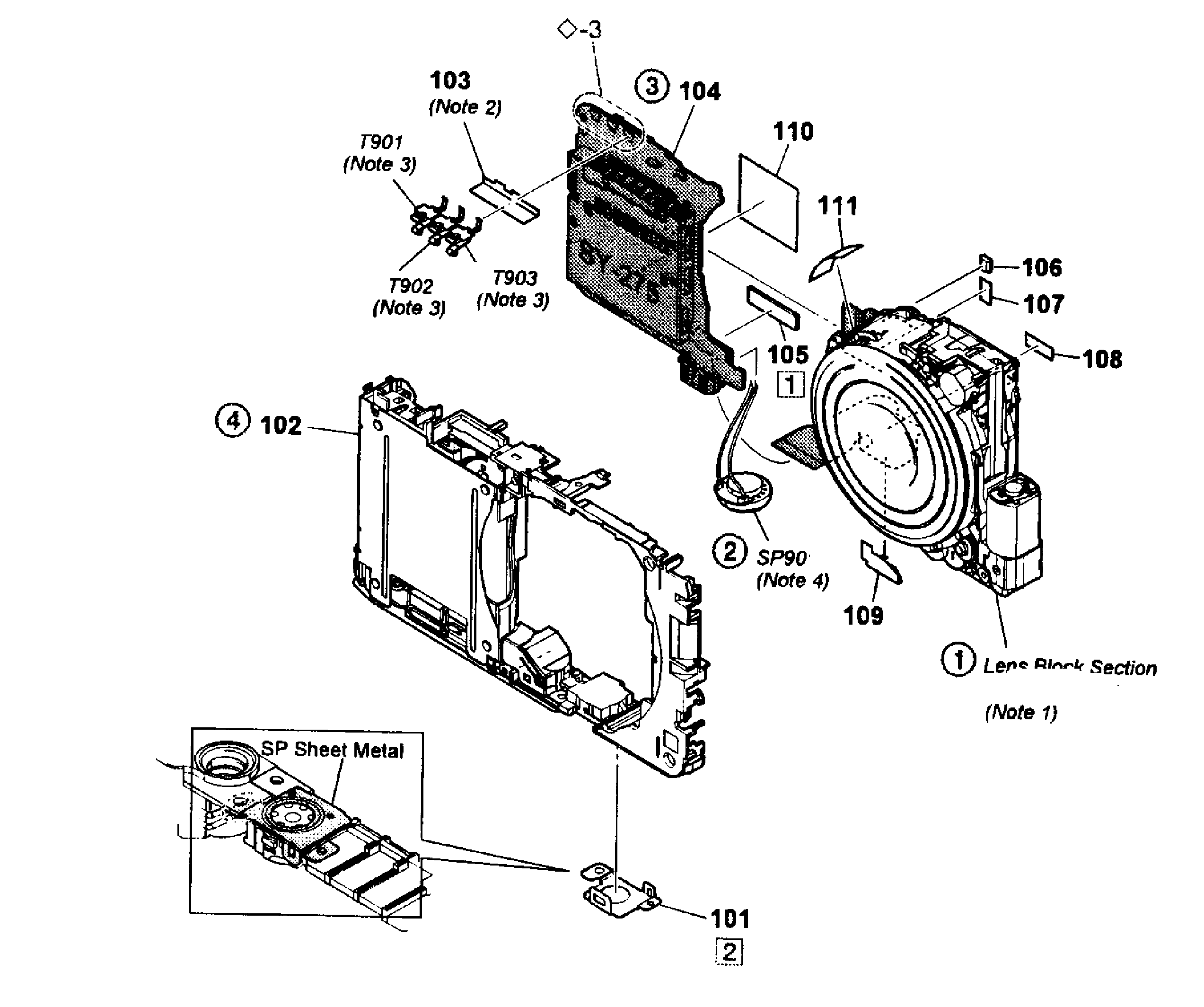

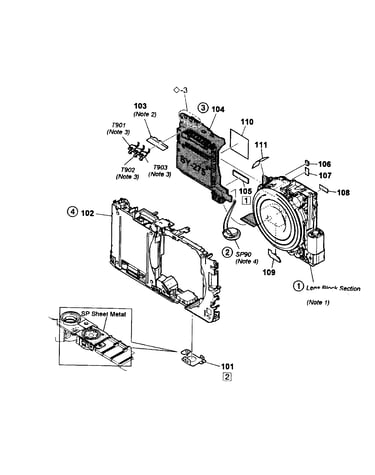

Main section diagram

Sheet

Part #416758902

$8.74

In Stock

Qty

#64

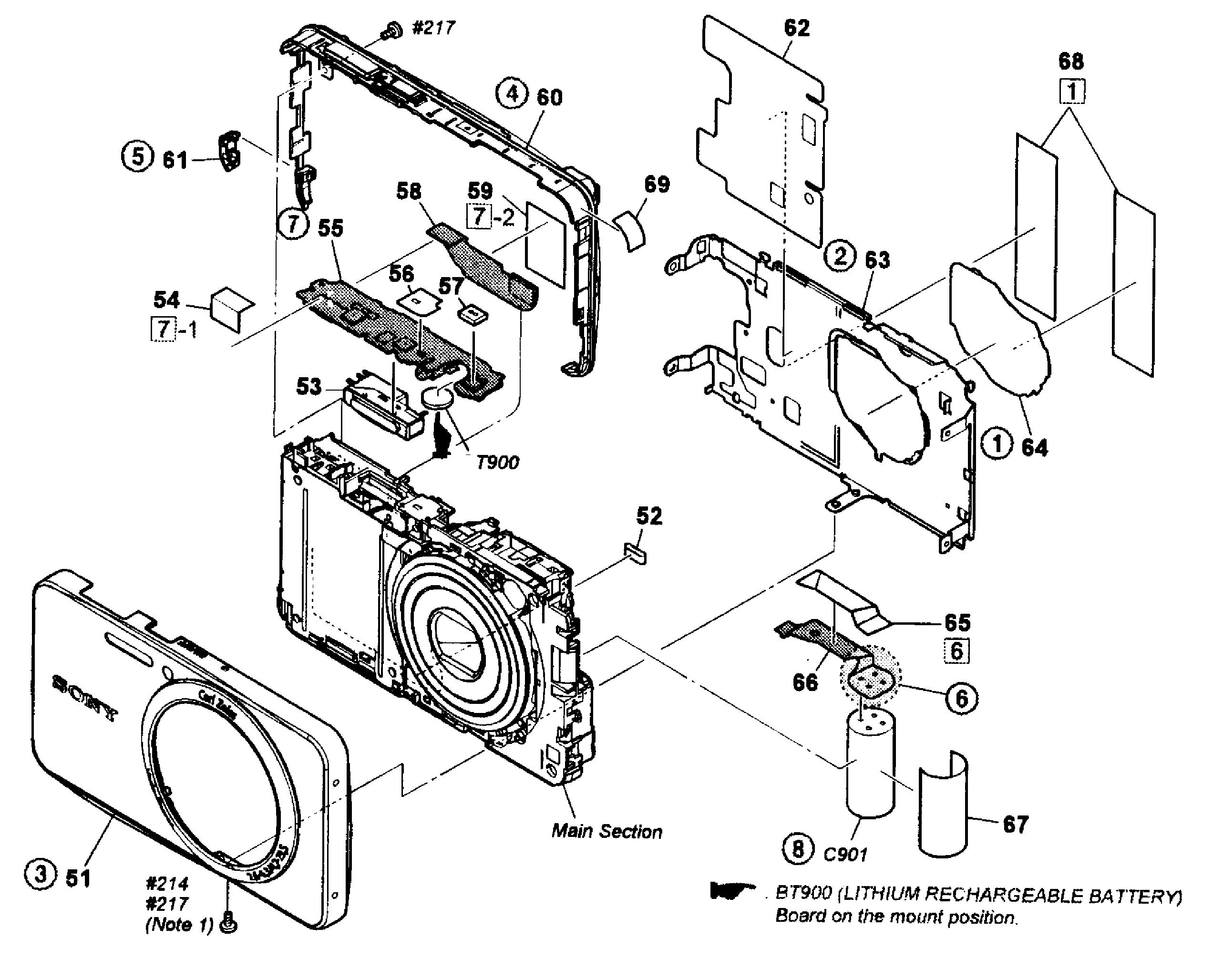

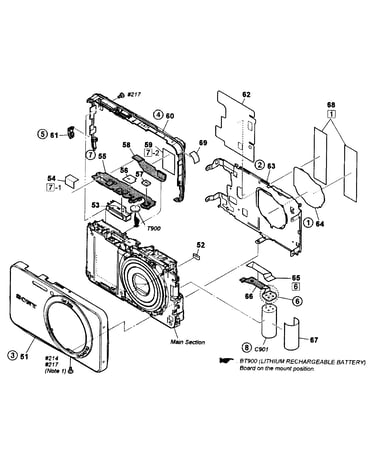

Front section diagram

Sub frame

Part #426549001

$30.84

In Stock

Qty

#152

Lens block diagram

Tube block

Part #A1800101A

$8.74

In Stock

Qty

Rear section diagram

Cushion

Part #426549401

$8.74

In Stock

Qty

#58

Front section diagram

Fpc-025 fl

Part #188282211

$10.31

In Stock

Qty
