Model # 92028 Official Kent 20" boys' lx5 bicycle

Here are the diagrams and repair parts for Official Kent 92028 20" boys' lx5 bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Chain 072038
#26

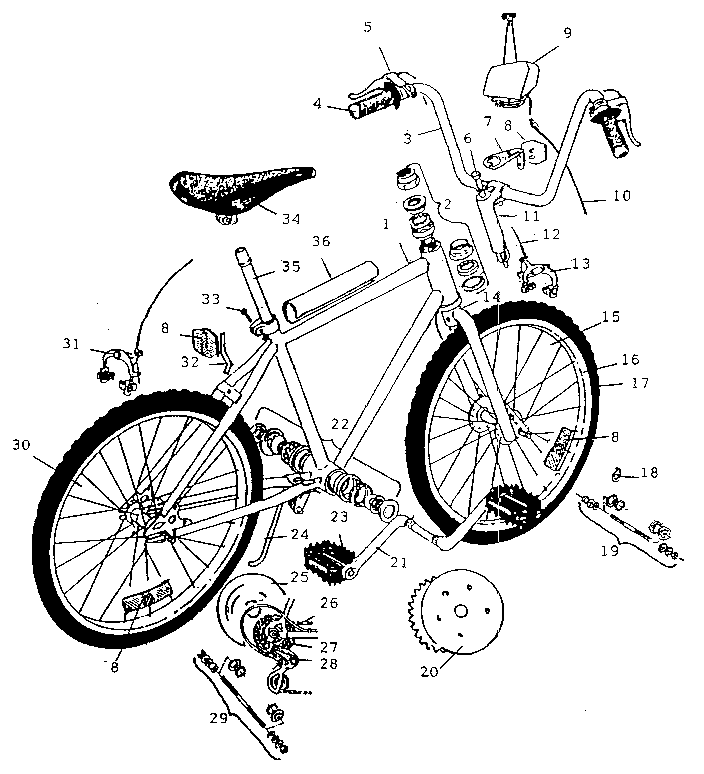

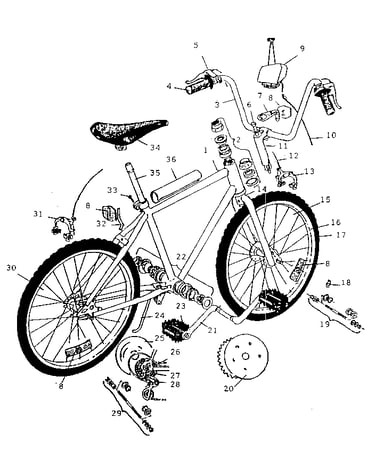

Unit parts diagram

Chain

Part #072038

The manufacturer no longer makes this part, and there's no substitute part

Rr Refl Brkt 082009
#32

Unit parts diagram

Rr refl brkt

Part #082009

The manufacturer no longer makes this part, and there's no substitute part

Pad Set 105050
#36

Unit parts diagram

Pad set

Part #105050

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle And Bearing Set 054001
#29

Unit parts diagram

Rear axle and bearing set

Part #054001

The manufacturer no longer makes this part, and there's no substitute part

Bicycle Front Axle And Bearing Assembly 053011
#19

Unit parts diagram

Bicycle front axle and bearing assembly

Part #053011

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 032027
#35

Unit parts diagram

Seat post

Part #032027

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 009079
#3

Unit parts diagram

Handlebar

Part #009079

The manufacturer no longer makes this part, and there's no substitute part

Tool 103017

#NI

All parts diagram

Tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Spkt Cluster 075001
#27

Unit parts diagram

Spkt cluster

Part #075001

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe Set 104016

#NI

All parts diagram

Brake shoe set

Part #104016

The manufacturer no longer makes this part, and there's no substitute part
