Model #JVM1650BH02 GE microwave

Here are the diagrams and repair parts for GE JVM1650BH02 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 109 parts

Microwave Turntable Motor

#43

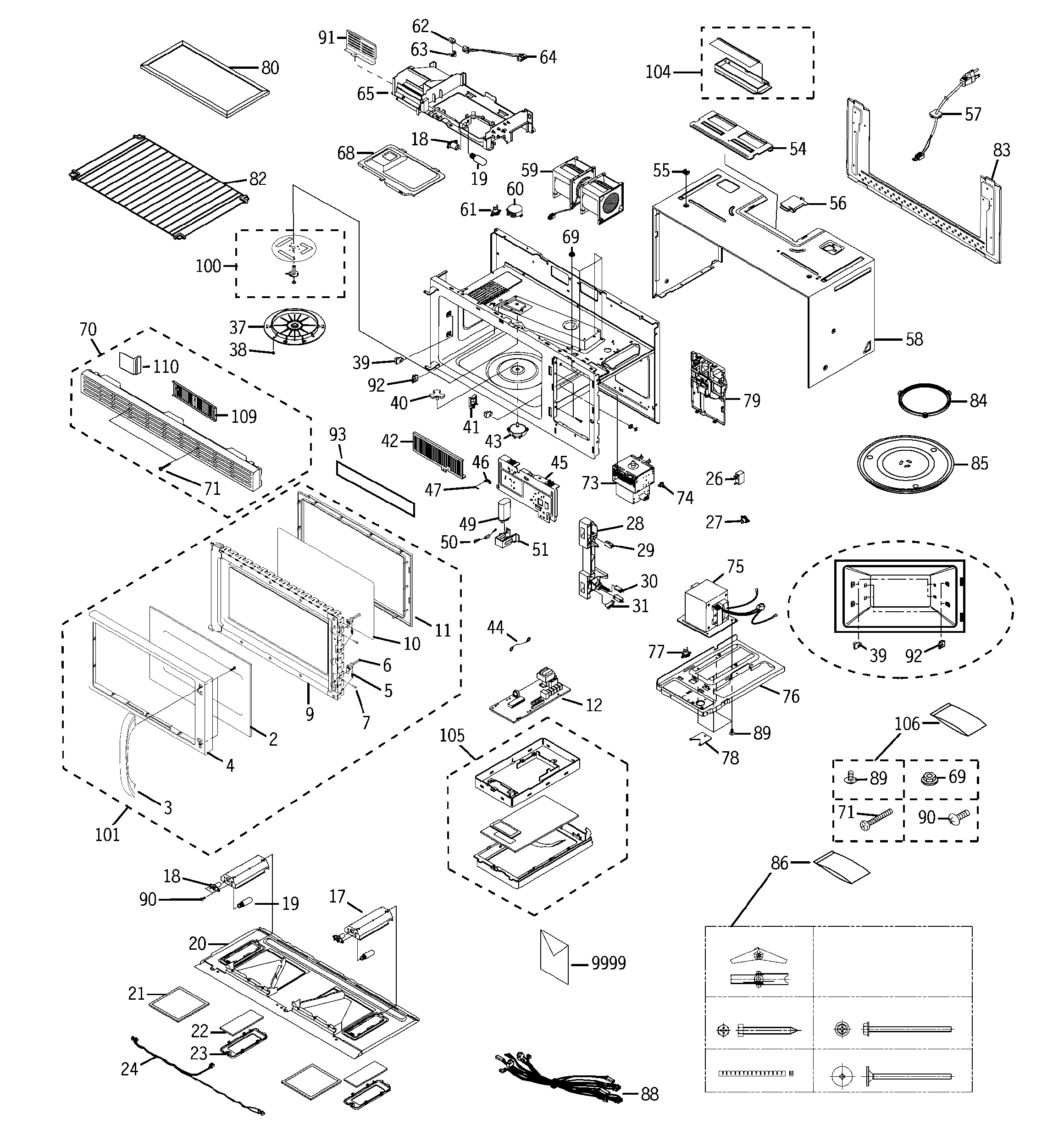

Microwave Diagram

Microwave turntable motor

Part #WB26X10038
$18.14

In Stock

Microwave Light Bulb

#19

Microwave Diagram

Microwave light bulb

Part #WB36X10003
$15.79

In Stock

Microwave Thermal Cut-Off

#61

Microwave Diagram

Microwave thermal cut-off

Part #WB27X10195
$28.93

In Stock

Microwave High-Voltage Capacitor

#49

Microwave Diagram

$60.18

In Stock

Microwave Door Handle

#3

Microwave Diagram

Microwave door handle

Part #WB15X10144
$40.48

In Stock

Microwave Turntable Motor Coupler

#40

Microwave Diagram

$9.26

In Stock

Microwave Door Handle (White)

#3

Microwave Diagram

$34.31

In Stock

Microwave Electronic Control Board

#12

Microwave Diagram

$113.46

In Stock

Microwave Mounting Nut

#55

Microwave Diagram

Microwave mounting nut

Part #WB01X10071
$7.76

In Stock

Microwave Door Outer Frame

#4

Microwave Diagram

$69.49

In Stock
