Model # 867775451 Official Kenmore gas-fired counterflow furnace

Here are the diagrams and repair parts for Official Kenmore 867775451 gas-fired counterflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Capacitor 77353
#12B

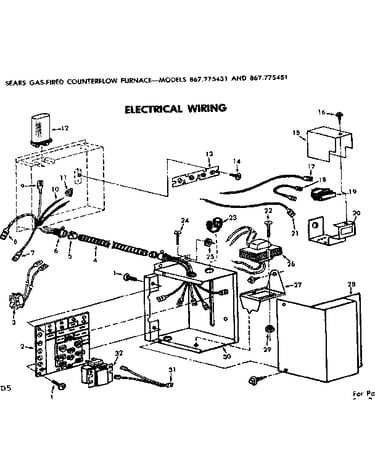

Electrical diagram

Capacitor

Part #77353

Replaced by #PAKTRCF5

?
Manufacturer substitution
This part replaces 77353. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44 |
23% OFF Phone Price : $4.44
In Stock
Thermocouple 91465
#7

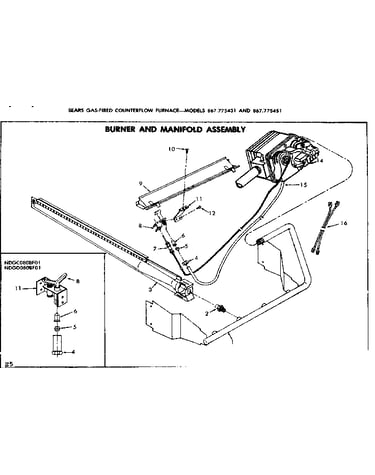

Burner and manifold diagram

Thermocouple

Part #91465

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel 601210
#12B

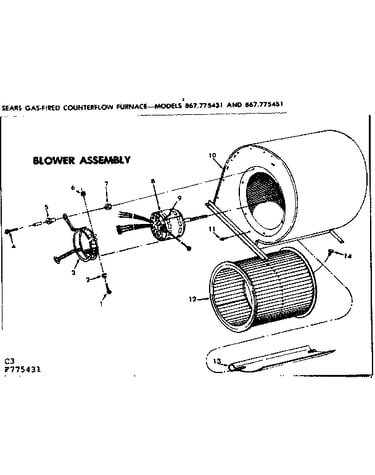

Blower assembly diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Burner 89592
#3

Burner and manifold diagram

Burner

Part #89592

Replaced by #610232

?
Manufacturer substitution
This part replaces 89592. Substitute parts can look different from the original.
$61.22
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#12A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Motor 604005
#8A

Blower assembly diagram

Motor

Part #604005

$928.46
In Stock
Furnace Door Switch 607900
#19

Electrical diagram

Furnace door switch

Part #607900

$26.43 |
16% OFF Phone Price : $31.43
In Stock
Relay 700557
#32B

Electrical diagram

Relay

Part #700557

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 65596
#7

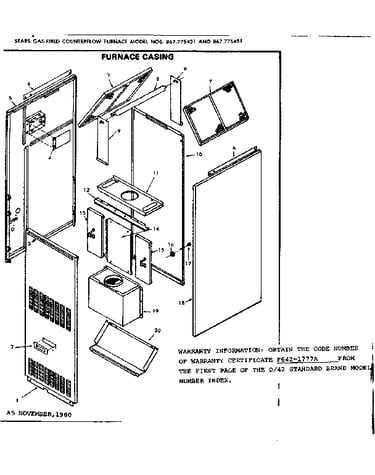

Furnace casing diagram

Air filter

Part #65596

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 607365
#25

Electrical diagram

Lock nut

Part #607365

The manufacturer no longer makes this part, and there's no substitute part
