Model # 867774220 Official Kenmore power miser gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867774220 power miser gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Switch 611872
#23

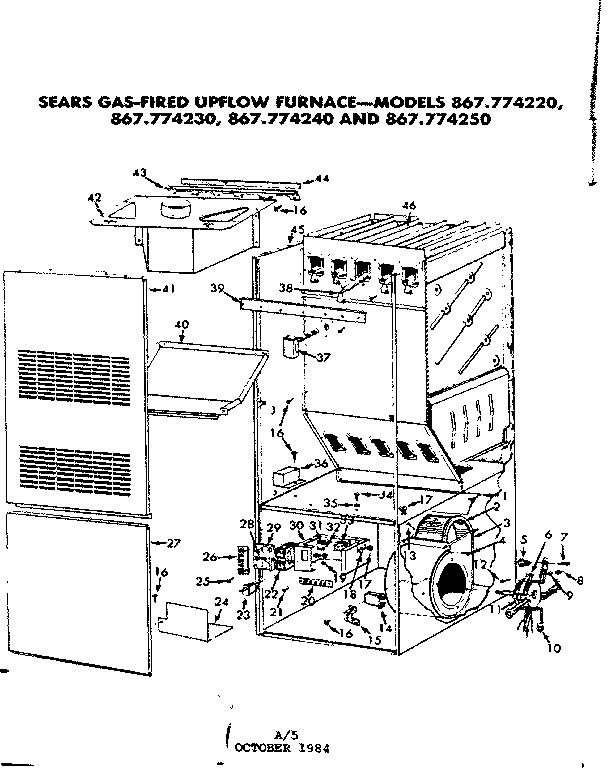

Functional replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Capacitor 613531
#14C

Functional replacement parts diagram

Capacitor

Part #613531

Replaced by #12910

?
Manufacturer substitution
This part replaces 613531. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2B

Functional replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
#2C

Functional replacement parts diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
6% OFF Phone Price : $158.95
In Stock
Furnace Blower Fan Motor 613209
#11B

Functional replacement parts diagram

Furnace blower fan motor

Part #613209

$516.47 |
$10.00 OFF Phone Price : $526.47
In Stock
Furnace Blower Wheel 89726
#2D

Functional replacement parts diagram

Furnace blower wheel

Part #89726

$218.43 |
$10.00 OFF Phone Price : $228.43
In Stock
Board Termin 612254
#26

Functional replacement parts diagram

Board termin

Part #612254

$20.06
In Stock
Furnace Blower Fan Wheel 600586
#2A

Functional replacement parts diagram

Furnace blower fan wheel

Part #600586

$127.13 |
7% OFF Phone Price : $137.13
In Stock
Control Ftl 613569
#37C

Functional replacement parts diagram

Control ftl

Part #613569

The manufacturer no longer makes this part, and there's no substitute part

Motor 613136
#11A

Functional replacement parts diagram

Motor

Part #613136

The manufacturer no longer makes this part, and there's no substitute part
